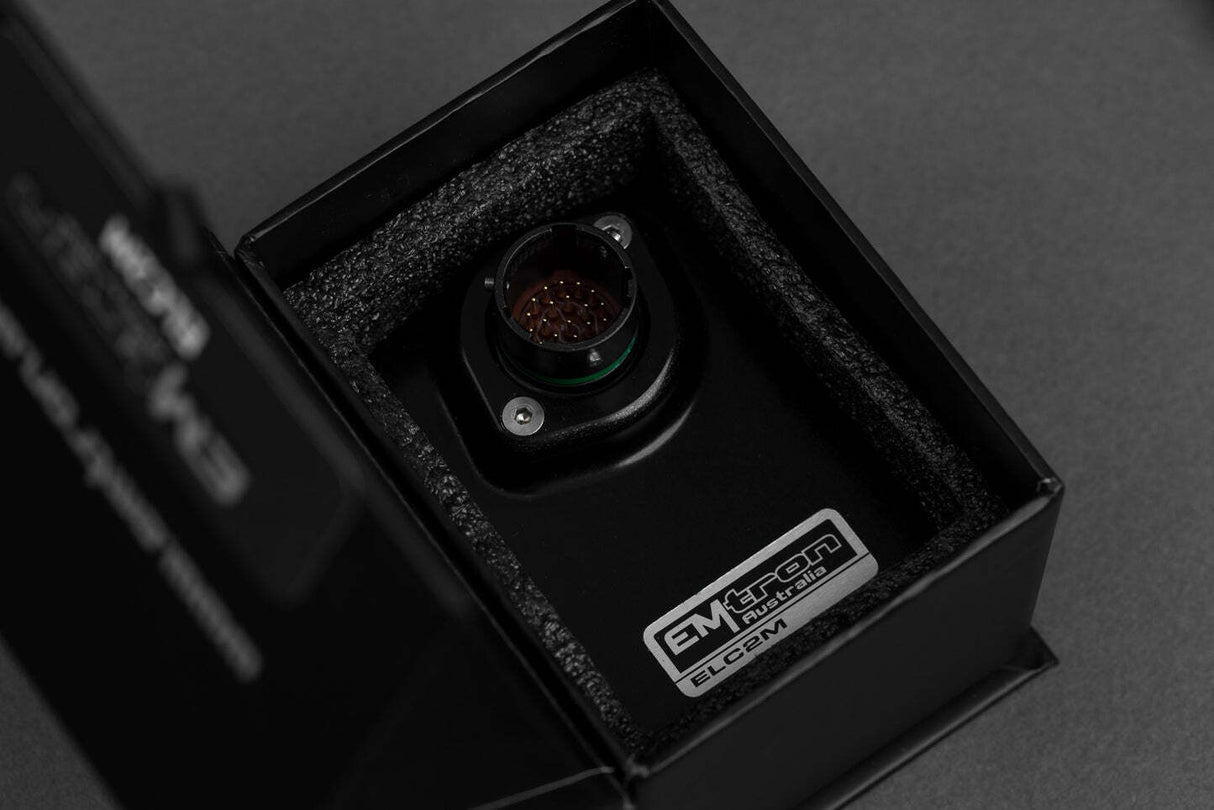

Emtron ELC2M Motorsport CAN Bus Wideband Lambda Controller
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
The Emtron ELC2M is a 2 channel Wideband O2 Sensor Control device that utilises a Bosch LSU 4.9 sensor and is compatible with all Emtron ECU’s. Bosch integrated circuit technology is used for sensor control, Nernst Cell temperature measurement and a PID algorithm for precise heater control. The device is connected via CAN bus and will be automatically detected which will significantly minimise configuration time. The enclosure is made from billet 6061 aluminium and is water proof to allow for implementation in extreme environments. Installation is made simple through use of a Motorsport proven Deutsch Autosport connector system.
Features and Benefits
Features and Benefits
- Bosch Integrated circuit technology for sensor control
- Nernst Cell temperature measurement
- PID algorithm for precise heater control
- Reverse Battery Protection
- 64MHz 16-bit Automotive Processor
- EMAP Pump Current Compensation
Technical Specifications
Technical Specifications
- Operating Voltage: 7.0 to 22.0 Volts DC
- Operating Average Current: 3A at 14.0V
- Operating Peak Current: 8A at 14.0V during sensor warm-up
- Processor: 64MHz 16-bit
- Resolution: 0.001 Lambda
- Range: 0.580 Lambda to open air
- Signal sampling rate: 100 Hz
- Operating Temperature Range: -30 to 85°C (-22 to 185°F)
