 |  SKU: 4003-04297

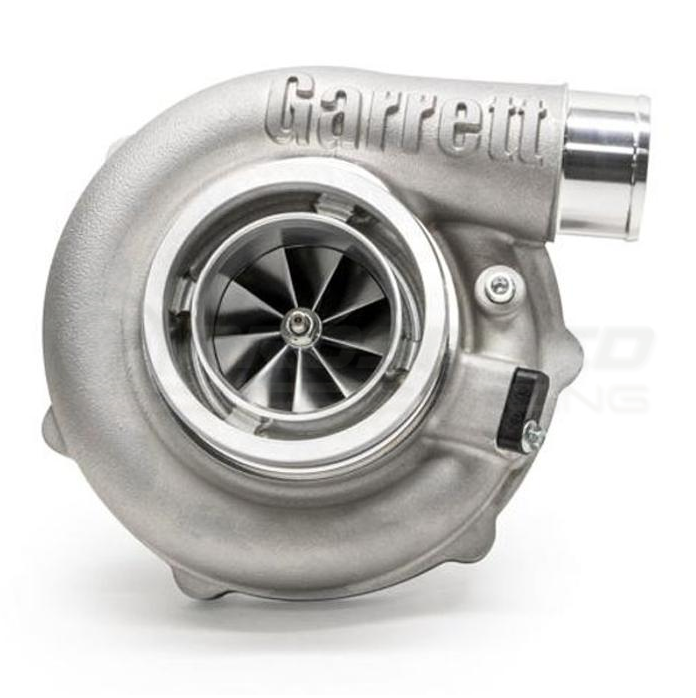

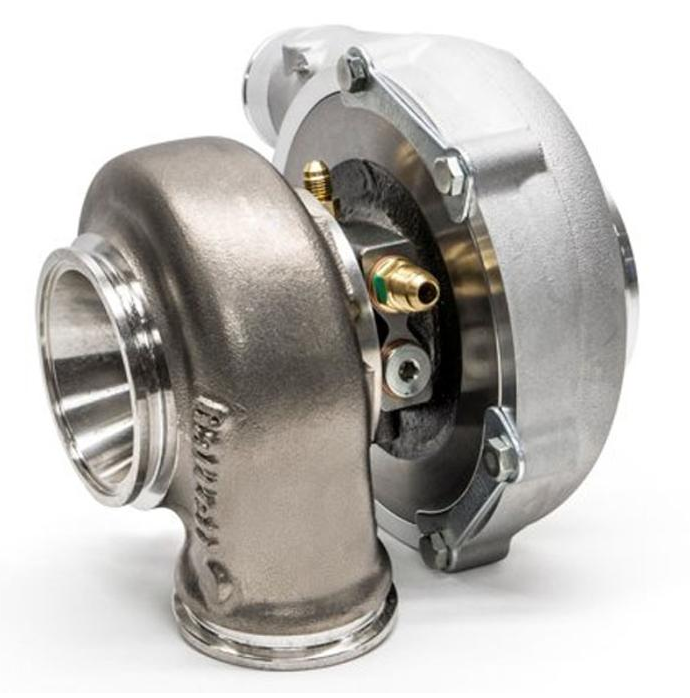

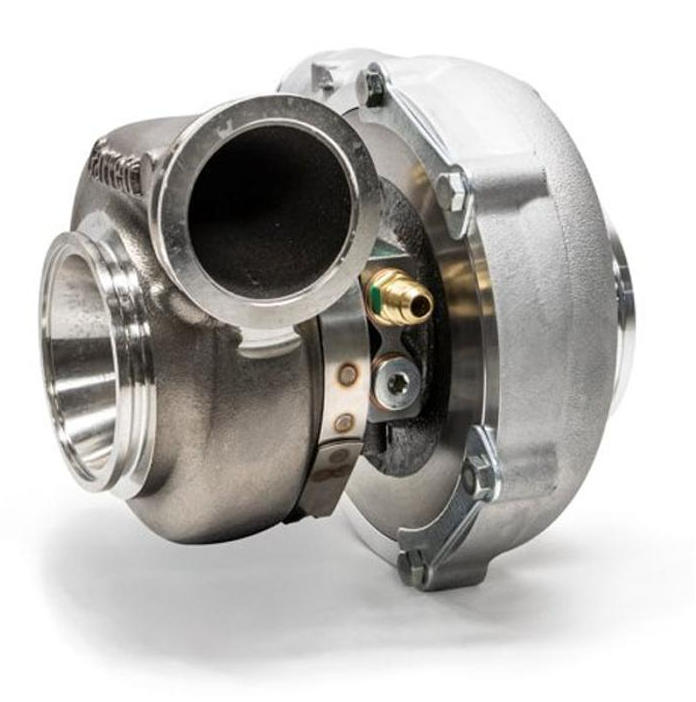

Garrett G30-900 Turbocharger 62mm/55mm EWG STD V-Band/V-Band

$3,531.00
Turbine Housing
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description
  • Bearing System: Ball Bearing
  • Cooling System: Oil & Water Cooled
  • Horsepower: 550 - 900
  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase

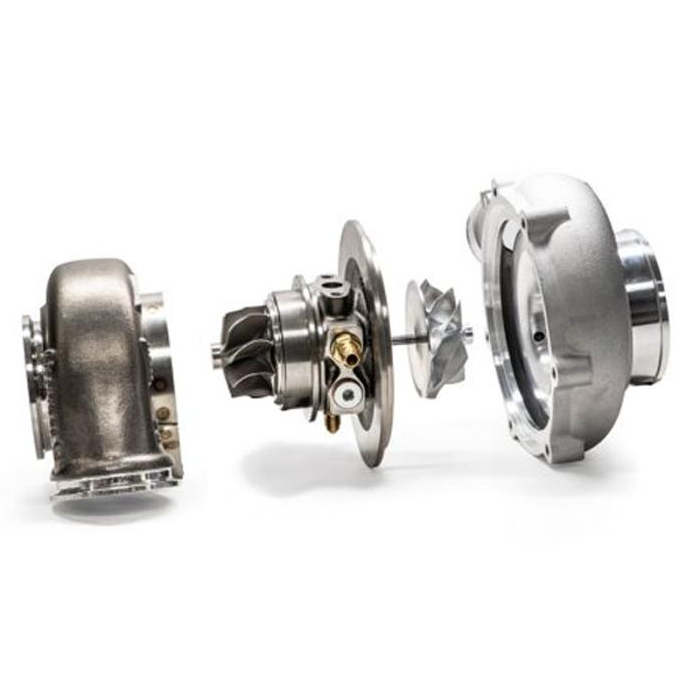

  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050 ° C | 1922 ° F
  • Stainless steel turbine housings for temperatures up to 1050 ° C | 1922 ° F

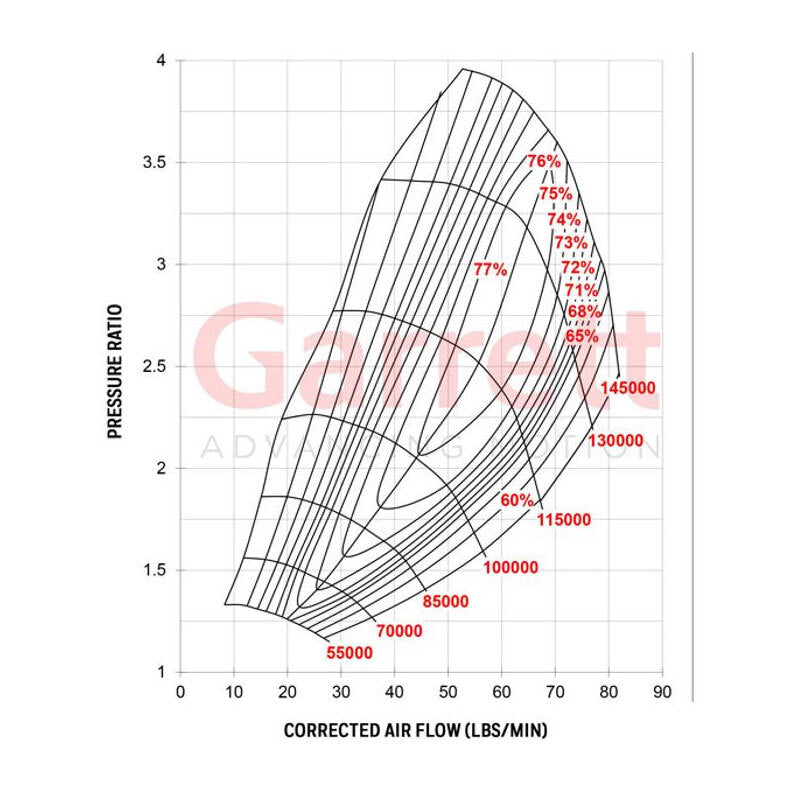

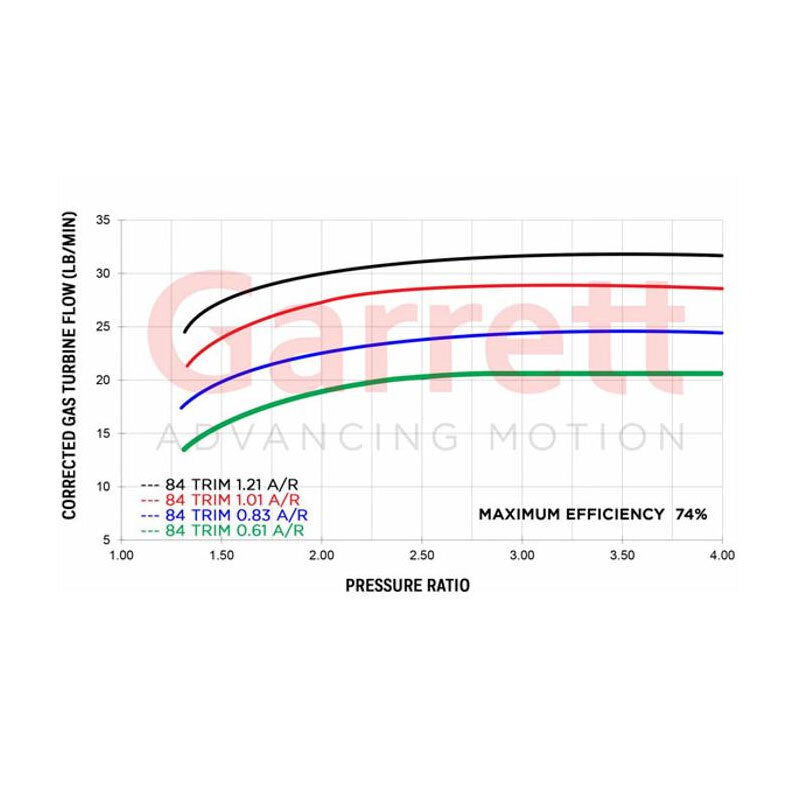

Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
62mm 76mm 65 0.72 60mm 55mm 84
