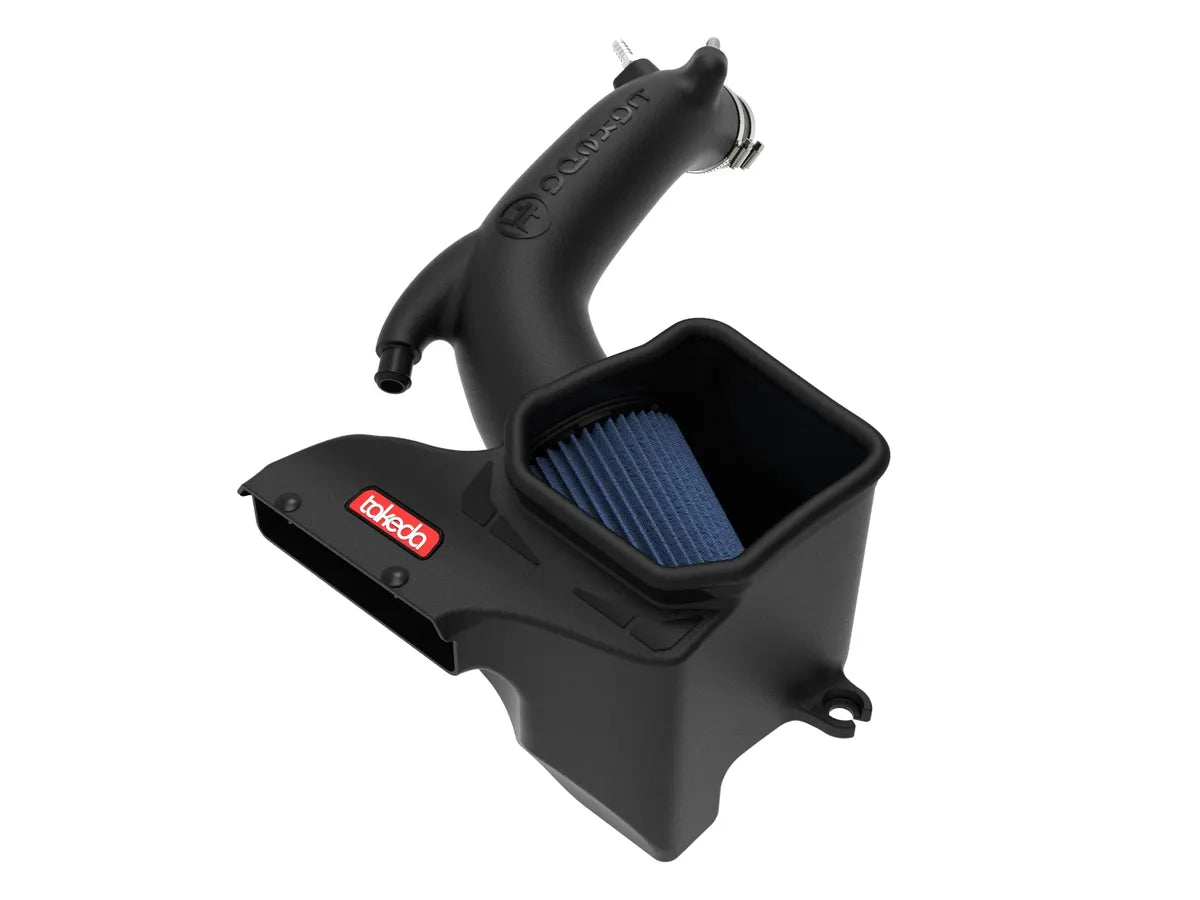

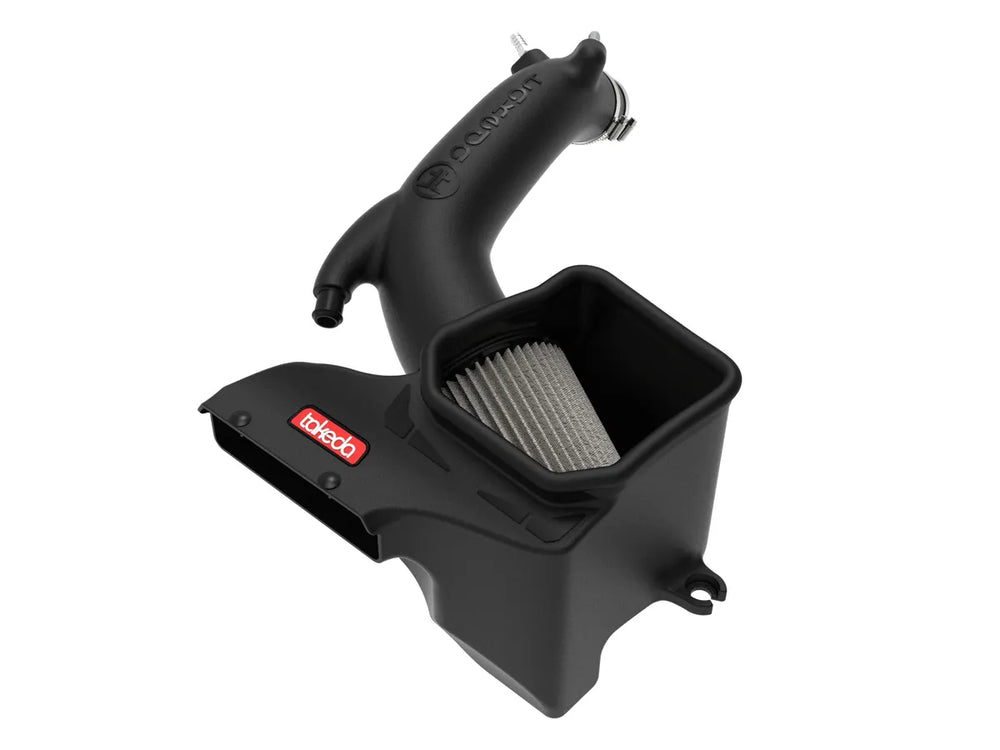

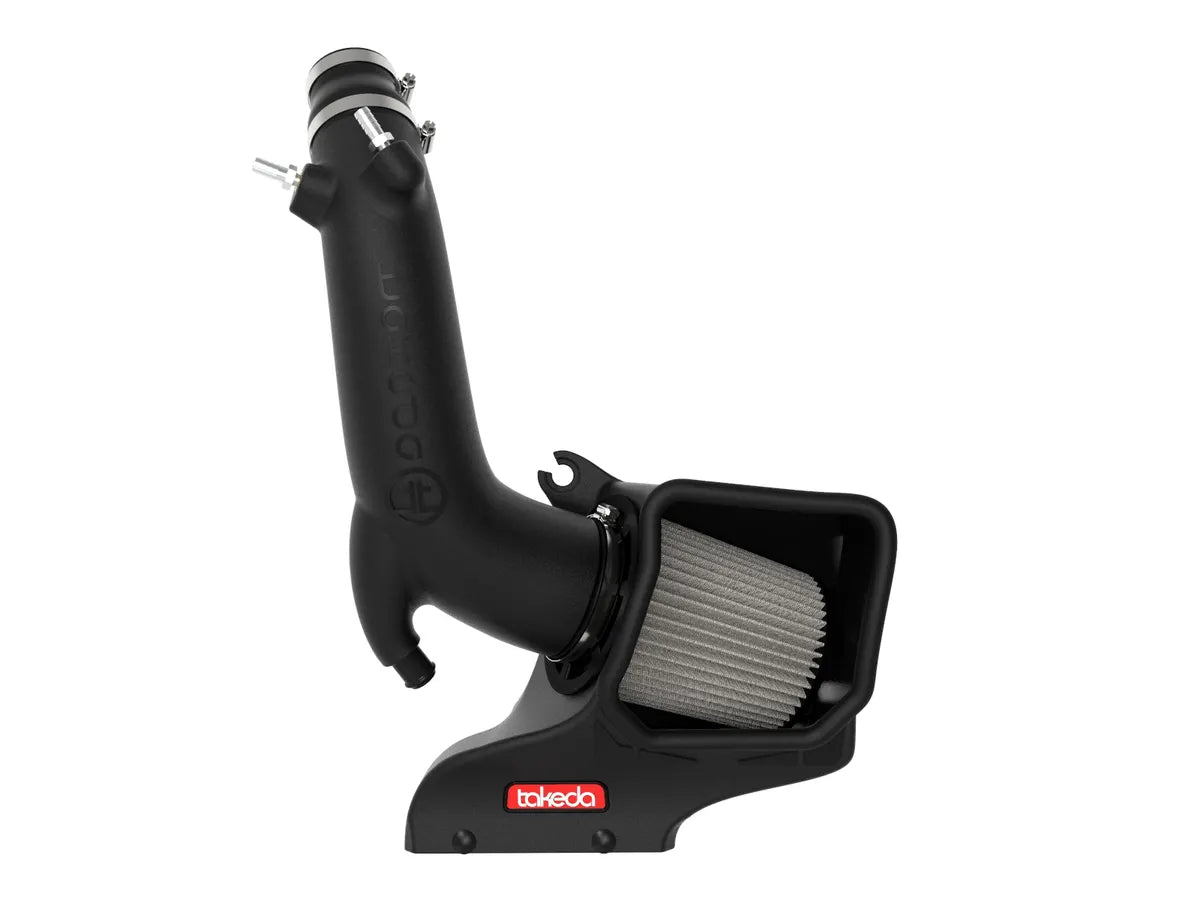

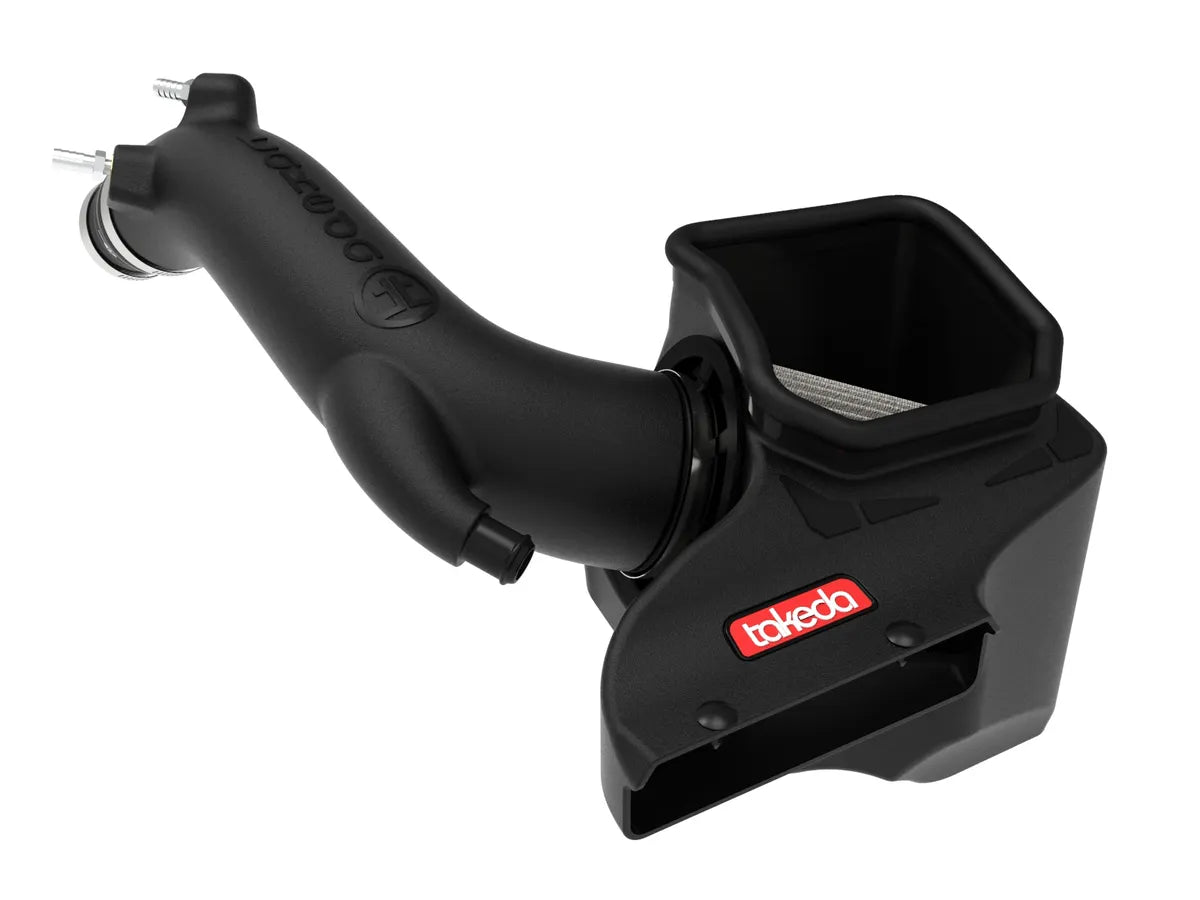

aFe Takeda Stage-2 Cold Air Intake System

Pro 5R Large Five Layer Performance Air Filter:
This 360-degree radial flow air filter features a 4" flange and our pre-oiled Pro 5R media with five layers of progressively finer cotton gauze media for maximum performance. It provides your engine with the largest amount of high-flowing air and delivers the highest power gains in most cases. This media is perfect for street and/or track use. Its inverted top makes for more filter surface area, resulting in longer service intervals.

Pro Dry S Large Three Layer Performance Air Filter:
This 360-degree radial flow air filter features a 4" flange and our oil-free Pro DRY S media with three layers of synthetic media for maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street use. Its inverted top makes for more filter surface area, resulting in longer service intervals.

Dyno-Tuned Intake Tube:
This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its XLPE material is heat soak resistant and extremely durable. It features a Takeda design inspired by import vehicles.

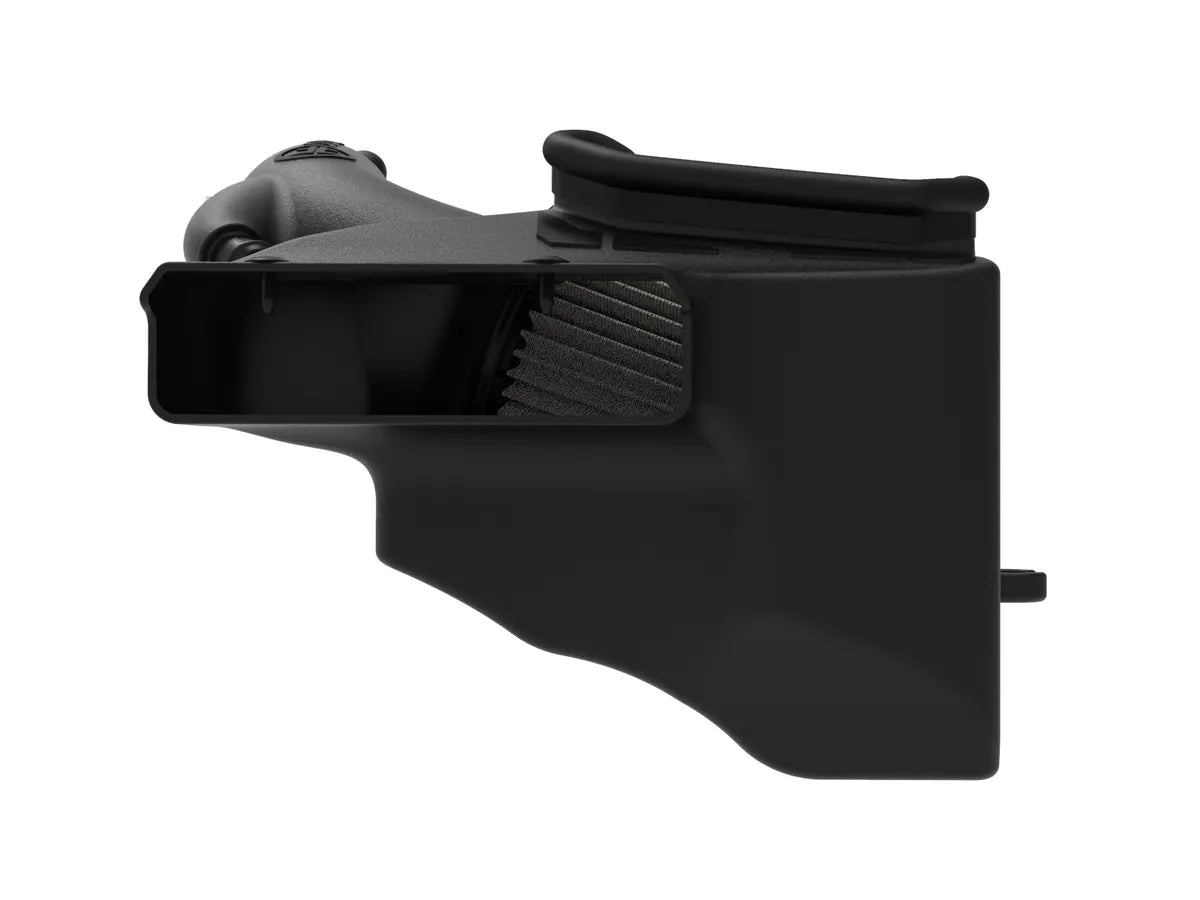

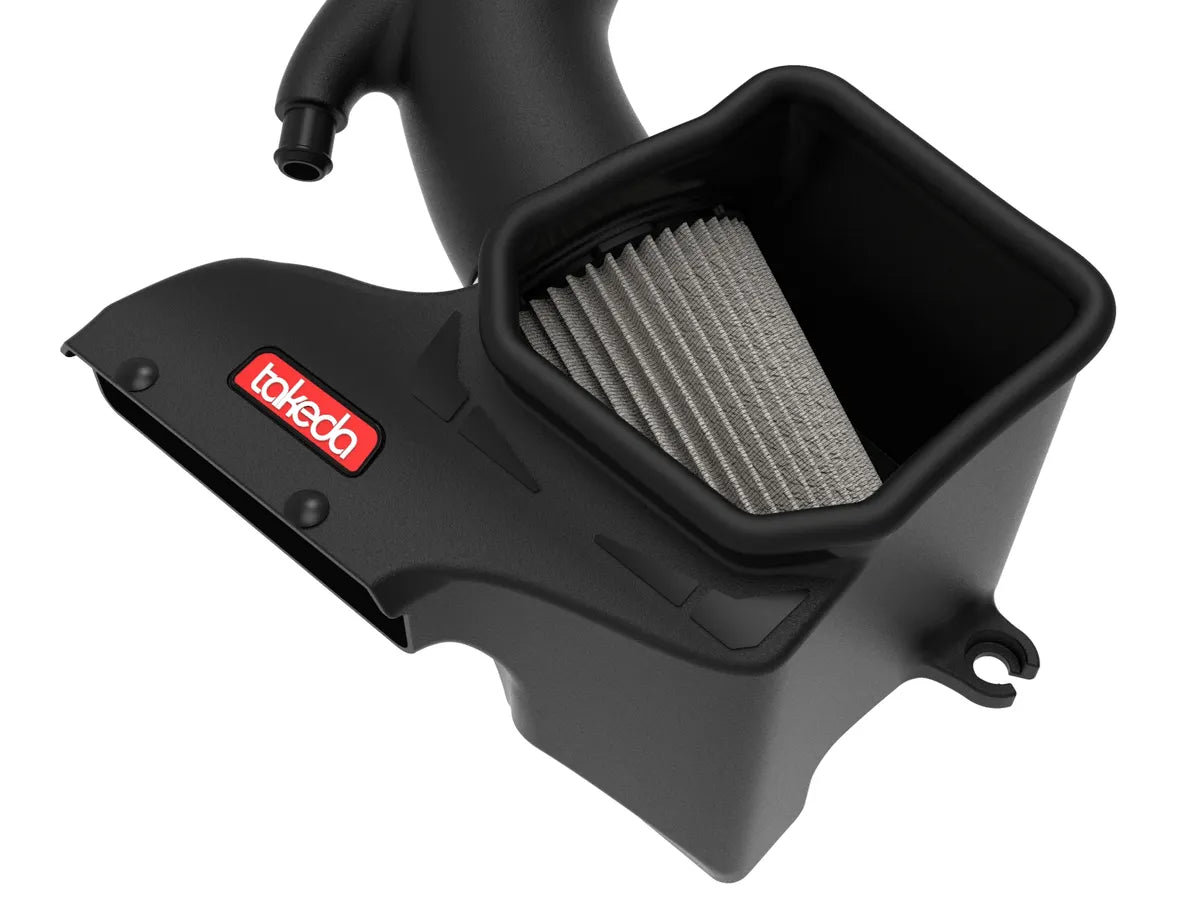

One-Piece Housing:
The included performance air filter is surrounded by an open-element XLPE (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It features an incorporated scoop to capture air from the front of the vehicle.

Hassle-Free Installation:

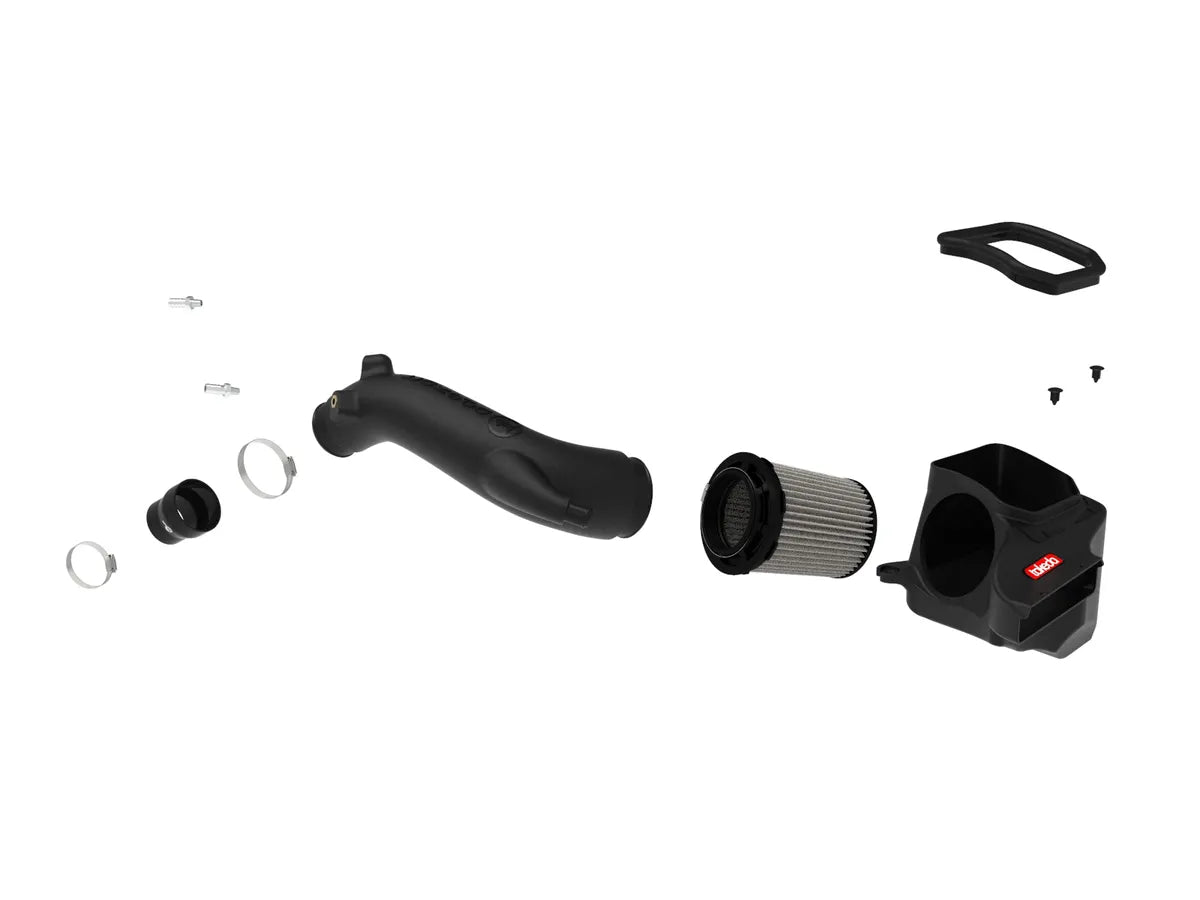

This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included. Its revolutionary design, featuring our patent pending filter-to-housing interface, uses half the number of parts of a traditional cold air intake system. Included billet aluminum fittings allows stock connections to transfer over seamlessly.

Optional Turbo Inlet:
To maximize the amount of air going to the this Air Intake System, Takeda Turbo Inlet 59-20002 is available. This Turbo Inlet will remove the air flow restriction of the factory turbo inlet, providing a smooth transition for the air from the Takeda Air Intake tube to the turbo.

• Dyno-Proven Gains up to +11 HP and +10 Lbs. x Ft. TQ (Pro 5R), Dyno-Proven Gains up to +9 HP and +8 Lbs. x Ft. TQ (Pro Dry S)
• Outflows Factory Intake by 35% (Pro 5R), 30% (Pro Dry S)
• Measured Flow: 270 CFM @ 7" H20 (Pro 5R), Measured Flow: 260 CFM @ 7" H20 (Pro Dry S)
• Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound

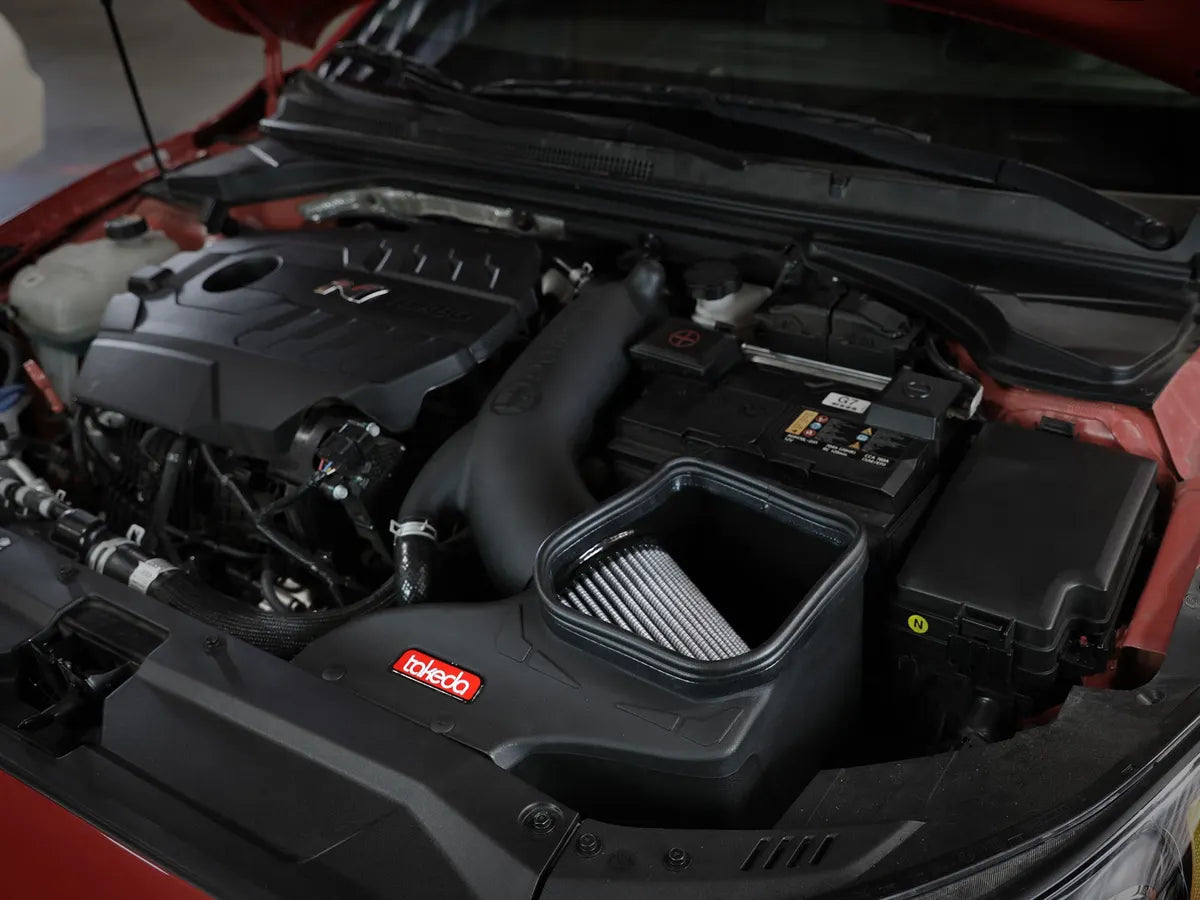

• One-Piece Housing Captures Air Directly from Behind Front Grille
• Oversized Tube with Import-Inspired Design
• Innovative Filter-to-Housing Interface and Minimal Hardware for Fast and Easy Installation (Roughly 20 Minutes)
• Washable and Reusable Pro 5R or Pro Dry S Air Filter for Maximum Performance

• Installation Instructions
