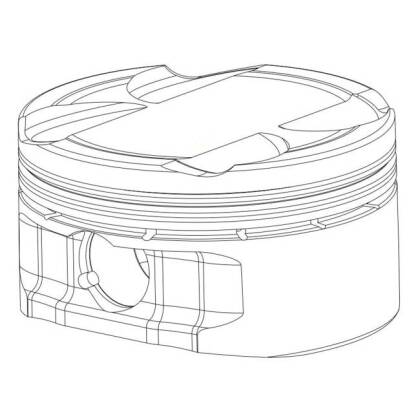

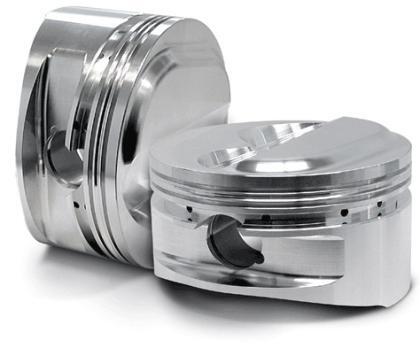

CP Pistons Forged Pistons Set of 5 - 9.5:1 Compression

CP-Carrillo pistons are compatible with oversized valves and high lift camshafts. CP Pistons represent the highest quality and is engineered for maximum power. Pistons can be ordered with gas ports, skirt coating, ceramic top coating and stronger wrist pins if desired. Cometic head gaskets and King Bearings also available.

• Deep valve reliefs accommodate high lift camshafts
• Larger valve reliefs for
• +1mm valve sizes
• Custom skirt cam and barrel design
• Accumulator grooves
• High strength aluminum forgings
• High performance rings
• Fully CNC machined and balanced to +/- 1 gram
• Wrist pins included at no additional cost
• Double pin oilers force fed from oil ring groove
• Pin lock grooves for easy lock removal
• Pin fitting included

• Bore: 82.50mm or 83.0mm
• Compression Ratio 9.5:1
• Set of 5
