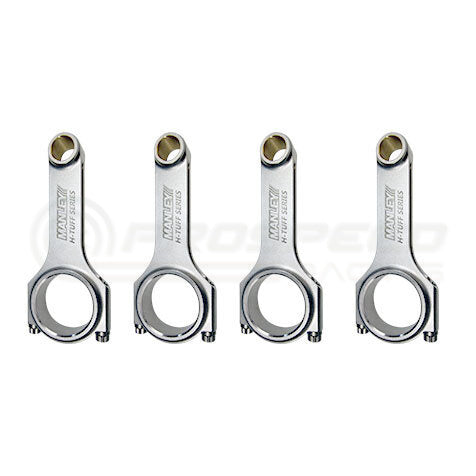

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.
Technical Specifications
Technical Specifications
Part # | Center-to-Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Gram Weight |
15024-4 (H-Tuff) | 5.137" | 2.165" | .840" | .9055" ( 23mm ) | .9063" | 575 |
