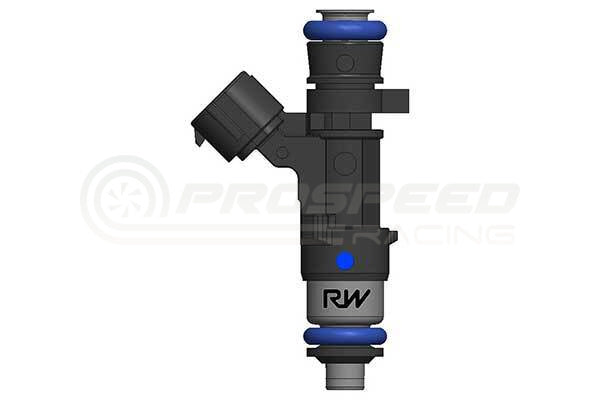

Raceworks Single 1200cc 3/4 Length Fuel Injector 14mm (Denso Plug)

Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.

Features:

• Modified/High Flowed Bosch Injector
• Size: 1200cc (114 Lb/hr) @ 3bar and 1400cc (133Lb/hr) @ 4bar.
• Impedance: High (12 Ohms)
• Plug: Denso. Top O-Ring: 14mm.
• Ethanol & Methanol Safe
• Spray Pattern: Narrow Cone
• Spray Direction: Straight
• Sold flow matched to a +/- 1% Variance (2% Total)

Flywheel power figures per injector (Estimated):

Direct fit applications*:

• Nissan 350Z V6
• Nissan 370Z V6
• Nissan GT-R R35 V6 Twin Turbo
• Nissan Patrol TB48 I6
• Nissan Skyline R34 RB25 I6
• Nissan Stagea WGC34/WGNC34 RB25 I6
• Subaru Impreza GD/GG H4 N/A

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
