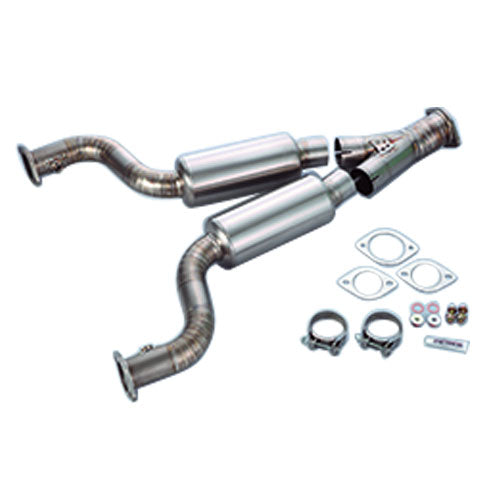

Tomei Titanium Resonated Y-Pipe

Naturally aspirated engines often get excessively loud when the exhaust system is upgraded. The Tomei Ti RACING Titanium Mid Y-Pipe is designed to reduce noise levels while maintaining the high-flow performance of our previous non-resonated model. This is achieved by adding glass pack resonators to each exhaust bank. This newly redesigned Y-Pipe is the perfect solution for drivers who feel their current exhaust setup is too loud but don’t want to sacrifice performance. When paired with the Tomei Ti RACING Exhaust Muffler, you can achieve a true straight 80mm exhaust system with no restrictions at the connection point (specific fitment for 350Z).

SILENCER R (1)

SILENCER L (1)

COLLECTOR PIPE (1)

FLANGE BOLT (2)

FLANGE NUT (2)

CLAMP BAND (2)

GASKET φ60 (2)

GASKET φ80 (1)

BLIND PLUG (2)

COPPER WASHER (2)

BOLT SMOOTH PASTE (1)

General Notes:

• Floor Support Bar (Tomei Part # 671001) is required to clear the factory cross member when installing this exhaust on Z33 / 350Z (available separately).
