 |  SKU: W23617

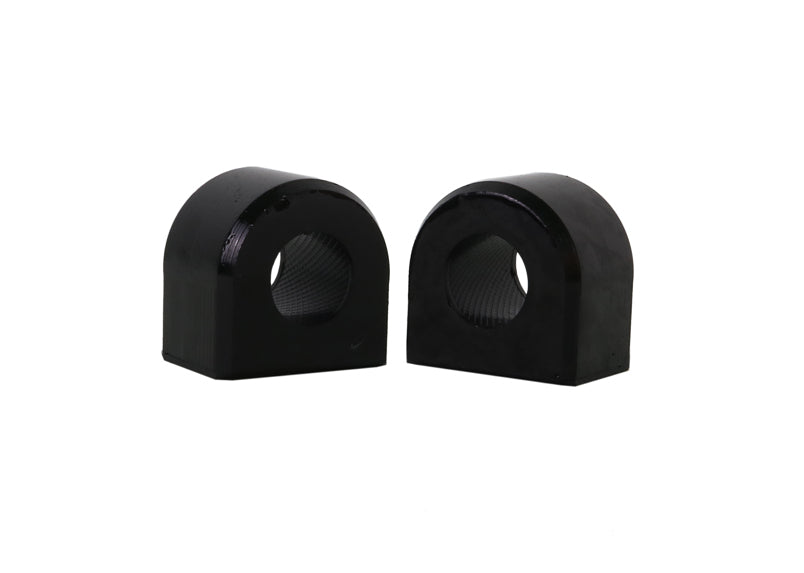

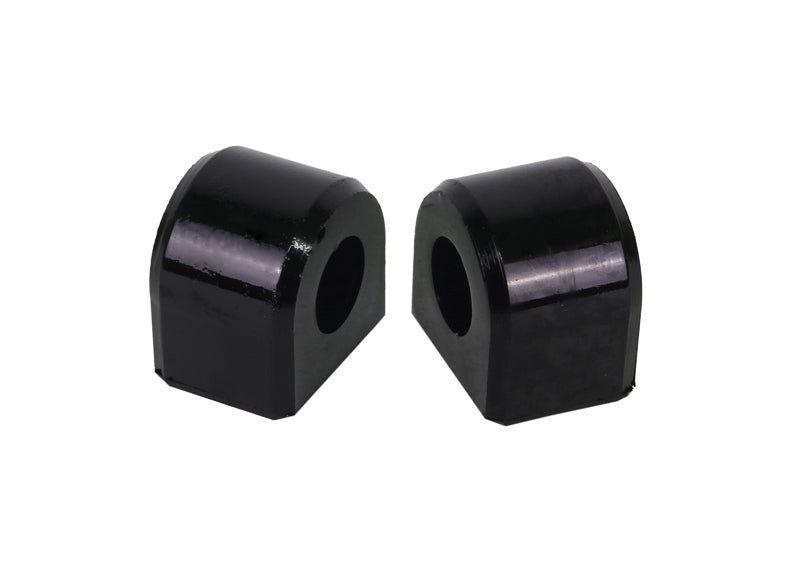

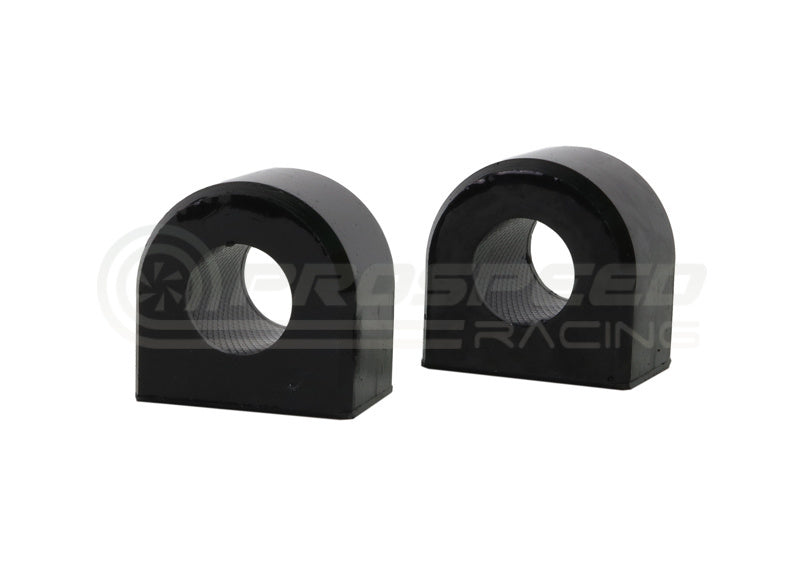

Whiteline Front Sway Bar Mount Bushing 22.5mm

VW Golf Mk5, Mk6 Inc GTI, R, R32/Jetta Mk5, Mk6
$30.82
RRP $36.26 (Save 15%)

Description


One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.



Features:

  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty including parts and labour.

    •

    Kit Includes:

  • 2 Bushings, Grease

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: N/A
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 2004-2015 VOLKSWAGEN CADDY MK3 (TYP 2K) 4MOTION 4CYL (22.5mm)
  • 2003-2009 VOLKSWAGEN GOLF MK5 (TYP 1K AND 1KP) 4/6CYL (22.5mm)
  • 2008-2013 VOLKSWAGEN GOLF MK6 (TYP 5K) 4/6CYL (22.5mm)
  • 2003-2009 VOLKSWAGEN GOLF MK5 GTI (TYP 1K AND 1KP) 4/6CYL (22.5mm)
  • 2008-2013 VOLKSWAGEN GOLF MK6 GTI (TYP 5K) 4/6CYL (22.5mm)
  • 2003-2009 VOLKSWAGEN GOLF MK5 R32 (TYP 10K AND 1KP) 4/6CYL (22.5mm)
  • 2008-2013 VOLKSWAGEN GOLF MK6 R (TYP 5K) 4/6CYL (22.5mm)
  • 2006-2010 VOLKSWAGEN JETTA A5 MK5 (TYP 1K) 4/5CYL (22.5mm)
  • 2010-2018 VOLKSWAGEN JETTA A6 MK6 (TYP 1B) 4/5CYL (22.5mm)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
    2245.522.535.5
