 |  SKU: KTA240

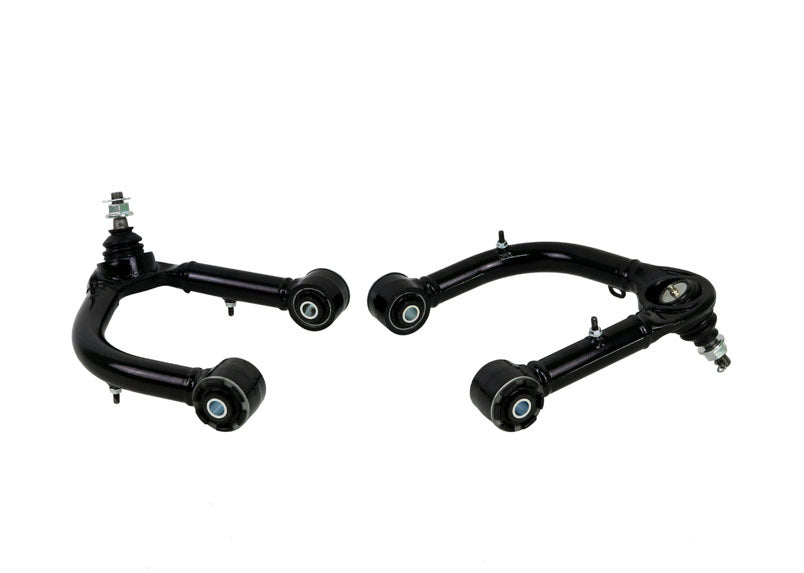

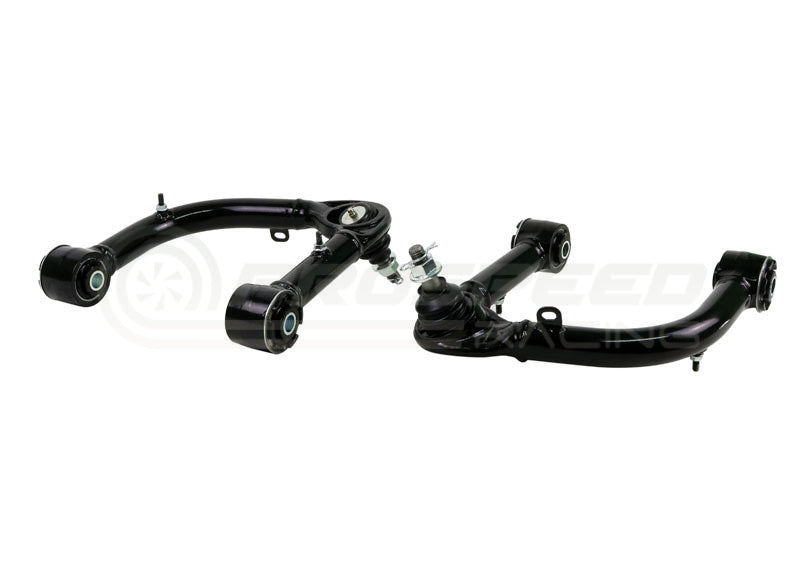

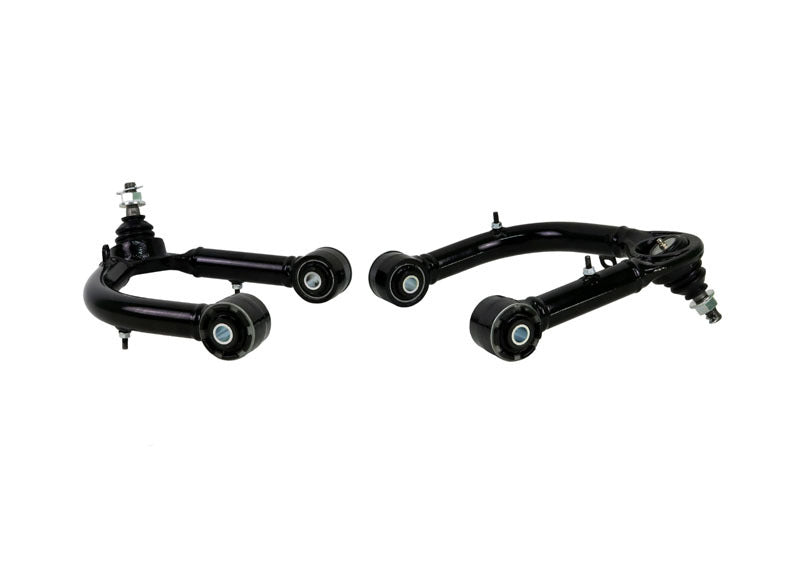

Whiteline Front Upper Control Arm

Ford Everest/Ranger PXI, PXII, PXIII/Mazda BT-50 UP, UR
$925.17
RRP $1,088.44 (Save 15%)

Earn [points_amount] when you buy this item.

Description


A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.



Features:

  • Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
  • Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
  • Articulation voids deliver necessary suspension articulation and/or compression under loads.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

  • 2 Arms, Install Guide

    •

    Alignment Change:

  • Camber/Caster

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 2
  • Degree Of Fitment Difficulty: DIY - With Specialist Tools
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: Yes

    •

    Vehicle Fitment and Important Notes:

  • 2015-ON FORD EVEREST UA, UAII 4/5CYL (Complete pair of fixed offset alignment correction arms - a must for raised vehicles)
  • 2011-2015 FORD RANGER PX I 4WD 4/5CYL (Complete pair of fixed offset alignment correction arms - a must for raised vehicles)
  • 2015-2018 FORD RANGER PX II 4WD 4/5CYL (Complete pair of fixed offset alignment correction arms - a must for raised vehicles)
  • 2018-ON FORD RANGER PX III 4WD 4/5CYL (Complete pair of fixed offset alignment correction arms - a must for raised vehicles)
  • 2011-2015 MAZDA BT-50 UP 4WD 4/5CYL (Complete pair of fixed offset alignment correction arms - a must for raised vehicles)
  • 2015-ON MAZDA BT-50 UR 4WD 4/5CYL (Complete pair of fixed offset alignment correction arms - a must for raised vehicles)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
    2Complete Suspension Arm

    Arm Specifications:

    ARM TYPEUNITSINCL BALL JOINTADJUSTABLE
    AlignmentPairYesNo
