Before purchasing please read compatibility notes below

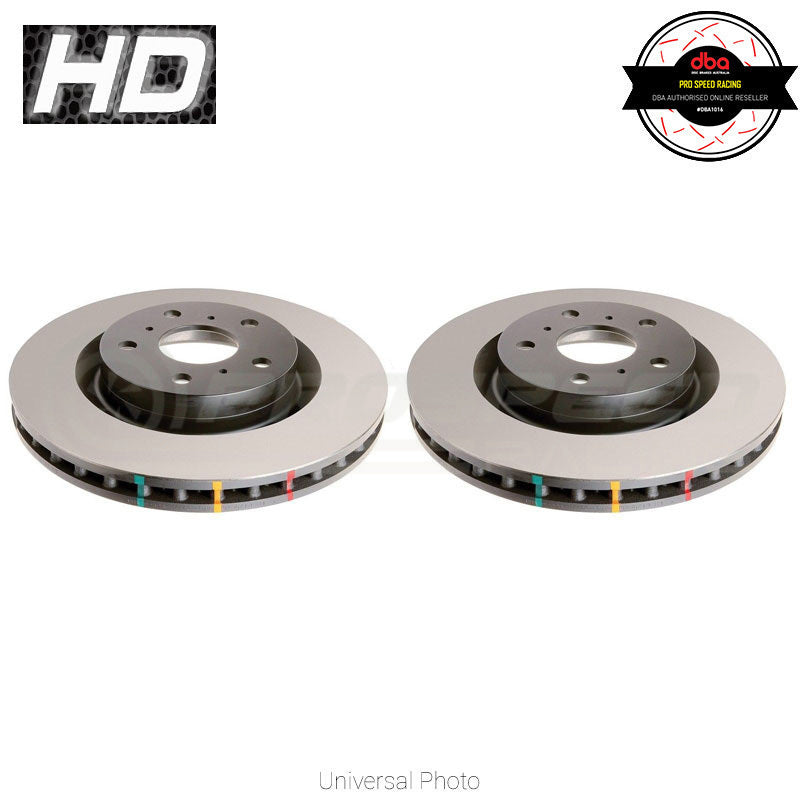

DBA's 4000 Series disc brake rotors are a direct replacement single-piece brake rotor, designed for drivers seeking upgraded performance braking in the Specifications tab and beyond standard OE levels. Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling (TSP), DBA's metallurgy is able to handle the increased stress and heat generated under intense braking applications, time and time again.
Featuring DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).
DBA's 4000 Series HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as under controlled race divisions.
Features (Where Applicable):
Kangaroo Paw 144 diamond and tear drop pillar ventilation system
- Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
- Special formulation designed to respond to DBA's TSP process.
Thermographic Temperature Monitoring
- Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
- When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.
Paint protection on non-friction areas
- Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
Notes Regarding Vehicle Compatibility:
Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided here:
Dimensions:
- Diameter (mm): 310
- Thickness (mm): 22
- Height (mm): 48.5
- Centre Hole Diameter (mm): 65
- Minimum Thickness (mm): -
- Drum Maximum Diameter (mm): N/A
- Wheel/Stud Holes: 5
Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.
Vehicle Fitment:
These discs may be compatible with the following models with OEM discs matching dimensions above:
- Audi A3 8V
- Audi S3 8P, 8V
- Audi RS3 8P, 8V
- Audi Q3 F3
- Audi RSQ3 F3
- Audi SQ2 GA
- Audi TTS 8S
- Audi TTRS 8S
- Skoda Kodiaq NS
- Skoda Octavia NE
- Skoda Octavia RS NE
- Skoda Octavia NX
- Skoda Octavia RS NX
- Skoda Superb 3T
- Skoda Superb NP
- Volkswagen Arteon 3H
- Volkswagen EOS 1F
- Volkswagen CC 3C
- Volkswagen Passat B6
- Volkswagen Passat B7
- Volkswagen Passat B8
- Volkswagen Passat R36 B7
- Volkswagen Golf GTI Edition 35 Mk6
- Volkswagen Golf GTI TCR Mk7
- Volkswagen Golf GTI Mk8
- Volkswagen Golf R32 Mk5
- Volkswagen Golf R Mk6
- Volkswagen Golf R Mk7, Mk7.5
- Volkswagen Golf R Mk8
- Volkswagen Scirocco R Mk3
- Volkswagen T-Roc R-Line A11
- Volkswagen Tiguan R-Line 5N Mk2
In addition we recommend checking the DBA Part Finder to see if there may be multiple brake rotor options for your car:
DBA Part Finder
Vehicle fitment in this listing is to be used as a rough guide only and may not suit your vehicle. Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.
