Before purchasing please read compatibility notes below

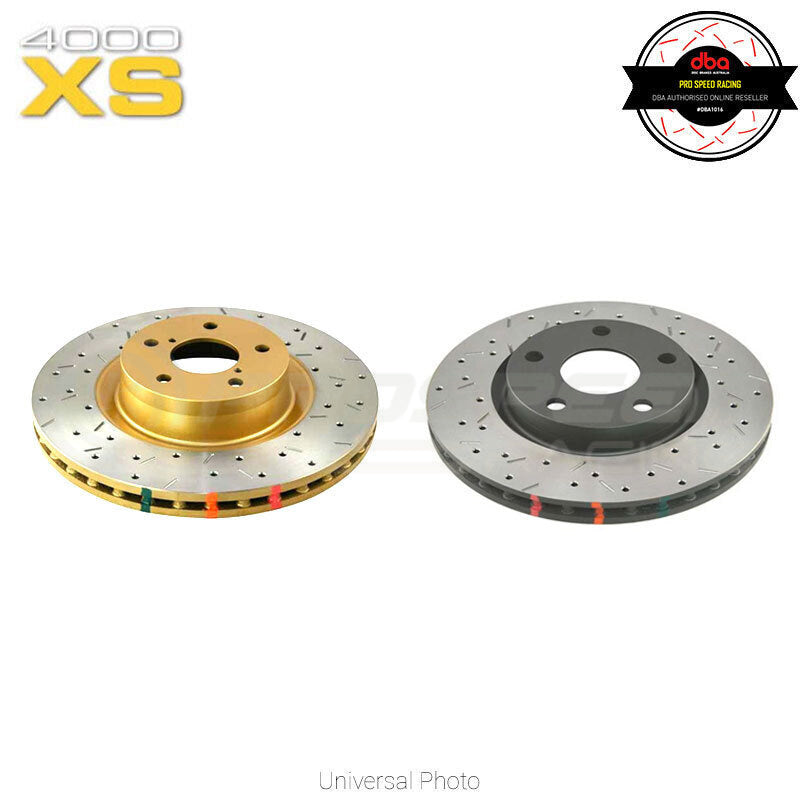

The 4000XS is a premium cross-drilled and slotted pattern designed to work in conjunction with DBA's patented Kangaroo Paw ventilation system. The XS pattern increases the number of out-gassing exit points to allow brake pad friction gasses to escape through. This increases the consistency and effectiveness of every brake stop. These rotors also feature DBA's proprietary XG-150 high carbon alloyed iron and Thermal Stability Profiling (TSP) which prolongs the service life of the rotor.
DBA's revolutionary universal drill and slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs. For the spirited driver or performance modified street vehicle, the XS cross-drilled and slotted design is the best option.
Features (Where Applicable):
Kangaroo Paw 144 diamond and tear drop pillar ventilation system
- Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XS precision CNC machined slots and cross drilling
- Increased number of out-gassing exit points for brake pad friction gasses to escape through increases the consistency and effectiveness of every brake stop.
- Universal drill and slot design eliminates the need for left and right discs
XG150 High Carbon Alloyed Iron
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
- Special formulation designed to respond to DBA's TSP process.
Thermographic Temperature Monitoring
- Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
- When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.
Paint protection on non-friction areas
- Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
Notes Regarding Vehicle Compatibility:
Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided here:
Dimensions:
- Diameter (mm): 310
- Thickness (mm): 22
- Height (mm): 48.5
- Centre Hole Diameter (mm): 65
- Minimum Thickness (mm): -
- Drum Maximum Diameter (mm): N/A
- Wheel/Stud Holes: 5
Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.
Vehicle Fitment:
These discs may be compatible with the following models with OEM discs matching dimensions above:
- Audi A3 8V
- Audi S3 8P, 8V
- Audi RS3 8P, 8V
- Audi Q3 F3
- Audi RSQ3 F3
- Audi SQ2 GA
- Audi TTS 8S
- Audi TTRS 8S
- Skoda Kodiaq NS
- Skoda Octavia NE
- Skoda Octavia RS NE
- Skoda Octavia NX
- Skoda Octavia RS NX
- Skoda Superb 3T
- Skoda Superb NP
- Volkswagen Arteon 3H
- Volkswagen EOS 1F
- Volkswagen CC 3C
- Volkswagen Passat B6
- Volkswagen Passat B7
- Volkswagen Passat B8
- Volkswagen Passat R36 B7
- Volkswagen Golf GTI Edition 35 Mk6
- Volkswagen Golf GTI TCR Mk7
- Volkswagen Golf GTI Mk8
- Volkswagen Golf R32 Mk5
- Volkswagen Golf R Mk6
- Volkswagen Golf R Mk7, Mk7.5
- Volkswagen Golf R Mk8
- Volkswagen Scirocco R Mk3
- Volkswagen T-Roc R-Line A11
- Volkswagen Tiguan R-Line 5N Mk2
In addition we recommend checking the DBA Part Finder to see if there may be multiple brake rotor options for your car:
DBA Part Finder
Vehicle fitment in this listing is to be used as a rough guide only and may not suit your vehicle. Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.
