| SKU:
TS-0605-1072

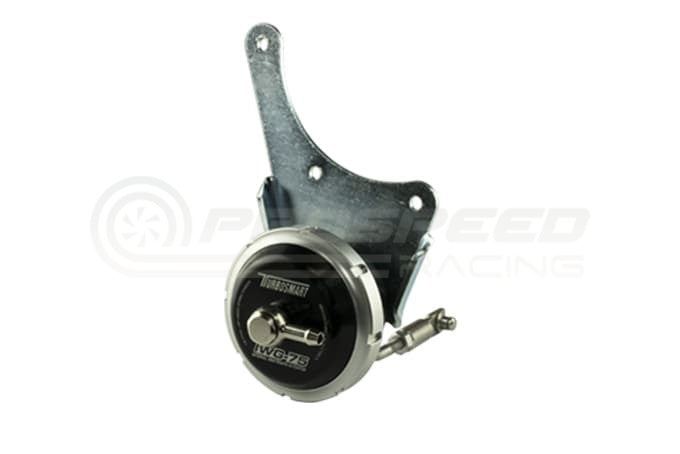

Turbosmart IWG75 Internal Wastegate Actuator 7psi
Subaru WRX 09-14/STI 06-21
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Features
- Proprietary Silicon Nomex Diaphragm
- Choice of Springs from 3psi to 26psi (Optional)
- High Grade Billet Aluminum Construction
- Stainless Steel Rods and Clevis
- Turbosmart Unique Locking Collar System
Vehicle Fitment:
This is a bolt on fitment for the following VF Series turbos: VF39, VF43, VF48 and VF52
- 2006-2007 Subaru STI (VF39/VF43)
- 2008-2014 Subaru STI (VF48)
- 2015-2021 Subaru STI (VF48)
- 2009-2014 Subaru WRX (VF52, does not suit 2008 WRX with TD04 turbo)
