 |  SKU: 5M1144H-STD

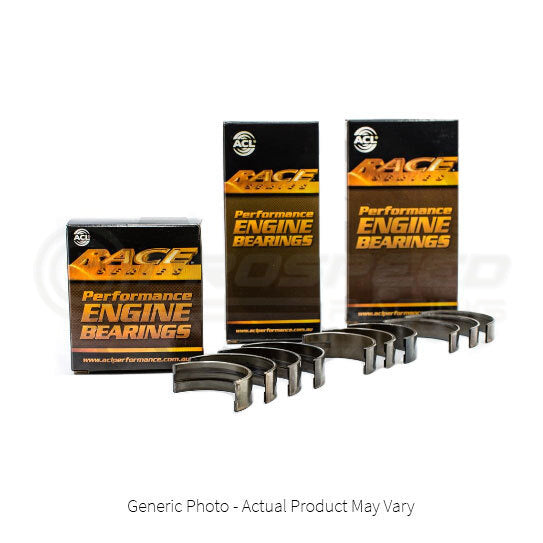

ACL High Performance Main Bearing Set STD Size

Mitsubishi 4G63/4G64 6 Bolt
$219.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.

Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.

Technical Specifications

  • Max Std Tunnel Size: 2.4024" (61.021mm)
  • Max Wall at Crown: 0.0783" (1.990mm)
  • Size: Standard
  • Max Std Shaft Size: 2.2441" (57.000mm)
  • Min Std Shaft Size: 2.2433" (56.980mm)
  • Max Overall Length: 0.906" (23.00mm) w/ 1147H/HX & 1144H/HX 1.140" (28.95mm) w/ 1148H/HX Flange
  • Oil Clearance: Standard
  • Min Std Tunnel Size: 2.4016" (61.000mm)
  • Grade Type: Performance
  • Outside Diameter: 2.4016
  • Shaft Diameter: 2.2433
  • Width: 0.906
  • Max Wall: 0.0783

Fitment Table
