 |  SKU: 6M5563H-STD

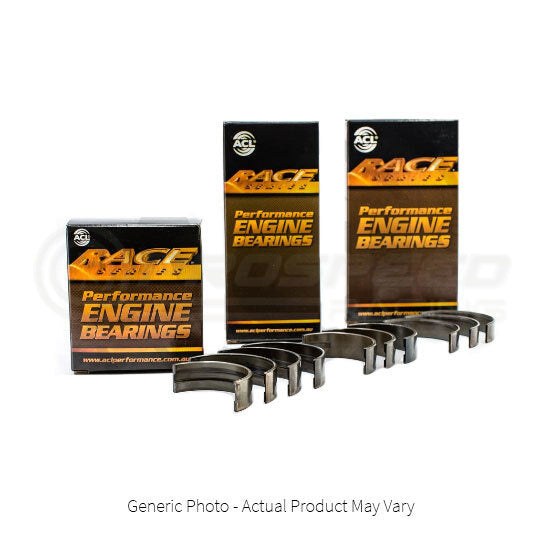

ACL Race Main Bearings Set

Audi RS3/RS Q3/TT RS 2.5 TFSI (CEPA/CEPB/CTSA/CZGA/CZGB Engines)

$399.95

Earn [points_amount] when you buy this item.


Description

ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.

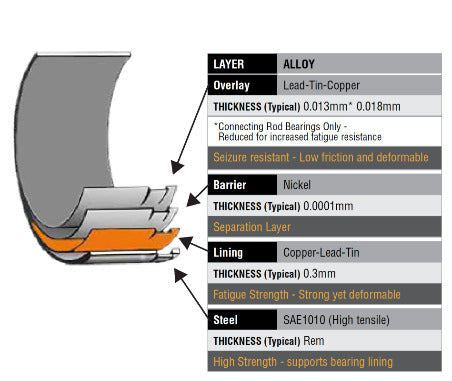

Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.

Technical Specifications

  • Applicable Engine Codes: CEPA, CEPB, CTSA, CZGA, CZGB
  • Max overall length: 15.5mm
  • Max shaft size: 57.978mm
  • Max tunnel size: 63.019mm
  • Max vertical oil clearance: 0.066mm
  • Max wall at crown: 2.504mm
  • Min shaft size: 57.958mm
  • Min tunnel size: 63mm
  • Min vertical oil clearance: 0.044mm

Fitment Table
