 |  SKU: 5M1695HX-STD

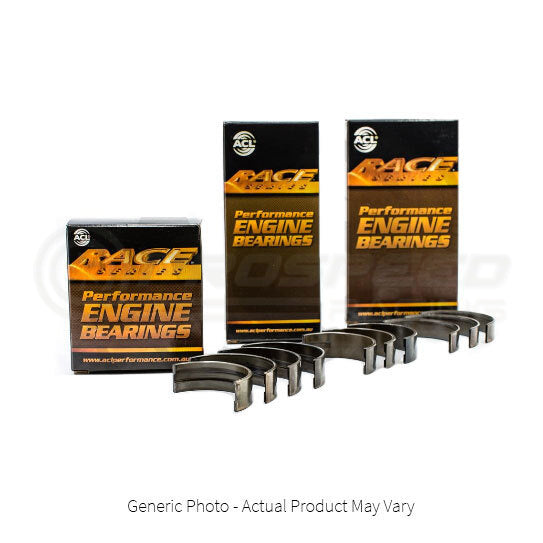

ACL Race Main Bearings Set w/ Extra Oil Clearance

Toyota 4A-GE/4A-GZE
$149.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.

Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.

Technical Specifications

  • Max Std Tunnel Size: 2.0492" (52.050mm)
  • Min Std Tunnel Size: 2.0480" (52.020mm)
  • Max Wall at Crown: 0.0783" (1.988mm)
  • Max Overall Length: 0.784" (19.90mm)
  • Max Std Shaft Size: 1.8898" (48.000mm)
  • Min Std Shaft Size: 1.8892" (47.985mm)
  • Oil Clearance: + 0.001" Extra
  • Size: Standard
  • Grade Type: Performance
  • Outside Diameter: 2.048
  • Shaft Diameter: 1.8892
  • Width: 0.783
  • Max Wall: 0.0783

Fitment Table
