 |  SKU: 4B1780H-STD

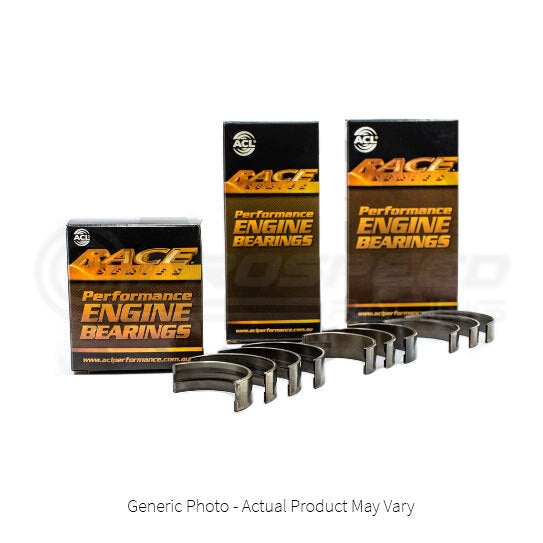

ACL Race Rod Bearings Set STD Size

Toyota 4A-GE/4A-GZE
$159.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

High performance driving demands that you use the best parts. So rely on ACL RACE Series Performance Engine Bearings to perform to the exacting race standards you expect. They provide the dependability it takes to hold up under higher RPM conditions.

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance parts.



Conrod Bearing Set:

  • High performance Trimetal engine bearings
  • Designed to withstand higher RPM conditions
  • High strength overlay plate with reduced thickness for improved fatigue properties

Technical Specifications

  • Min Std Tunnel Size: 1.7717"(45.000mm)
  • Max Overall Length: 0.673"(17.10mm)
  • Max Std Shaft Size: 1.6535"(42.000mm)
  • Max Std Tunnel Size: 1.7726"(45.024mm)
  • Size: Standard
  • Max Wall at Crown: 0.0585"(1.487mm)
  • Min Std Shaft Size: 1.6529"(41.985mm)
  • Oil Clearance: Standard
  • Grade Type: Performance
  • Outside Diameter: 1.7717
  • Shaft Diameter: 1.653
  • Width: 17.1
  • Max Wall: 0.0585

Fitment Table
