 |  SKU: 25-201BK

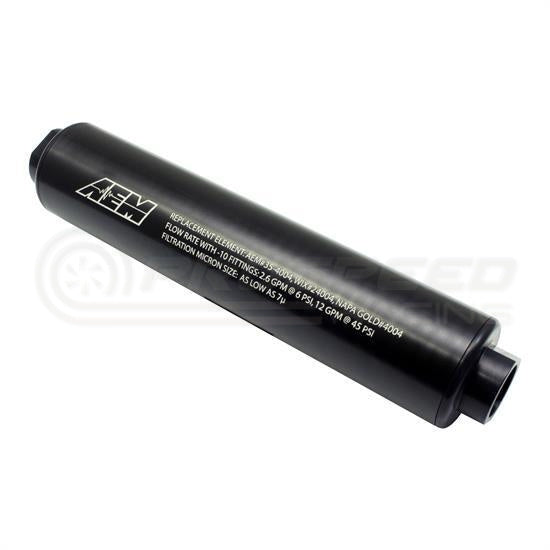

AEM Universal AN-10 High Volume Fuel Filter

$299.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

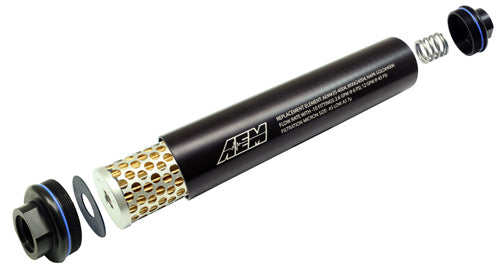

AEM's Universal High Flow -10 AN Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -10AN female fittings that allow the filter to flow up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI. Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing o-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels. The commonly available replacement filter cartridges filter particles as small as 7 microns. The filter's standard 2" OD allows for easy mounting virtually anywhere in the vehicle for easy access.



Features:

  • Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI
  • Filters particles as small as 7 microns
  • Machined from 6061-T6 aluminum with a black hard anodized finish
  • Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels
  • End caps are machined with -10 AN female fittings with o-ring receiver groove
  • End caps have pressure intensifiers for greater sealing of end gaskets
  • 2" OD x 10" length for easy mounting
  • Commonly available replacement filter cartridges
  • Laser etched with AEM logo, flow and comes with filter replacement information

Fitment Table
