| SKU:
30-2012
AEM Water Temperature Sensor 1/8" NPT w/Plug, Pins & Pin Lock
In Stock :
This product is in stock & ready to be dispatched.
Very low inventory :
This product has very limited stock remaining.
Incoming :
Product will be in stock soon.
Usually Ships In :
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
Sold Out - Out of stock :
This product is not available at this time. Request ETA Information
$84.95
Unit price
/
Unavailable
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
30-2012 - 1/8" Water Temp Sensor Kit
- Accuracy: < 2 °C / 3.6 °
- Operating Temp: -40C to 200C / -40F to 392F
- Resistive Range (?): See Table
- Dissipation Constant: 12 mW/ °C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
- Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
- Sensor Body Material: Brass
- Thread: 1/8"-27 PTF
- Hex Size: 1/2"
- Installation Torque: 13.5Nm / 10 ft-lbs
- Weight: 12.2g
- Elec. Termination: Connector. Includes mating connector, pins & pin lock

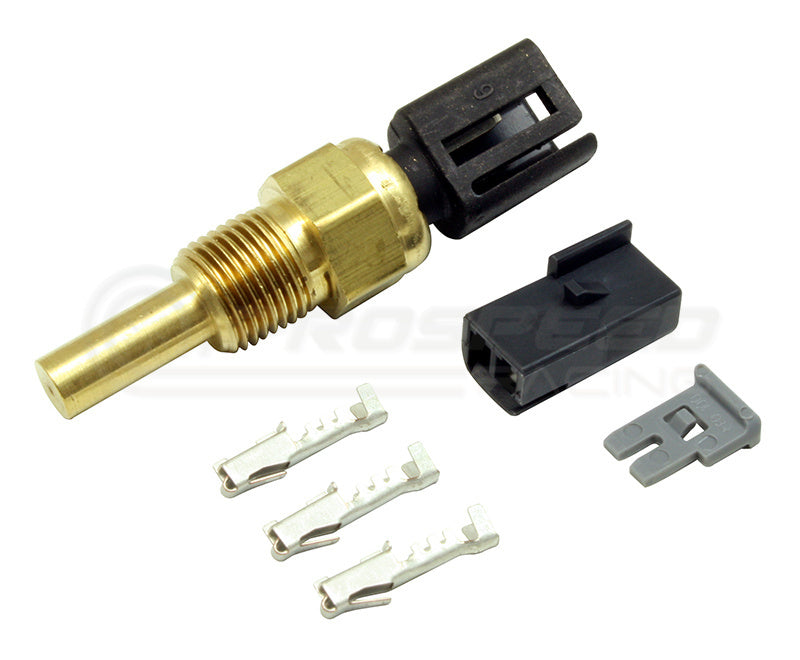

- Includes: Water Temp Sensor, Connector, Pins & Pin Lock
