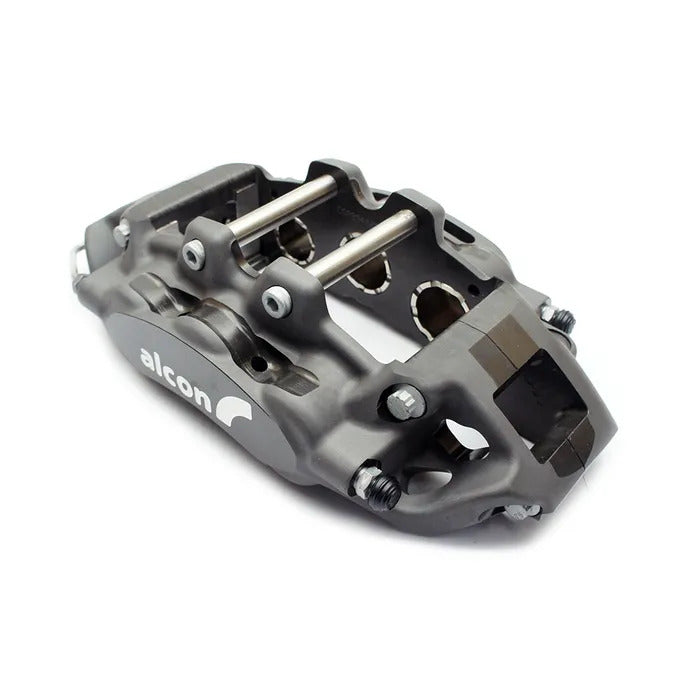

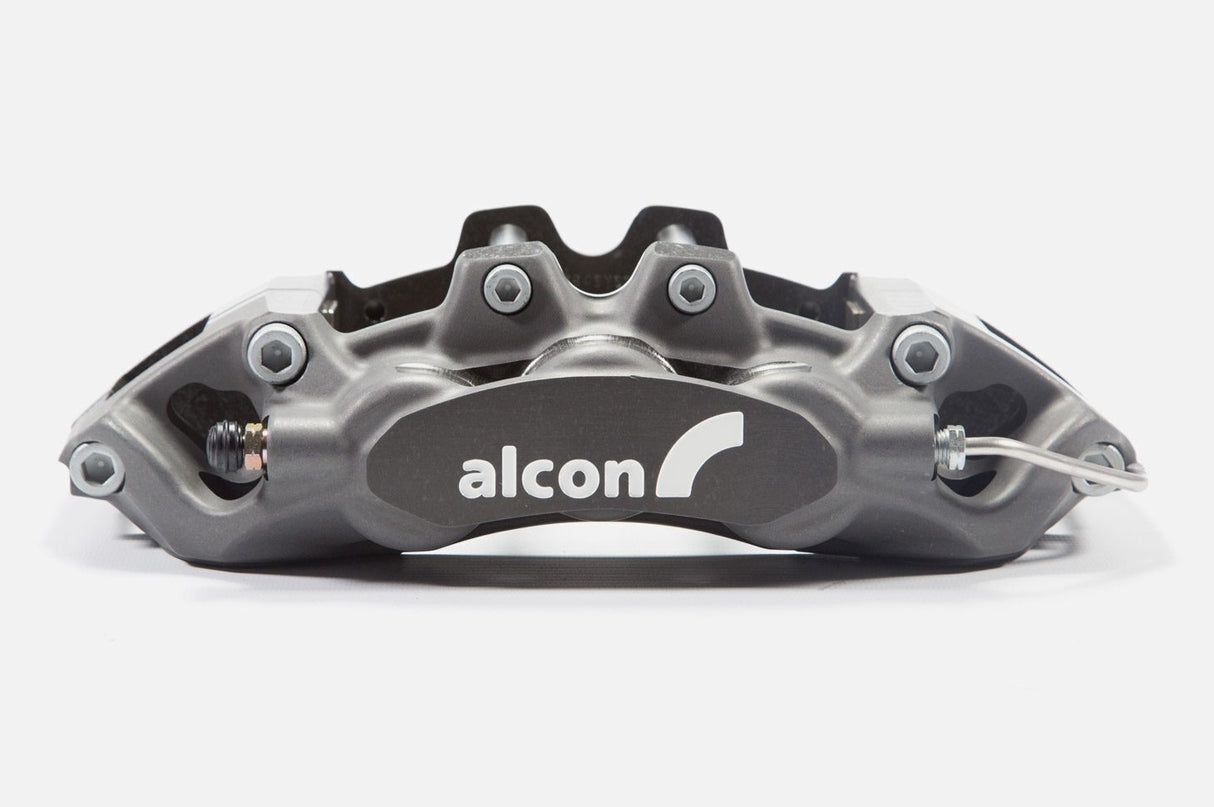

Alcon CR6420 "Motorsports" 6 Piston Calipers PAIR

Alcon was founded precisely because brakes are not just brakes. As well as being the primary active safety system on any car, the best brakes inspire confidence, augment the joy of driving and reduce lap times far more effectively and affordably than by adding power. And the best brakes are what we make, alongside clutch and pedal box systems for some of the most demanding and discerning clients on earth.

Alcon has been at the forefront of motorsport braking innovation for over 30 years.

Aesop said ‘A man is known by the company he keeps’, and there is no better way of judging our motorsport credentials than the list of clients we have supplied over the years. From McLaren, Bentley and Aston Martin in GT racing, to Volkswagen and Citroen in the World Rally Championship. From Formula E to World Rallycross, many of the world’s greatest factory teams have chosen Alcon.

They know that Alcon doesn’t just supply the best brakes, clutches and pedal boxes on the market, but also ultra-fast turnaround times without compromise to quality, a personal relationship, and a determination to pioneer the new methods and technologies to keep us and, therefore, them, always ahead of the game.

On or off road, open wheel or closed cockpit, race, rally or any other form of motor sport, the world’s great manufacturers trust Alcon to design, develop, supply and support the most technologically advanced and highest quality components for their competition cars.

Applications:

• GT, Touring Car.

Key features and benefits:

• Billet aerospace grade aluminium alloy provides high strength and light weight.
• Differential piston diameters that minimise pad taper wear.
• Stainless steel pistons as standard.
• 2kg anti-knock back springs.
• Hard stainless steel wear plates.
• Bolted pad retainer to increase stiffness, remove retainer to change pads.

• Disc diameter range ø355 - 390mm.
• Disc thickness range: 34 - 36mm.
• Fluid inlet 3/8-24 UNF (-3) female.
• Dry weight 3.35kg excluding pads.
• Alcon pad reference: 4489, 25mm thick, 152mm long, 50.8mm deep, area 152cm² per caliper or 54.0mm deep, area 155cm² per caliper.
