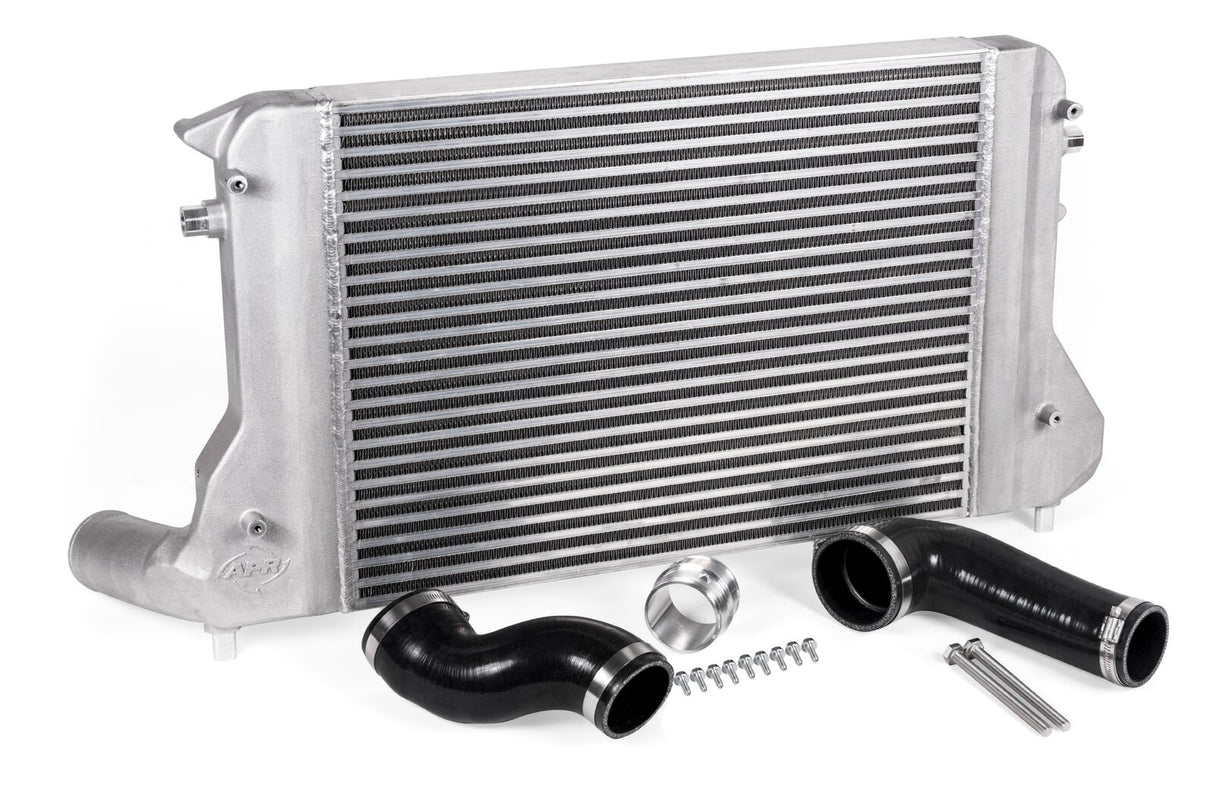

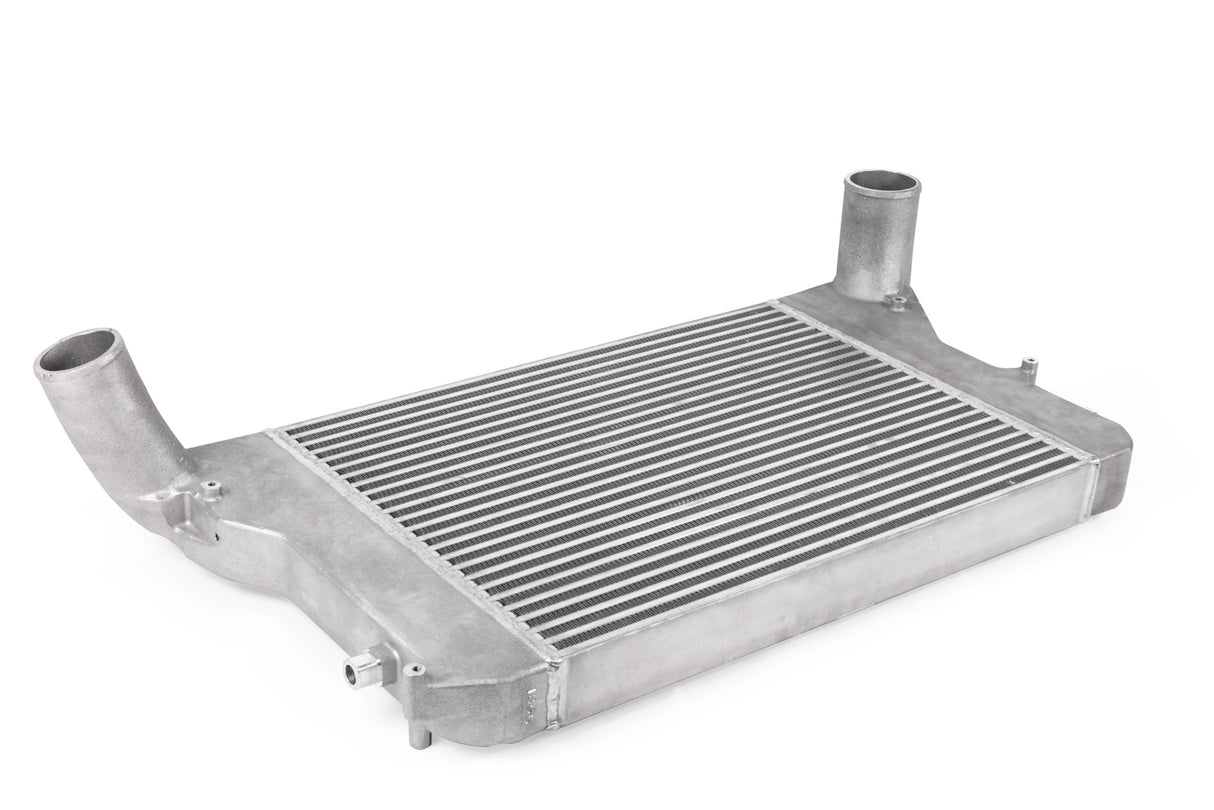

APR Intercooler System

VW/Audi 1.8T/2.0T EA113/EA888 Gen1/2
$3,099.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the factory intercooler system. Through a massively increased core volume, superior intercooler core design and smooth, cast end tanks, APR's engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.



Please note, this part number is only designed to fit the EA113 and EA888 Gen 1 engines. The TT with EA888 Gen 2 engine requires factory discharge pipe part numbers 1K0 145 840 R and 1K0 145 769 J. EA888 Gen 3 engines use part number IC100018. The AWD Tiguan and Yeti models use part number IC100020.

Features and Benefits

  • Dramatically lowers intake air temperature
  • Increases horsepower and torque while prolonging performance
  • APR intercooler core dimensions: 2.25" x 16.25" x 22"
  • 40% larger than stock
  • Larger inlets and outlets
  • Pressure tested for leak proof operation

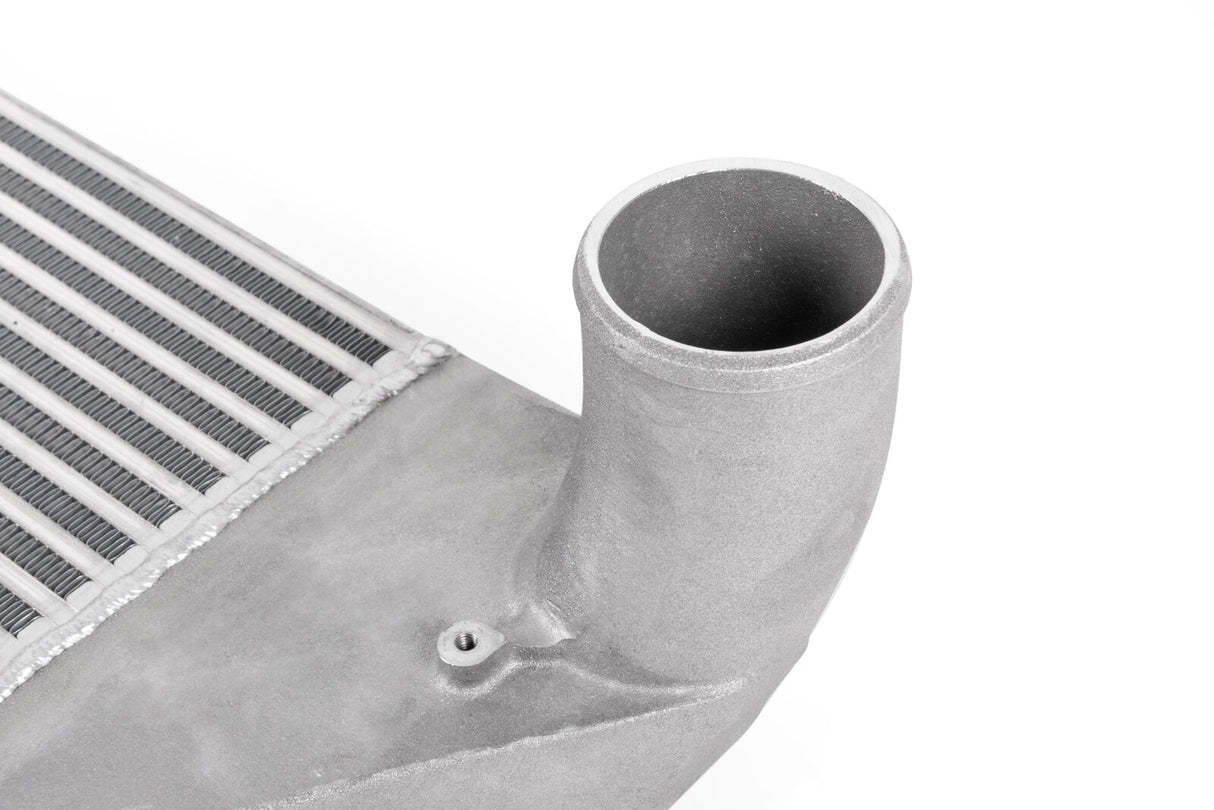

  • Smooth cast aluminum end tanks
  • Barbed hose connection points for a slip proof fit

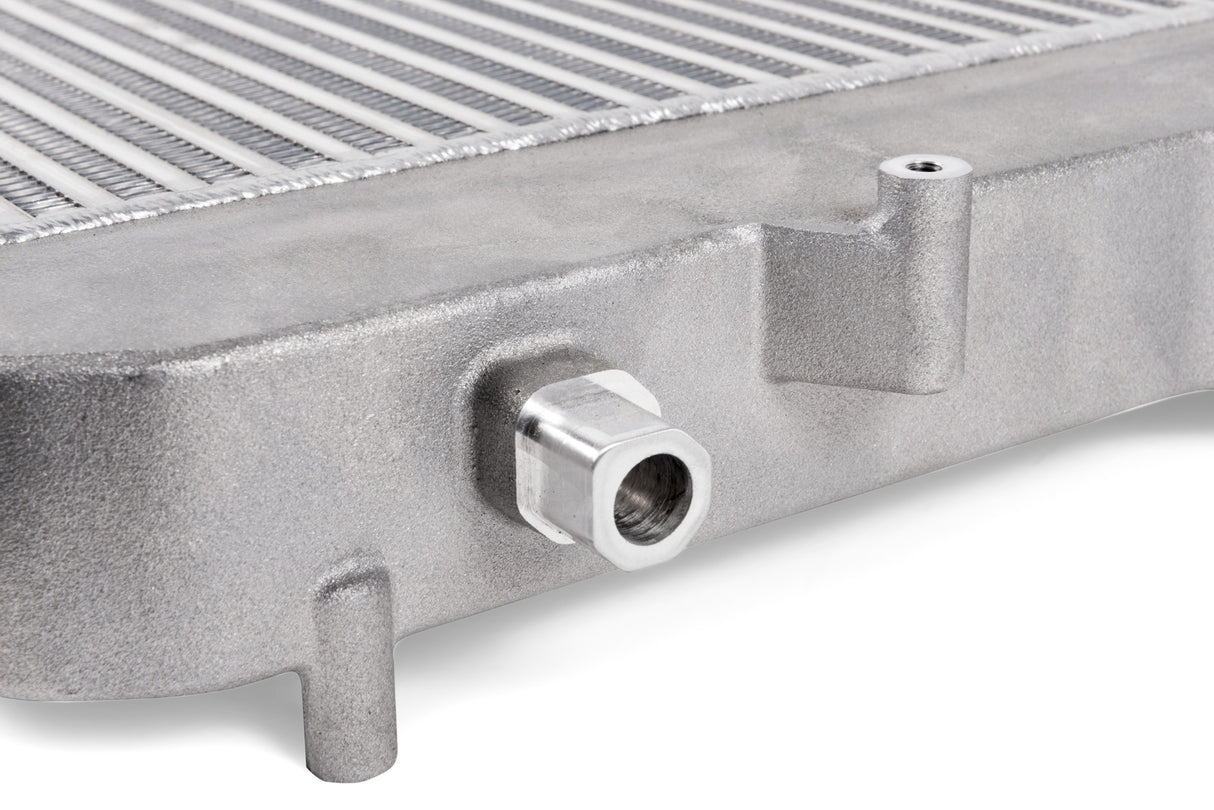

  • Machined mounting points for extra weight savings
  • CNC machined billet adapter
  • Multi Ply Silicone Hoses with APR's EZ-Flow stepped design

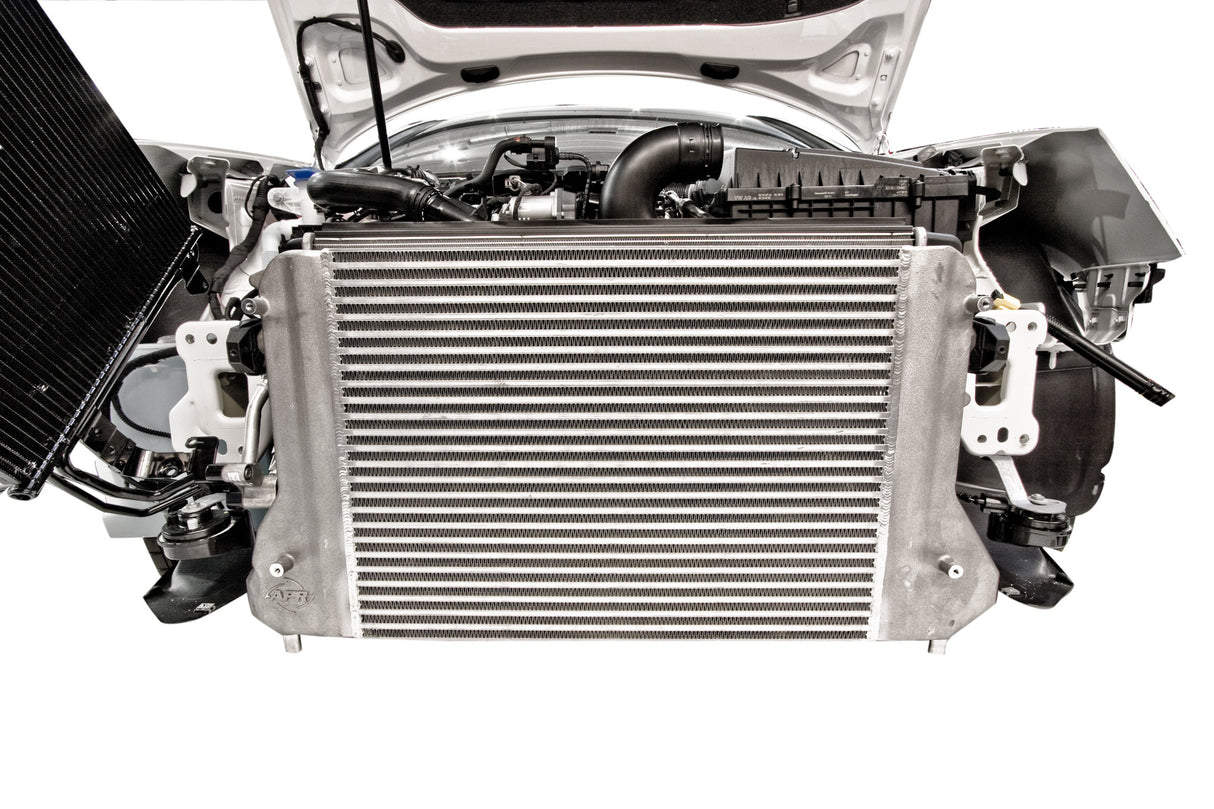

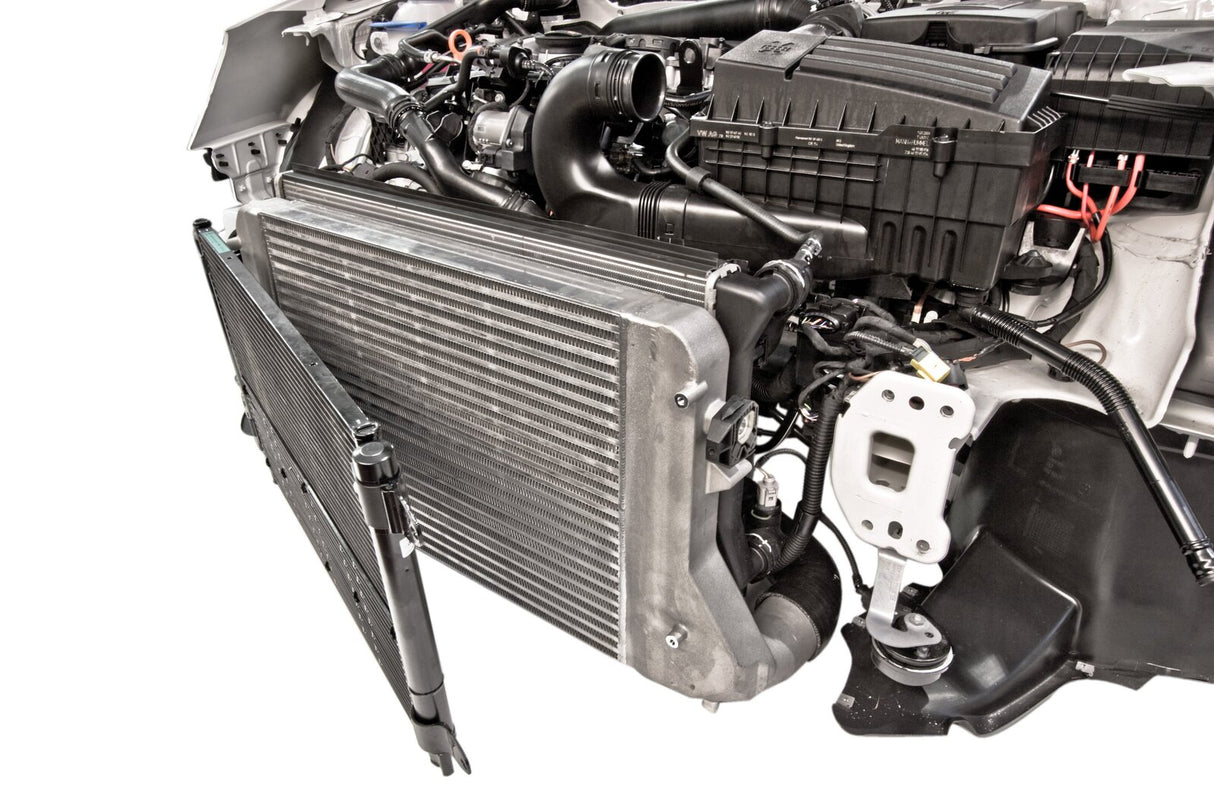

  • Direct OEM fitment with no trimming necessary
  • Full install directions and APR's world-renowned customer support

Technical Specifications

  • Colour: Silver/Natural
  • Cooler Type: Air to Air
  • Core Frontal Area (in^2): 357.5
  • Core Height (in): 16.25
  • Core Type: Bar and Plate
  • Core Volume (in^3): 804.38
  • Core Width (in): 2.25
  • Core Width (in): 22
  • Direct Fit: Yes
  • Hose Clamp Type: T-Bolt
  • Hose Type: Silicon
  • Welding Type: TIG
