 |  SKU: IC100025

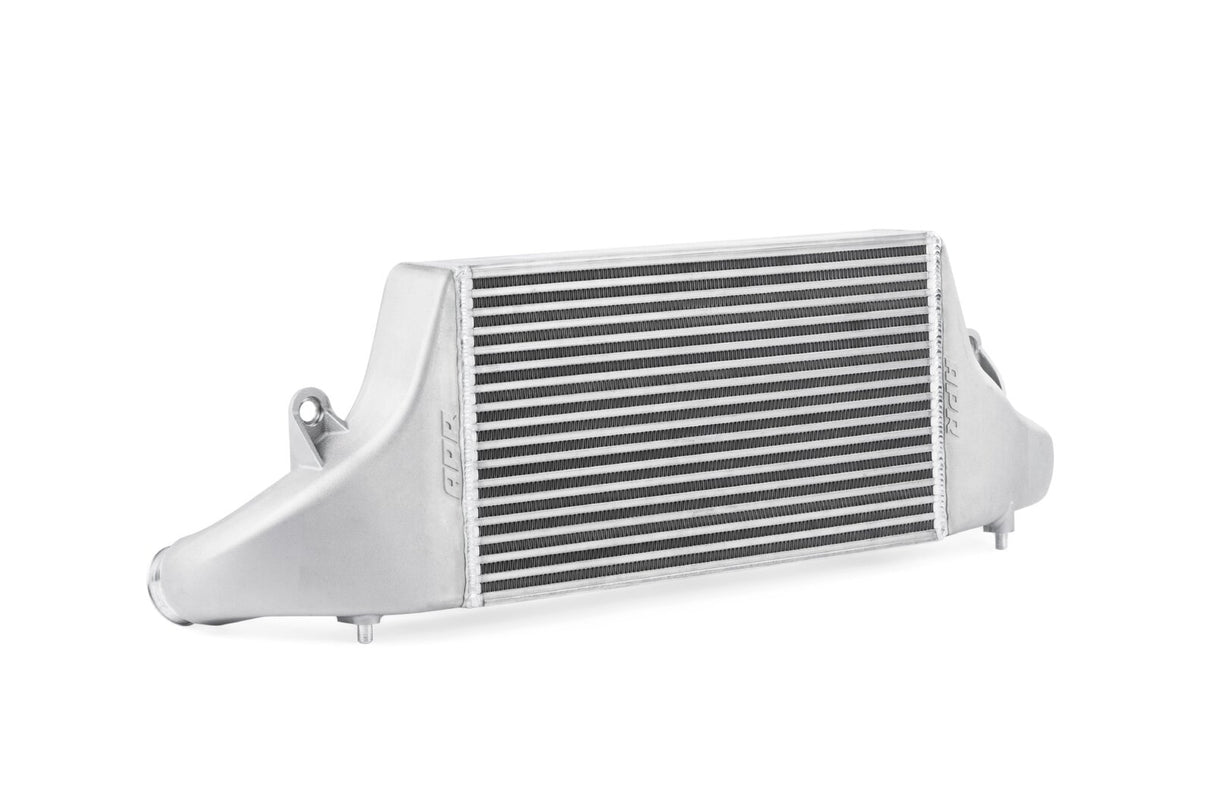

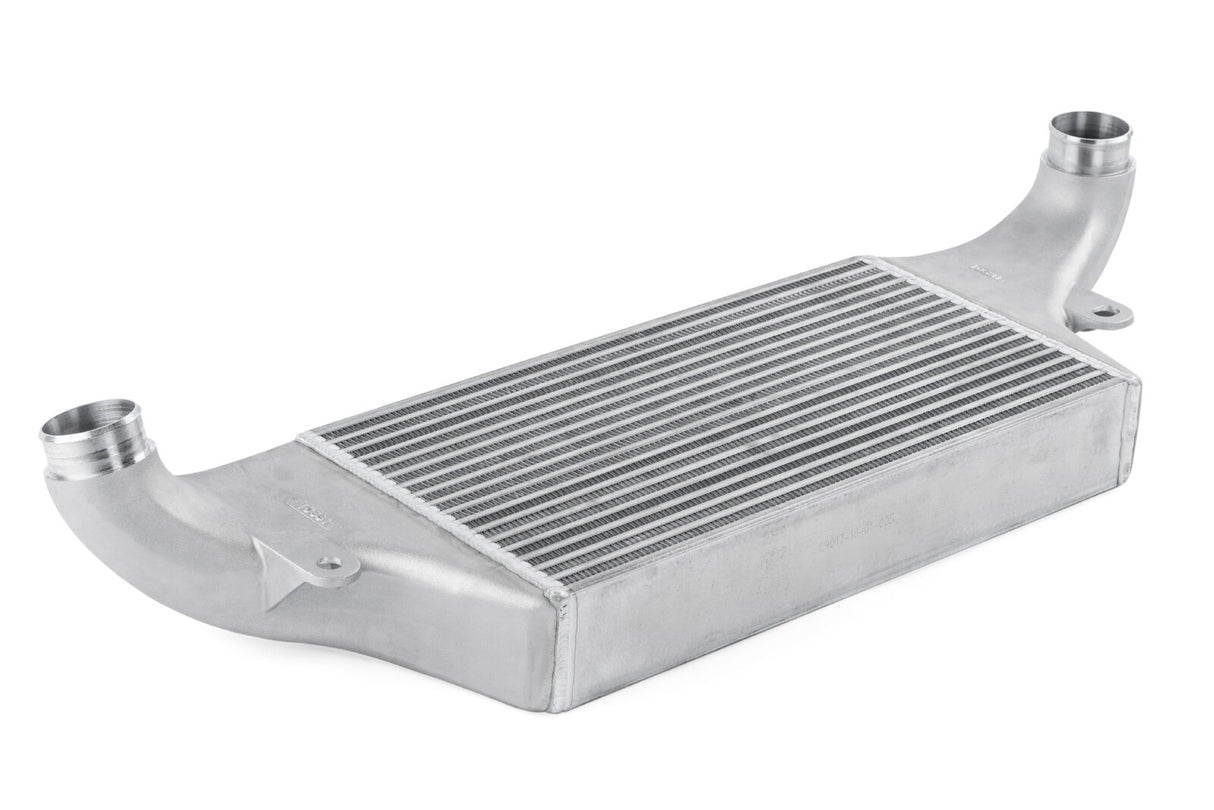

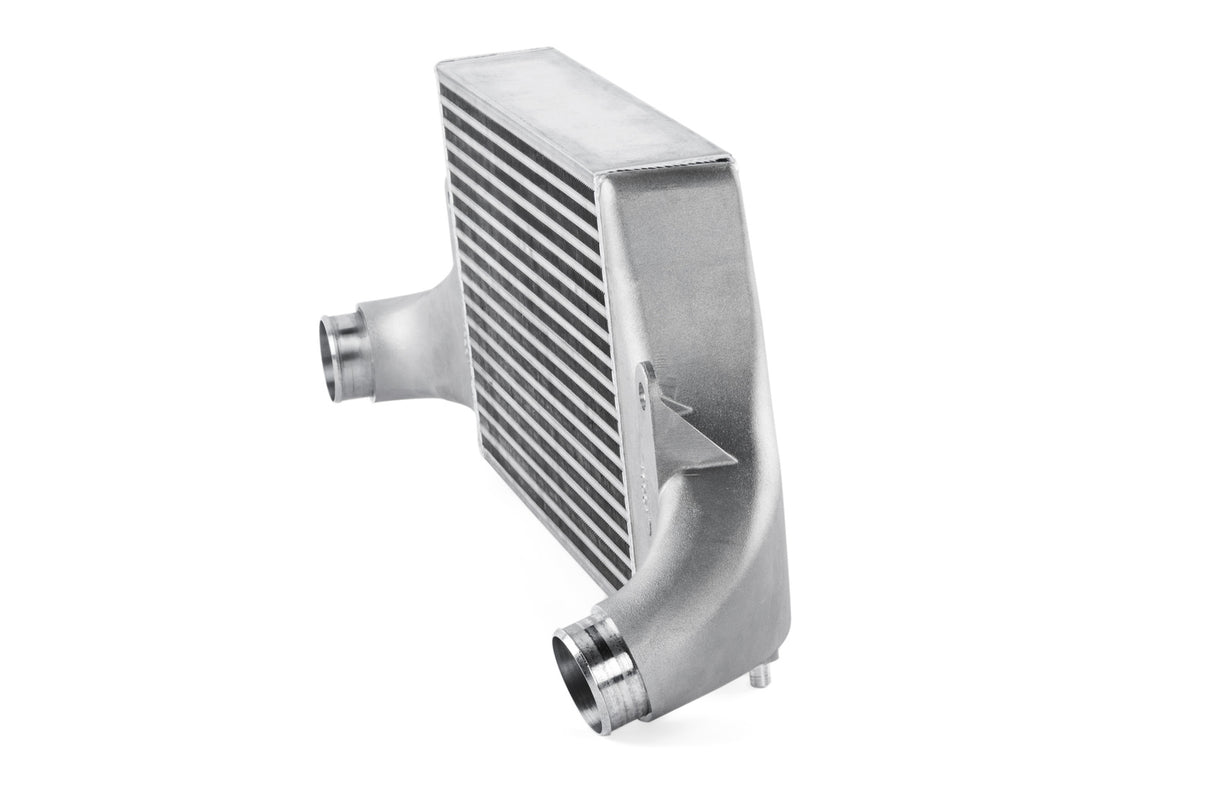

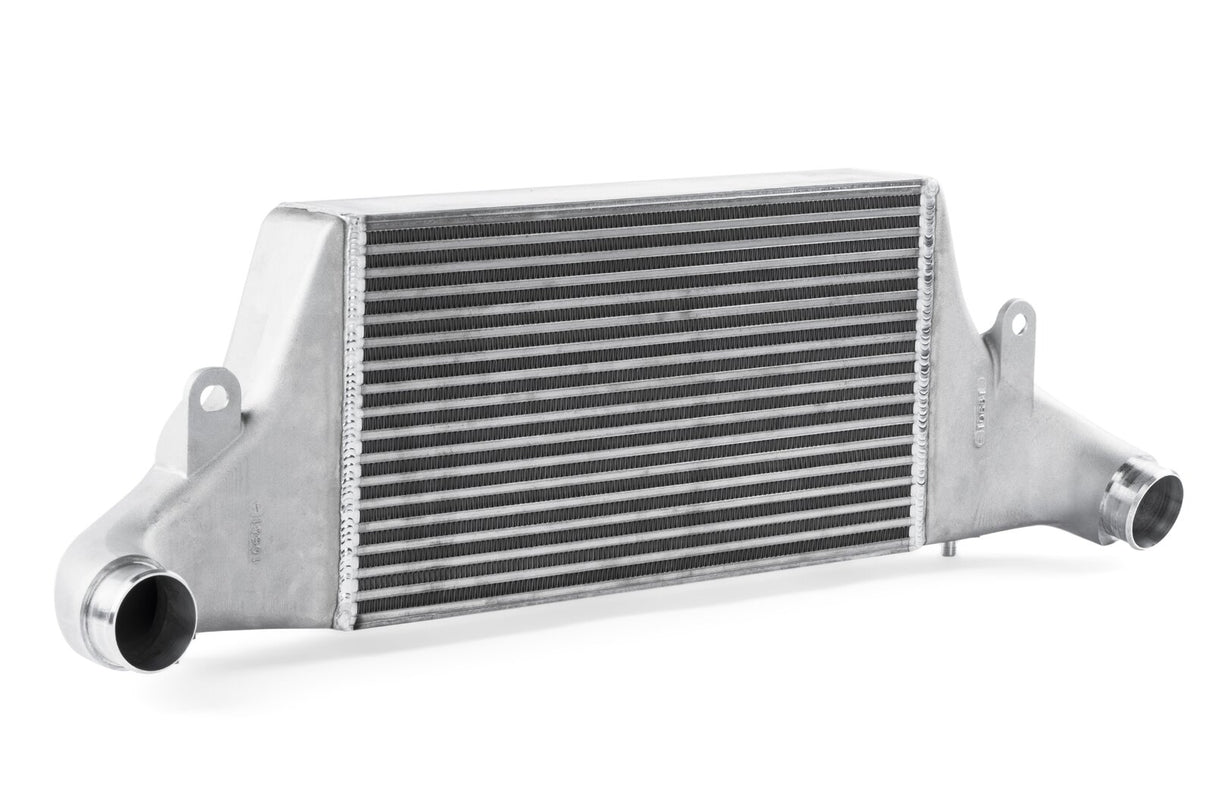

APR Intercooler System

Audi TT RS Mk3 2.5 TFSI
$3,099.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

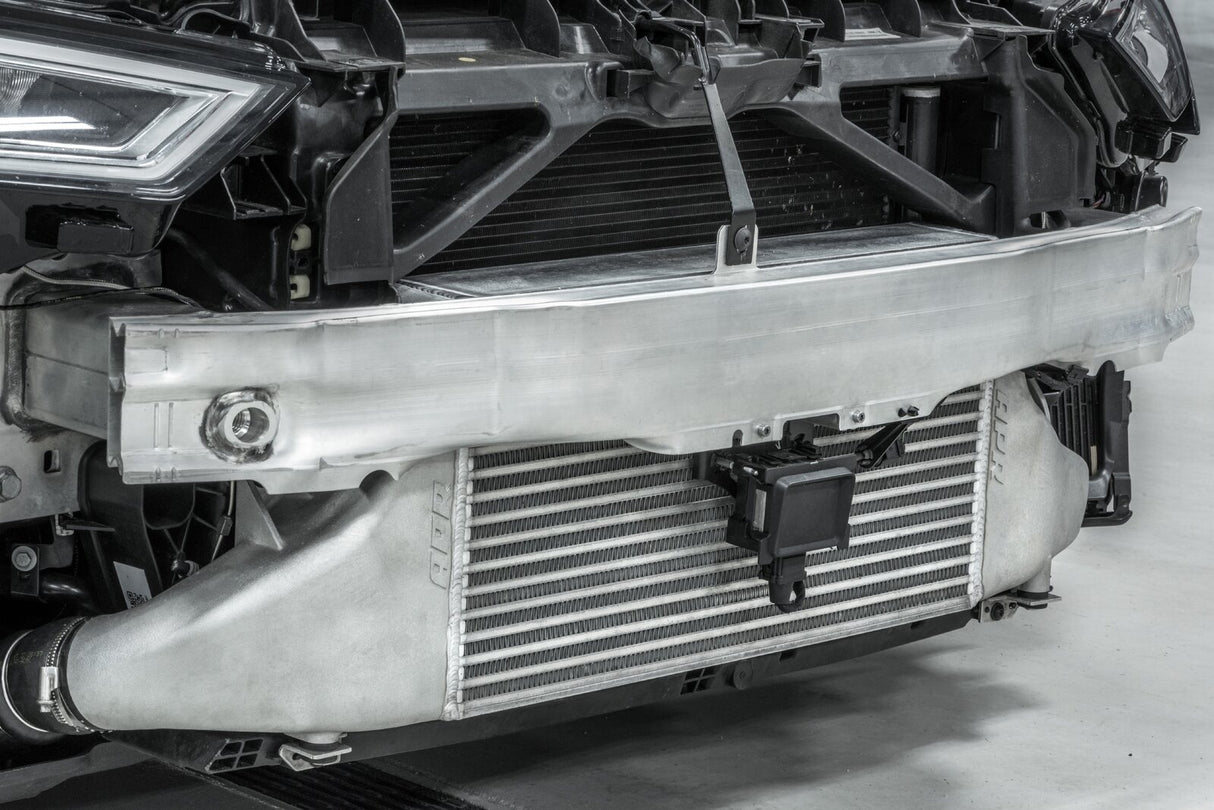

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.



Please note, this system will not directly fit the ROW vehicles with the shorter crash bar. A US spec setup is needed. Crash Bar: 8V5807190D, Foam: 8V5807550B, ACC Adapter: 8V0907574H.

Features and Benefits

  • Dramatically lowers intake air temp (IAT)
  • Increases HP while minimizing power-robbing heat soak!
  • Dynoed 26 AWHP over to the factory system (STG 1 93)!
  • Effective cooling for more than double factory horsepower levels!
  • Massive frontal surface area and core volume
  • 6.38" x 25.33" x 3.16" - 161.6 in² front. & 510.67 in³ volume - OEM
  • 10.4" x 22.00" x 3.50" - 228.8 in² front. & 800.8 in³ volume - APR

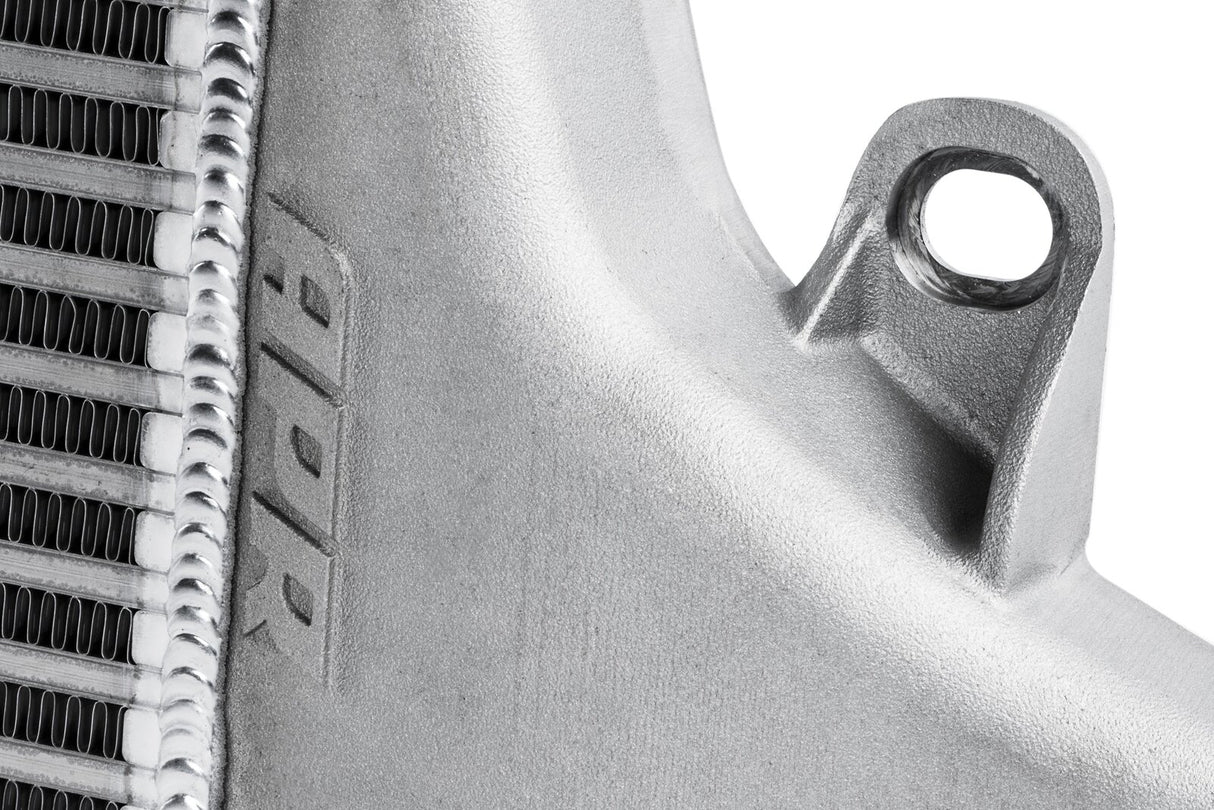

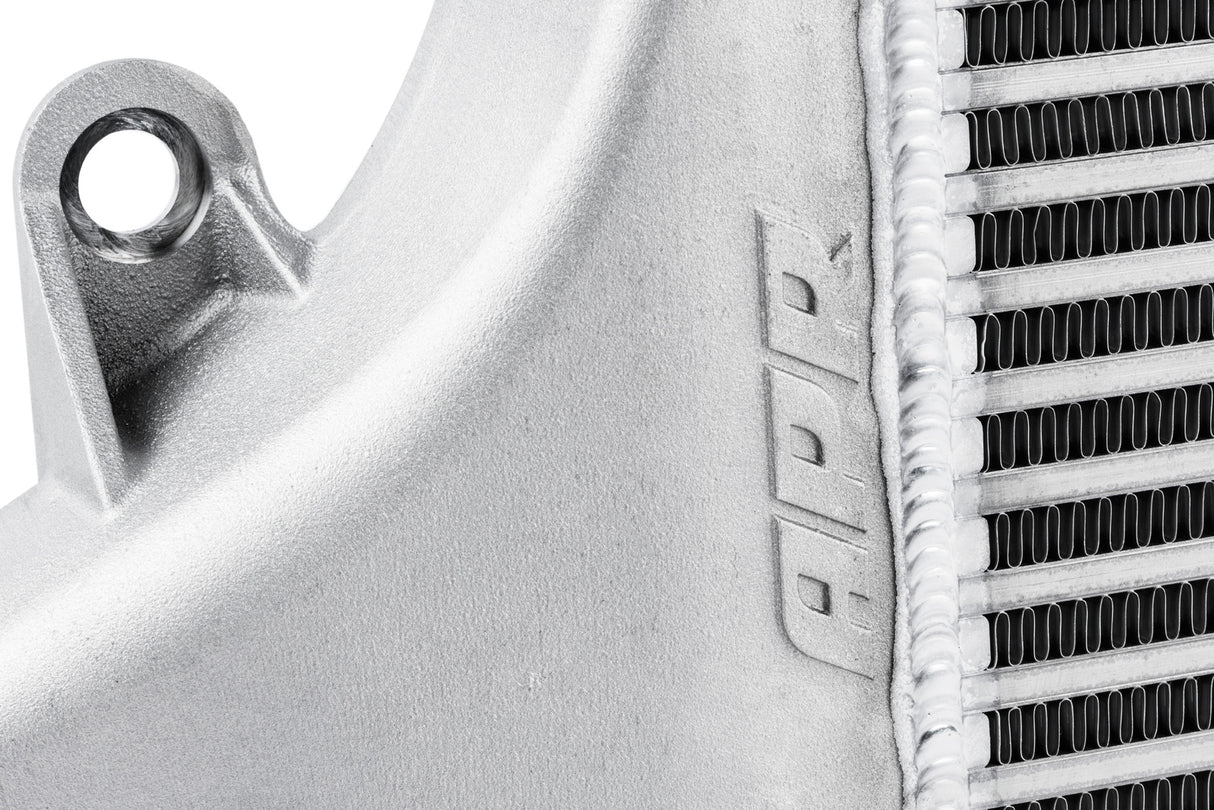

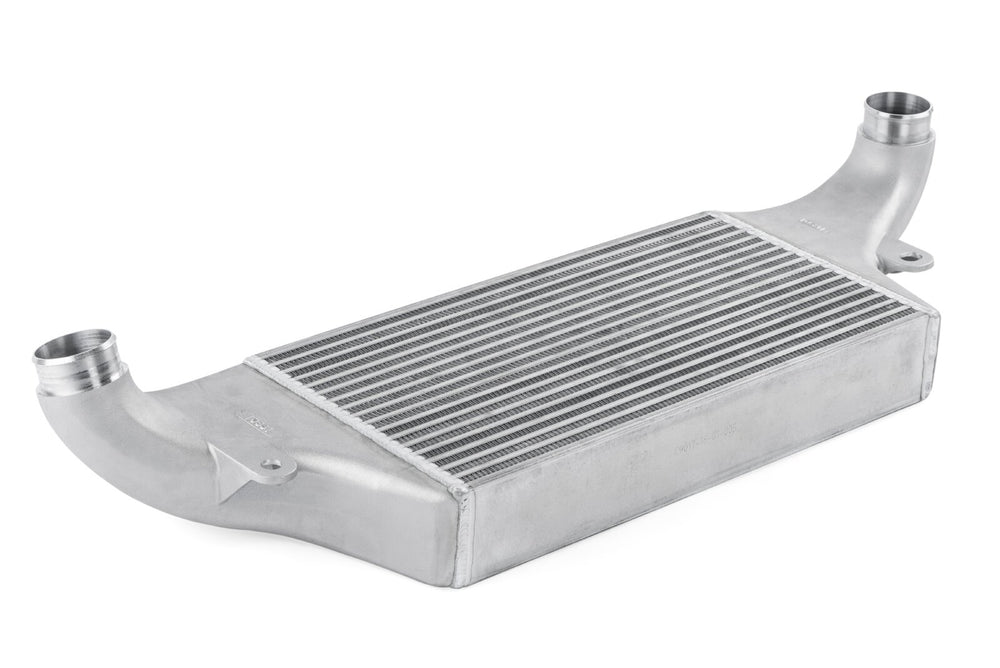

  • Highly effective core design
  • Bar-and-plate core with staggered and louvered fins.
  • Rigorous testing determined core style, fin density, and size.
  • Low pressure drop + highly effective cooling = high performance!

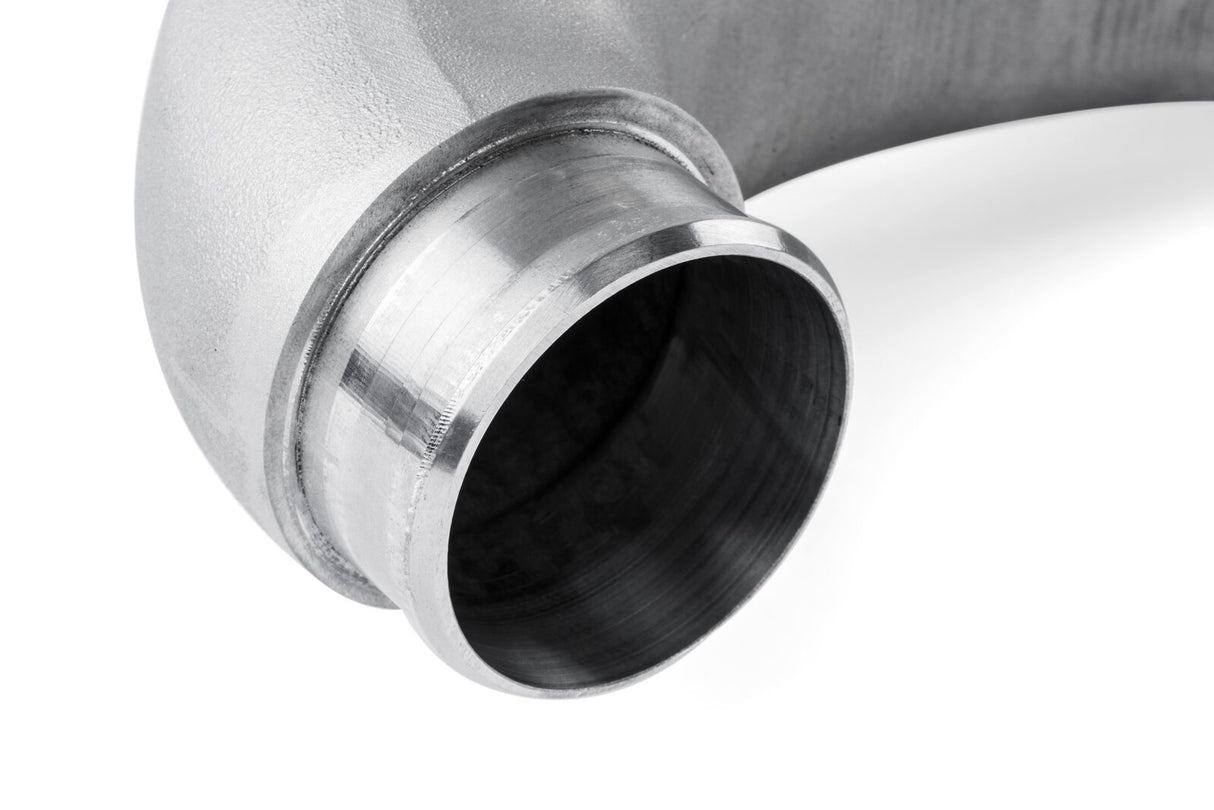

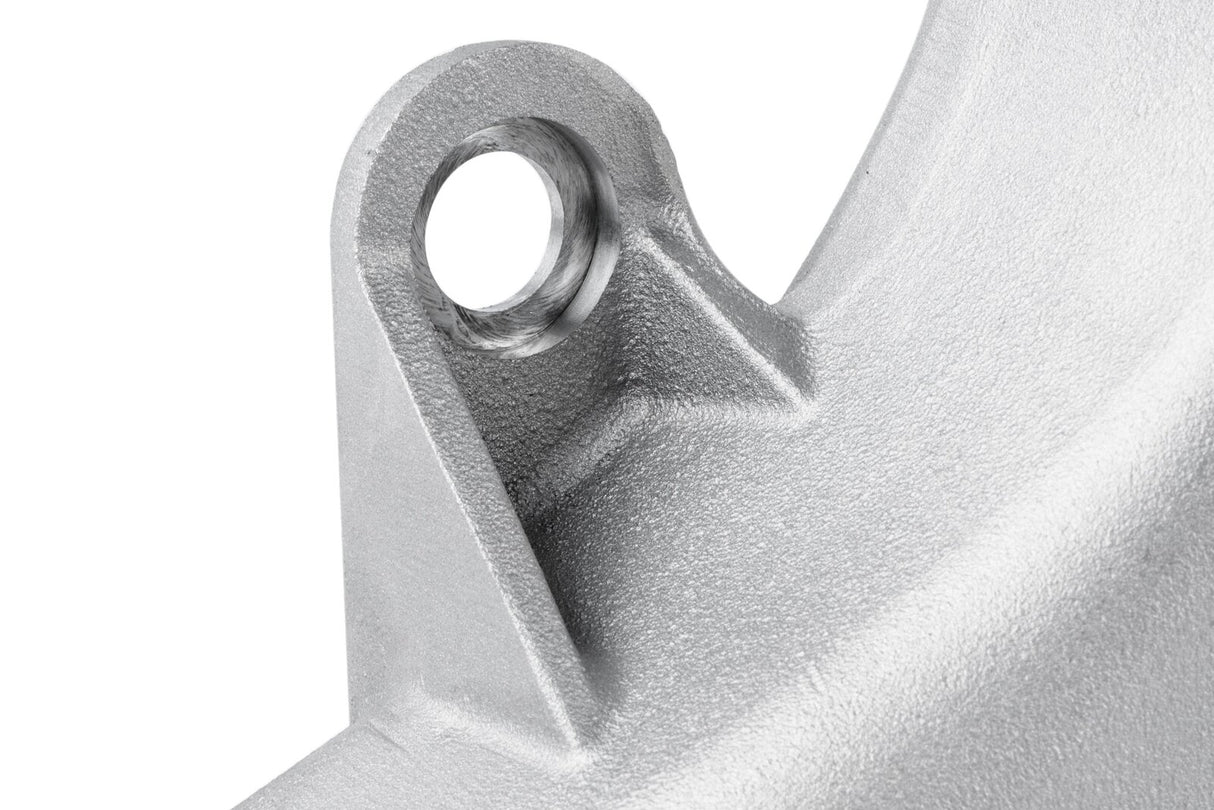

  • Smooth cast end tanks
  • Engineered for low turbulence/restriction and maximum flow.
  • Organically shaped to promote airflow across entire core.
  • Pressure tested to prevent power robbing boost leaks.
  • Easy to install
  • Simple plug-and-play design with no trimming or drilling necessary!
  • Designed by engineers with lasers
  • With the best equipment and smartest engineers, it just works!

Technical Specifications

  • Colour: Silver/Natural
  • Cooler Type: Air to Air
  • Core Frontal Area (in^2): 228.8
  • Core Height (in): 10.4
  • Core Type: Bar and Plate
  • Core Volume (in^3): 800.8
  • Core Width (in): 22
  • Core Width (in): 3.5
  • Direct Fit: Yes
  • Welding Type: TIG

Installation Instructions

Fitment Table
