 |  SKU: FBSA76-110

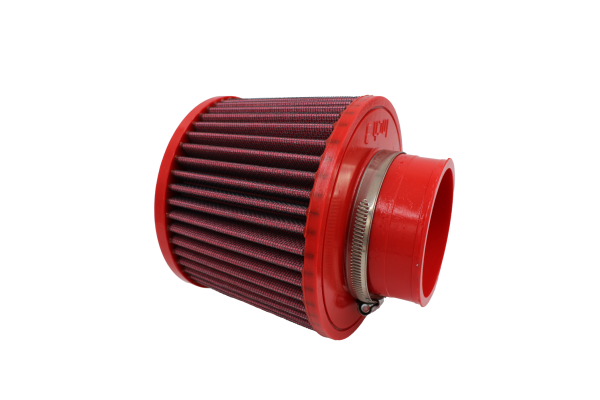

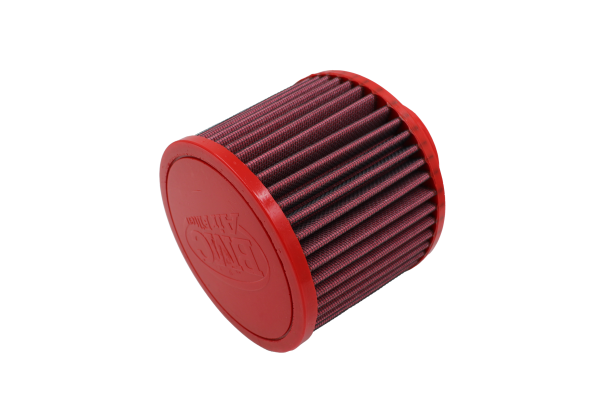

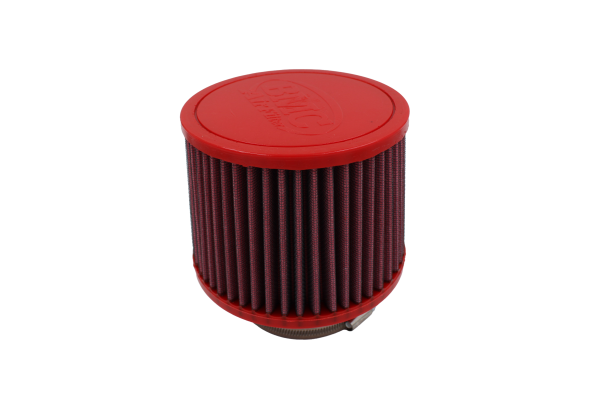

BMC Conical Pod Air Filter 3" Inlet 113mm Diameter 153mm Length

$89.99
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

BMC conical filters for direct air intake can be installed on most types of engines by removing the original airbox. BMC direct induction conical filters are manufactured using a characteristic red rubber that allows the connection of the intake to be particularly resistant to both engine stress and heat without suffering from deformations caused by the high temperature. The special filtration mesh allows the production of filters with a power up to 700 HP without presenting problems of filter deformation.

Technical Specifications

  • Flanges: 1
  • Flange Length (mm): 40
  • Flange Inside Diameter Ø1 (mm): 76
  • Base Outside Diameter Ø2 (mm): 152
  • Height - H2 (mm): 153
  • Height - H1 (mm): 113
  • Top Outside Diameter Ø3 (mm): 138
  • Top material - Finish: Polyurethane
  • Filter Material: Oiled Cotton Gauze
  • Flange Type: Centred
  • Top style: Single Air
  • Flange Angle: 0
  • Washable: Yes

Fitment Table
