BNM Performance Fab 3-Bolt External Wastegate EWG Up-Pipe

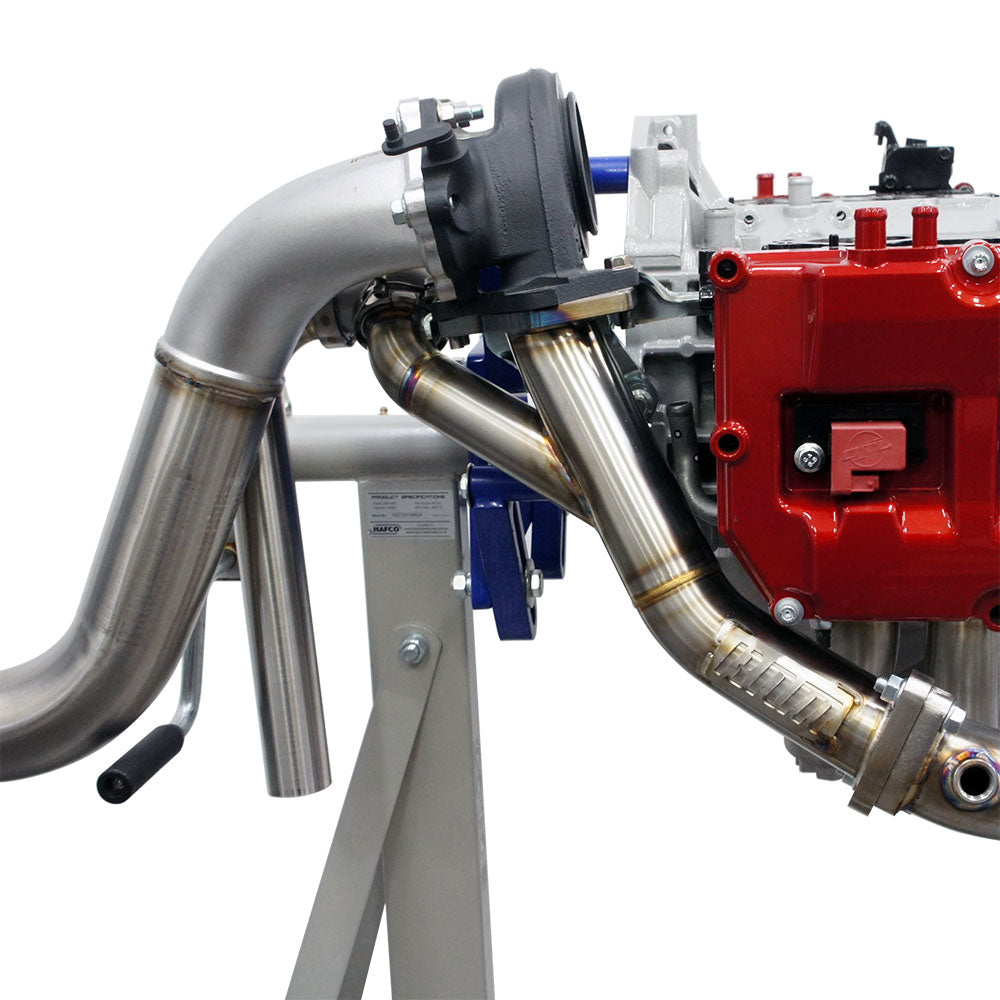

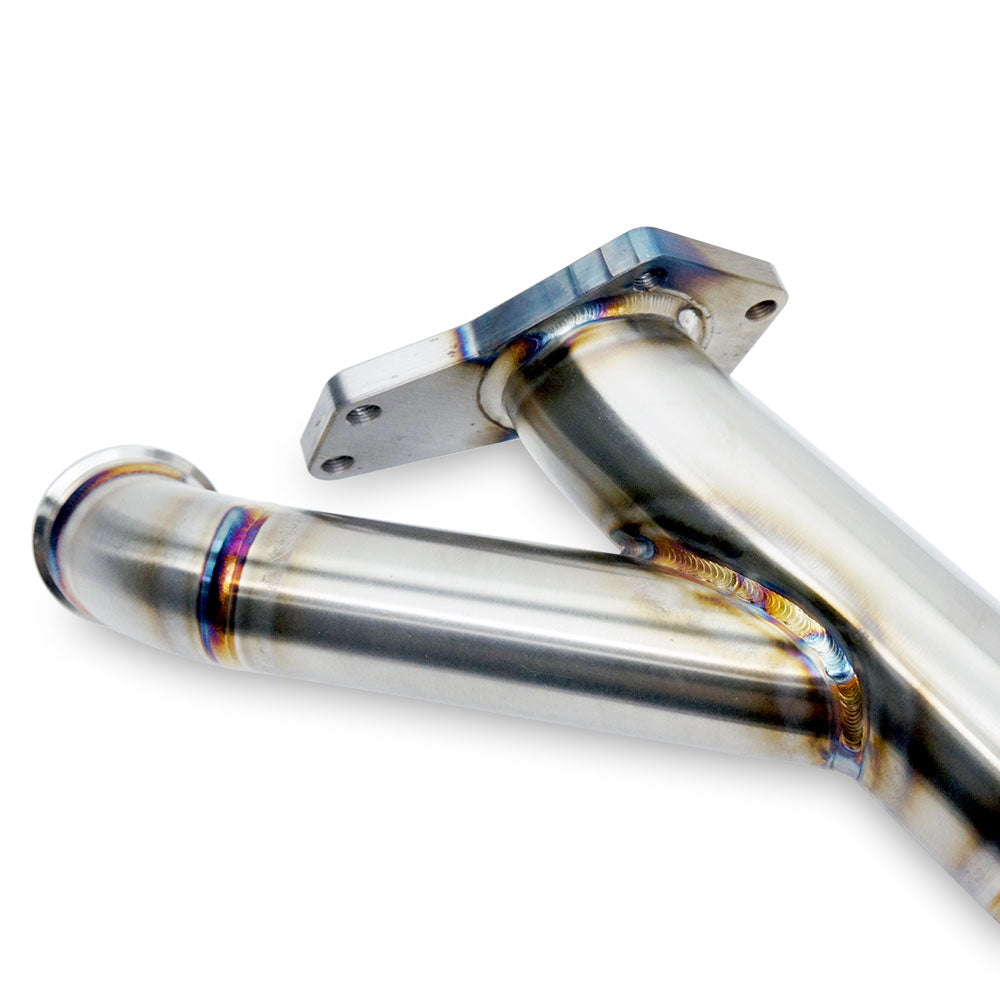

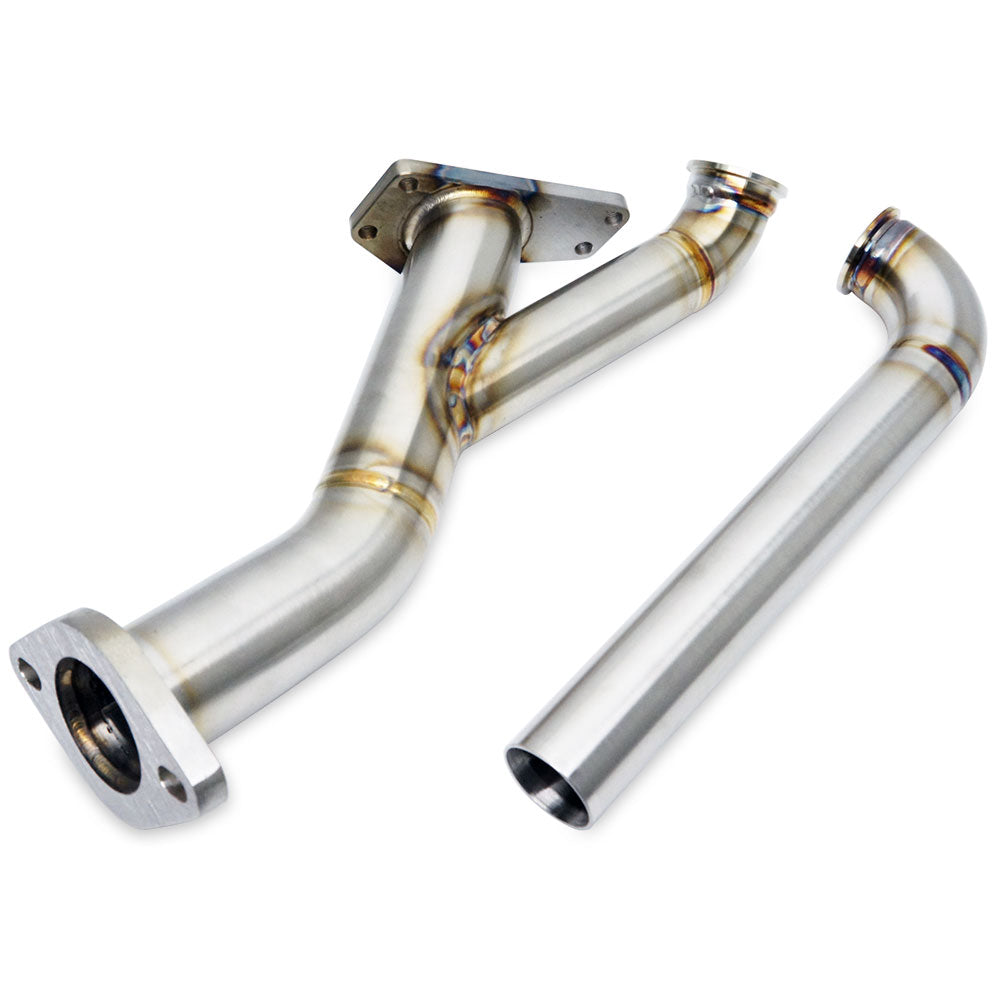

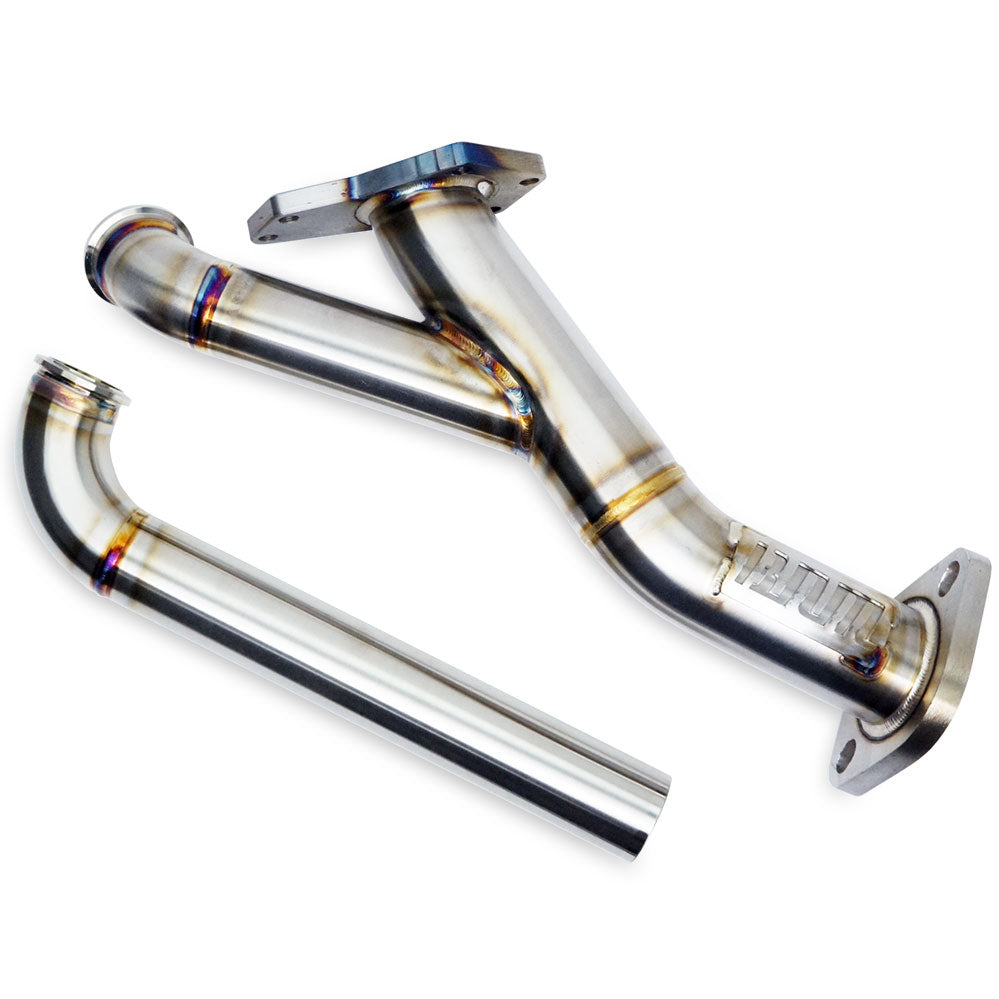

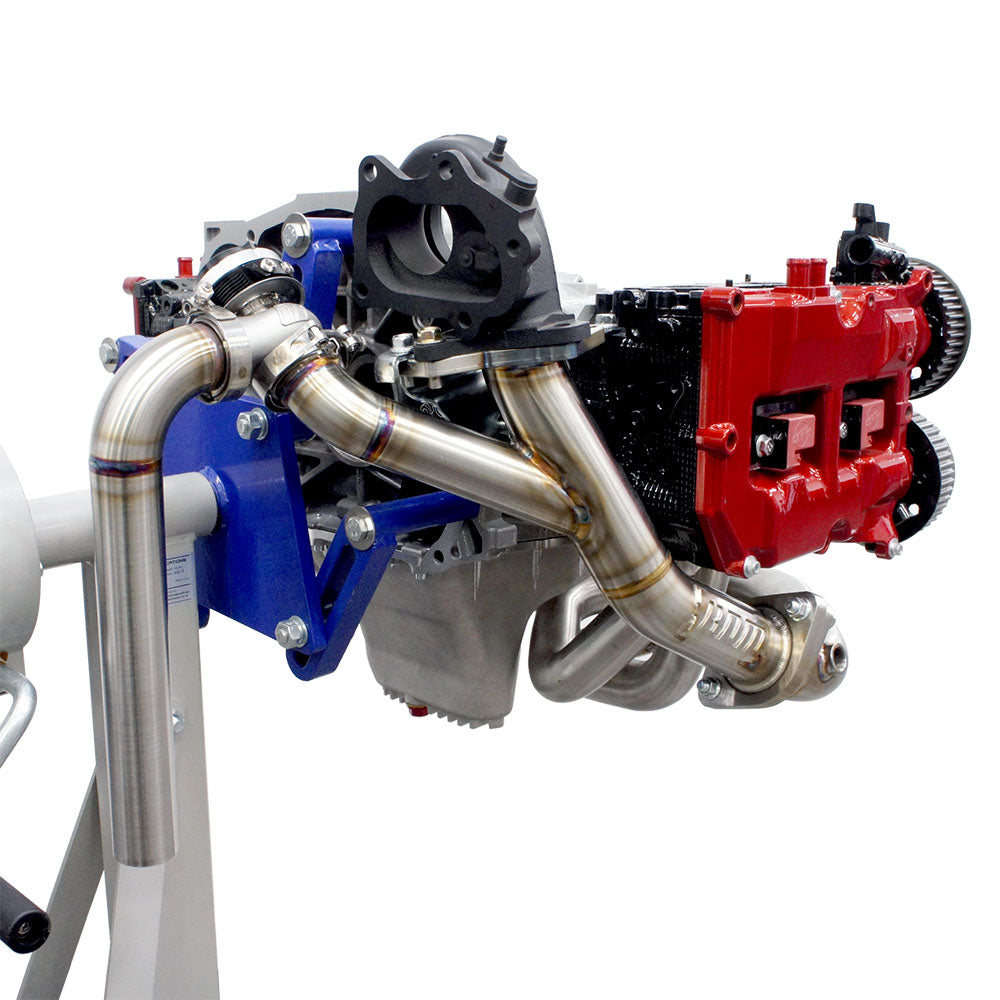

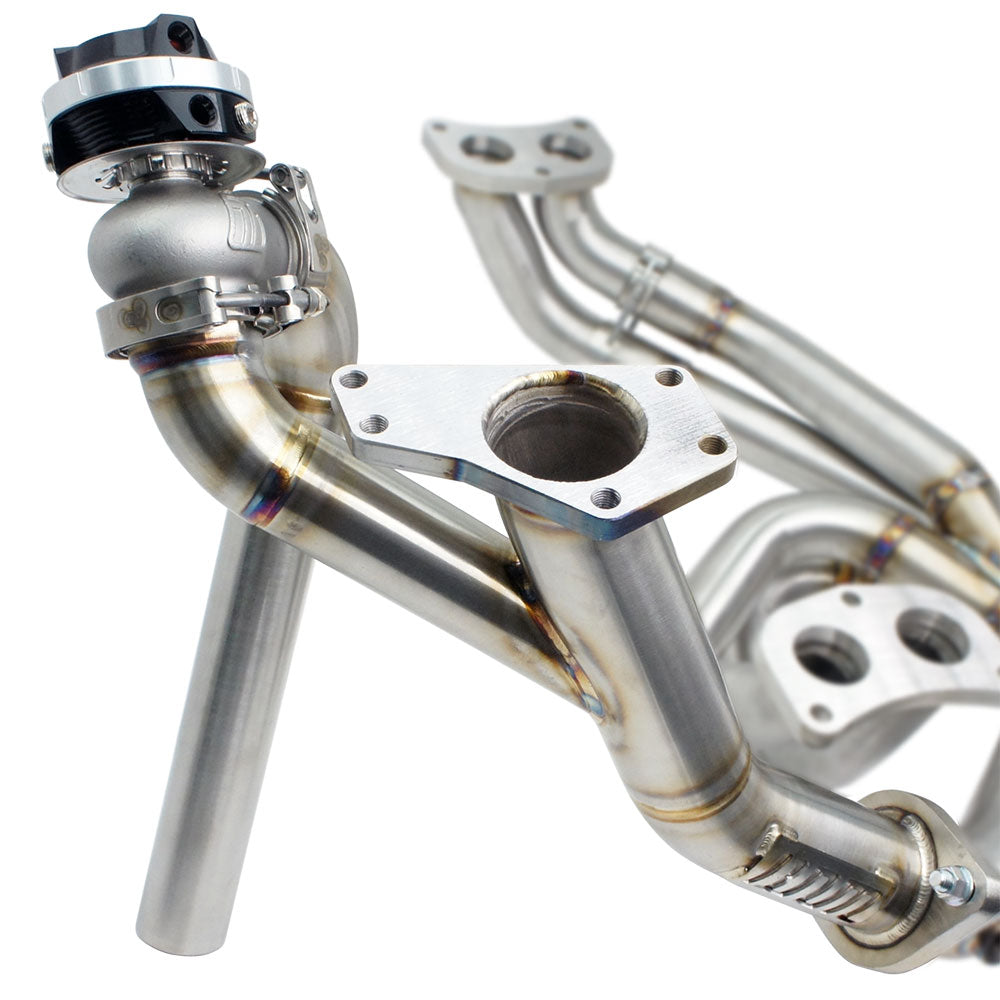

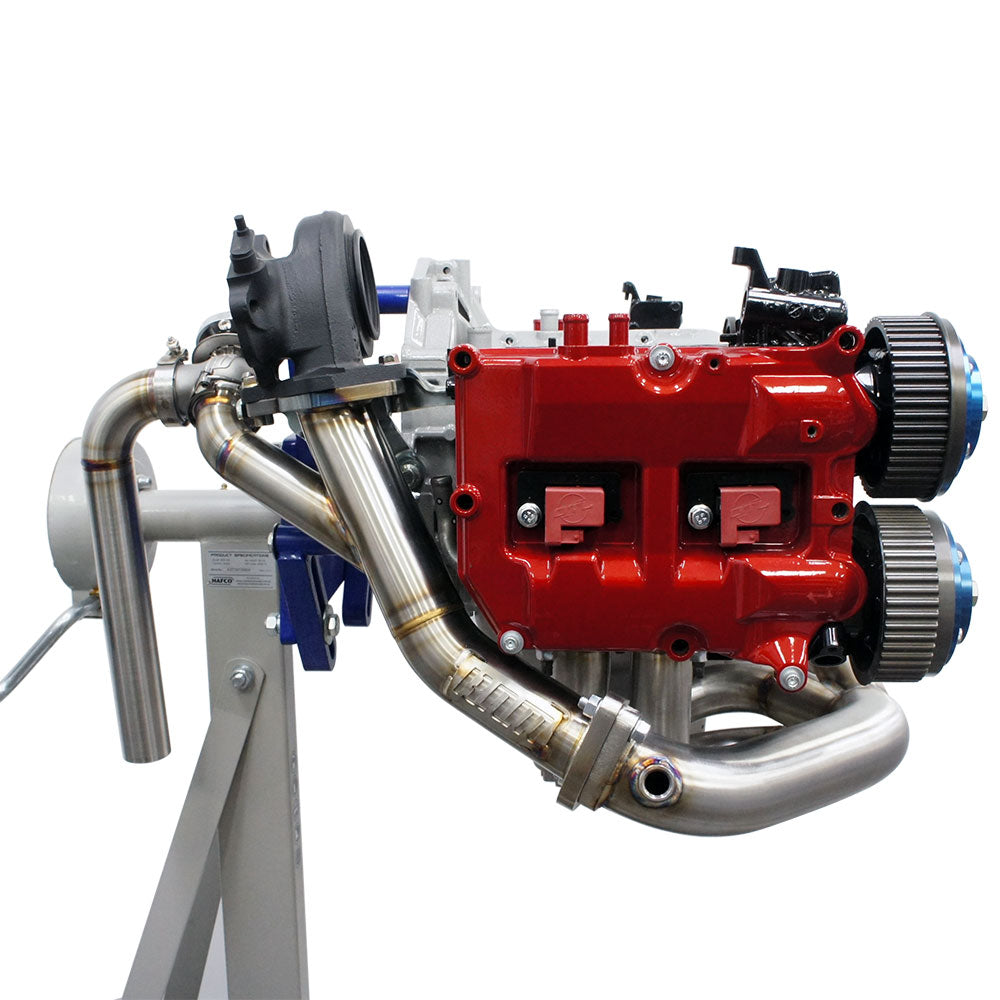

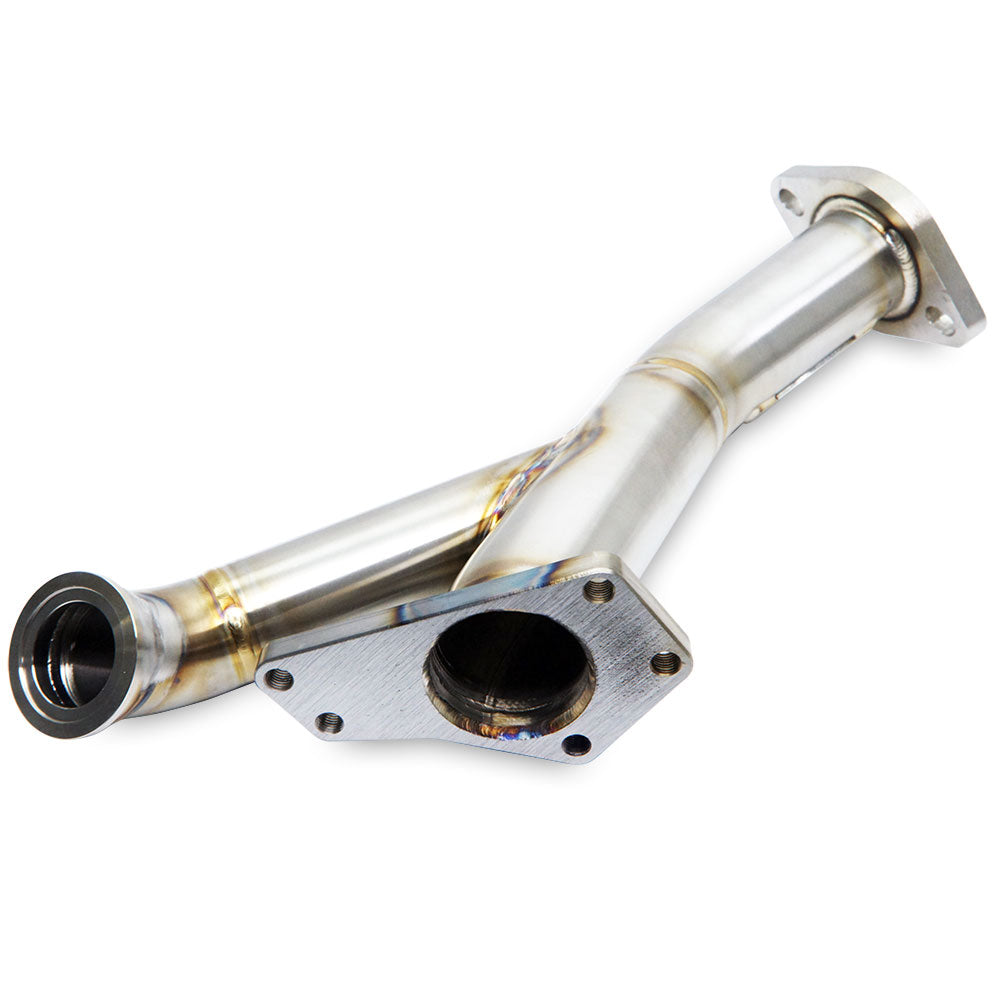

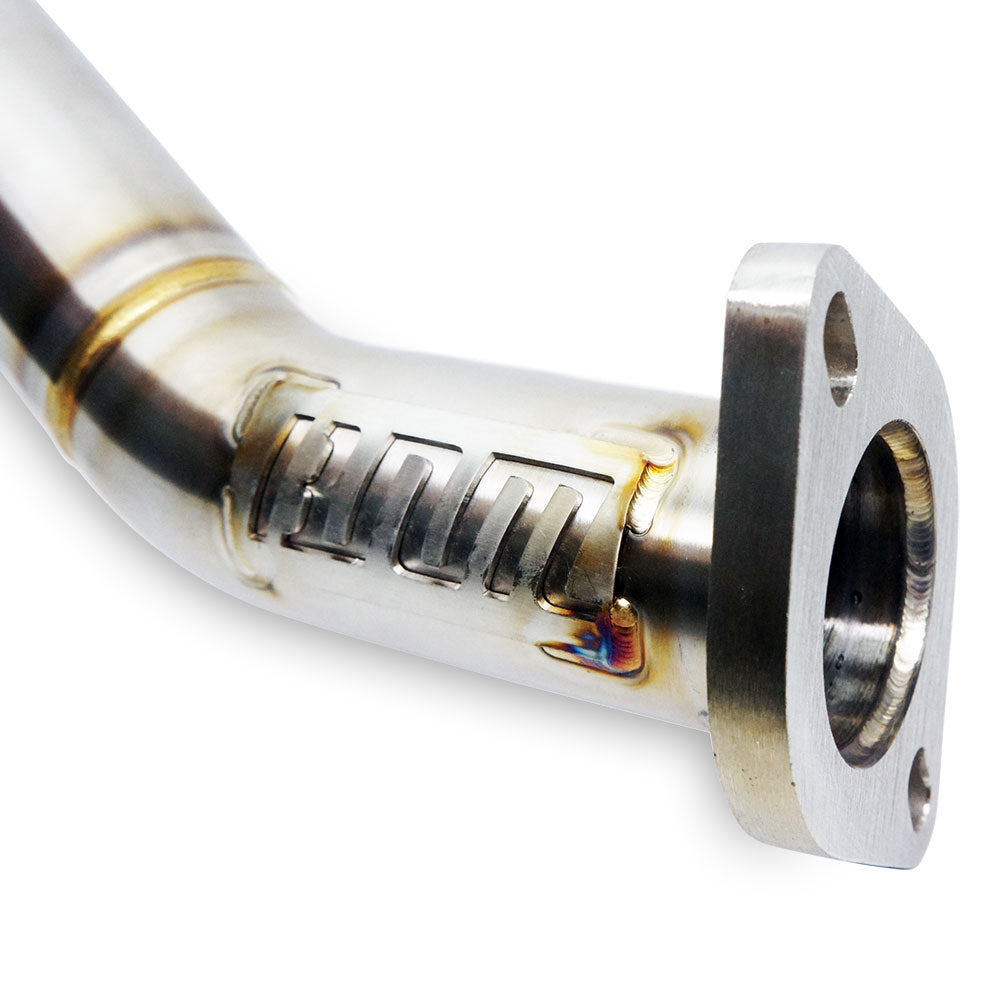

Note: 2-Bolt EWG Pipe Pictured. 3-Bolt photos coming soon.

The BNM Performance Fab External Wastegate (EWG) Up-Pipe Kit is designed for builders who want more than basic boost control. By removing the internal wastegate and actuator, this kit unlocks the benefits of a freer-flowing external setup giving you sharper control, more stable boost levels, and a setup that’s ready for serious tuning.

Of course, there’s also the sound. That raw, unmistakable screamer pipe tone isn’t for everyone, but for those who want it, this kit delivers.

Switching to an external wastegate allows exhaust gases to bypass the turbocharger more efficiently. This helps eliminate boost creep and spike issues commonly seen when the internal wastegate port on the turbine housing becomes a bottleneck under load.

Fitment & Installation Notes

The 3-Bolt Up-Pipe is suitable for the majority of aftermarket 3-Bolt headers including PSR, Tomei, Roger Clark, AVO, GT Spec, IAG and others.

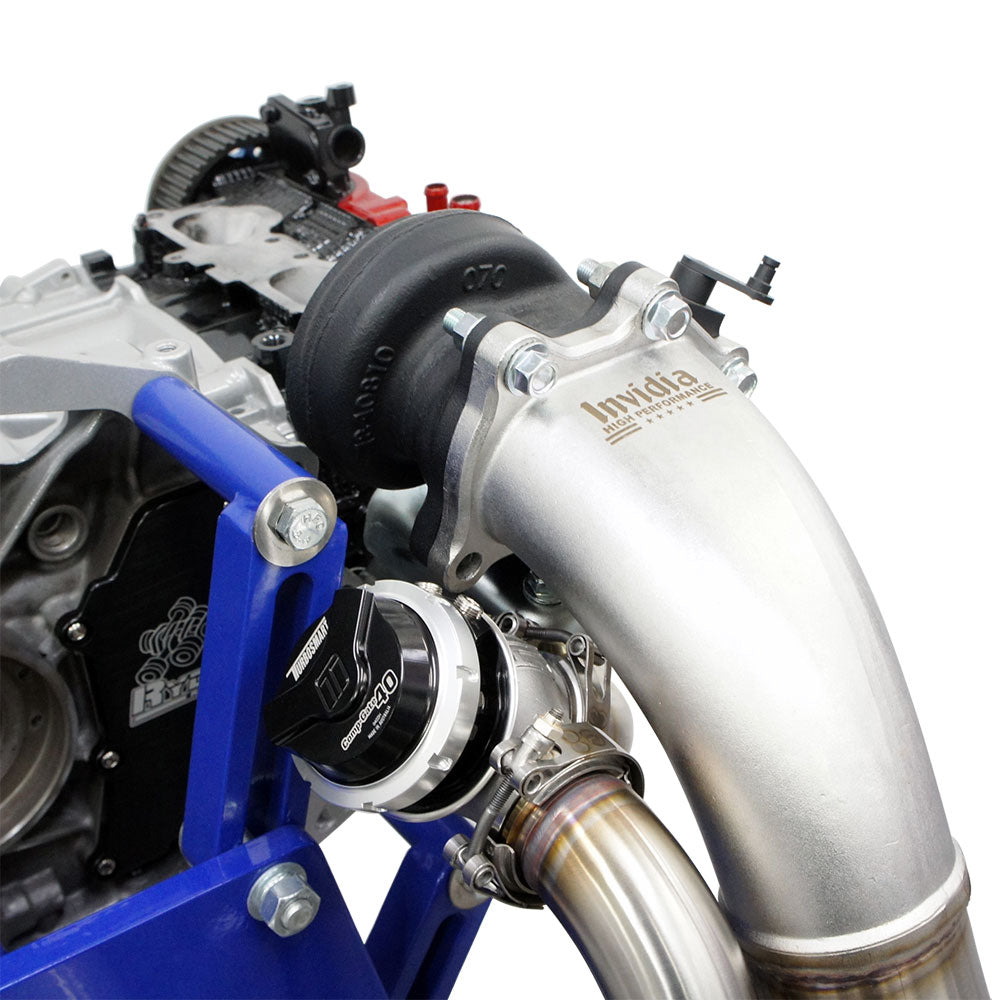

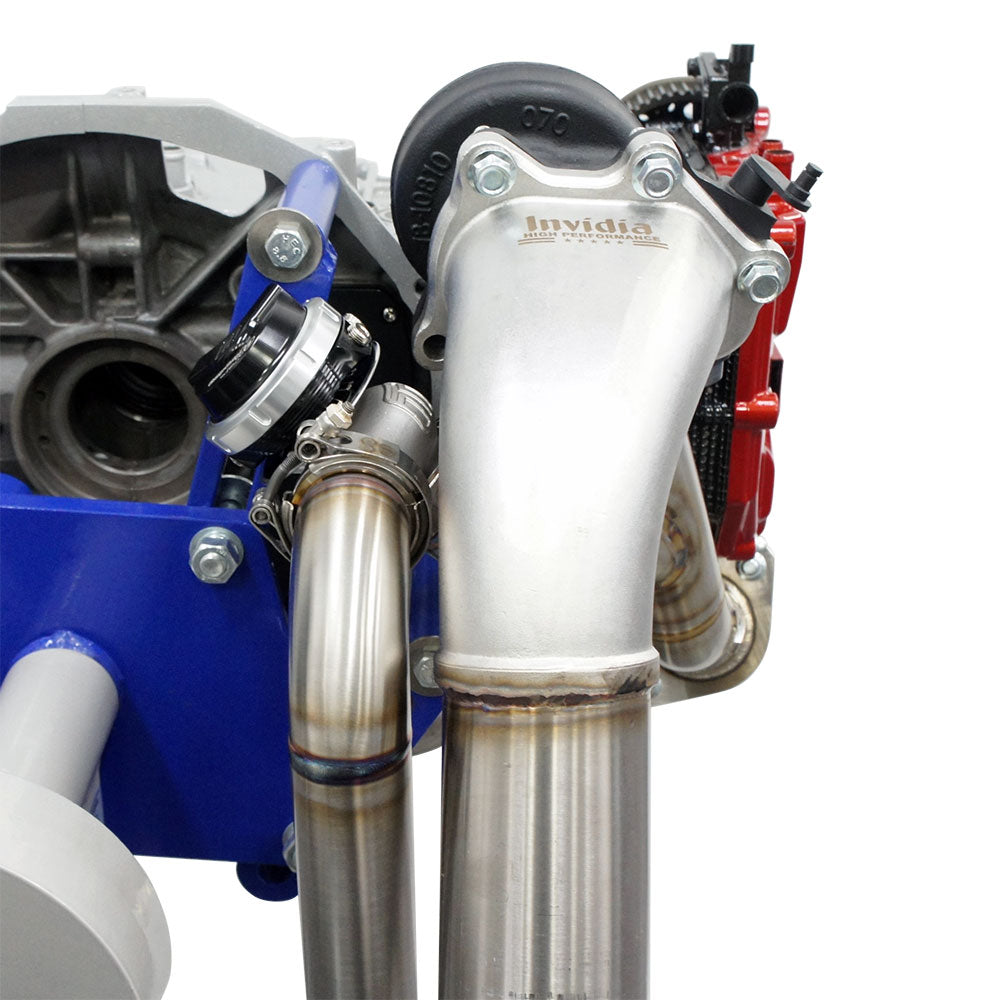

This EWG kit has been locally test-fitted on RHD Subaru models with both 5-speed and 6-speed manual transmissions, using Invidia down-pipes. For best results, BNM recommends the Turbosmart WG40 Comp-Gate due to its compact size. While the GFB EX38 may be used, it is not recommended on 6-speed transmissions due to space limitations with the larger gearbox casing.

Please review the following compatibility notes before purchase:

• Not compatible with early 6-speed transmissions that have a Vehicle Speed Sensor located on the driver’s side of the gearbox.
• Not designed for use with OEM down-pipes. Fitment was confirmed using Invidia down-pipes. Other aftermarket down-pipes with lower-mounted catalytic converters may be suitable but have not been confirmed.
• Wastegate is NOT included.
• Installation hardware (gaskets, nuts, bolts) is NOT included. OEM hardware may be reused if in good condition, but it is strongly recommended to install with new fasteners and gaskets.
• If using a stock-location turbo with an internal wastegate, an internal wastegate lockout is required and is NOT included.
• The 3-Bolt Up-Pipe is only suitable for aftermarket 3-Bolt headers including PSR, Tomei, Roger Clark, AVO, GT Spec, IAG and others.

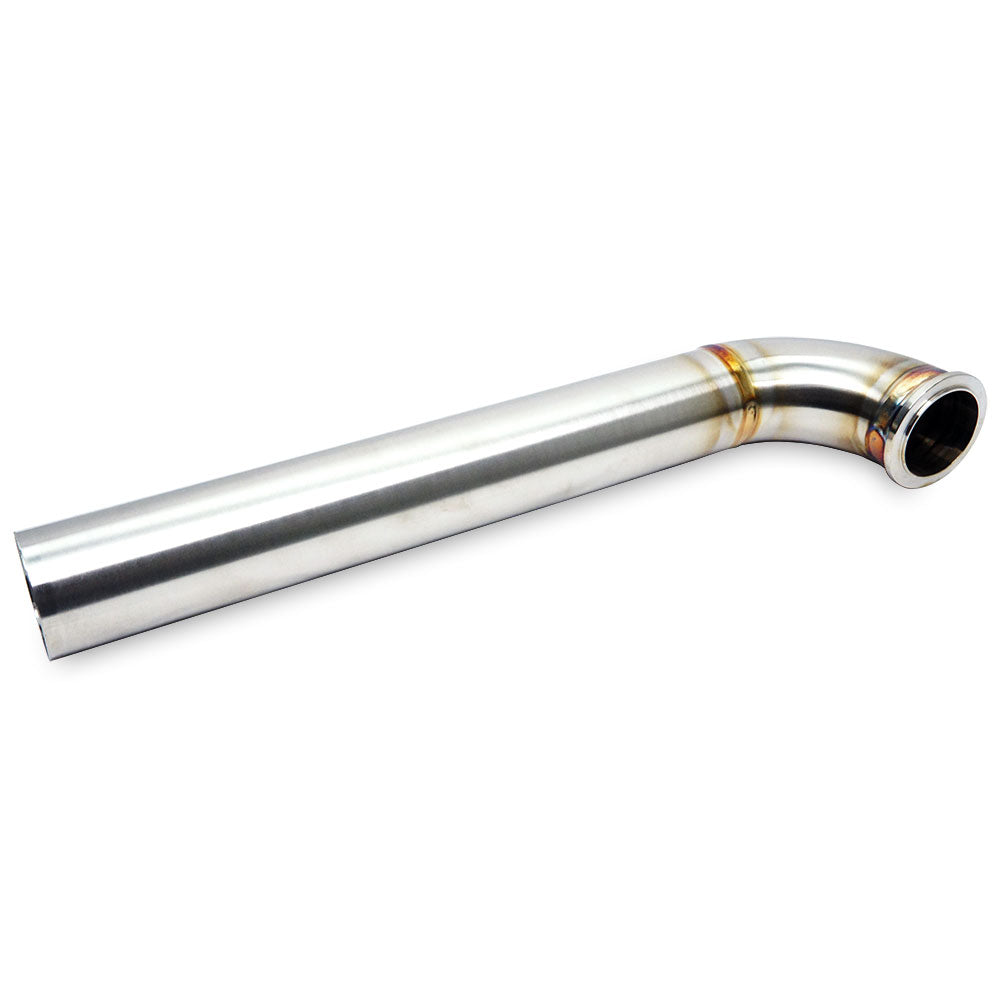

This kit includes a screamer pipe which vents the wastegate to atmosphere. This is illegal for road registered vehicles due to volume and emissions as it bypasses the catalytic converter. For those wishing to run this kit on street vehicles there will be custom fabrication required to plumb this into the down-pipe. For track vehicles please check the noise limits at your local track as screamer pipes are LOUD.

About BNM Performance Fab

BNM Performance Fab is built on a simple principle: do the job right, or don’t do it at all. Every part that leaves their workshop in the USA is hand-fabricated by a team that lives and breathes high-performance Subaru tuning.

This isn’t mass production. It’s precision fabrication using premium 304 and 321 stainless steel, shaped and welded with care, one piece at a time. From the first cut to the final weld, BNM components are crafted with a deep respect for quality and performance.

These parts are designed for builders who push beyond the factory limits. They’re made to take on high heat, serious boost, and the wear that comes with hard driving. Fitment is spot-on, with designs that install cleanly without modification or frustration.

BNM’s attention to detail is where it really shows. The use of thick, oversized, laser-cut flanges helps eliminate common problems like warping or exhaust leaks, even after countless heat cycles. Every weld, every cut, every finish is made to last.

Whether you’re upgrading a daily driver or building a full track car, BNM parts are built to support your goals now and into the future. They’re trusted by Subaru owners and engine builders who refuse to settle for generic bolt-ons. If your setup demands strength, reliability, and real craftsmanship, BNM delivers.
