CANchecked ANC04 Universal 4 Way Sensor Wiring Harness
Universal
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$114.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
This store accepts price offers on this product through Bidit. AI agents can negotiate programmatically: when WebMCP is available this page registers the tools bidit_get_offer_context, bidit_make_offer and bidit_add_offer_to_cart. Documentation for the offer flow: /apps/bidit/agents on this store, or https://bidit.com.au/agents.

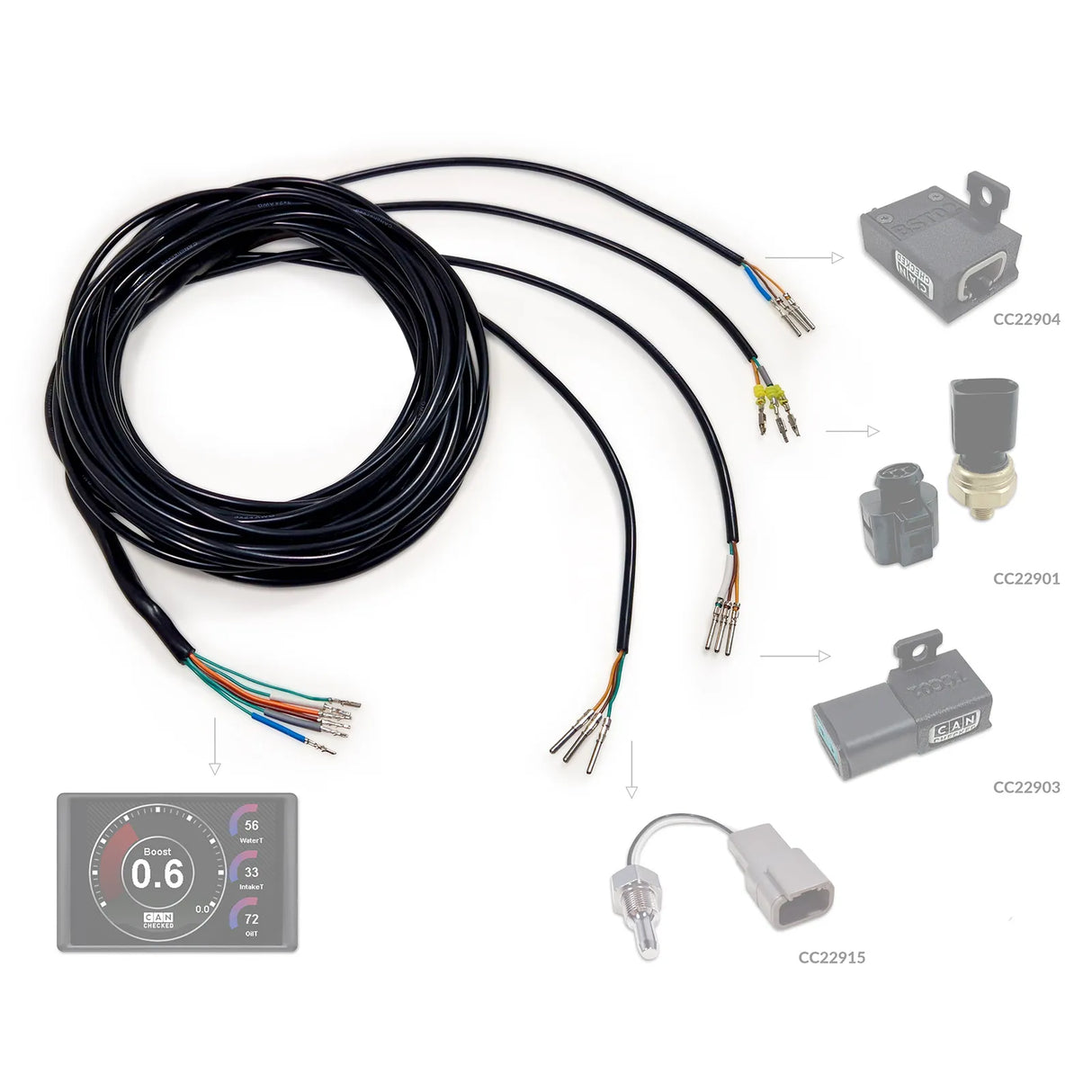

With the ANC04, you can connect up to four analog sensors to your MFD15/28/32 with minimal effort, without worrying about wiring or crimping the contacts. The ANC04 is directly compatible with our in-house sensors. As long as you follow our defined connection diagram, the NTC01 (NTC temperature sensor), TCC01 (Type-K exhaust gas temperature transducer), FLP01 (liquid pressure sensor), and BST01 (boost pressure sensor) sensors will work out of the box.
This means: plug the pins into the supplied mating connector, plug the wiring harness into the display, and then assign the appropriate widgets to the display, and you're ready for the road.
The ANC04 must be connected to both the display and the mating connectors of the sensors
First, please route the individual rods through the bulkhead or to the designated locations (protect the crimps with masking tape during installation; do not pin the sensors yet). Once you're ready, you can start pinning the crimps to the display connector according to the following diagram.
When connecting the Molex Microfit pins to the display connector, ensure the correct orientation! The open side of the Molex crimp with both arms of the pin (circled in blue) must point toward the release tab of the Molex connector housing (circled in red).
In the table below you will find the pinout for connecting the Molex Microfit pins:
When connecting the sensors, ensure that they are color-coded correctly. The analog sensors are connected as follows:
Features and Benefits
Features:
Plug-and-play compatibility with CANchecked in-house sensors
Uniform color scheme for clean, professional cabling
No special tools required – pins are expertly pre-crimped
3 m length (300 cm) for versatile installation in any application
Individual strands for maximum flexibility during routing
Coated strands for long-lasting durability and protection
