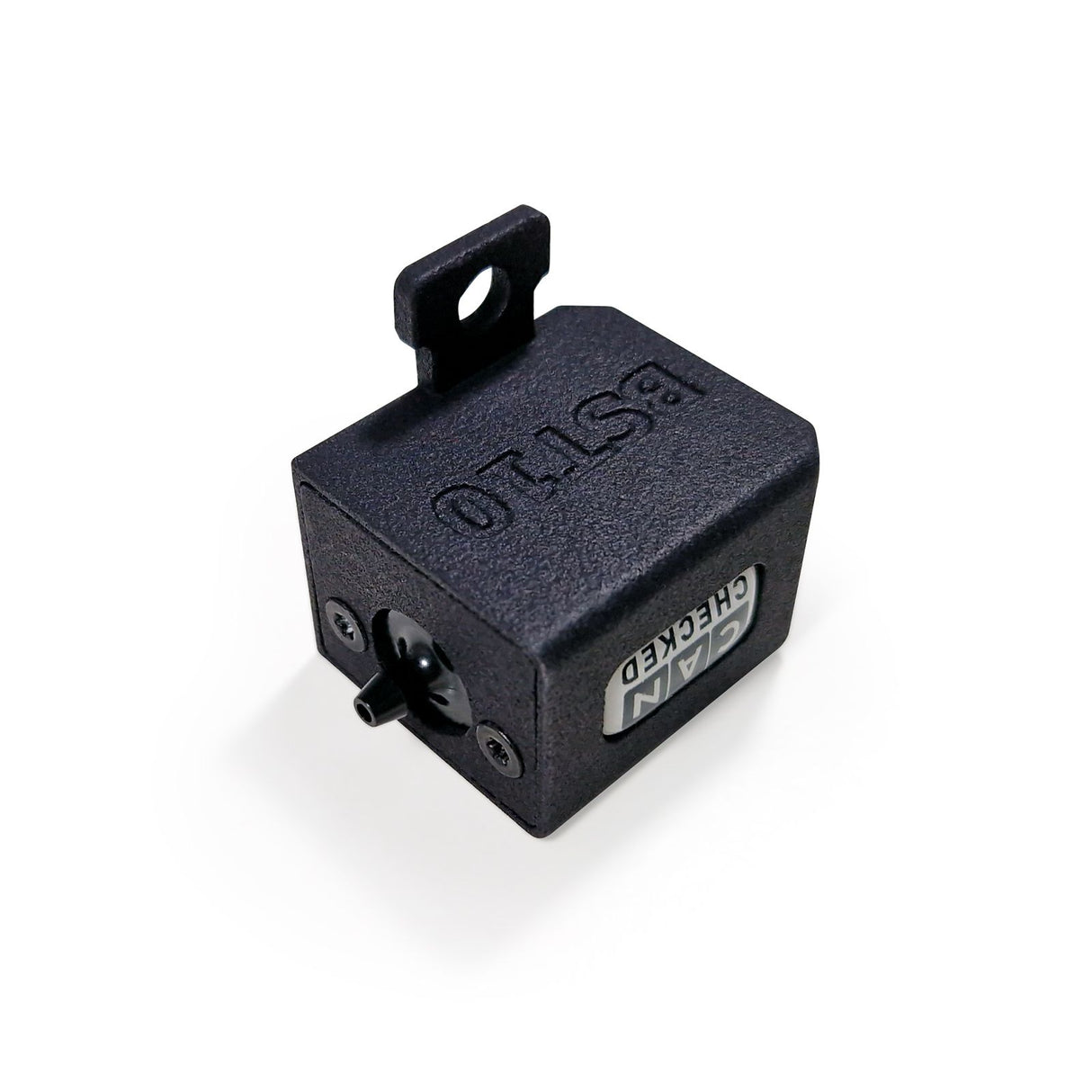

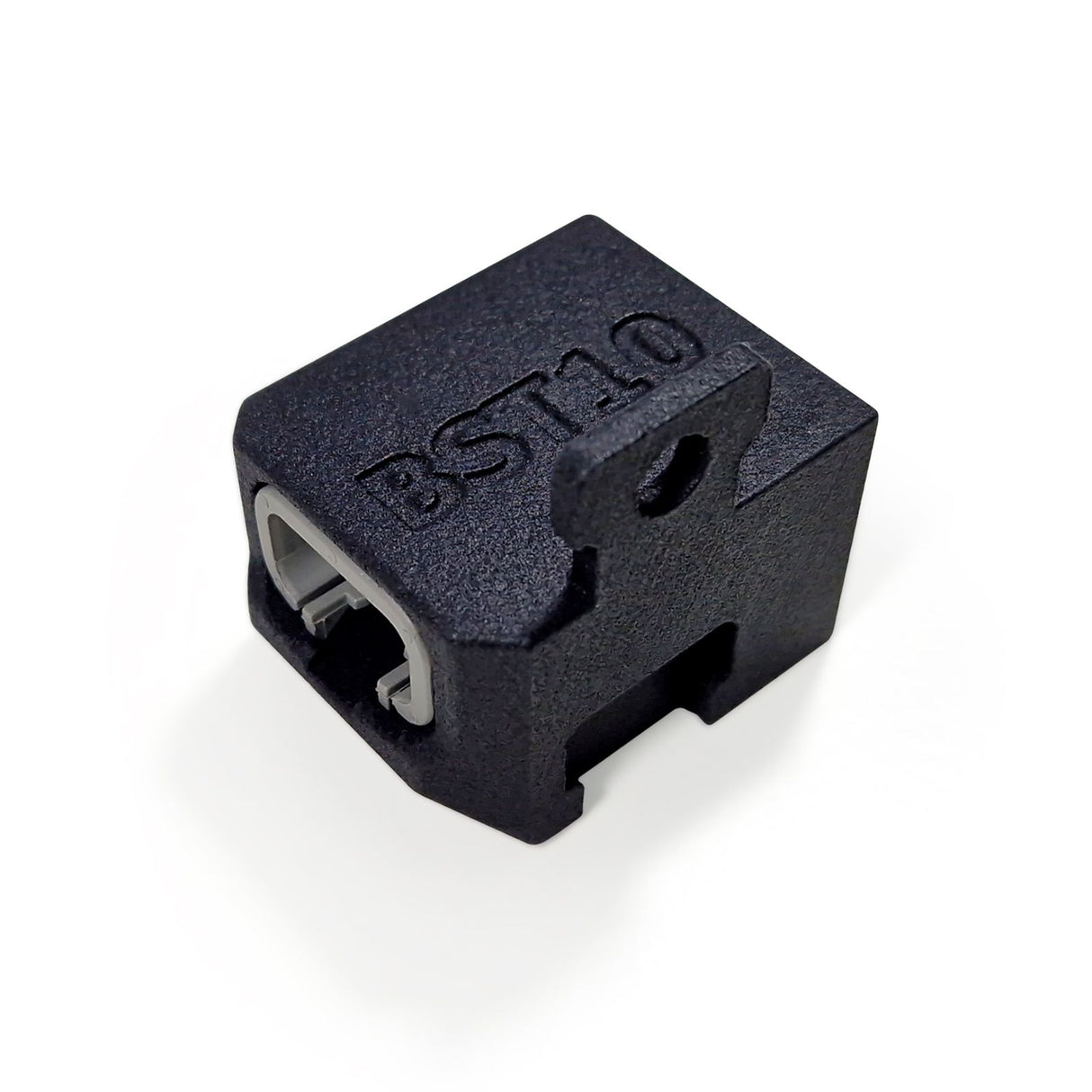

CANchecked BST10 6.5 Bar MAP Boost Pressure Sensor

The CANchecked BST10 boost pressure sensor is designed for precision and easy installation. With a measuring range of 0 to 7.47 bar (0 to 108.3 psi) absolute and -1 to 6.47 bar (-18.99 to 93.8 psi) relative, it delivers accurate data for your engine management system, making it ideal for tuning and motorsport applications.

When paired with the ANC04 4-way sensor wiring harness, installation becomes plug-and-play. No crimping or complicated wiring is required—just insert the pins, connect the cables, and go. Color-coded wiring keeps everything organized, while the 300 cm cable length offers flexible mounting options.

The BST10 is fully compatible with CANchecked MFD15, MFD28, and MFD32 displays, as well as freely programmable ECUs. This ensures seamless integration into existing setups and consistent, reliable measurement results.

Built from high-quality materials with a robust design, the BST10 is engineered to last, even under the demanding conditions of motorsport.

The CANchecked BST10 offers a straightforward and effective solution for precise boost pressure monitoring—perfect for enthusiasts who demand performance and reliability.

• Measuring Range: Absolute 0–7.47 bar (0–108.3 psi) / Relative -1–6.47 bar (-18.99–93.8 psi)
• Compatible with MFD15, MFD28, MFD32 and programmable ECUs

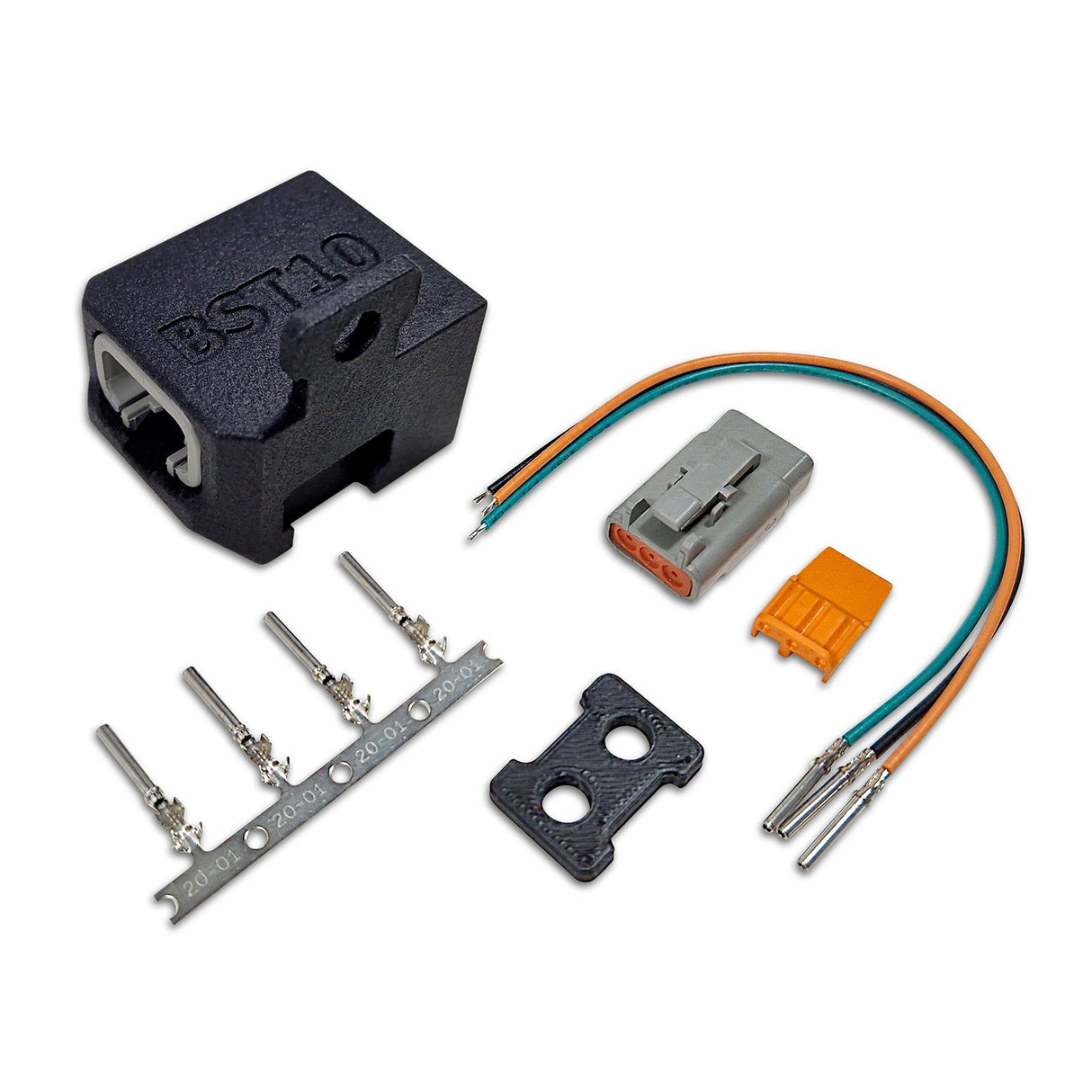

• Plug & Play with ANC04 (CC22780) wiring harness – color-coded, 300 cm long, robust and flexible
• Compact size – about the size of a matchbox
• Hose connection nipple can be secured with cable ties
• Precisely fitting plug-in system, compatible with TCC01
• Mounting eyelet can be fixed with either a cable tie or screw
