CANchecked MCE18 Multufunction Can Bus Extension Hub

MCE18, the ultimate "Multifunction Can Bus Extension"! But what exactly is the MCE18, and why do you need it?

The MCE18, which stands for "Multifunction Can Bus Extension," is a versatile module that can be indispensable in various applications. Our range of displays, including MFD15, MFD28, MFD32, and MFD32S, comes standard with four analog inputs. This is sufficient for most cases, but there are situations where you need more inputs to meet your requirements.

In such cases, the MCE18 offers the perfect solution. You can easily connect your sensors to this module and transmit the data to your desired device via the flexible Can Bus protocol, whether it's one of our displays or another compatible device.

But it's not just displays that benefit from our MCE18. Programmable control units also often have a limited number of inputs. With our module, you can easily expand these inputs and send the data directly to the control unit to meet your control requirements.

It has already been tested with the following devices:

• CANchecked MFD28/MFD32/MFD32S
• MaxxECU (MaxxECU save file and instructions available)
• Ecumaster (emulates Switchboard V3)
• LinkECU (can streams available for import)
• Haltech (emulates an IO Extender A+B or only A or B)
• Motec (emulates an E888 – two units are also possible!)
• AIM

The MCE18 features:

• 9 analog inputs (0-5V)
• 8 digital inputs (on/off)
• 3 digital outputs (on/off LOW SIDE 0.5A)
• 4 frequency inputs (Turbospeed or Hall sensor (Wheel Speed); one input is reconfigured for this purpose)
• One frequency input usable for ethanol (ethanol content and ethanol temperature)

A particularly remarkable feature of the MCE18 is the three digital outputs that switch to ground (LOW SIDE) and can carry up to 500 mA.

So, if you're looking for a flexible and reliable way to expand your analog and digital inputs and communicate via Can Bus, the MCE18 is the perfect solution. Order today and optimize your electronic systems!

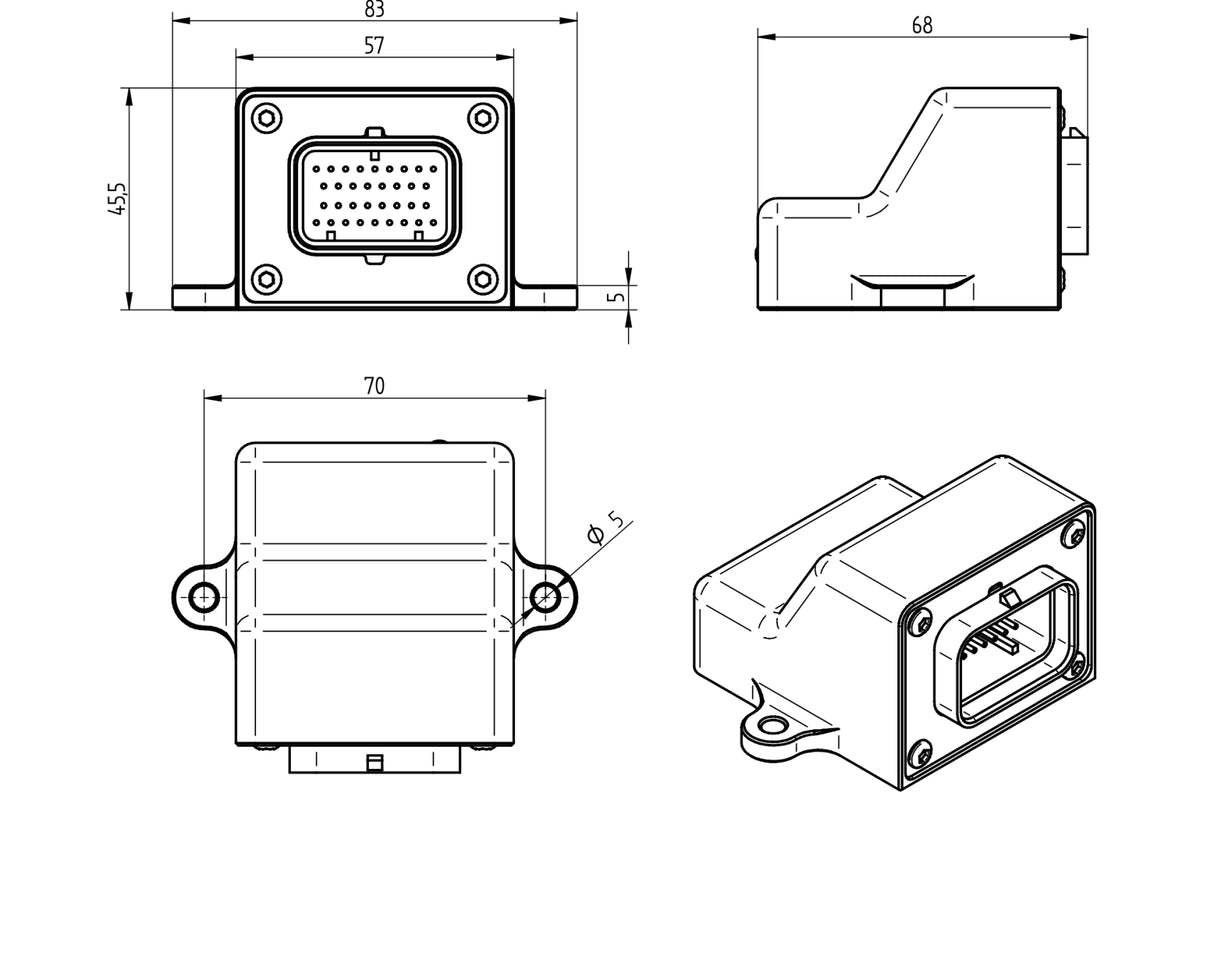

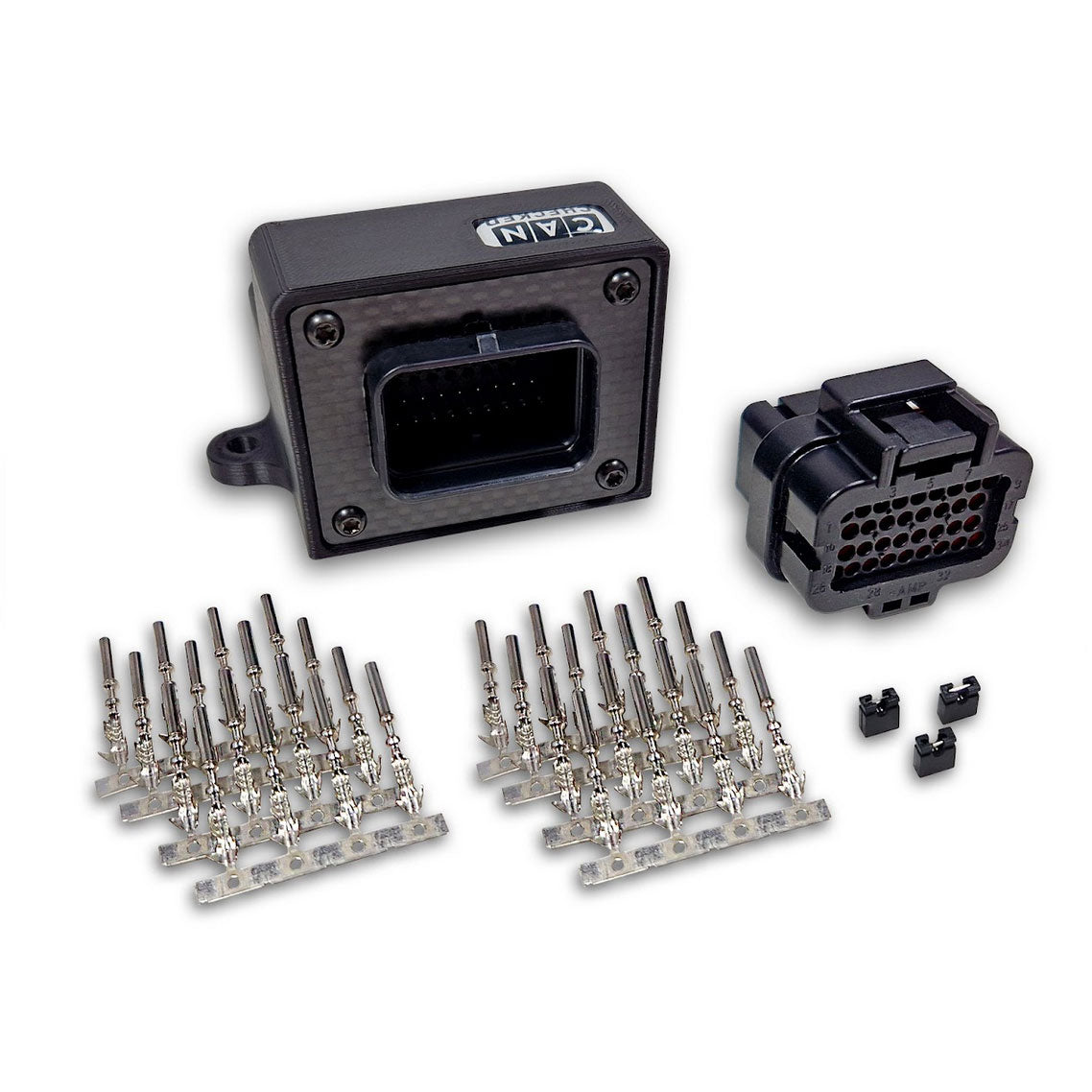

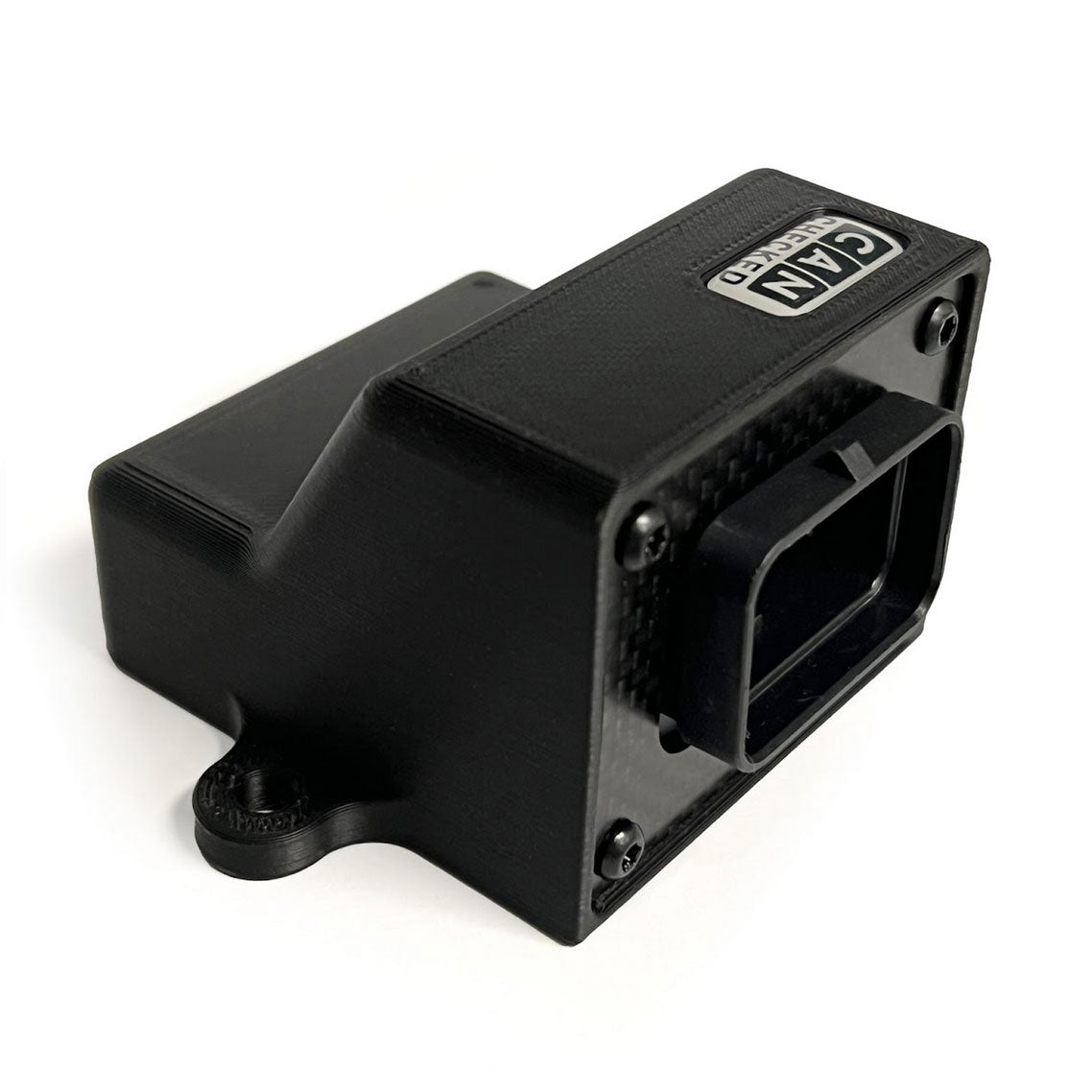

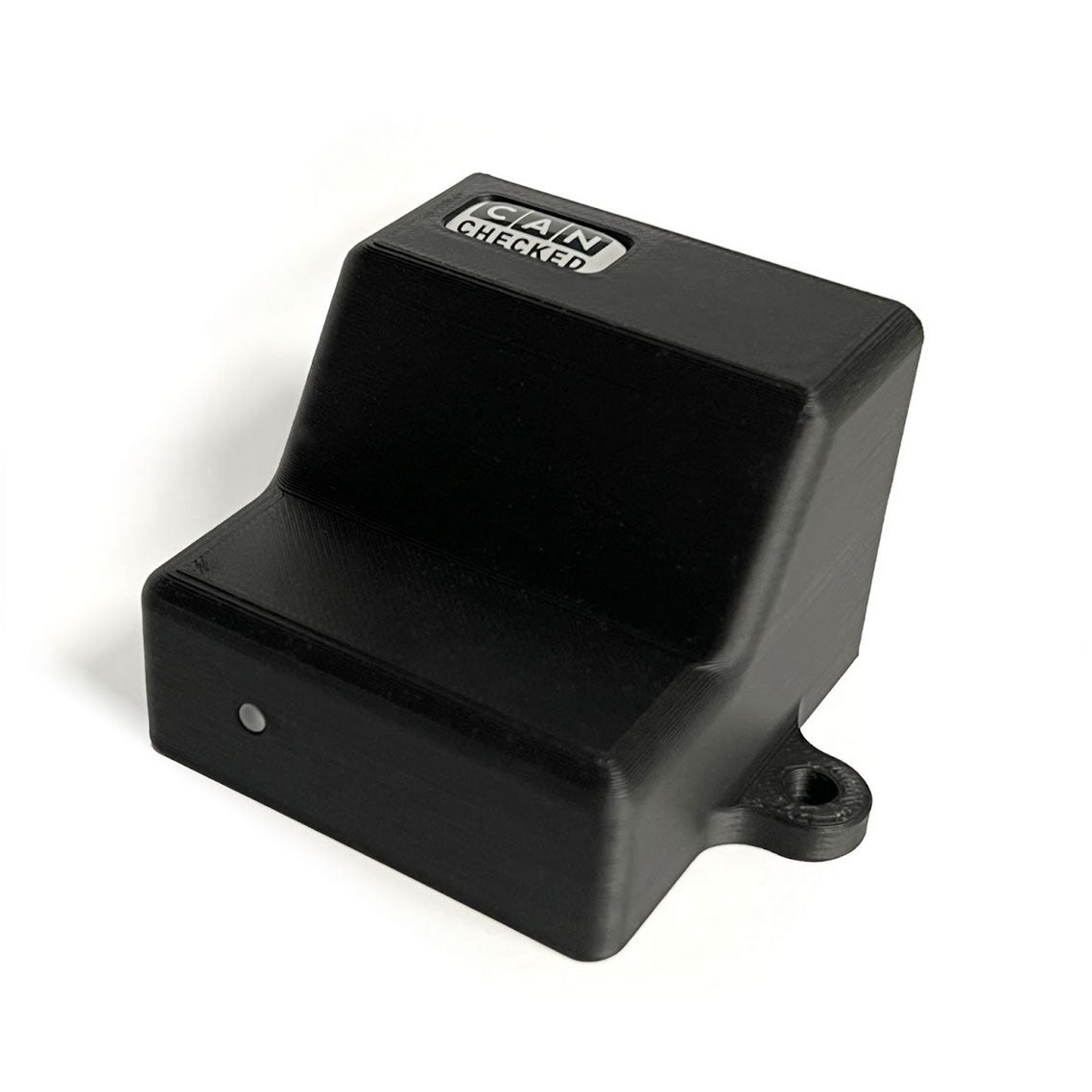

• The MCE18 module with housing

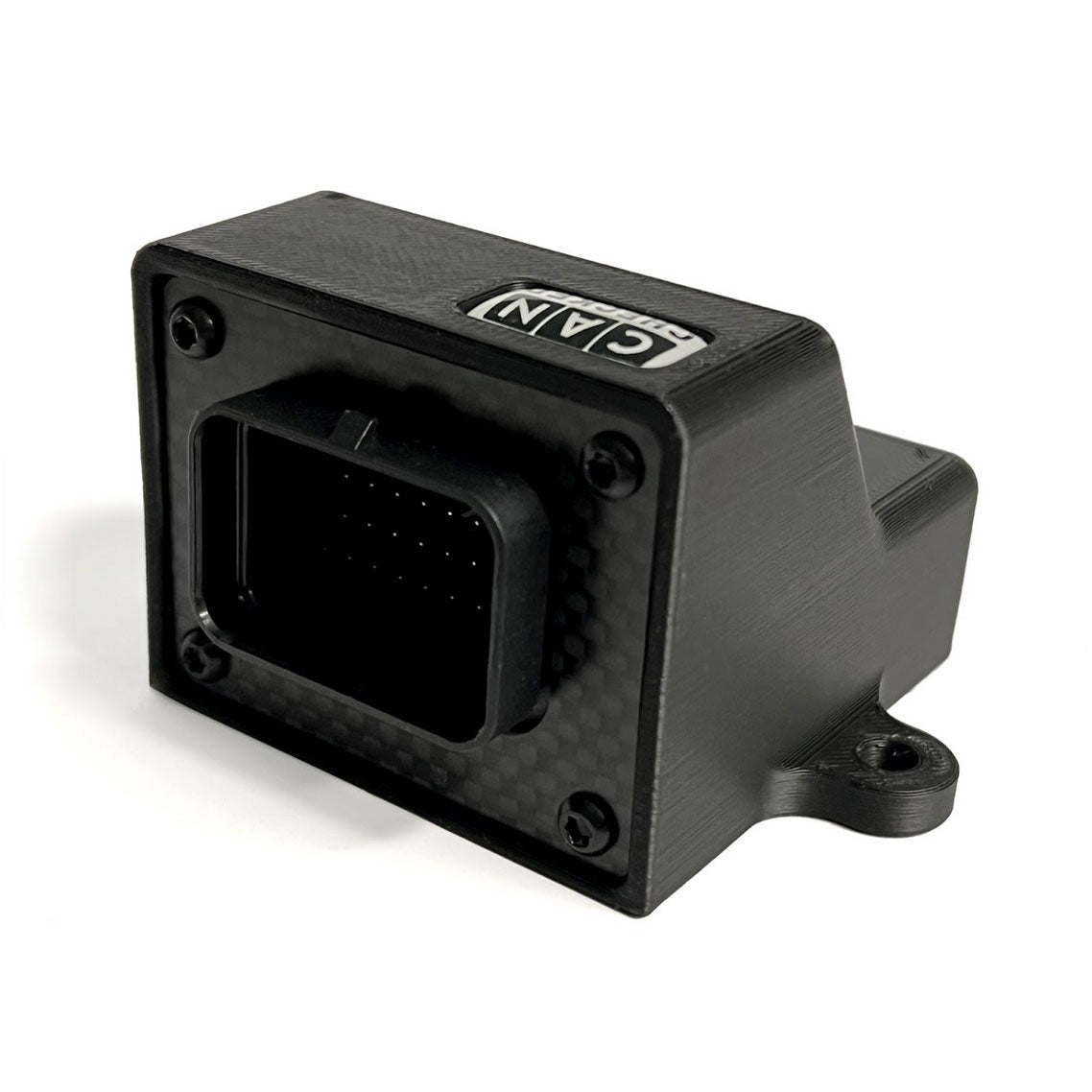

• 34-pin Superseal connector (TE 4-1437290-0) for a reliable connection
• Superseal 1.0 20AWG pins (TE 3-1447221-4) for stable wiring
• 3 jumpers to customize configuration (CAN bus termination, 2 × 1K pull-ups for NTC sensors)

Click to download
