 |  SKU: CC22915

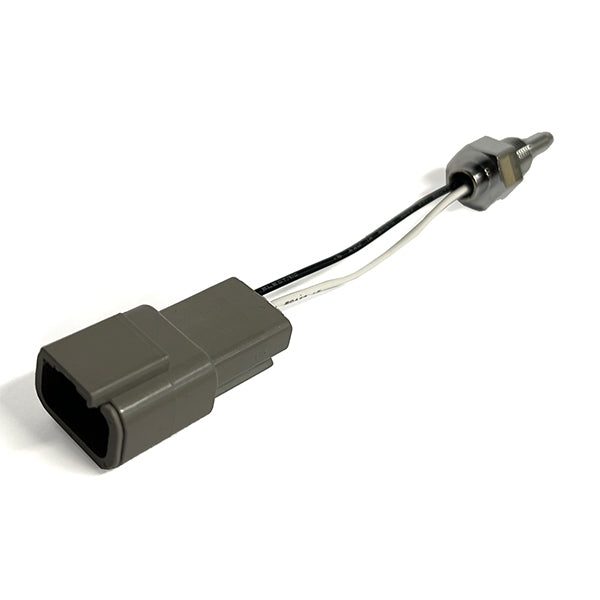

CANchecked NTC01 Water/Oil/Fuel Temperature Sensor - Universal M10x1.0 Thread

$129.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Our new and improved NTC01 (CC22902) fluid temperature sensor - the ideal solution for monitoring engine oil, water, transmission fluid and differential temperatures. We've made the connection process as simple as possible so you can work faster and more efficiently.

What's new?

Our temperature sensor already has an integrated 1K ohm pull-up resistor and comes with a DTM connector. This means that you only have to supply it with 5V, ground and a signal line. For MFD15/MFD28/MFD32 Gen2 devices, the TRI/TRX file is preconfigured so that if you connect the signal line directly to analog input 1, the Plug and Play values ​​are displayed. Of course, you can also connect the sensor to other analog inputs or components. To do this, you have to enter the following characteristic curve and you are ready to go.

Technical Specifications

Thread: Metric M10 x 1.0



Wiring Pinout:

Pin 1: Ground/GND
Pin 2: signal
Pin 3: +5V



Voltage Table:



Included Components

  • The sensor with female connector and integrated resistor
  • The matching mating connector (DTM04-3P)
  • 3 DTM pins for easy connection to crimp yourself
  • A wedge lock (WM-3P) to keep everything secure and stable

Fitment Table
