CANchecked TCCXX Multi Thermo Couple CAN Bus Converter

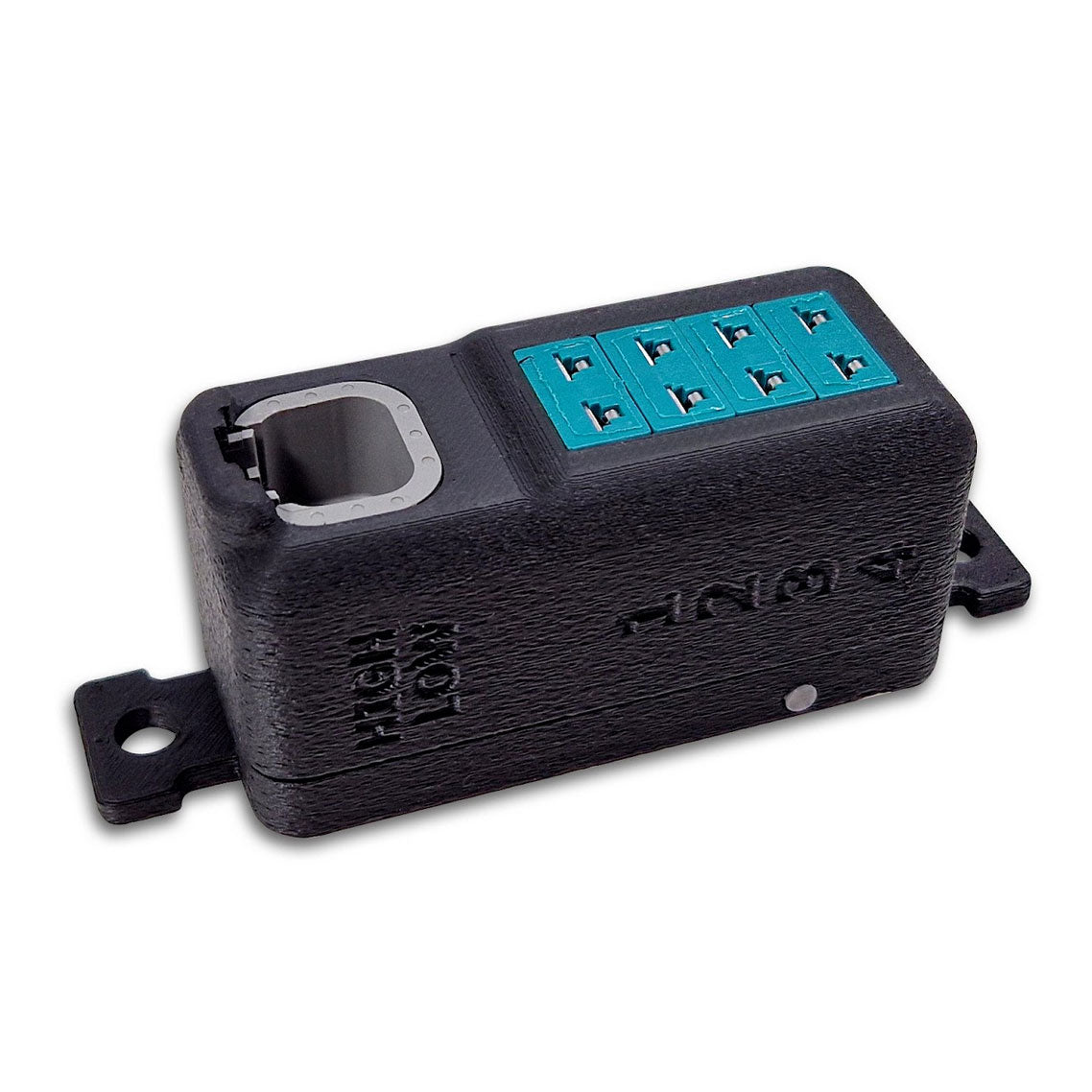

The TCCXX are the big brothers of our TCC01 . The significant difference, however, lies in the data transmission. While the TCC01 outputs an analog 0-5 volt voltage, the TCCXX transmits its measured values via the CAN bus. Our TCCXX are available in four different sizes and designs, and all sample at an adjustable frequency of up to 100 Hz:

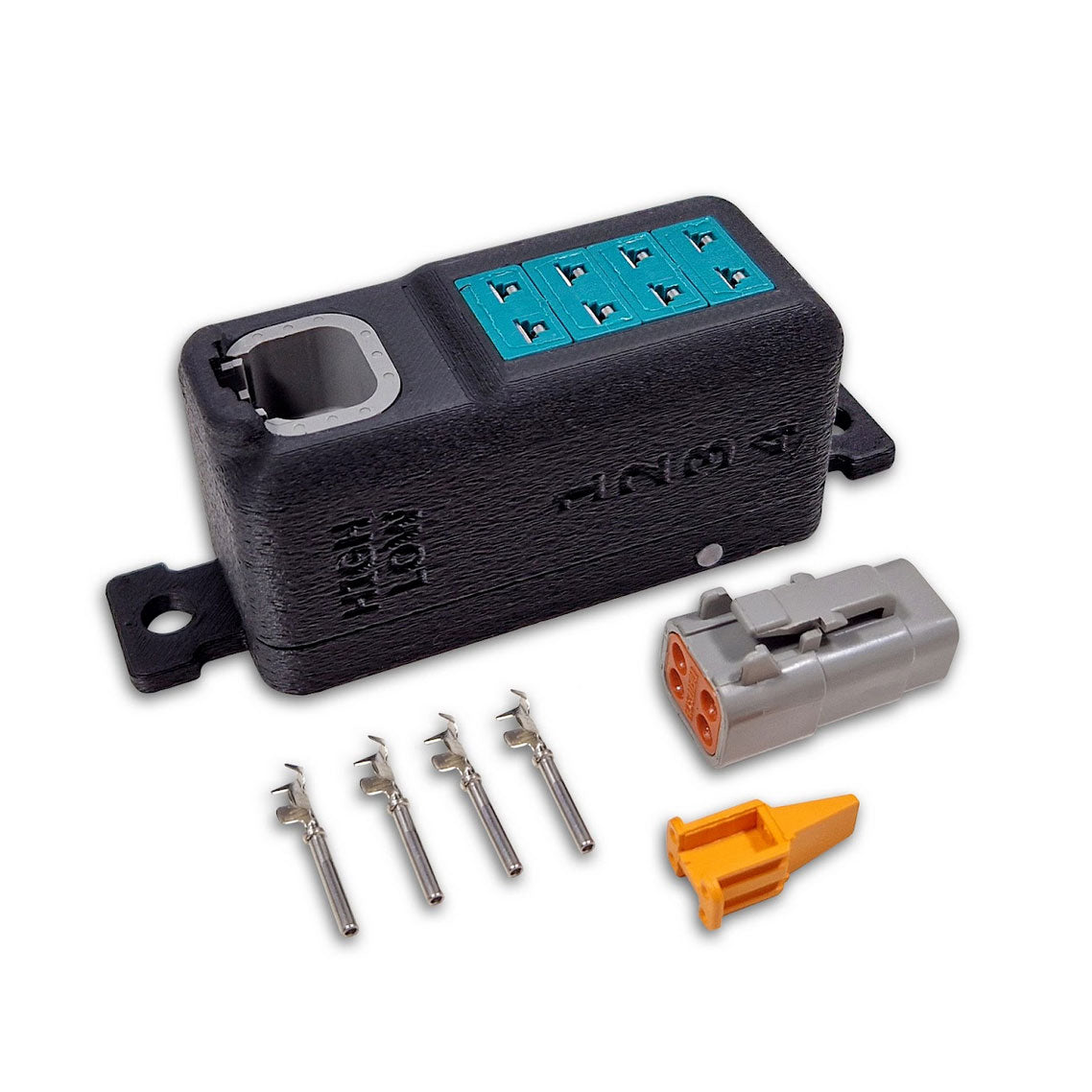

TCC04 – 4-Way Type-K to CAN

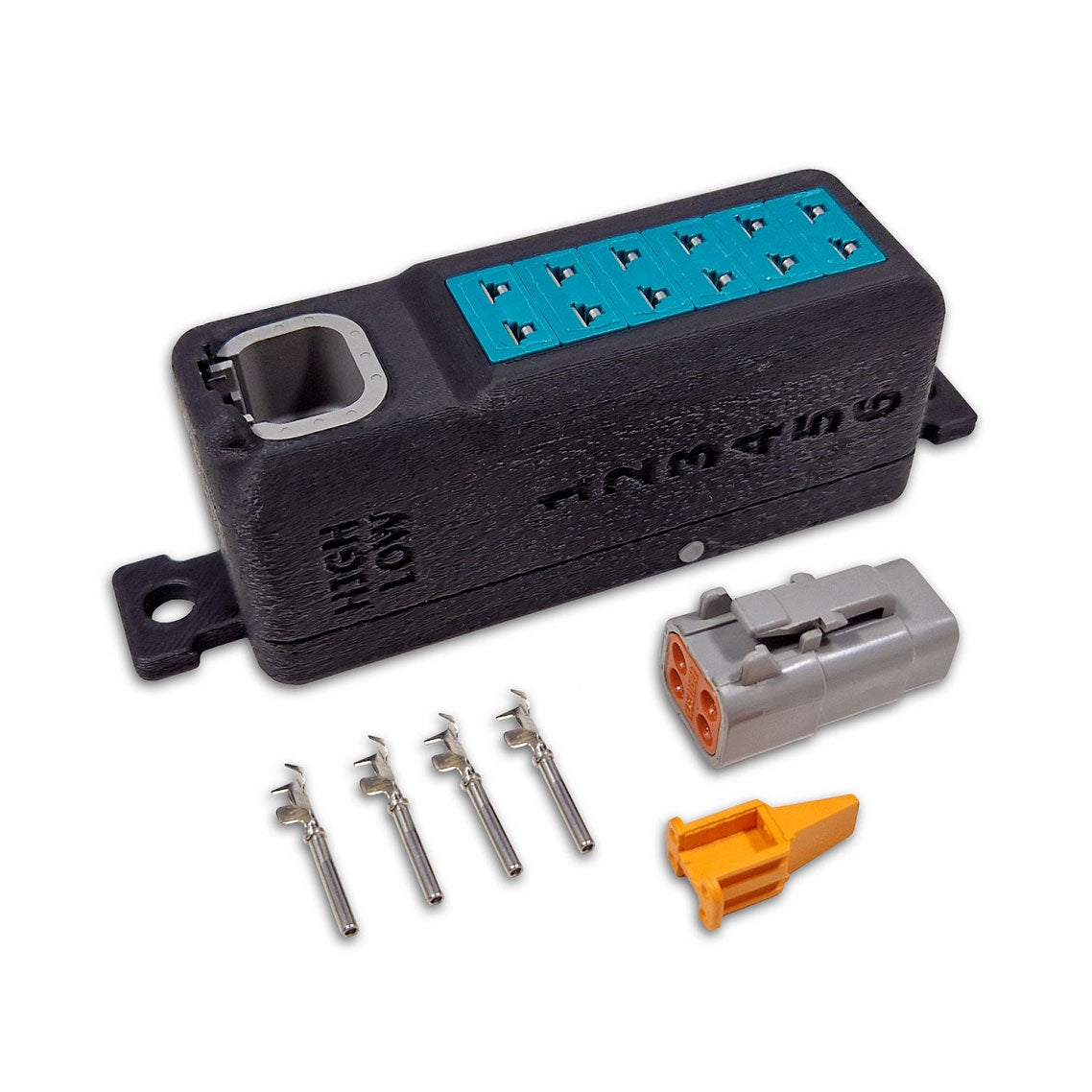

TCC06 – six-way Type-K to CAN

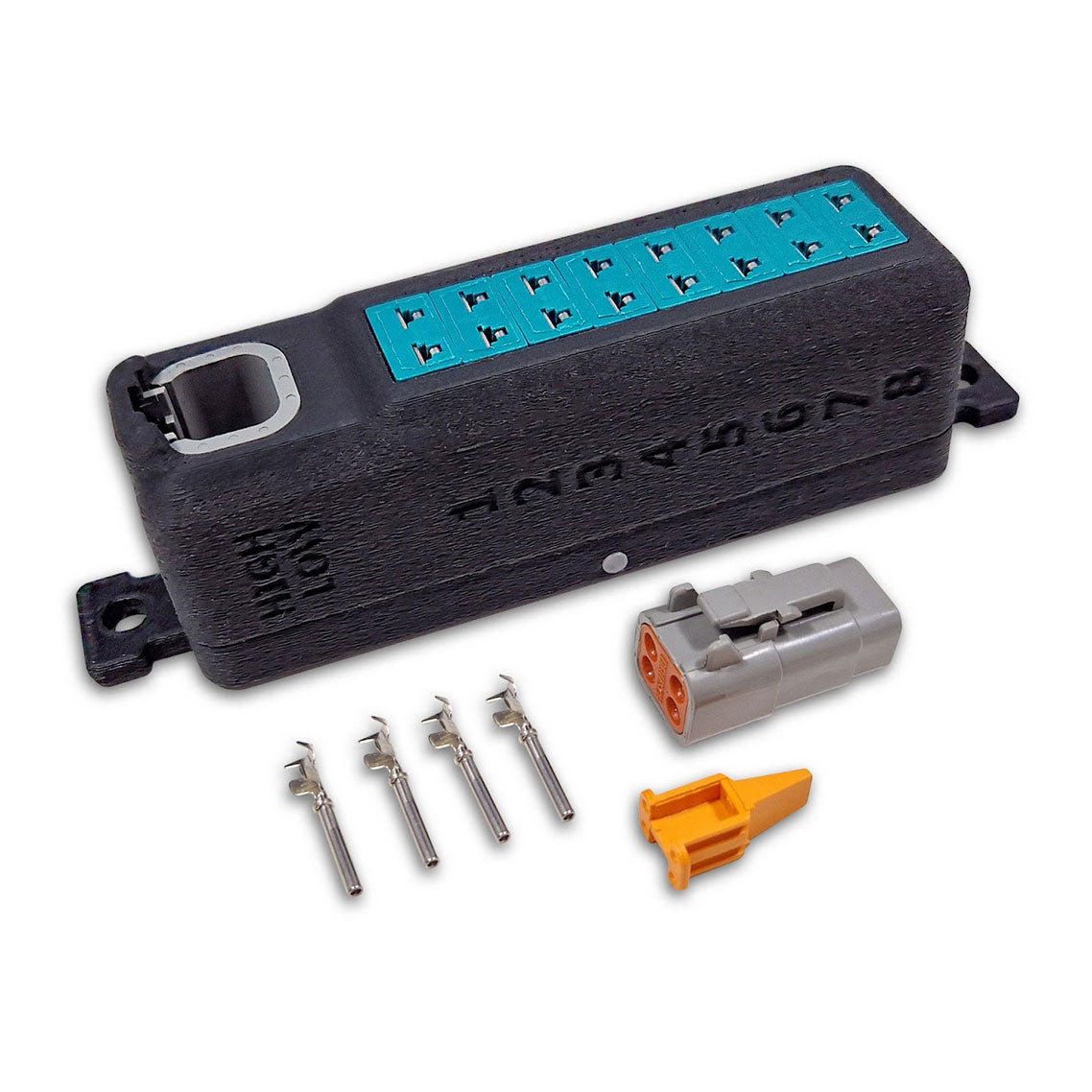

TCC08 – eight-way Type-K to CAN

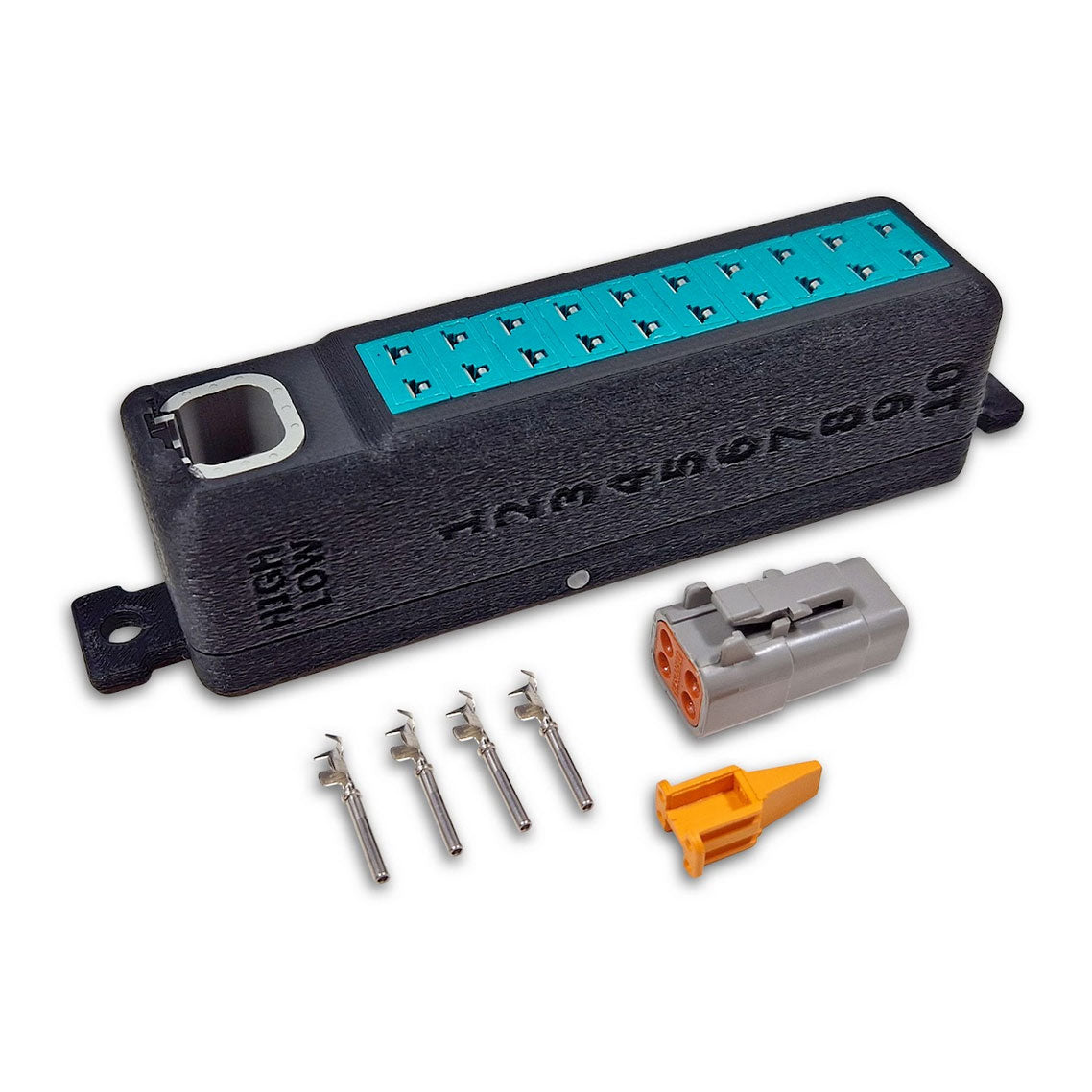

TCC10 – tenfold Type-K to CAN

These allow you to connect up to ten Type-K thermocouples and send the measured values via CAN bus and/or monitor them directly on your Wi-Fi enabled device.

Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, cylinder head temperature, water temperature, oil temperature, and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C with 0.25°C resolution (14-bit).

The TCCXX features a four-pin DTM connector for CAN/power and miniature K-sockets. The CAN 2.0A/B standard is supported with flexible configuration. This makes your next EGT to CAN module compatible with many devices from other manufacturers.

The highlight is the WLAN connectivity, which allows you to configure and update your module via smartphone or PC, as well as query the current temperature and thermocouple status.

Configuration

The devices can be configured via WLAN:

• Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps

• Emulation: Standard, Motec E888,haltech TCA-4, TCA-8, Ecumaster EGT2Can, AEMnet

• Change of the standard Can Bus ID

• Big/Little Endian change

• Change the resolution (0.25°C or 0.1°C)

We also support the following control units:

• Emtron
• MaxxECU
• Motec (E888, E816 emulation – up to 4 devices and 10 thermocouples each)
• Haltech TC8
• Ecumaster (black/classic)
• LinkECU
• Syvecs KT8
• and many more
