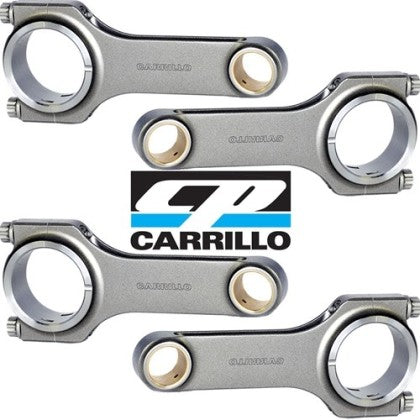

Carrillo Pro-H Connecting Rods w/ 3/8" WMC Bolts

Carrillo uses proprietary chrome, nickel, moly, vanadium alloy which meets all VAR (vacuum arc re-melt ASTM standards). The heat is validated, both by the supplier and an independent metallurgist whom confirm the desired physical and chemical properties of steel.

All heat treat processes are via a mar-aged operation, resulting in UTS of 195,000 with a yield of 182,000 while maintaining the critical elements of low notch-sensitivity and ductility.

All Carrillo connecting rods are manufactured from an oversized forging resulting in the proper grainflow as well as the surface removal of any potential inclusions or surface conversions generated by the forging process. All critical CNC machines at Carrillo are equipped with probing to accurately validate dimensional integrity. In the production process each part is magnafluxed at least twice, further each piece is Rockwell tested to validate the heat treat procedure. A final shotpeen operation completes the part.

Carrillo employs fasteners jointly designed by Carrillo. We employ two different materials: H-11 tool steel (220,000 UTS) as well as Multiphase TM (285,000 UTS). All our fasteners employ a patented thread design as well as the highest dimensional integrity in the industry. Each lot is sample tested destructively for both ultimate tensile strength as well as fatigue.

The CARRILLO connecting rod is a precision, high strength, quality connecting rod, which when properly installed and maintained, will perform flawlessly in today’s racing and high performance internal combustion engines. We would like to offer some suggestions and specifications that should be helpful in your installation.

Browse the fancy text converter collection to highlight what is important in your documents.

• Rod Length 5.669" / 144mm
• Rod Length Oversize Standard Length
• Pin Size 0.866" / 22mm
• Brand Carrillo Rods
• Small End Width 0.862
• Rod Material Forged Steel
• Rod Bolt 3/8" WMC
• Competitor Interchange Part Number SCR8554
• Big End Width 0.862
• Big End Bore 1.9928
• Beam Type H-Beam
