 |  SKU: SC7472-6

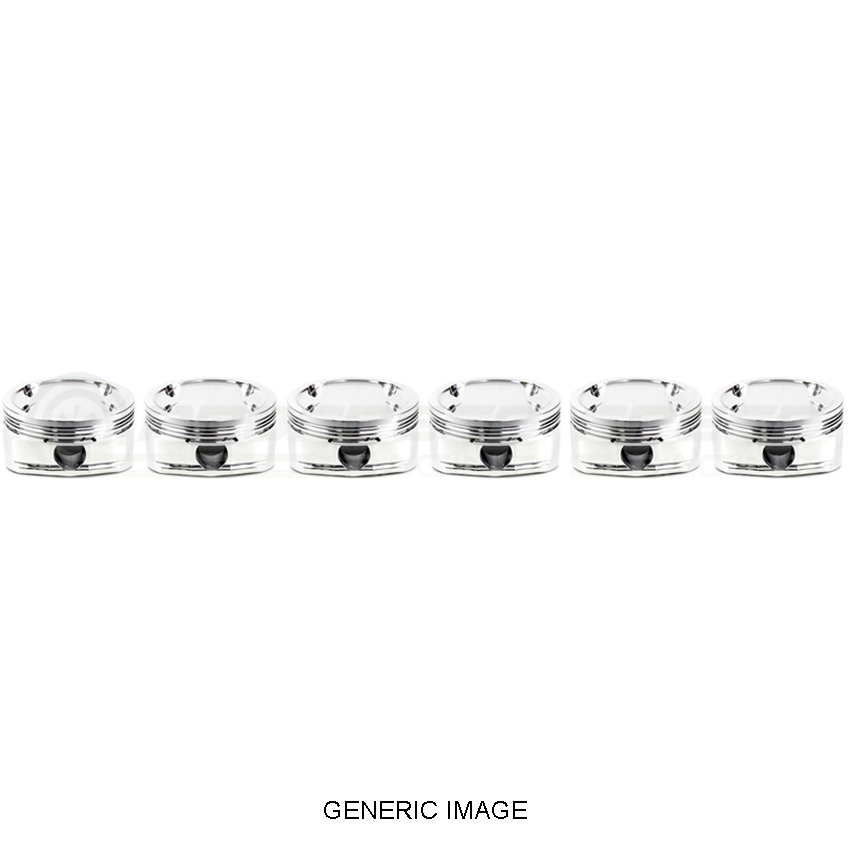

CP Piston Forged Piston & Ring Set - 86.5mm Bore

Toyota 1JZ-GTE/2JZ-GTE
$2,349.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

CP-Carrillo pistons are compatible with oversized valves and high lift camshafts. Part numbers ending in a X are on a X-style forging for additional strength, durability and weight reduction often geared for high compression naturally aspirated engines. The X-style has a full radius dome design, high performance rings and light weight wrist pins. CP-Carrillo Pistons represent the highest quality and are engineered for maximum power. Pistons can be ordered with gas ports, skirt coating, ceramic top coating, and stronger wrist pins if desired. Heavy Duty pistons are also now available for extreme power situations in certain applications and come with ultra duty wrist pins included. Cometic head gaskets and King Bearings also available.

Technical Specifications

  • Piston Rings Included: Yes
  • Bore (in.): 3.406 in.
  • Bore (mm): 86.500mm
  • Stroke: 71.50mm
  • Engine Stroke Type: Stock
  • Rod Length: 125.250mm
  • Piston Style: Flat top, with four valve reliefs
  • Piston Material: Forged aluminum
  • Compression Height (in.): 1.338 in.
  • Piston Head Volume (cc): +4.50cc
  • Wrist Pin Style: Press-fit or floating
  • Wrist Pin Retainers Included: Yes
  • Wrist Pin Included: Yes
  • Pin Diameter (in.): 0.886 in.
  • Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
  • File Fit: No
  • Gapless: No
  • Top Ring Thickness: 1.0mm
  • Top Ring Material: Steel
  • Top Ring Facing Material: Gas nitrided
  • Second Ring Thickness: 1.2mm
  • Second Ring Material: Cast iron
  • Second Ring Facing Material: Cast iron
  • Oil Ring Thickness: 2.8mm
  • Oil Ring Material: Carbon steel
  • Oil Ring Facing Material: Nitride
  • Oil Ring Tension: Low
  • Remanufactured: No
  • Quantity: Sold as a set of 6.

Fitment Table
