 |  SKU: SC7030-4

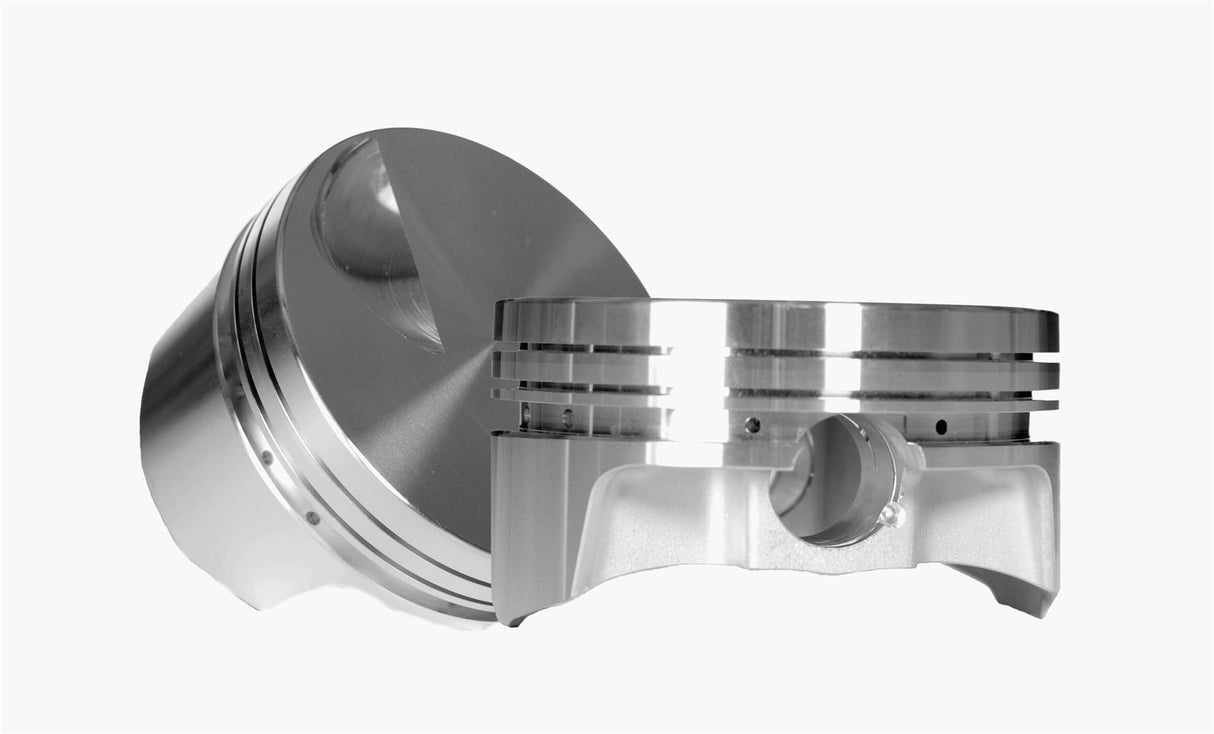

CP Pistons Forged Pistons Set

Honda H22A VTEC
$1,719.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Whether you’re racing a Honda, Acura, Mitsubishi, Toyota, Nissan, or Subaru, CP Pistons has specially designed high-performance pistons off-the-shelf. In most cases, these will directly replace the stock pistons.

CP pistons are compatible with oversized valves and high lift camshafts. Part numbers ending in a “X” are on a X-style forging for additional strength, durability and weight reduction. The X-style has a full radius dome design, high-performance rings and lightweight wrist pins. CP Pistons represent the highest quality and is engineered for maximum power. Pistons can be ordered with gas ports, skirt coating, ceramic top coating, and stronger wrist pins if desired.

Features and Benefits

  • High strength aluminum forgings
  • Super lightweight designs
  • Deep valve reliefs accommodate high lift camshafts
  • Larger valve reliefs for +1mm valve sizes
  • Fully CNC machined and balanced to +/- 1 gram
  • Wrist pins included at no extra cost
  • Accumulator groove included
  • Double pin oilers, force fed from oil ring
  • Pick lock grooves for easy lock removal
  • Pin fitting included

Technical Specifications

  • Comp Height: 1.220
  • Size: STD
  • Comp Ratio: 9.0:1
  • Bore: 3.425 (87.0mm)
  • Stroke: 90.70mm
  • Rod Length: 143.150mm
  • Piston Head Volume (cc): +6.90cc
  • Wrist Pin Retainers Included: Yes
  • Wrist Pin Included: Yes
  • Gapless: No
  • Top Ring Thickness: 1.0mm
  • Top Ring Material: Steel
  • Second Ring Thickness: 1.2mm
  • Second Ring Material: Cast iron
  • Oil Ring Thickness: 2.8mm

Fitment Table
