 |  SKU: SC7402-4

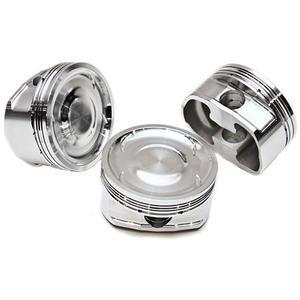

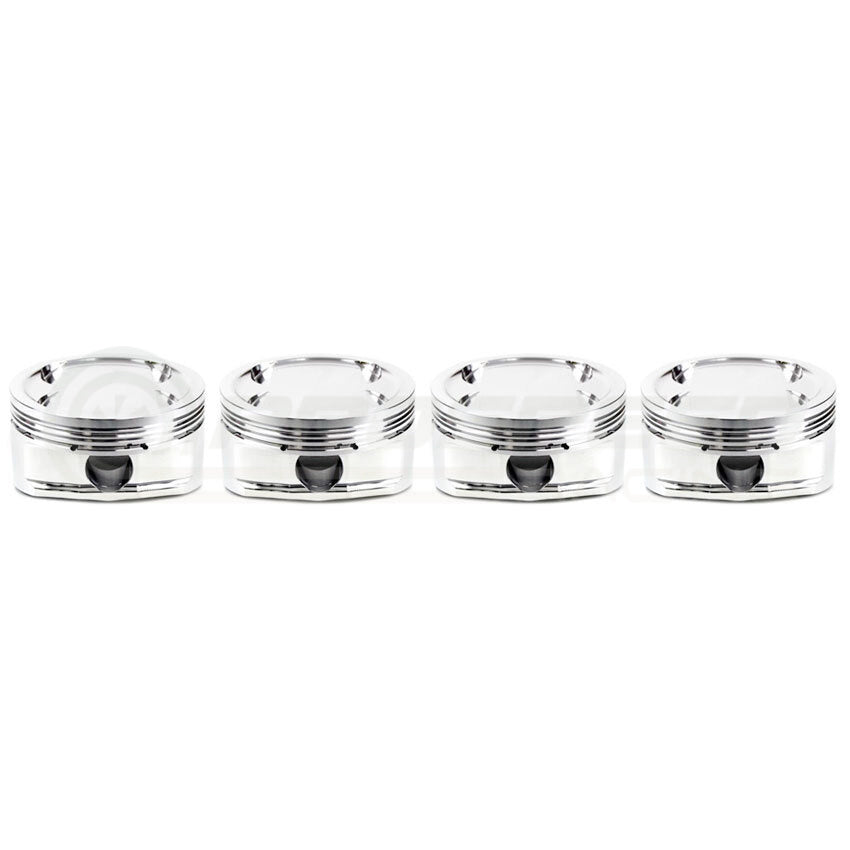

CP Pistons Forged Pistons Set

Subaru WRX VA 15-21/BRZ/Toyota 86 (FA20)

$1,659.95
Bore
Compression Ratio

Earn [points_amount] when you buy this item.


Description

CP-Carrillo pistons are compatible with oversized valves and high lift camshafts. Part numbers ending in a “X” are on a X-style forging for additional strength, durability and weight reduction often geared for high compression naturally aspirated engines. The X-style has a full radius dome design, high performance rings and light weight wrist pins. CP-Carrillo Pistons represent the highest quality and are engineered for maximum power. Pistons can be ordered with gas ports, skirt coating, ceramic top coating, and stronger wrist pins if desired. Heavy Duty pistons are also now available for extreme power situations in certain applications and come with ultra duty wrist pins included. Cometic head gaskets and King Bearings also available.


Standard features include:

  • Deep valve reliefs accommodate high lift camshafts
  • Larger valve reliefs for +1mm valve sizes
  • Custom skirt cam and barrel design
  • Accumulator grooves
  • High strength aluminum forgings
  • High performance rings
  • Fully CNC machined and balanced to +/- 1 gram; Wrist pins included at no additional cost
  • Double pin oilers force fed from oil ring groove
  • Pin lock grooves for easy lock removal
  • Pin fitting included

*All gram weights provided are approximate and for the bare piston with no hardware attached.



Notes:

  • Suits Forced Induction Motors
  • Suits Nitrous Motors

Technical Specifications

Part # Cyl Bore (mm) Size Stroke (mm) Rod (mm) Comp Height (mm) Dome/Disc CC CR Gram Pin (mm) Ring Thickness (mm) Rings
SC7402 4 86.00 STD 86 129.3 32.8 -18.3 9.0 320 22 1.0 x 1.2 x 2.0 CPN2-3386
SC7403 4 86.50 +0.5mm 86 129.3 32.8 -19.0 9.0 213 22 1.0 x 1.2 x 2.8 CPN-3406
SC7405 4 86.00 STD 86 129.3 32.8 -11.4 10.0 338 22 1.0 x 1.2 x 2.0 CPN2-3386
SC7406 4 86.50 +0.5mm 86 129.3 32.8 -12.1 10.0 333 22 1.0 x 1.2 x 2.8 CPN-3406
SC7407 4 86.00 STD 86 129.3 32.8 -10.0 10.5 343 22 1.2 x 1.2 x 2.0 CPT-3386PVD
SC7408 4 86.50 +0.5mm 86 129.3 32.8 -10.7 10.5 344 22 1.2 x 1.2 x 2.0 CPT-3406PVD
