 |  SKU: CSF8145

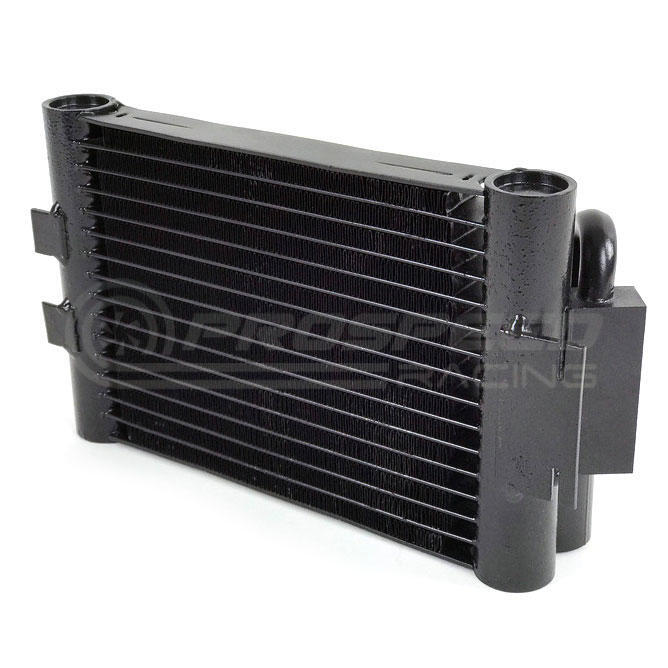

CSF Race Spec Engine Oil Cooler

BMW 135i F20/M135i F21/M235i/335i F30/435i F32 (N55)
$779.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

CSF’s expanding range of oil cooler applications and technology is leading the industry for high-performance as well as construction, industrial, and agricultural. CSF’s oil coolers are suitable and designed for engine oil, transmission oil, power steering, differential fluid, or can be used as a substitute for water heat exchange in a higher boost or more vibration intensive application.

Features and Benefits

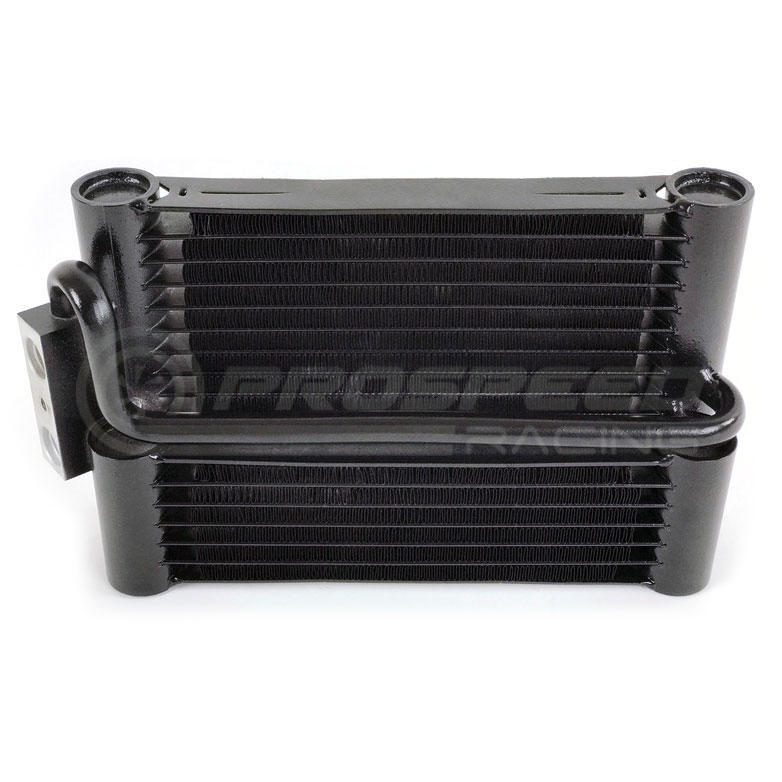

  • Innovative 2-Core In-Series System
  • Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a ~40% Increase in Heat Rejection
  • Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
  • High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact

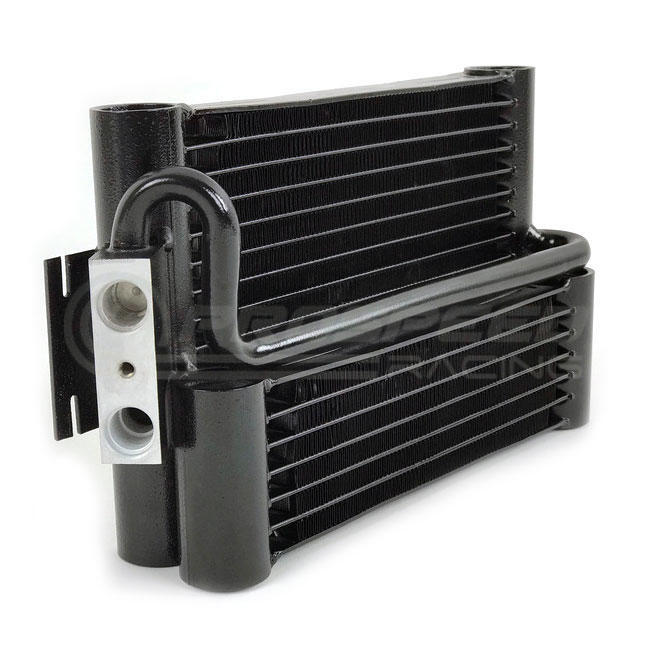

  • Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
  • “Drop-In Fit” Requiring No Modifications to Install – Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
  • World’s 1st and Only True “Plug-And-Play” Upgraded Engine Oil Cooler for the BMW N55 Engine
  • Track Tested and Proven by Hittman Racing’s M235iR Endurance Race Car
  • Requires Additional ½ Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF’s Upgrade Race-Spec N55 Oil Cooler: ~7.5 Quarts)
  • For a More In-Depth Look Please Check Out the CSF N55 Oil Cooler Press Release
  • OEM #: 17217618360

Fitment Table
