 |  SKU: CSF7221

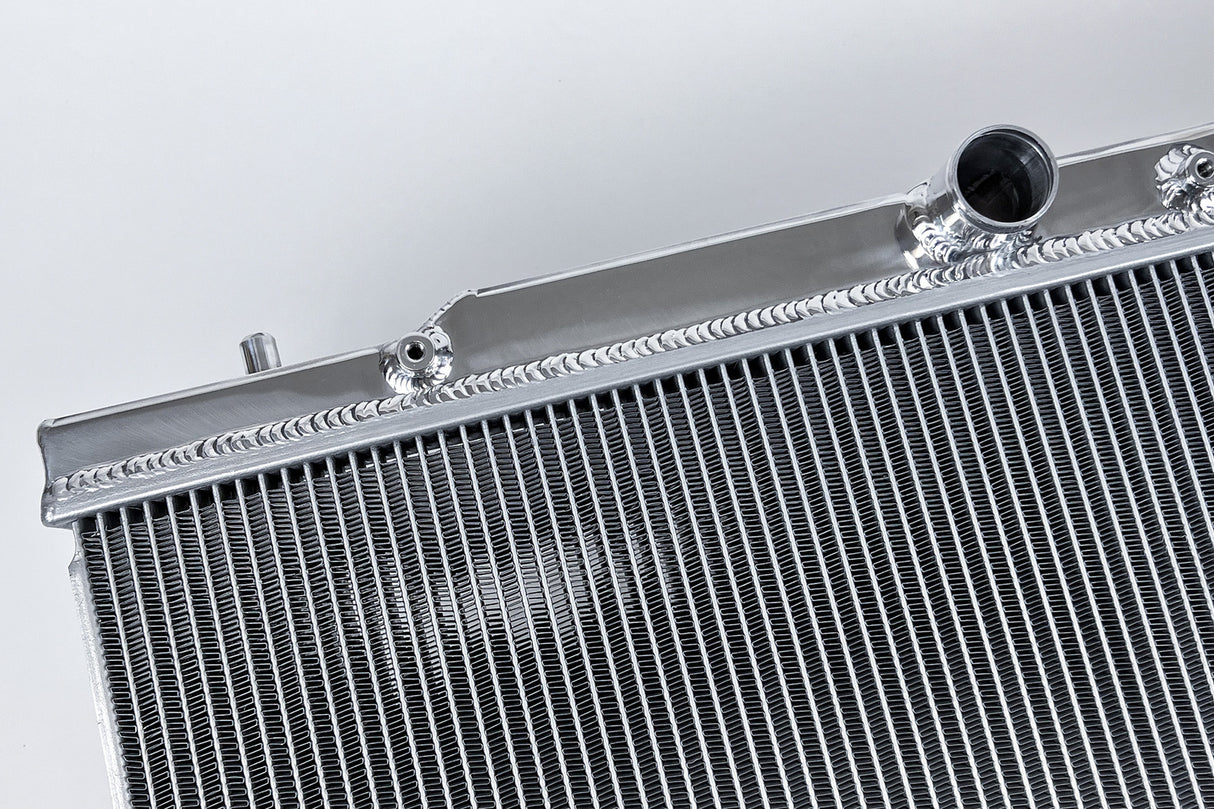

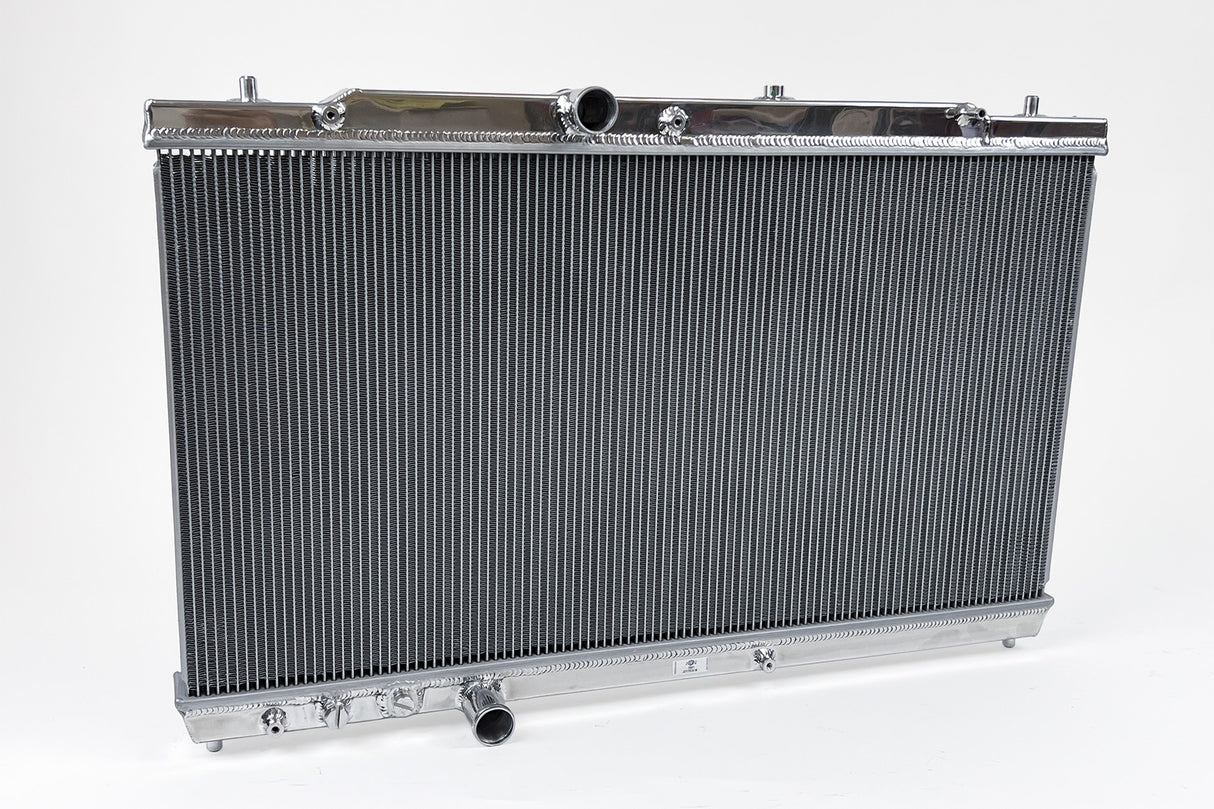

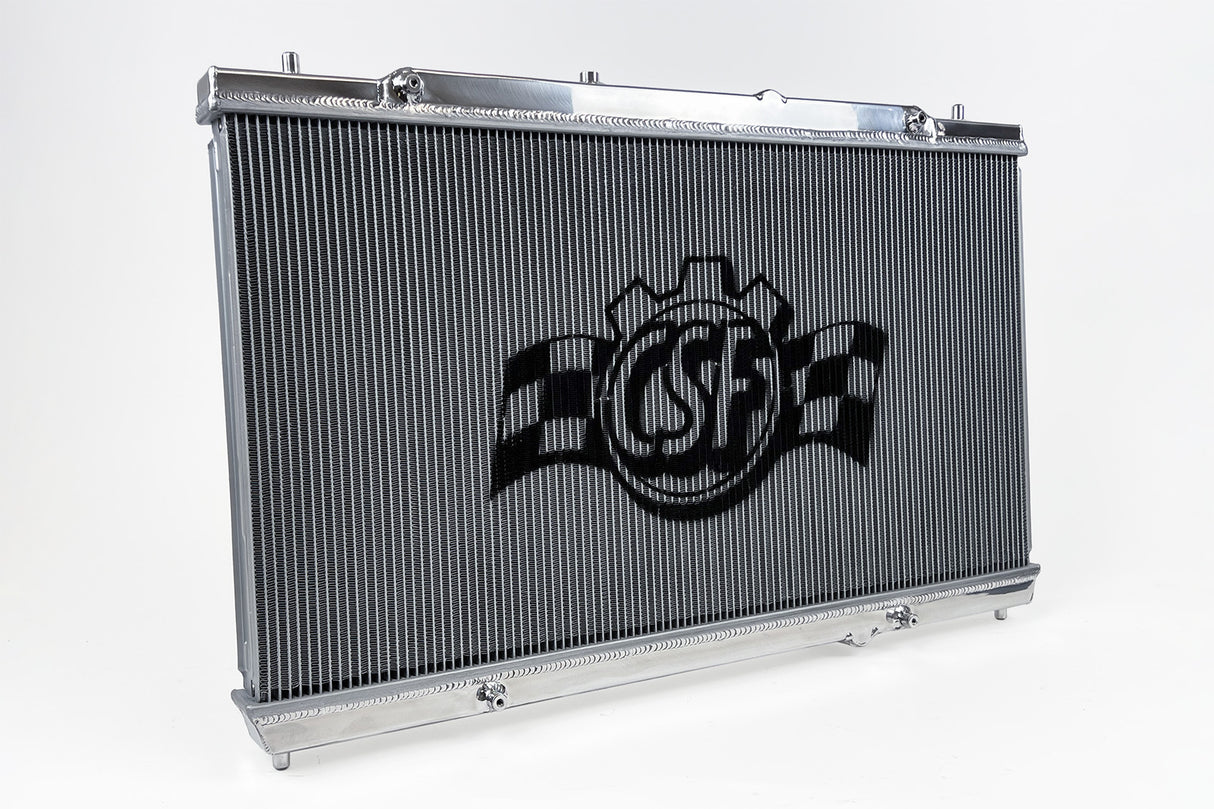

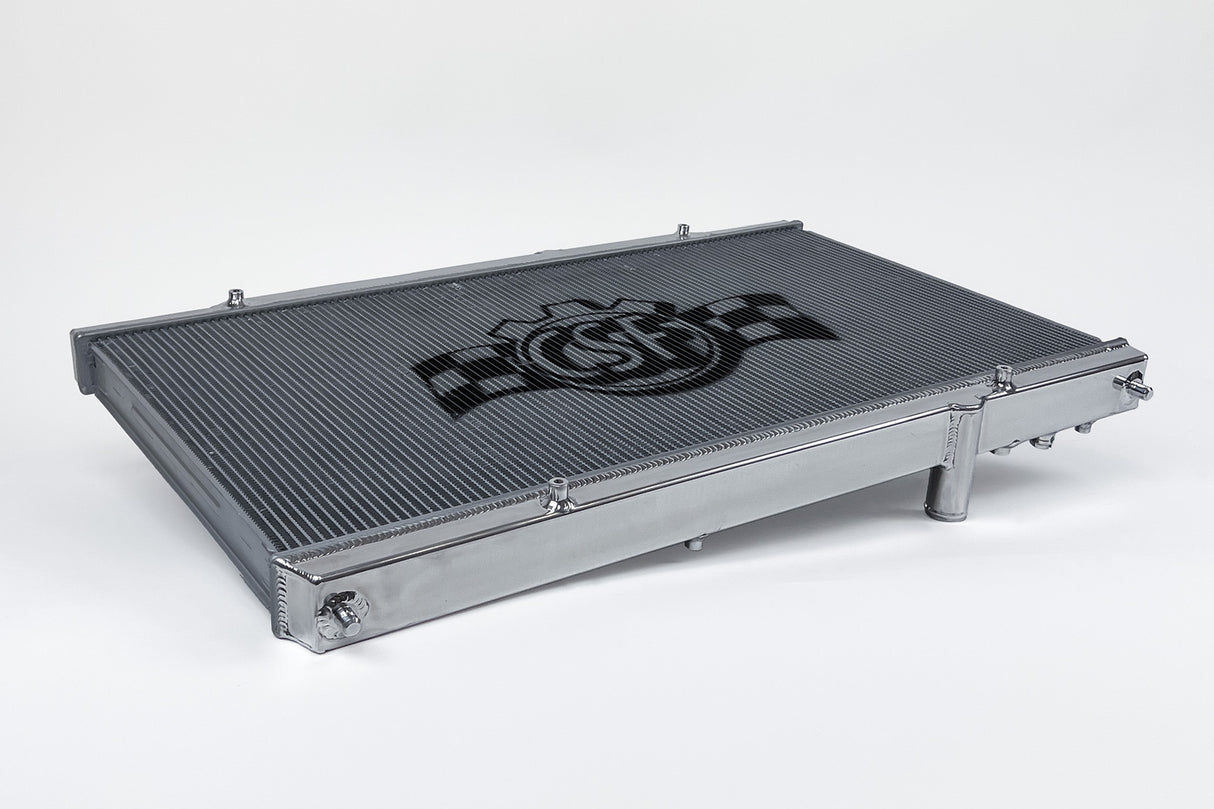

CSF Racing 2-Row 42mm Race Spec Aluminium Radiator

Honda Civic Type-R FL5 22+
$1,459.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

B-TUBE TECHNOLOGY

Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in a shape of a "B." These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded.

The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes "“ producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow."

High Efficiency multi-louvered fins

CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

DESIGN & ENGINEERING

CSF aims to lead the cooling system industry by introducing new technologies and manufacturing processes that allows us to be on the cutting edge of heat transfer innovation.

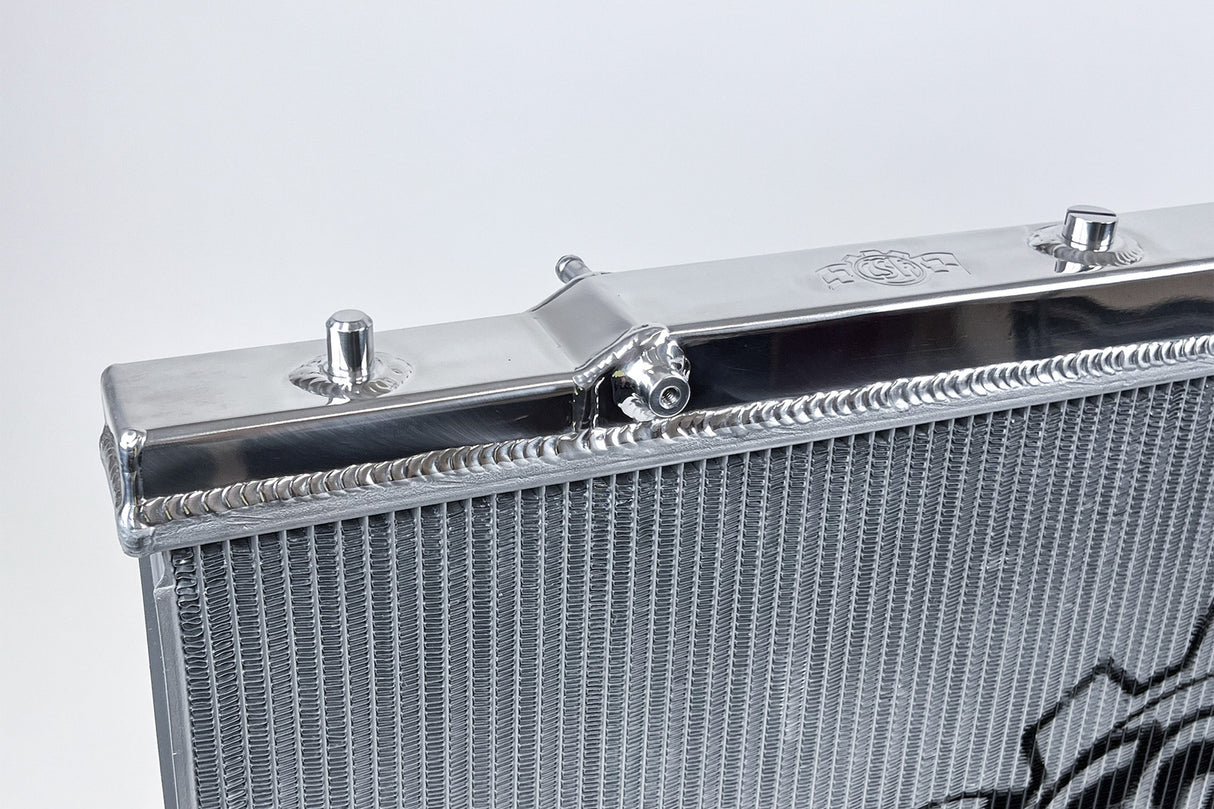

ADVANCED ENDTANK DESIGNS

CSF offers three all-aluminum end-tank designs to match any style and performance need.

FINISH

Each CSF high-quality radiator is completed with an industry-leading 1 hour, hand-polished "Show-Stopperâ„¢" Mirror Finish. Our hand polishing tools and techniques in our new polishing center located at the end of the production line ensure that every CSF cooling system looks just as good as it performs.

Features and Benefits

  • 2-Row 42mm Ultra High-Performance Core
  • 55% larger core vs OEM (42mm vs 27mm) o Increased cooling capacity
  • 5mm Tall Multi-Louvered Fins with CSF’s Exclusive B-Tube Technology
  • CNC Machined Mounting Brackets
  • 100% All Aluminum TIG-Welded Construction
  • Unique forward mounting provides maximum rear clearance for large fans and airflow
  • Fits with OEM A/C Condenser
  • True “Drop-in” Fit With No Modifications Necessary for Installation
  • Includes High-Performance Aluminum 1.4bar Radiator Pressure Cap with Embossed CSF Logo
  • 1-Hour Hand Polished Mirror Finish

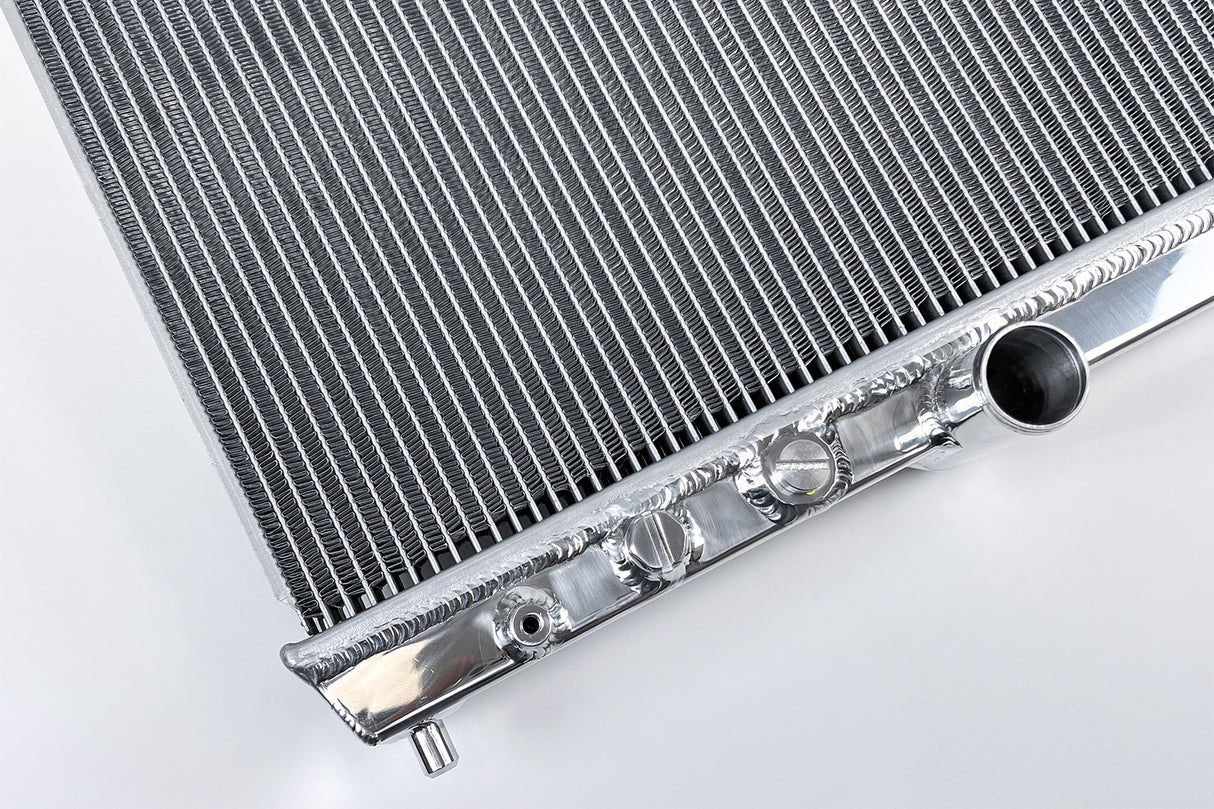

  • Machined All-Aluminum Race-Style Drain Plug
  • 2-Year Limited Warranty
  • Individually Leak Tested
  • All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development, Including Burst Pressure, Thermal Cycle, Vibration Testing, and Salt Spray Testing

Fitment Table
