 |  SKU: CSF7250

CSF Racing 42mm High Performance Radiator

Ferrari 812/F12/FF/Monza
$3,179.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

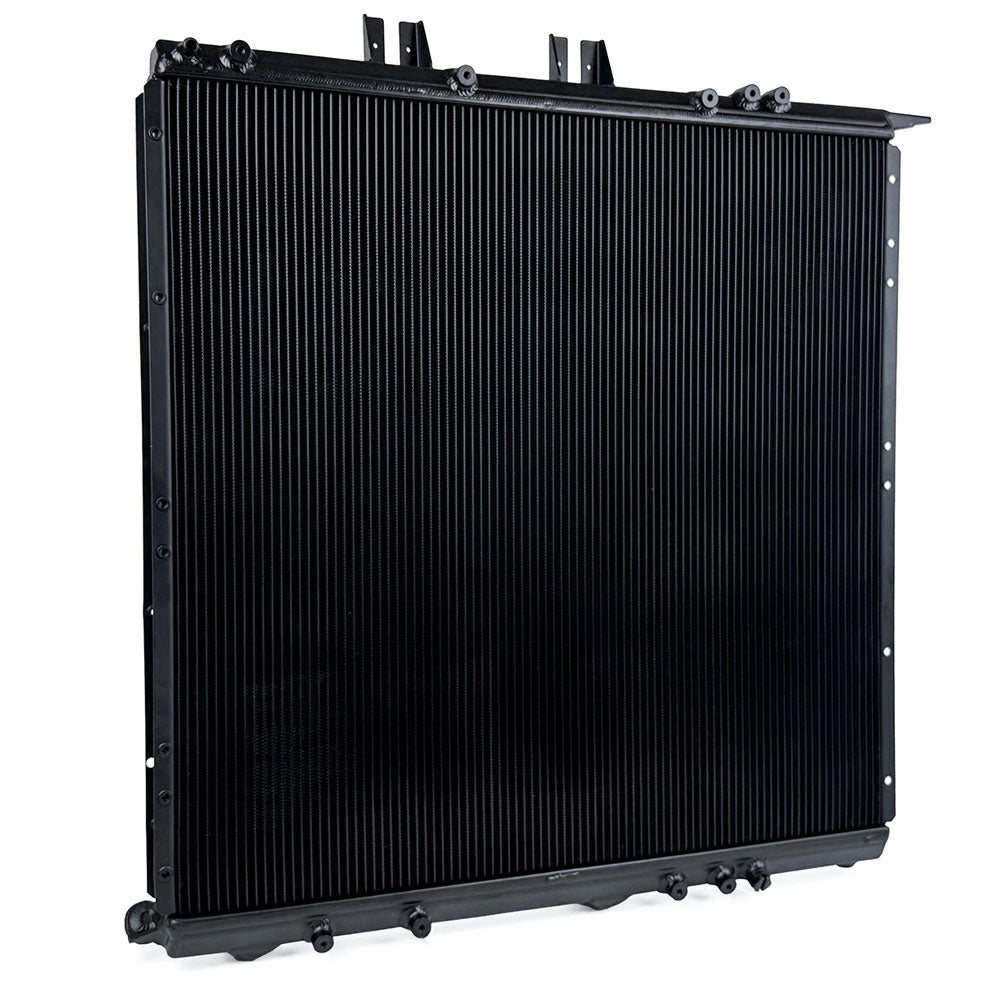

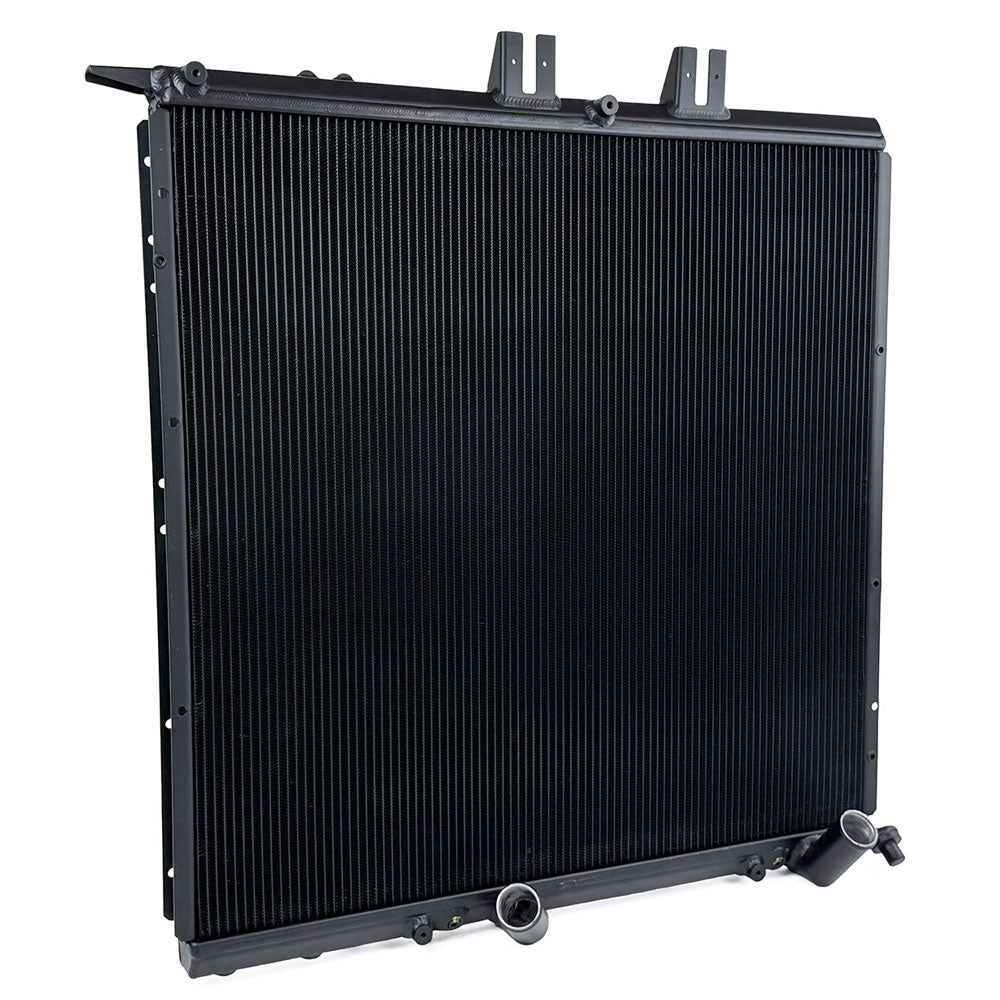

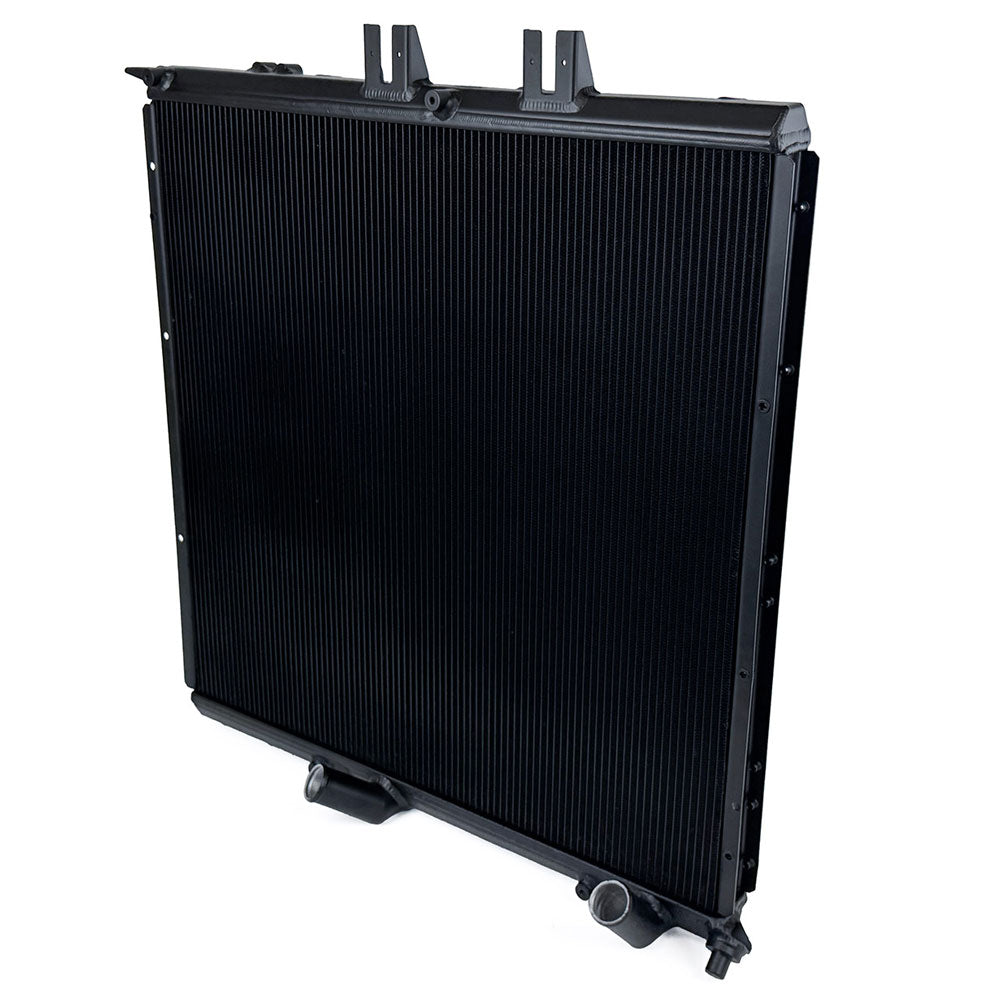

The CSF Racing 42mm High Performance Radiator for the Ferrari 812, F12, FF and Monza is engineered as a direct replacement for ageing factory units, with a clear focus on reliability and temperature control in demanding conditions. Using a thicker 42 mm, 2-row core and CSF’s latest 5 mm multi-louvered fin technology with B-Tube cooling tubes, this radiator delivers up to a 25% increase in heat transfer efficiency compared with standard designs.

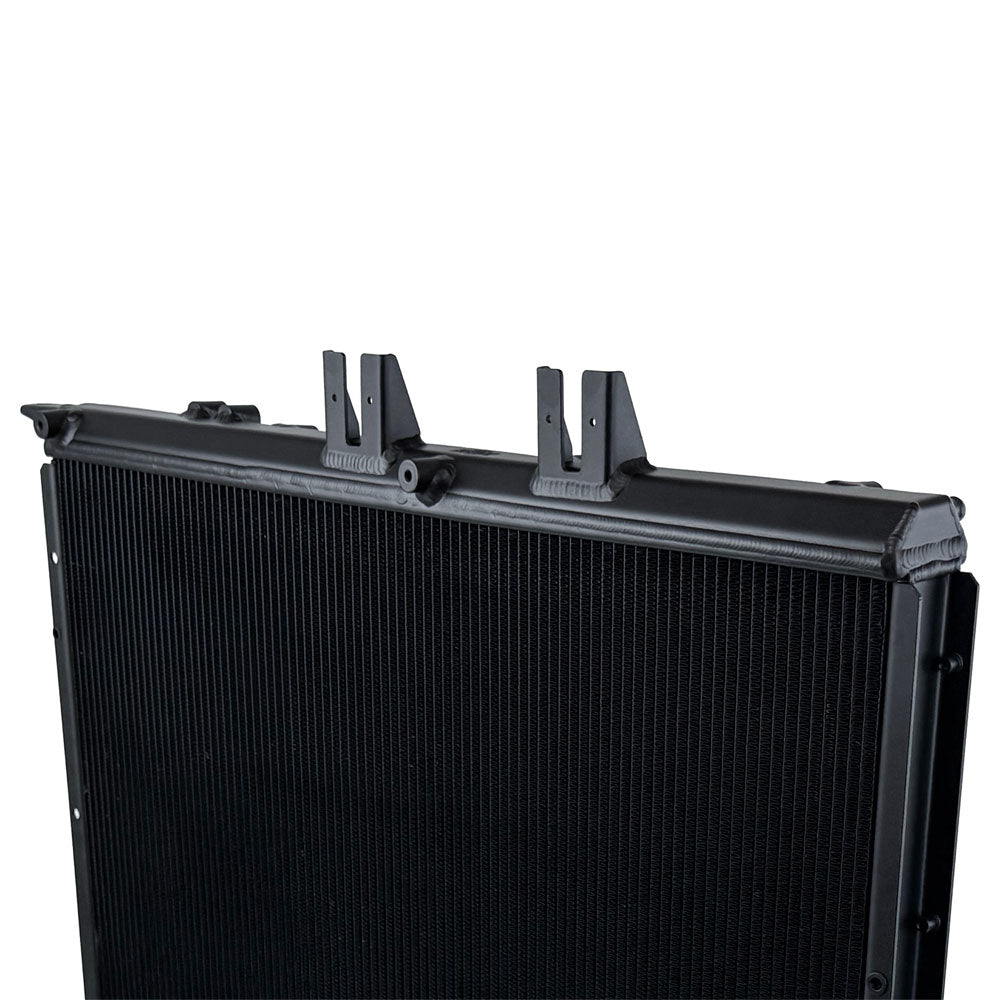

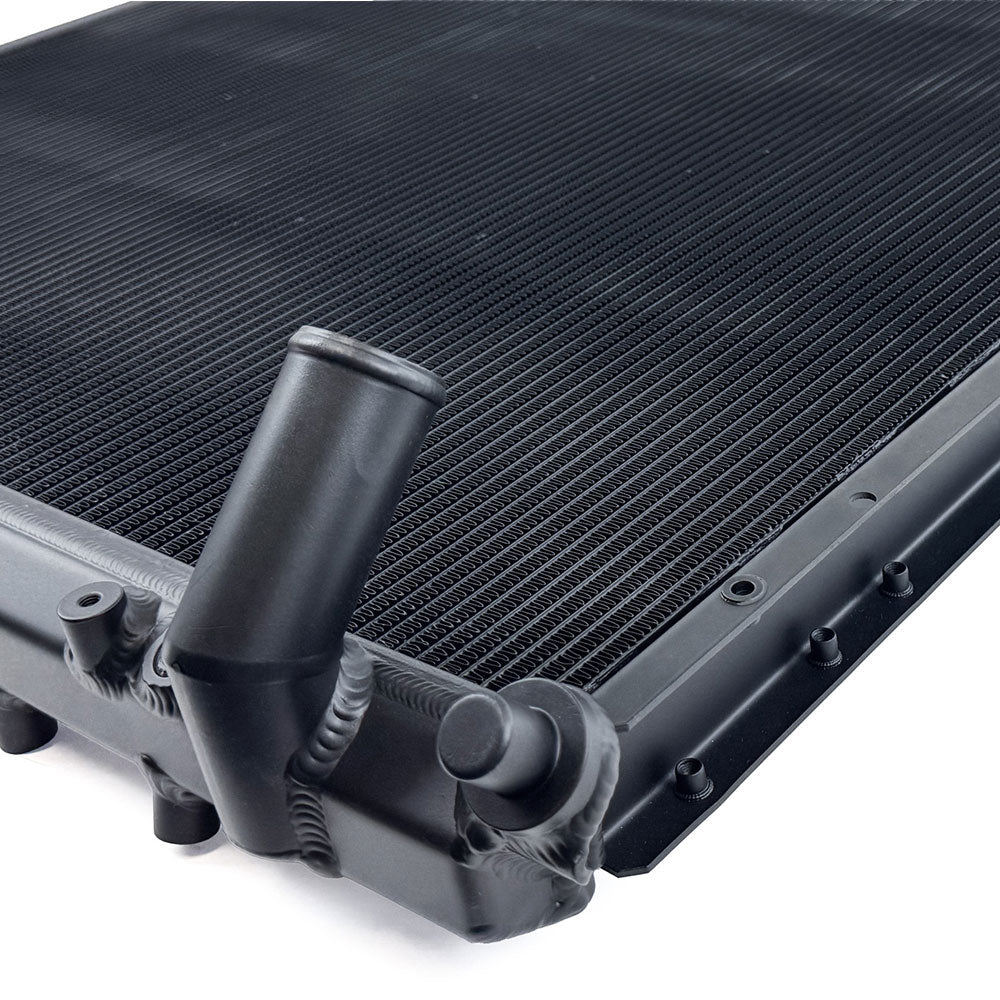

Where the OEM Ferrari radiators use an aluminium core crimped to plastic end tanks, the CSF7250 is built from 100% TIG-welded aluminium, including the tanks and CNC-machined fittings. This all-metal construction resists the long-term deterioration, cracking and flaking that commonly affects plastic tanks and hose necks as these V12 grand tourers reach 10–15 years of age.

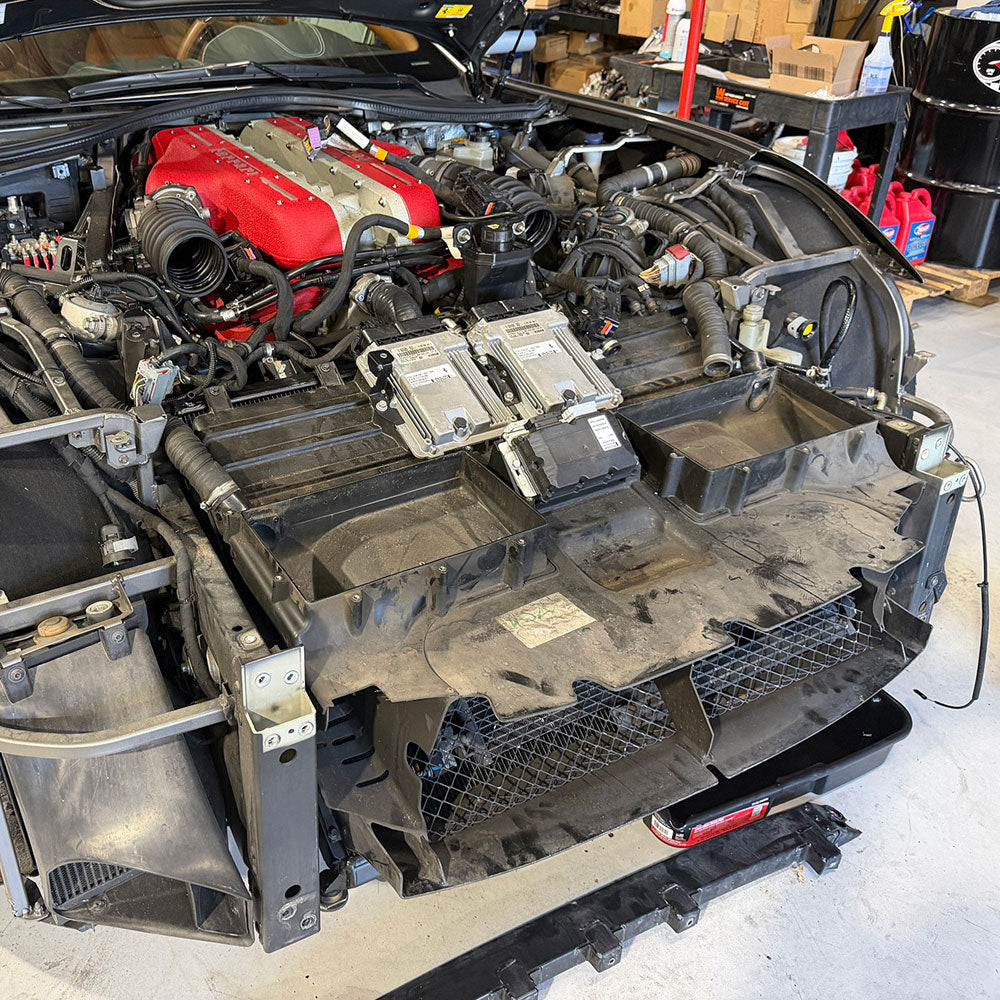

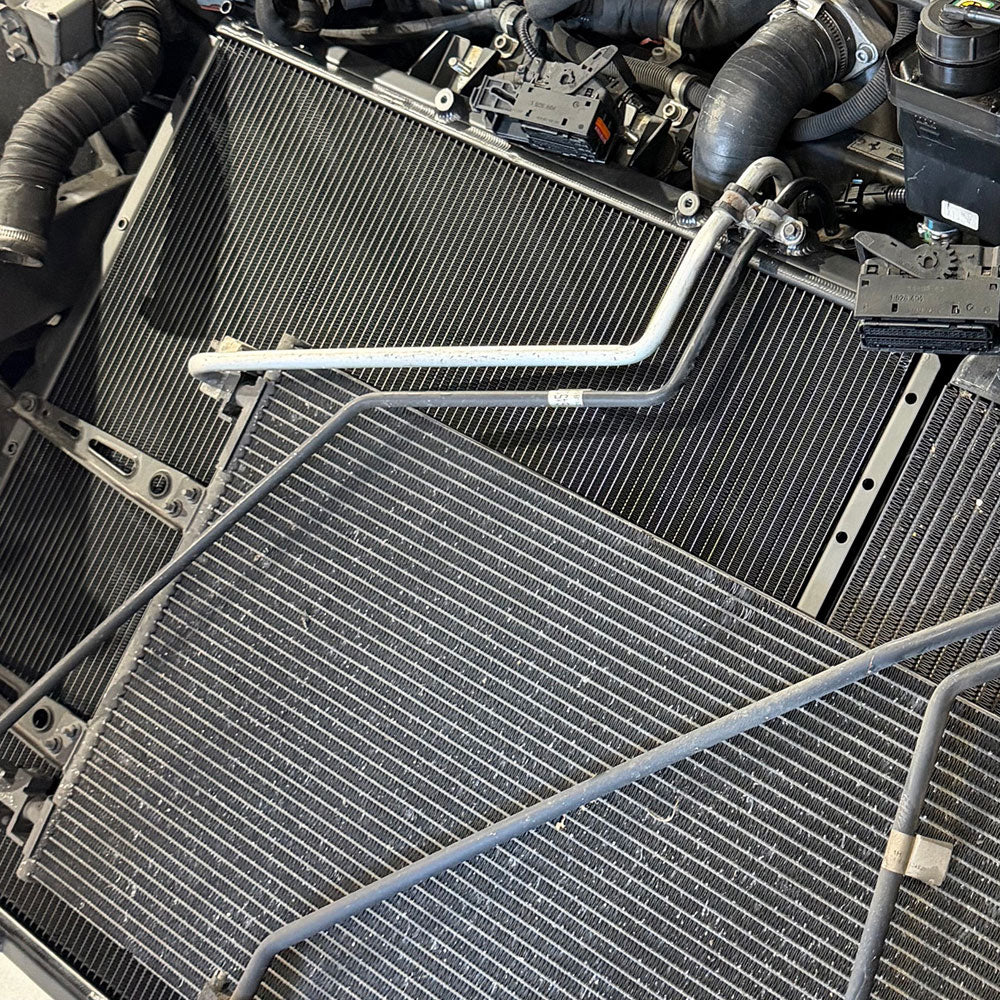

The CSF Racing 42mm High Performance Radiator retains a clean OEM-style appearance with a satin black finish, while fitting precisely in the original location and working with the factory ducting, shrouds, brackets, engine oil cooler and A/C condenser. It is a true plug-and-play upgrade that supports hard road use, track work and higher thermal loads from spirited driving or performance modifications, without requiring any permanent changes to the vehicle.

Features and Benefits

  • Upgraded 42 mm 2-row core – 28% larger core volume than FF/GTC4Lusso OEM and 14% larger than F12/812/Monza OEM for improved cooling capacity.
  • 5 mm multi-louvered fins – Increases heat exchange surface area and airflow efficiency, delivering up to 25% higher heat transfer.
  • Exclusive B-Tube technology – Approximately 15% better thermal performance than conventional oval tubes, supporting high-load and track use.

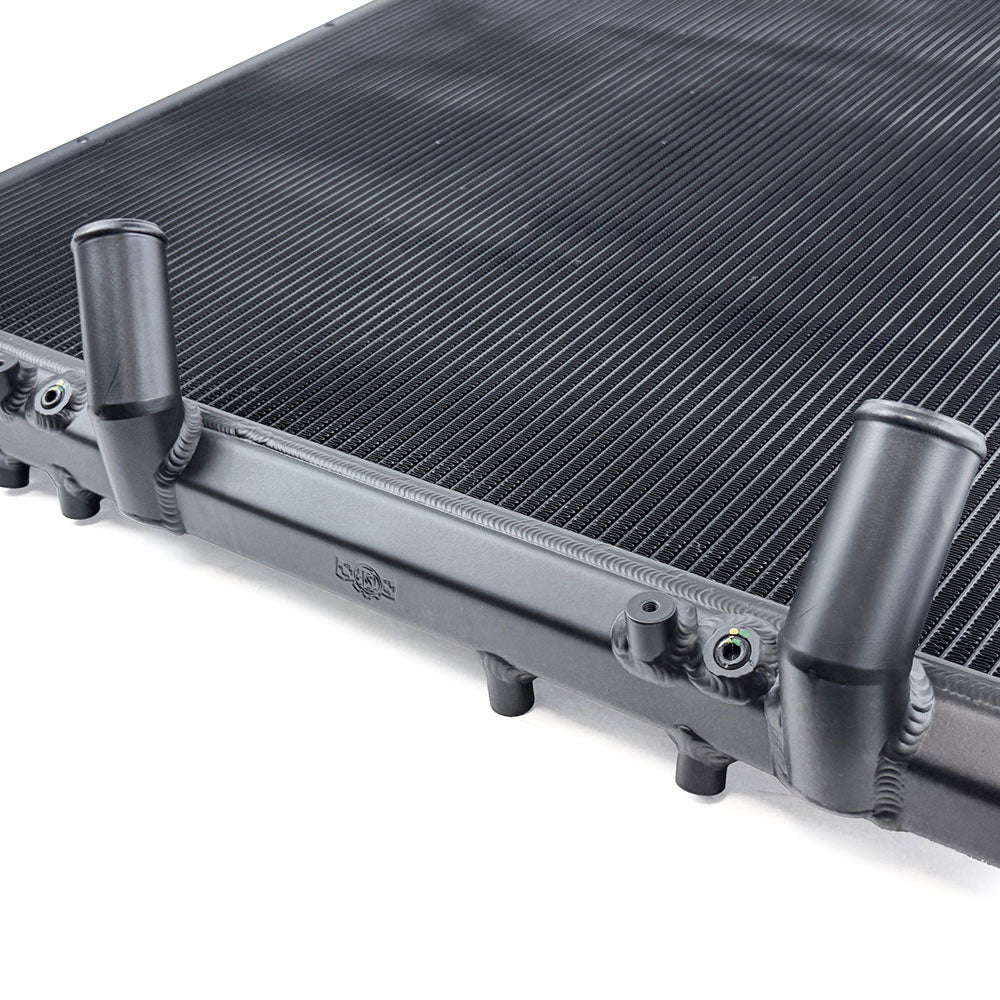

  • All-aluminium TIG-welded construction – Eliminates plastic end tanks and weak crimp joints for greater strength, durability and longevity.

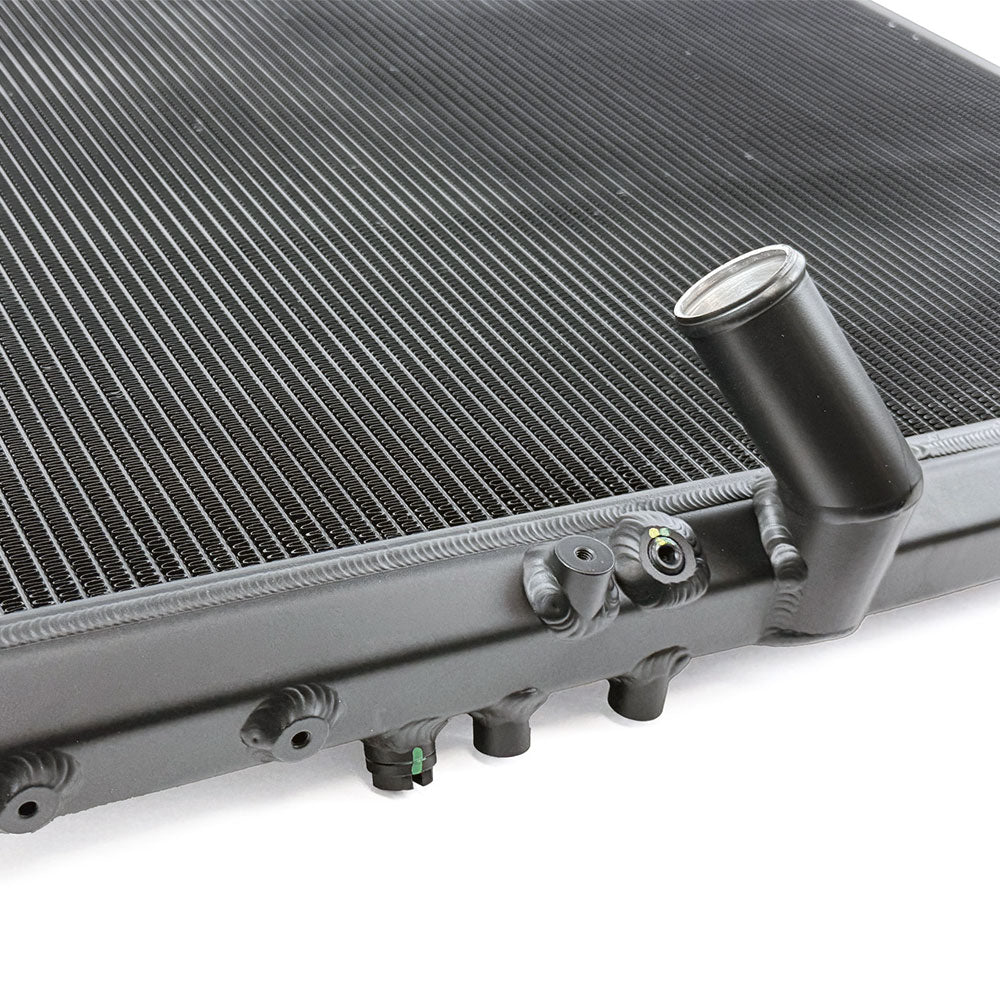

  • OEM-style fit and finish – Satin black coating and factory-style barbed hose connections maintain an original appearance.

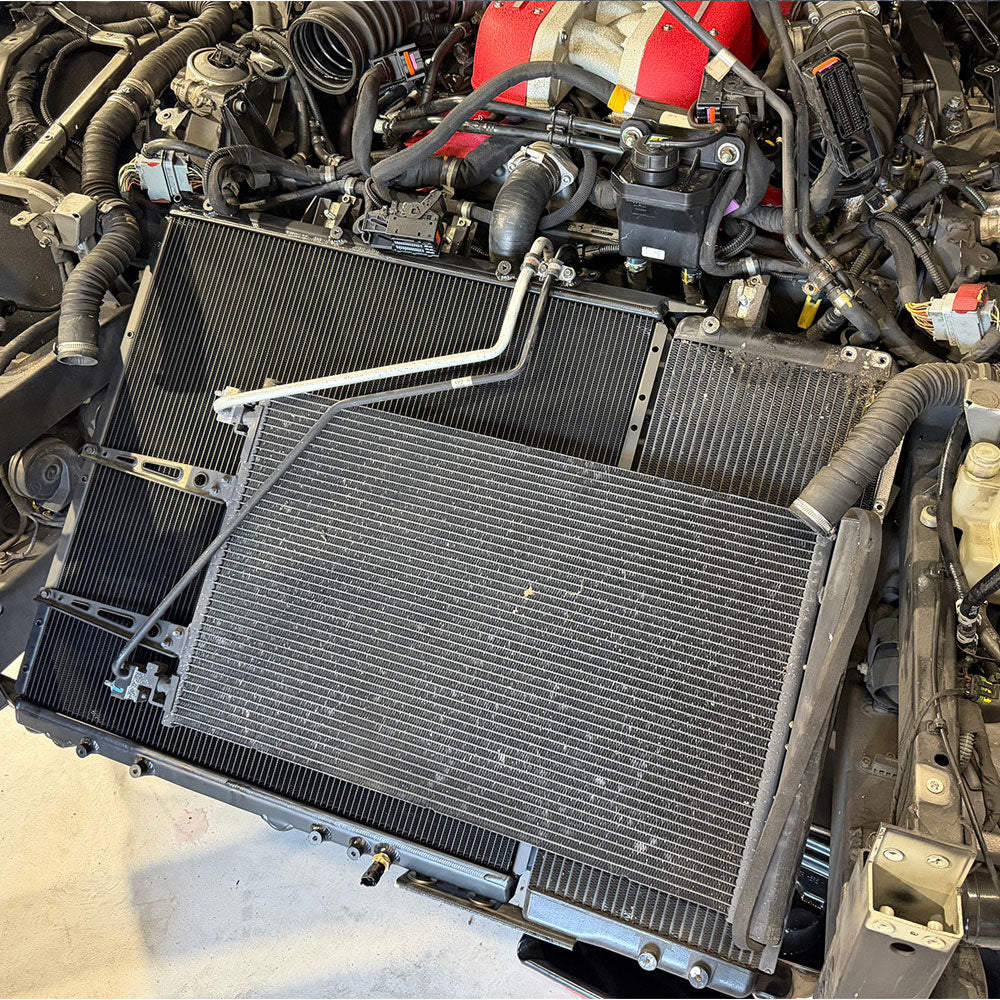

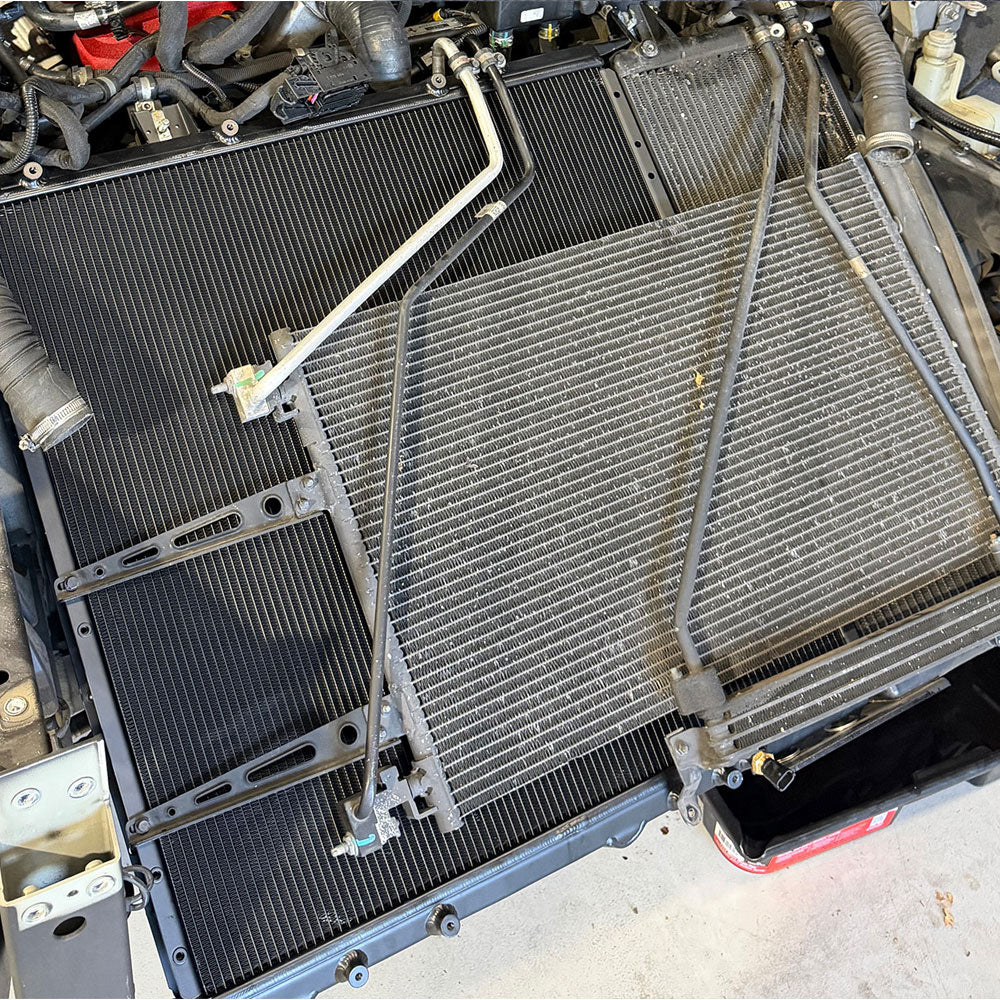

  • True plug-and-play installation – Bolts into the OEM position, reusing factory ducting, shrouds, brackets, engine oil cooler and A/C condenser.
  • Improved reliability over time – Resists the cracking, flaking and bond failures common to ageing plastic tanks, helping to reduce fouling and water pump issues.
  • Supports performance upgrades – Enhanced cooling headroom for high-performance driving, racing and higher-output setups.
  • Individually tested – Each radiator is leak and pressure tested and backed by a 2-year limited warranty.

Technical Specifications

  • Brand: CSF Racing
  • Product: CSF Racing 42mm High Performance Radiator
  • SKU: CSF7250
  • Core design: 2-row ultra high performance
  • Core thickness: 42 mm
  • Core material: Aluminium
  • Tank material: Aluminium
  • Construction: 100% TIG-welded
  • Fin type: 5 mm tall multi-louvered fins
  • Number of cooling tubes: 87
  • Number of cooling fin rows: 88
  • Finish: Satin black
  • Connections: OEM-style double-barbed inlet and outlet
  • Fitment type: Direct plug-and-play, no modifications required
  • Testing: Individually leak and pressure tested
  • Warranty: 2-year limited warranty

Vehicle Applications

  • 2011–2016 Ferrari FF
  • 2017–2020 Ferrari GTC4Lusso (excl. GTC4Lusso T)
  • 2013–2017 Ferrari F12 Berlinetta
  • 2016–2017 Ferrari F12TDF
  • 2018–2022 Ferrari 812 Superfast
  • 2020–2024 Ferrari 812 GTS
  • 2024 Ferrari 812
  • 2023 Ferrari Monza SP1
  • 2023 Ferrari Monza SP2

Replaces OEM Part Numbers

  • Ferrari 263427 (FF / GTC4Lusso)
  • Ferrari 333926 (F12 / GTC4Lusso)
  • Ferrari 319867 (812 / Monza)

Included Components

  • CSF Racing 42mm High Performance Radiator (CSF7250)
