 |  SKU: CSF8095

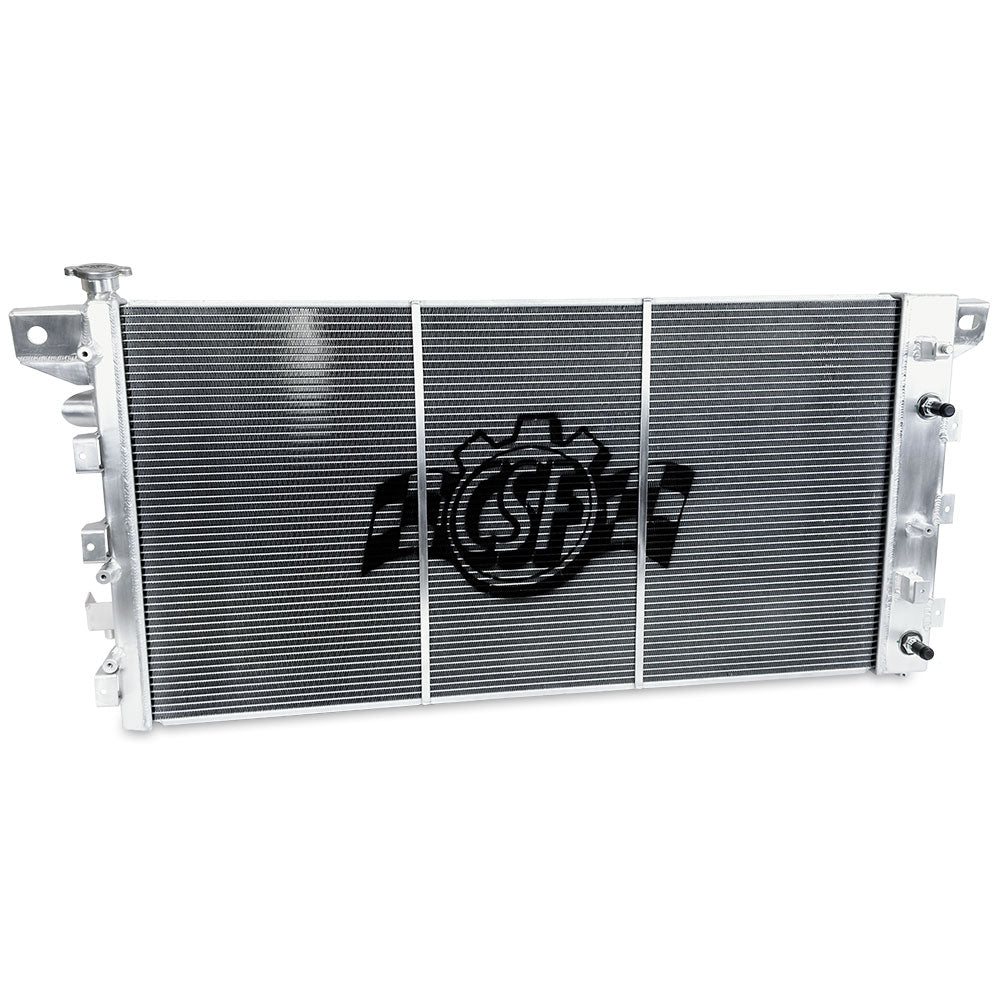

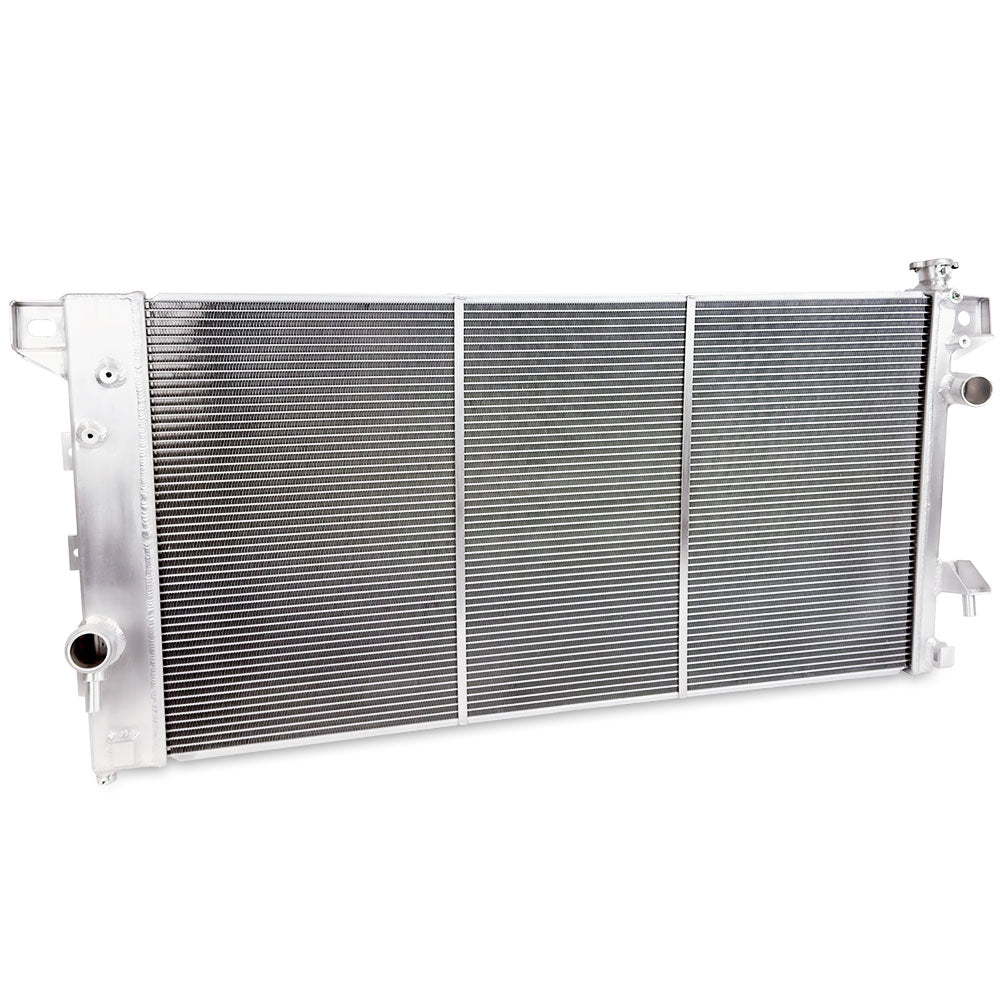

CSF Racing High Performance Aluminium Radiator

Ford F-150 15-25/F-150 Raptor 17-20
$1,199.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Ford F-150 & Raptor are both known for their rugged reliability and performance. However, even the best trucks have their limits. Whether you are towing, off-roading, or working in extreme conditions, coolant temperatures can spike causing you to overheat. This can lead to coolant system failures, power loss, or a myriad of other issues.

CSF partnered with Full-Race to develop high-performance radiators for the 2010-2025 Ford F-150 & Raptors. These all-aluminium radiators deliver the cooling and durability serious truck owners demand.



Why Every F-150 & Raptor Owner Should Upgrade

Upgraded cooling systems are not just for off-road rigs and big haulers. Even basic mods/upgrades like oversized tires can increase strain on your engine in adverse conditions. The CSF Radiator provides extra protection that:

  • Extends engine life by maintaining optimal coolant temperatures
  • Improves towing capacity by enhancing cooling efficiency
  • Eliminates performance limitations during demanding driving conditions
  • Provides peace of mind with superior construction and durability



Design & Engineering

When engine coolant overheats, performance suffers and you are forced to stop driving or risk a cooling system failure. CSF & Full-Race engineers identified this vulnerability during extensive real-world testing of F-150 and Raptor models under demanding conditions. Having to stop and wait for your engine to cool down is more than just an inconvenience, it is a limitation that shouldn’t exist in modern trucks. Especially not a Raptor.

An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminium cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.



Key Features:

  • 15-25% increase in heat transfer efficiency using CSF’s Exclusive B-Tube Technology
  • Improved cooling performance to support high-boost, bigger-turbo, haulers, and rock crawlers
  • Engineered to withstand extreme conditions, providing reliability where it matters most
  • Designed to work seamlessly with factory or aftermarket transmission coolers, intercoolers, etc.


CSF #8095 (2017-2020 Raptor & 2015-2025 F-150)

The 13th/14th Gen F-150s / 2nd Gen Raptors received what many would consider an undersized radiator. This was the first generation to offer the new EcoBoost motors and there were some kinks to work out. The extra heat from the turbo charged engines definitely put more pressure on the factory cooling system.

While some owners never pushed their rigs hard enough to notice, those who did quickly found the factory system lacking. In addition, these trucks are getting to the age where radiators need to be replaced as a maintenance item. If you are going to be doing the labour, you might as well install the best possible radiator. Upgrading to the CSF Radiator offers:

  • 60% larger core volume than the factory radiator
  • 100% TIG welded Aluminium construction (compared to plastic end tanks crimped)
  • Core straps for strength and added rigidity for extreme reliability in demanding conditions
  • Ideal for turbo upgrades, high power/boost builds, towing, and off-roading.

Features and Benefits

  • 2-Row – 42mm Ultra-High-Performance Core
  • Cooling Tubes with CSF’s Exclusive B-Tube Technology
  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

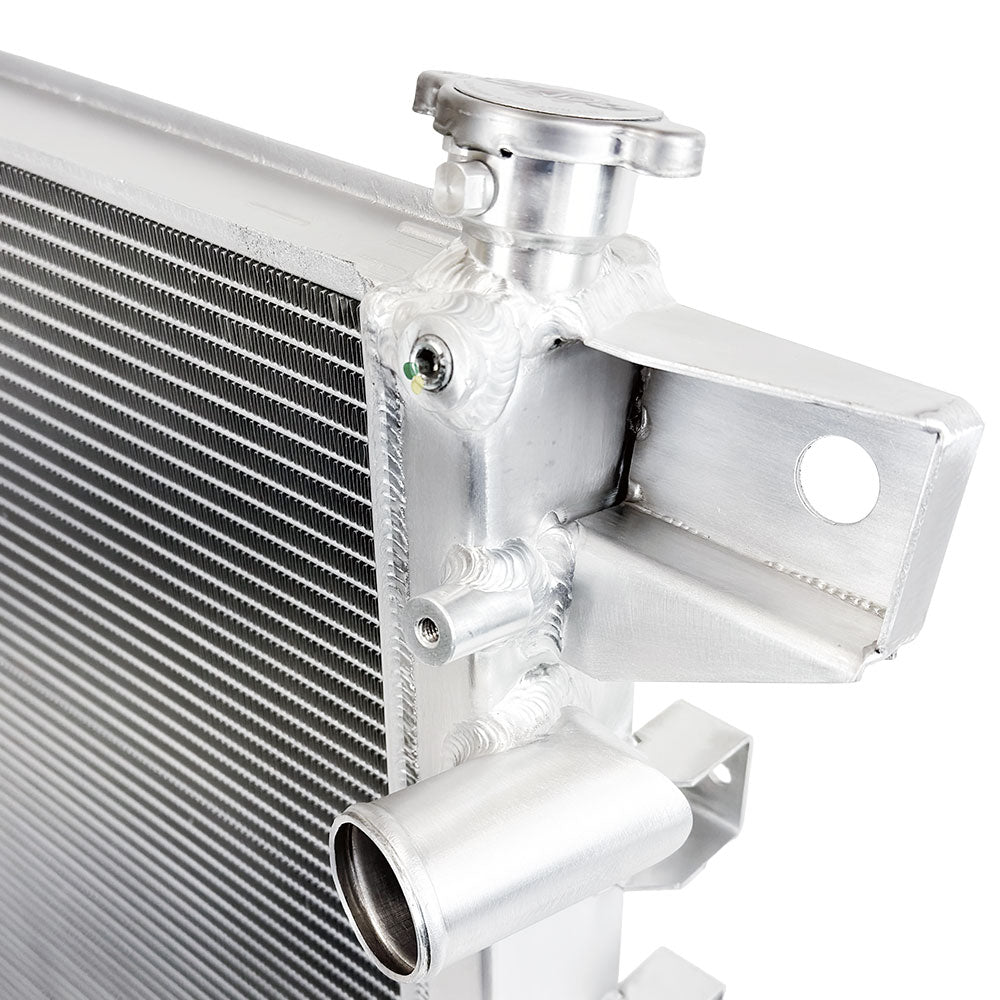

  • CNC Machined Mounting Pins and Brackets

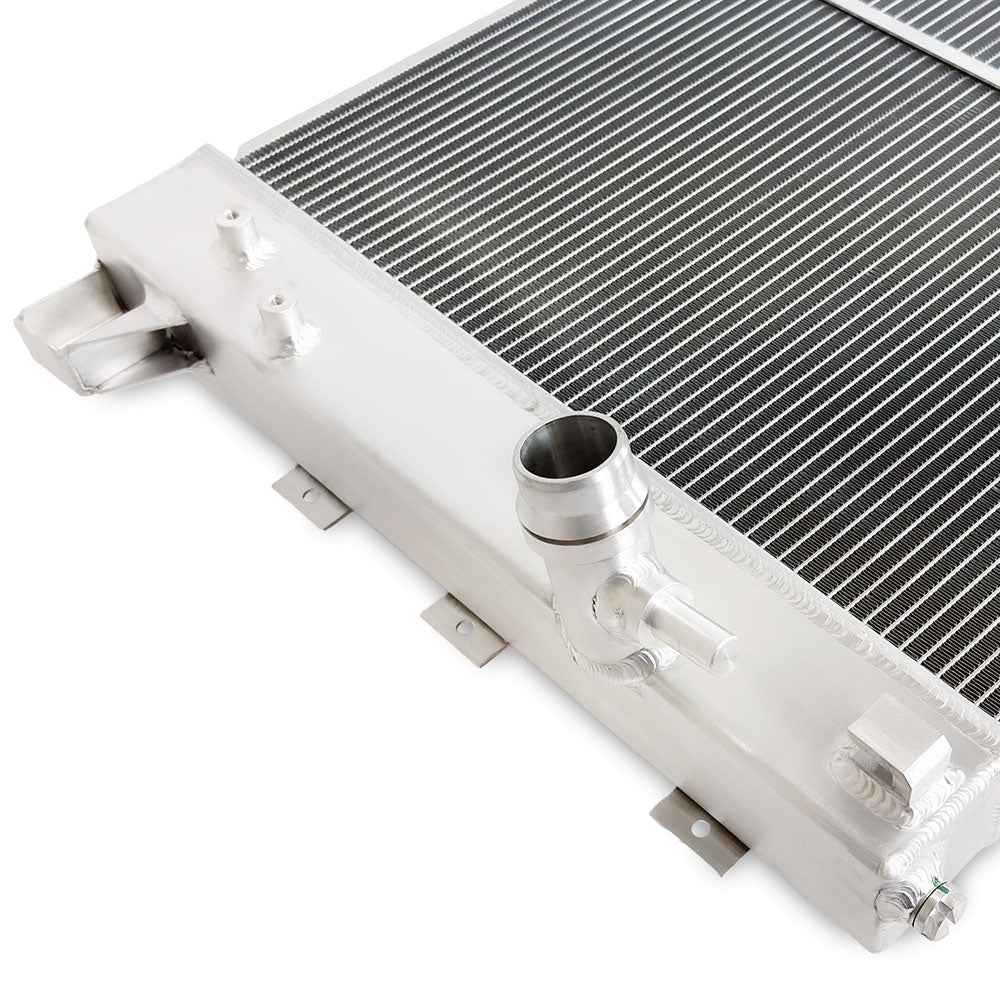

  • OEM Style Inlet/Outlet
  • Core straps for strength and added rigidity

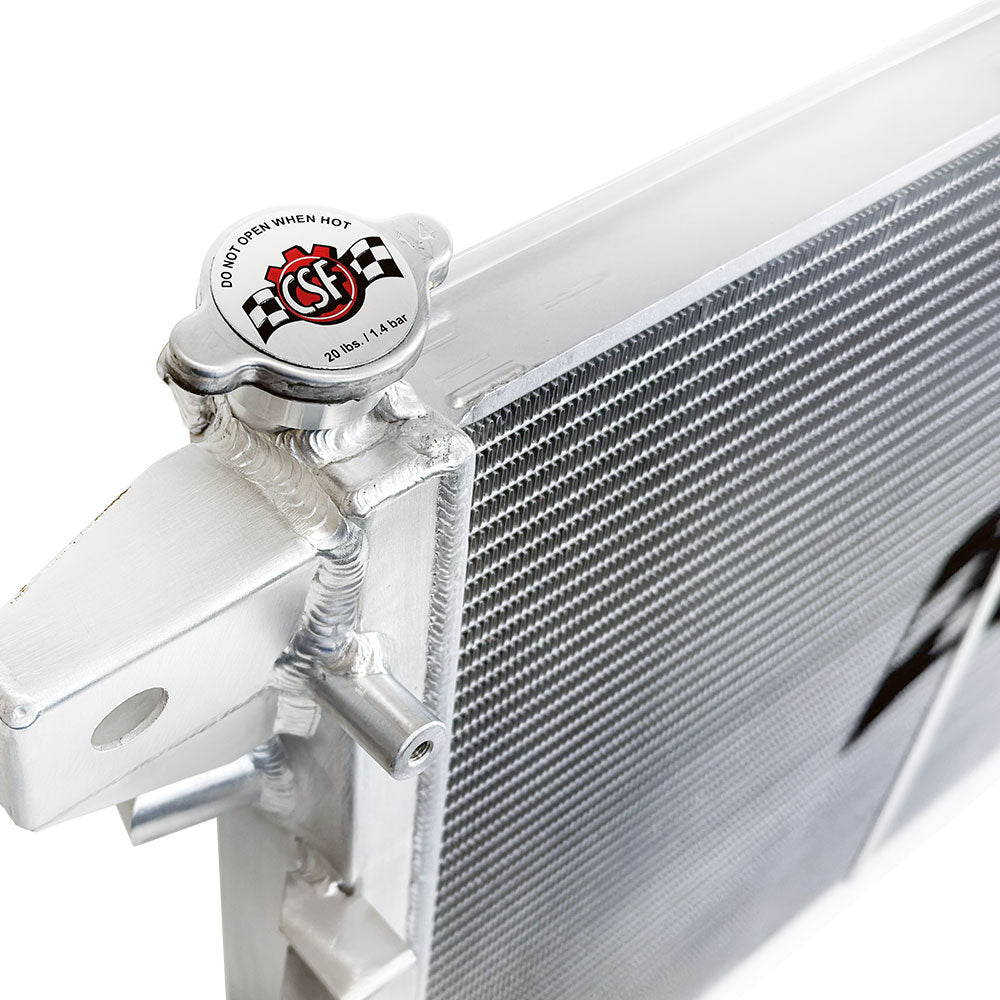

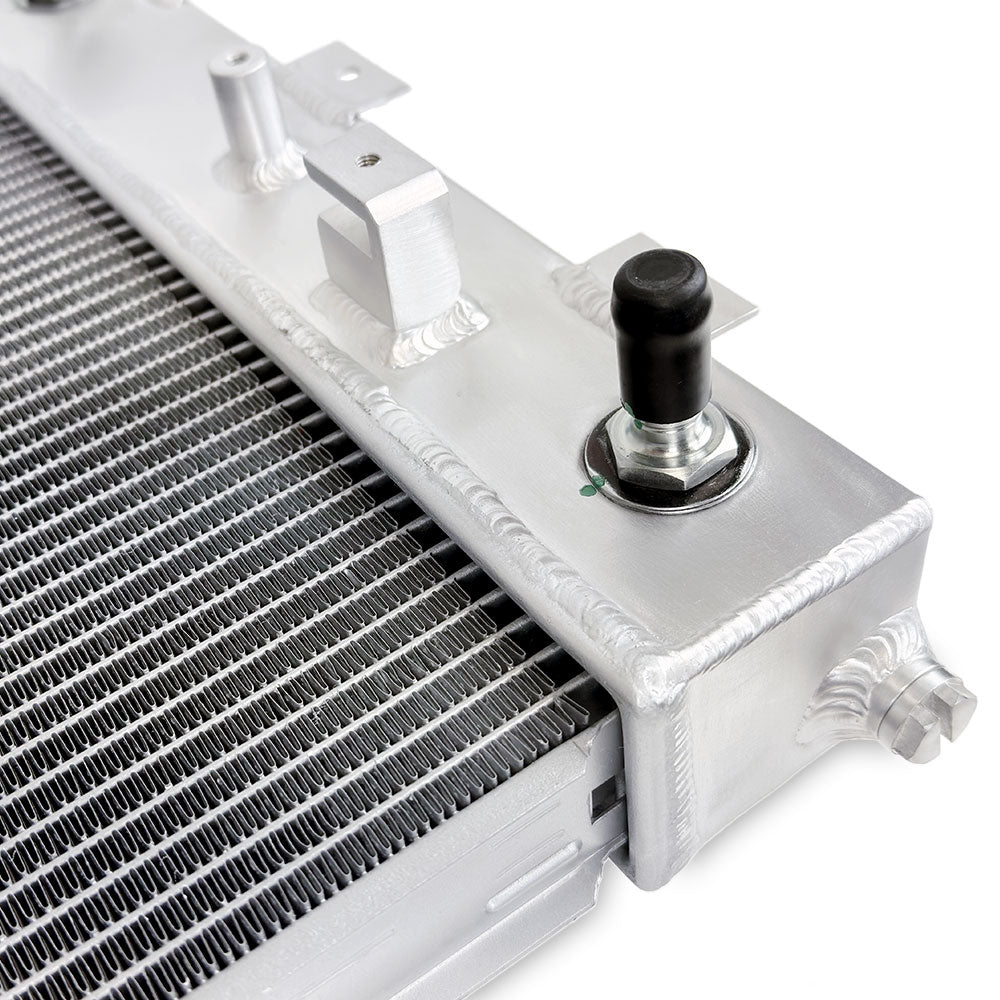

  • 100% All Aluminum TIG-Welded Construction
  • True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • 2-Year Limited Warranty

Technical Specifications

Feature CSF OEM
# Core Rows 2-Row 1-Row
Core Thickness 42mm 26mm
# Cooling Tubes 53 56
# Cooling Fin Rows 54 57
Fin Height/Width 6.5mm ~6.4mm
Core Material Aluminum Aluminum

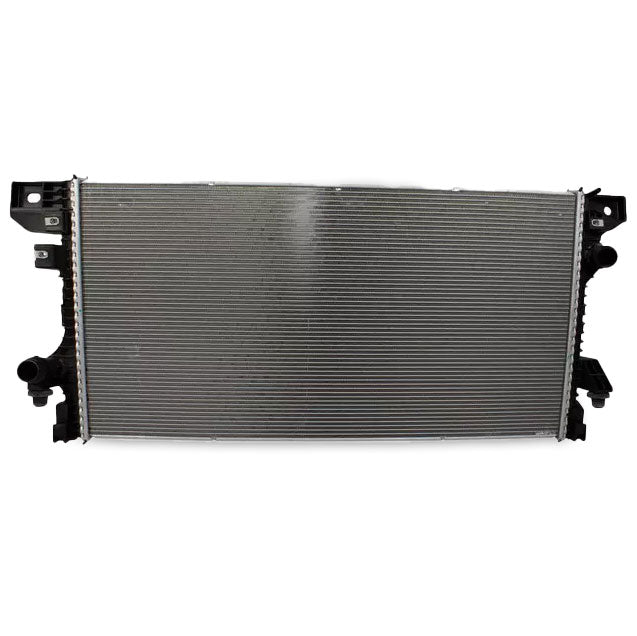

Tank Material Aluminum Plastic
Construction 100% TIG Welded Crimp on Gasket
