🚚 Flat Rate Shipping
 |  SKU: CSF8174

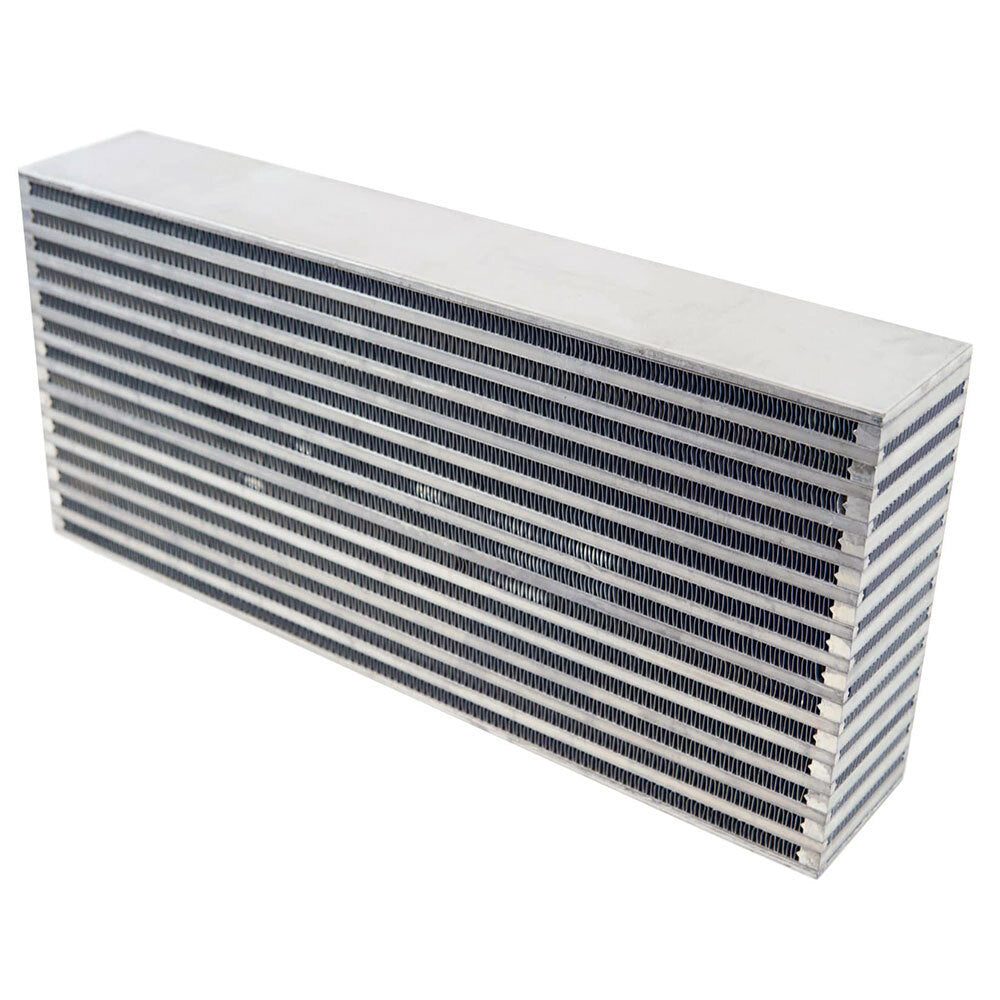

CSF Racing Magnum Bar and Plate Intercooler Core - 560x250x100mm 900HP

Universal
$469.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

CSF Racing offer a range of universal Bar & Plate intercooler cores for those fabricating their own intercooler systems for custom applications. Sizes range from 3inches to 6inches thick offering a possible cooling capacity of 1400HP. CSF Racing intercooler cores are trusted worldwide by leading tuners including Full Race, Sheepy Race, PRL Motorsports and Papadakis Racing.



Features and Benefits

  • Heavy-Duty Bar & Plate Intercooler Cores
  • Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
  • Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
  • Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
  • Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
  • Batch Brazed in CSF’s State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
  • Strict Quality Control and Quality Testing, Including Individual Pressure Testing
  • Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services

Technical Specifications

  • Length: 560mm
  • Height: 250mm
  • Thickness: 100mm
  • HP Rating: 900HP

Fitment Table
