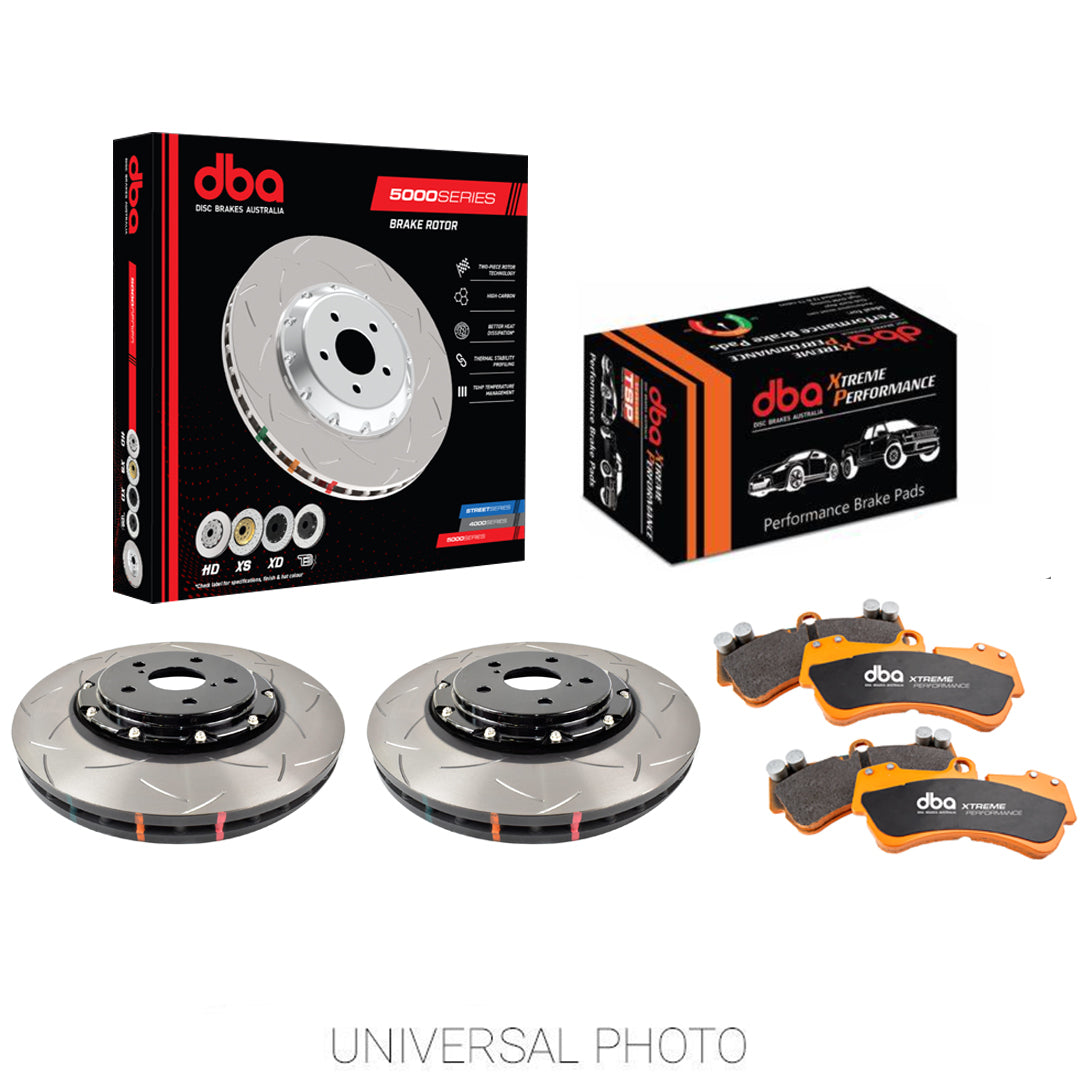

DBA 5000 Series Slotted Front Rotors w/DBA Xtreme Performance Pads

Front Rotors:

Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts.

The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats.

DBA's 5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotor. Featuring all the benefits of the 5000 Series along with DBA's patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional precise CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA's revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA's 5000 Series T3 rotors are recommended for all performance applications from street driving, 4x4 and SUV, light utility vehicles, track days, club racing, rally cars and armoured vehicles.

Brake Pads:

DBA's Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD's. DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance. DBA Street Performance part numbers are denoted by the suffix (XP).

Front Rotors:

• 2-Piece Design with Aerospace grade aluminium hats (T6061-T6)
• Kangaroo Paw 144 diamond and tear drop pillar ventilation system
• T3 Slot 48 precision CNC machined slots
• XG150 High Carbon Alloyed Iron
• Thermographic Temperature Monitoring
• Paint protection on non-friction areas

Brake Pads:

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550Deg C (1022Deg F)

Front Rotors:

• Axle: Front
• Vane Design: Kangaroo Paw
• Diameter (mm): 356
• Thickness (mm): 28
• Height (mm): 49.5
• Minimum Thickness (mm): 26
• Centering Diameter (mm): 62
• Number of Holes: 5
• Weight: 10kg each
• Pitch Circle Ø: 114.3
• Surface Design: T3 Slotted

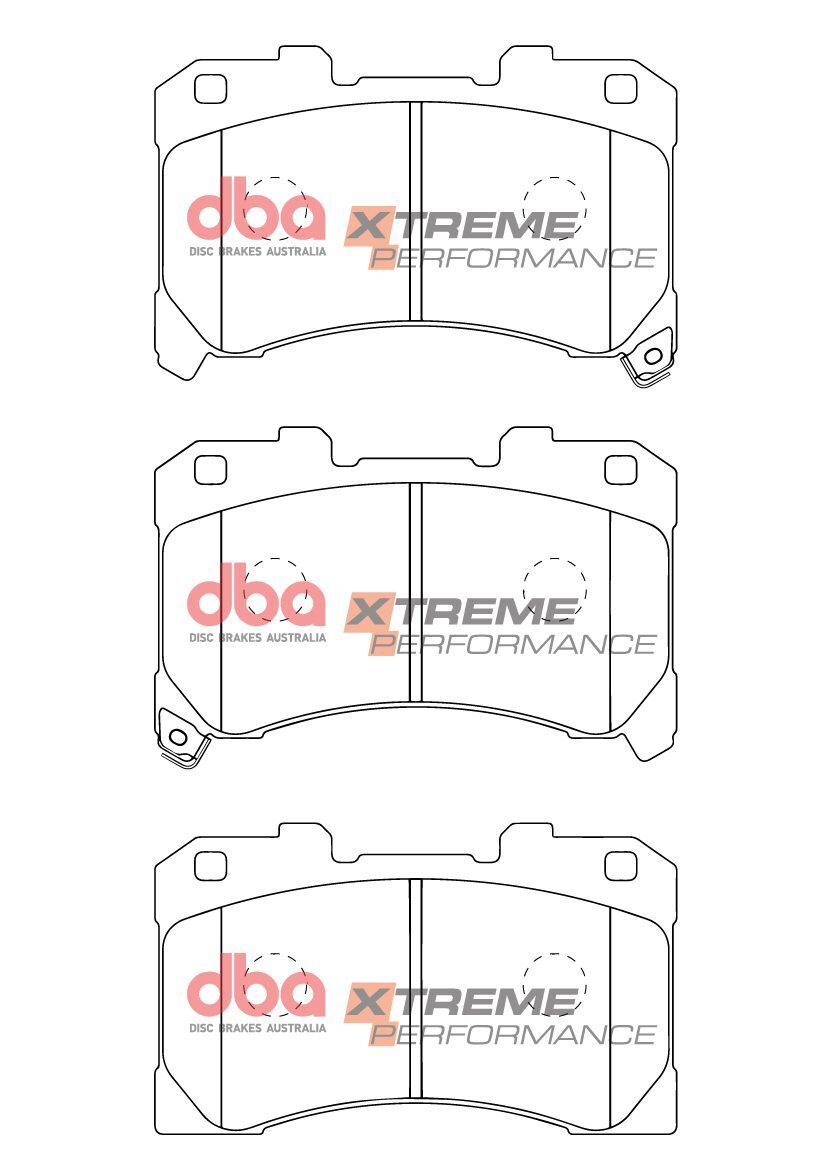

Front Brake Pads:

• Axle: Front
• Friction Material: Semi-Metallic Carbon Fibre
• Copper Content: Low Copper
• Application: High Performance/Heavy Duty Upgrade/Commercial
• Chamfer: No
• Slots: Yes
• Shim: Yes
• TSP: Scorched
• Bedding In Stripe: No
• UOM: Set
• Weight: 2.39kg
