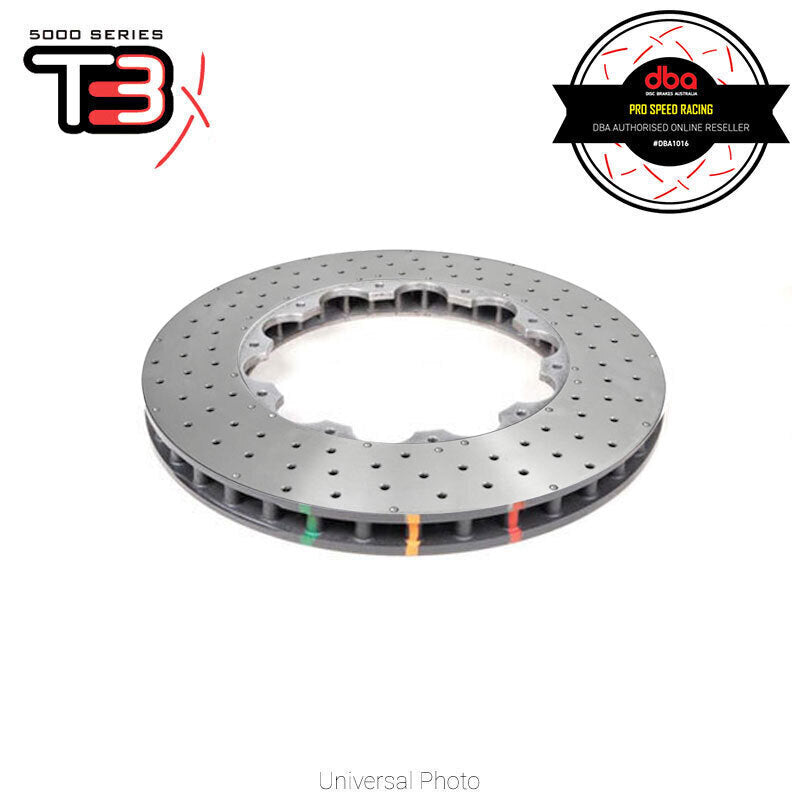

DBA 5000 XD 2-Piece Drilled/Dimpled Rotor Ring Single Front 356x28mm
Toyota GR Yaris/GR Corolla 20+
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$554.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
5000 Series XD variant features non directional cross drilled and dimpled design. The XD finish provides cooling benefits above the HD finish along with enhanced sports aesthetics.
XD utilises a mix of dimples and drilled holes to provide enhanced structural support above transitional cross drilled techniques.
Sharing all the benefits of the 4000 Series, 5000 Series rotors are a composite 2 piece direct replacement brake rotor. We use only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast iron rings with aerospace grade aluminium hats (T6061-T6) held together with National Aerospace Standards (NAS) bolts and crimp nuts.
5000 Series shares all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via the aluminium hats.
The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, whilst allowing for uniform radial disc expansion throughout the cast iron rings and reduced heat transfer from disc to hub via the aluminium hats.
We offer both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors. This allows drivers to re use their DBA 5000 Series hats with DBA replacement flat discs (rings).
We recommend 5000 Series for high performance street vehicles, track day and club racing, rally applications and show vehicles.
Note: XD rotors are not recommended for track use.
Features and Benefits
Hat and rings sold as complete assemblies and as individual components, for more economical replacement options
Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel
Aluma-lite centre hat / bell made from extra lightweight 6061 T6 aircraft aluminium, reducing the unsprung weight for better vehicle handling and minimising heat transfer to the wheel hubs
Anodised aluminium hat to prevent rust and enhance appearance
Symmetrical slotting and/or drilling for universal left/right use
Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability
Centre split core castings for increased heat transfer and thermal efficiency
CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad “knock” and resulting premature wear
Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue
Formulation allows for optimal interaction with DBA’s thermal stability profiling. Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods
Unique Kangaroo Paw vein design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life
National Aerospace Standards (NAS) bolts and crimp nuts for maximum strength at minimal weight
