 |  SKU: DBA2472E

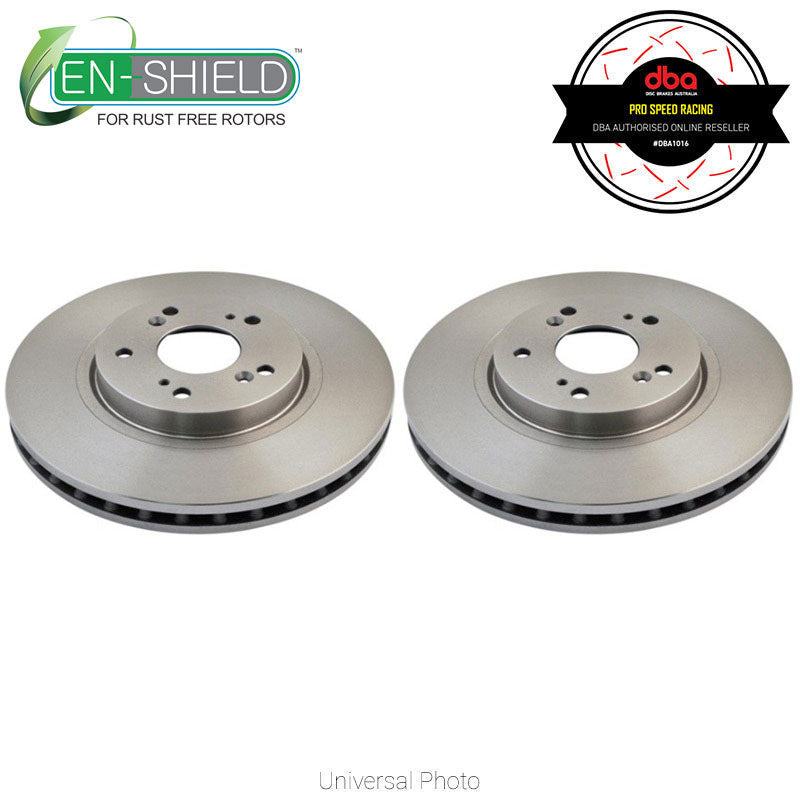

DBA Street En-Shield Rotors PAIR

Hyundai i20N/i40 17/18'' Wheels 11+ (Front, 320 x 28mm)

$269.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The DBA Street En-Shield Rotors PAIR (DBA2472E) for Hyundai i20N/i40 with 17/18'' wheels (11+, front, 320 x 28mm) are direct replacement rotors designed for dependable, consistent braking in daily use. Manufactured above OEM standards, they are ideal for drivers wanting factory-level or entry-level performance braking without compromising safety.

These rotors feature DBA’s patented Kangaroo Paw ventilation for improved heat dissipation, helping to reduce brake fade under repeated stops. The EnShield zinc/aluminium water-based coating is baked onto the entire rotor surface to protect against corrosion and keep the rotors looking clean throughout their service life.

EnShield rotors arrive ready to install, with no need to clean off protective oils or coatings. The chromium-free, environmentally safe finish is engineered not to contaminate brake pads, providing a clean, straightforward upgrade for daily drivers, light commercial vehicles and street SUVs based on the Hyundai i20N/i40 platform.

Features and Benefits

  • Direct replacement fitment – Designed to match OEM dimensions for straightforward installation on Hyundai i20N/i40 front hubs (320 x 28mm).
  • Kangaroo Paw ventilation – 144 diamond and tear drop pillars increase surface area for better heat dissipation, helping to minimise brake fade and improve braking consistency.
  • EnShield rust protection – Zinc/aluminium water-based coating baked over the entire rotor surface to guard against corrosion and maintain a cleaner appearance in service.
  • Ready-to-install rotors – No pre-cleaning required, saving workshop and DIY fitting time while avoiding the mess of traditional shipping oils.
  • Pad-friendly coating – Protective layer is formulated not to contaminate brake pads during bedding.
  • Environmentally considerate finish – Chromium-free, water-based coating reduces environmental impact compared with conventional treatments.
  • Built above OEM standards – Manufactured to Disc Brakes Australia’s stringent quality requirements for a safety-critical brake component.

Technical Specifications

Brand Disc Brakes Australia (DBA)
Product type Street Series En-Shield brake rotors (pair)
SKU DBA2472E
Vehicle fitment Hyundai i20N/i40 17/18'' wheels 11+ (front)
Rotor position Front
Rotor diameter 320 mm
Rotor height 47 mm
Thickness (new) 28 mm
Minimum thickness 26.4 mm
Centre hole 69 mm
Stud holes 5
Ventilation Kangaroo Paw pillar ventilation (where applicable)
Surface protection EnShield zinc/aluminium water-based baked coating
Recommended use Daily driving, light commercial, street SUV

Included Components

  • 2 x DBA Street Series En-Shield front brake rotors (DBA2472E)

Fitment Table
