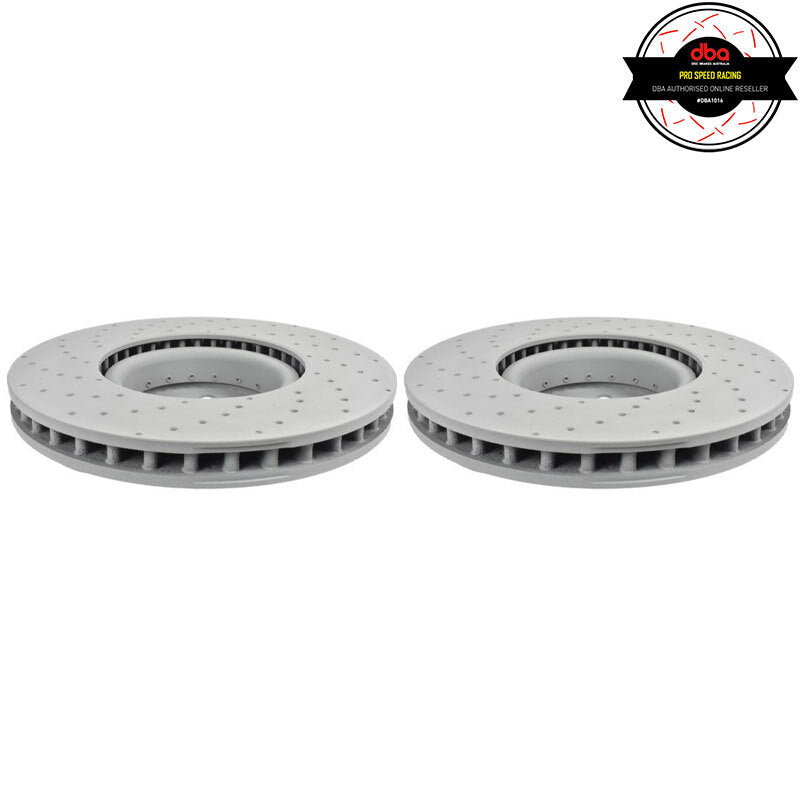

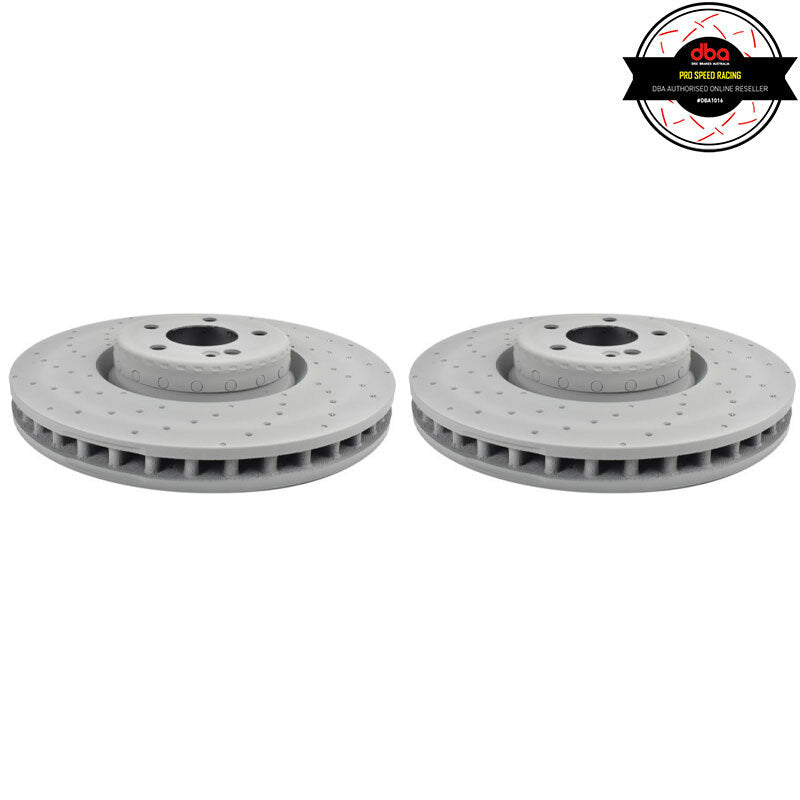

DBA Street HC OEX Replacement Rotors PAIR

Street Series OEX rotors are designed for European vehicle applications, being OEM compatible replacement rotors. Incorporating OE style cross drill patterns, slotted and cross drill patterns and/or OE slotted, cross drilled and dimpled designs. Products can be designated at left or right-hand fitment depending upon vent design, drilling and slot configuration. The DBA Street Series OEX rotors are bench marked for usage with DBA Street Series brake pads or DBA Street Performance brake pads.

DBA offers its own version of a Hybrid Composite (HC) rotor, composed of a cast iron braking surface (disc ring) and an aluminium or steel hat, which are permanently bonded together by a series of rivets or through co-casting. The rotor features DBAs own iron composition for enhancement. Its two-piece design may reduce the overall weight by up to 15% compared with a conventional one-piece rotor. Full R90 certification provides additional peace of mind.

Vehicle Compatibility:

To ensure correct compatibility please check vehicle fitment data and compare your existing brake discs to the measurements provided by DBA here:

DBA Part Finder

Click "Part Number Search" tab and input SKU provided above.

Vehicle fitment in product title above is to be used as a rough guide only and may not suit your vehicle. Returns/Exchanges will incur restocking and freight fees and may be denied in certain circumstances.

*Some variants may not contain all features

SURFACE DESIGN – 1

Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.

ANTI RUST – 2

Painted non-friction areas to prevent rust and enhance appearance, or full En-shield coating to protect the rotor and alleviate the need for pre-installation cleaning.

BI-DIRECTIONAL USE – 3

Symmetrical slotting and/or drilling for universal left/right use.

THERMAL EFFICIENCY – 4

Centre-split core castings for increased heat transfer and thermal efficiency.

CBN – 5

CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad “knock” and resulting premature wear.

KANGAROO PAW – 6

Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.

• Diameter (mm): 360
• Thickness (mm): 36
• Minimum Thickness (mm): 34
• Height (mm): 62.5
• Centre Hole Diameter (mm): 69
• Wheel/Stud Holes: 5
