 |  SKU: DBA3356HOE

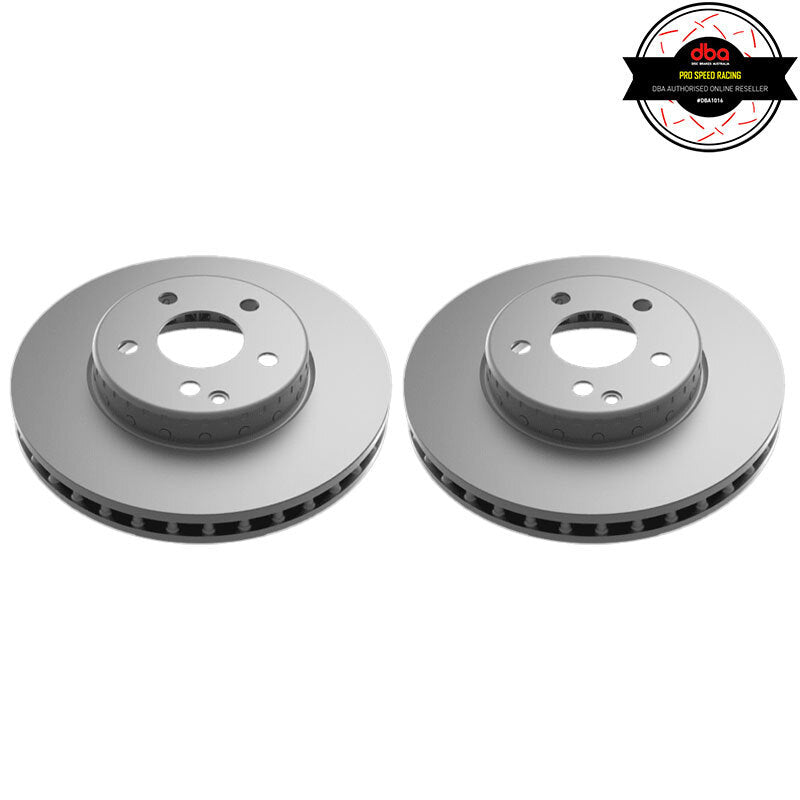

DBA Street Series HC Brake Rotors PAIR

Mercedes E Class W213/GLC Class X253 (Front, 342 x 32mm)
$559.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Adopting the two-piece OEM design, DBA offers its own version of a Hybrid Composite (HC) rotor, composed of a cast iron braking surface (disc ring) and an aluminium or steel hat, which are permanently bonded together by a series of rivets or through co-casting. The rotor features DBAs own iron composition for enhancement. Its two-piece design may reduce the overall weight by up to 15% compared with a conventional one-piece rotor. Full R90 certification provides additional peace of mind.

The Street Series Hybrid Rotor range offers an attractive replacement alternative to owners of mainly high-end European vehicles.

Features and Benefits

  • Surface Design: Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.*
  • Anti Rust: Painted non-friction areas to prevent rust and enhance appearance, or full En-shield coating to protect the rotor and alleviate the need for pre-installation cleaning.*
  • BI-Directional Use: Symmetrical slotting and/or drilling for universal left/right use.*
  • Thermal Efficiency: Centre-split core castings for increased heat transfer and thermal efficiency.
  • CBN: CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad “knock” and resulting premature wear.
  • Kangaroo Paw: Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*

*Some variants may not contain all features

Technical Specifications

  • Product SubVariant: Hybrid-Composite
  • Axle: Front
  • Vane Design: OE Vents
  • Outer diameter [mm]: 342
  • Height [mm]: 60
  • Brake Disc Thickness [mm]: 32
  • Minimum Thickness [mm]: 29.4
  • Centering Diameter [mm]: 69
  • Number of Holes: 5
  • Pitch Circle Ø: 112.00
  • Uom: Each
  • Surface Design: Cross Drilled/ Dimpled

Fitment Table
