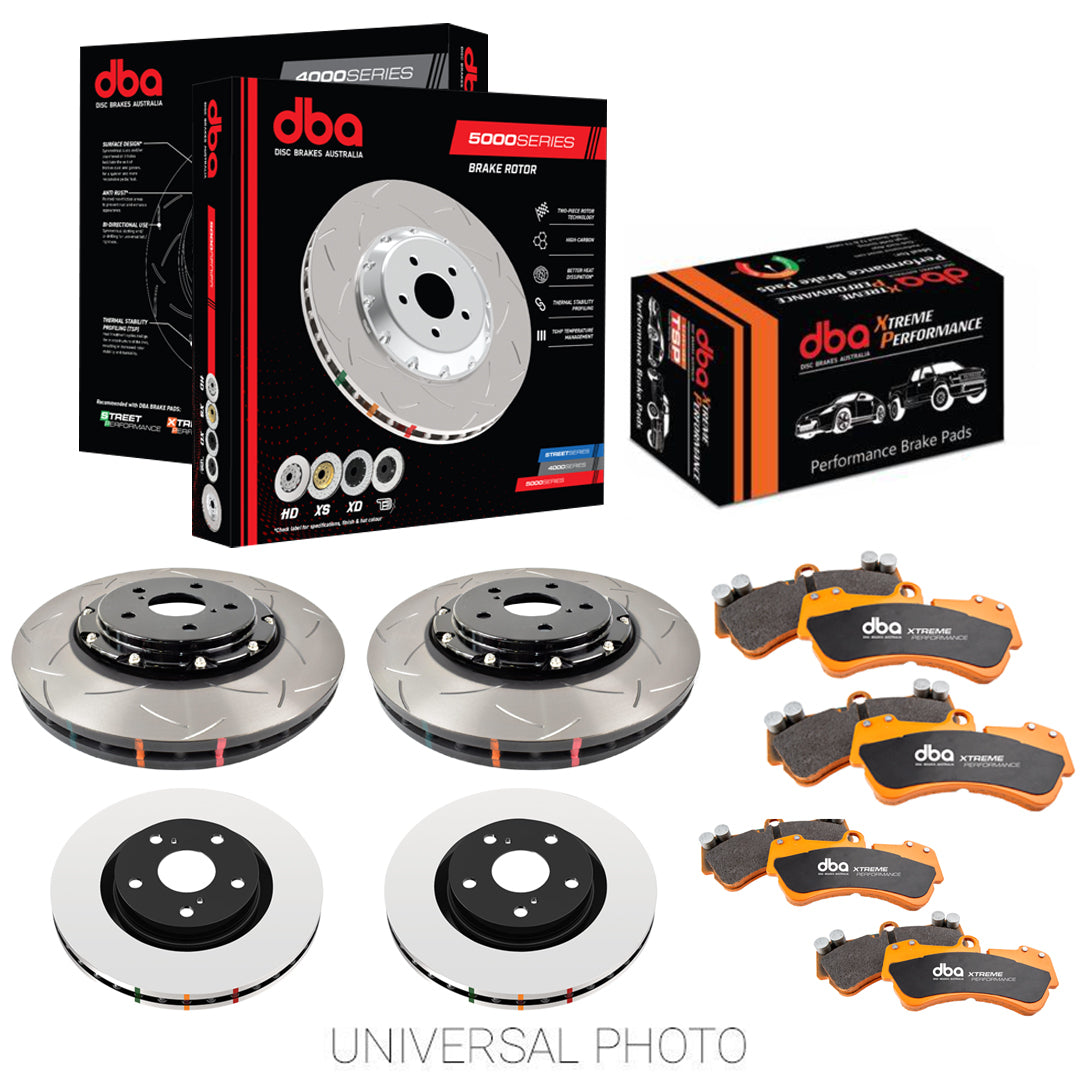

DBA 5000 Series Slotted Front/4000 HD Rear Rotors w/DBA Xtreme Performance Pads

Front Rotors:

Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts.

The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats.

DBA's 5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotor. Featuring all the benefits of the 5000 Series along with DBA's patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional precise CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA's revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA's 5000 Series T3 rotors are recommended for all performance applications from street driving, 4x4 and SUV, light utility vehicles, track days, club racing, rally cars and armoured vehicles.

Rear Rotors:

4000 SERIES HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

Brake Pads:

DBA's Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD's. DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance. DBA Street Performance part numbers are denoted by the suffix (XP).

Front Rotors:

• 2-Piece Design with Aerospace grade aluminium hats (T6061-T6)
• Kangaroo Paw 144 diamond and tear drop pillar ventilation system
• T3 Slot 48 precision CNC machined slots
• XG150 High Carbon Alloyed Iron
• Thermographic Temperature Monitoring
• Paint protection on non-friction areas

Rear Rotors:

• Kangaroo Paw 144 diamond and tear drop pillar ventilation system
• XG150 High Carbon Alloyed Iron
• Thermographic Temperature Monitoring
• Paint protection on non-friction areas

Brake Pads:

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550Deg C (1022Deg F)

Front Rotors:

• Axle: Front
• Vane Design: Kangaroo Paw
• Diameter (mm): 356
• Thickness (mm): 28
• Height (mm): 49.5
• Minimum Thickness (mm): 26
• Centering Diameter (mm): 62
• Number of Holes: 5
• Weight: 10kg each
• Pitch Circle Ø: 114.3
• Surface Design: T3 Slotted

Rear Rotors:

• Axle: Rear
• Vane Design: Solid
• Diameter (mm): 297
• Thickness (mm): 18
• Height (mm): 53.25
• Minimum Thickness (mm): 16.5
• Centering Diameter (mm): 62
• Number of Holes: 5
• Weight: 6.24kg each
• Pitch Circle Ø: 114.3
• Surface Design: Plain

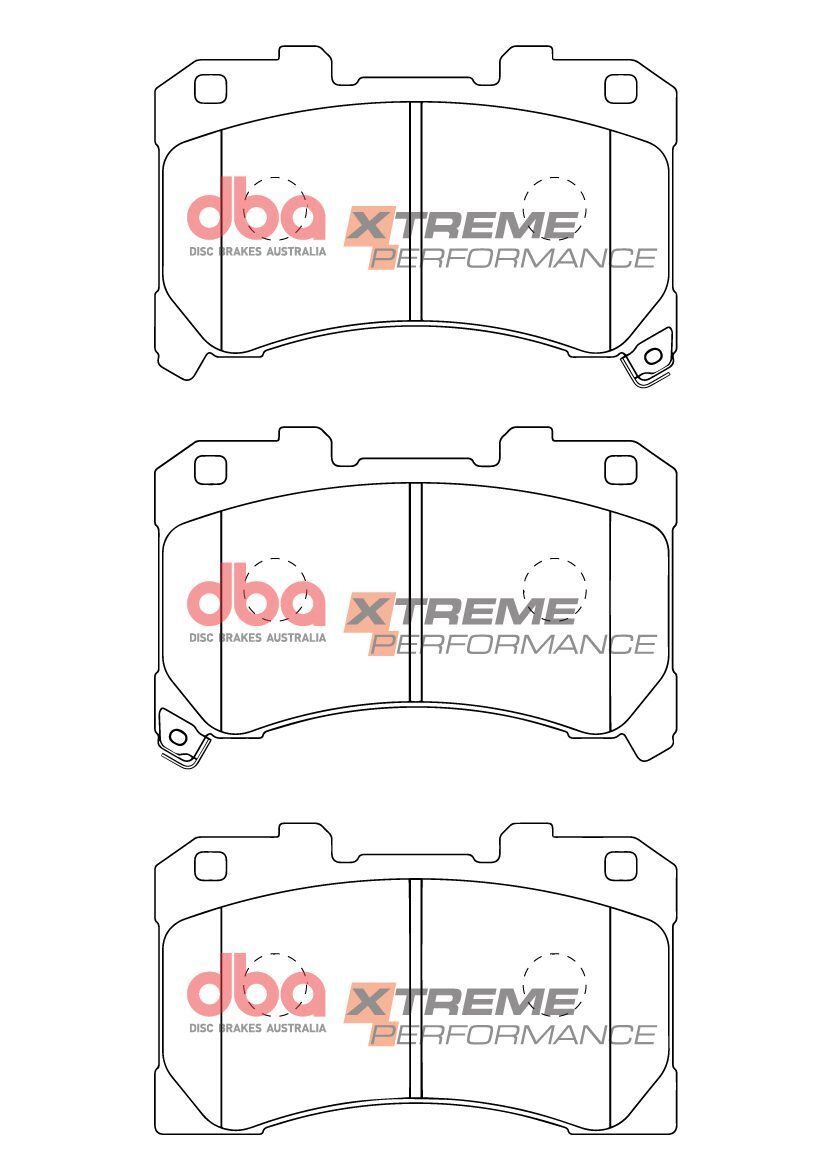

Front Brake Pads:

• Axle: Front
• Friction Material: Semi-Metallic Carbon Fibre
• Copper Content: Low Copper
• Application: High Performance/Heavy Duty Upgrade/Commercial
• Chamfer: No
• Slots: Yes
• Shim: Yes
• TSP: Scorched
• Bedding In Stripe: No
• UOM: Set
• Weight: 2.39kg

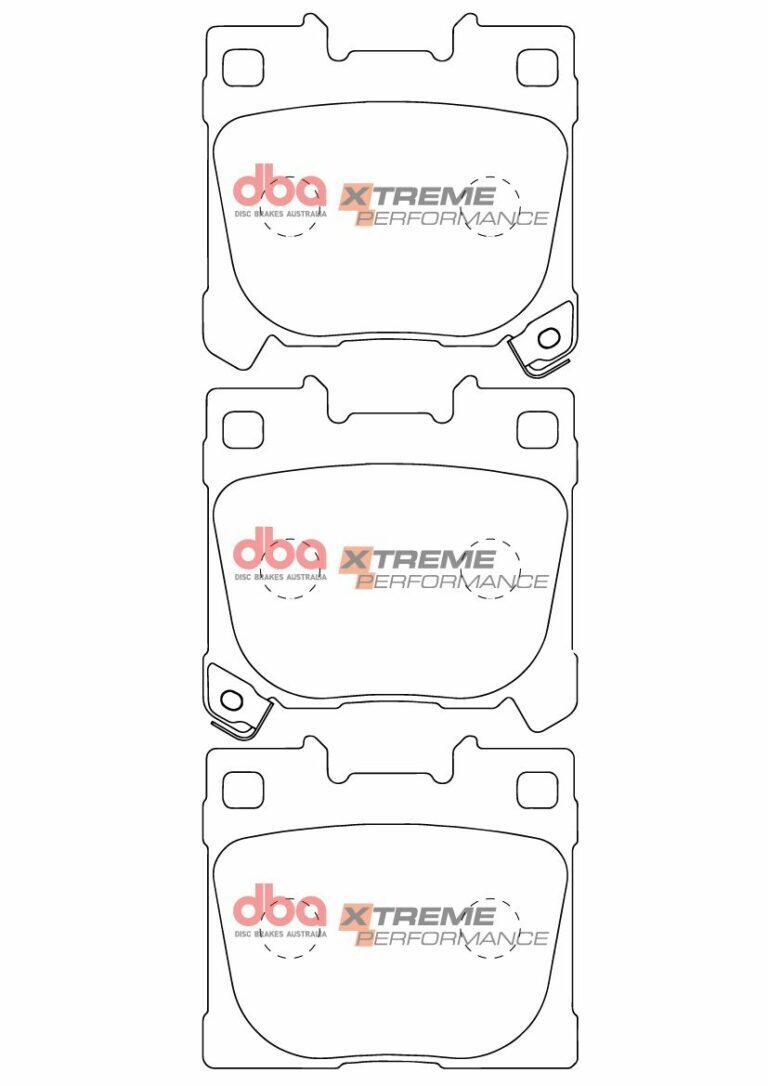

Rear Brake Pads:

• Axle: Rear
• Friction Material: Semi-Metallic Carbon Fibre
• Copper Content: Low Copper
• Application: High Performance/Heavy Duty Upgrade/Commercial
• Chamfer: No
• Slots: Yes
• Shim: Yes
• TSP: Scorched
• Bedding In Stripe: No
• UOM: Set
• Weight: 1.03kg
