 |  SKU: CRS6071N3D

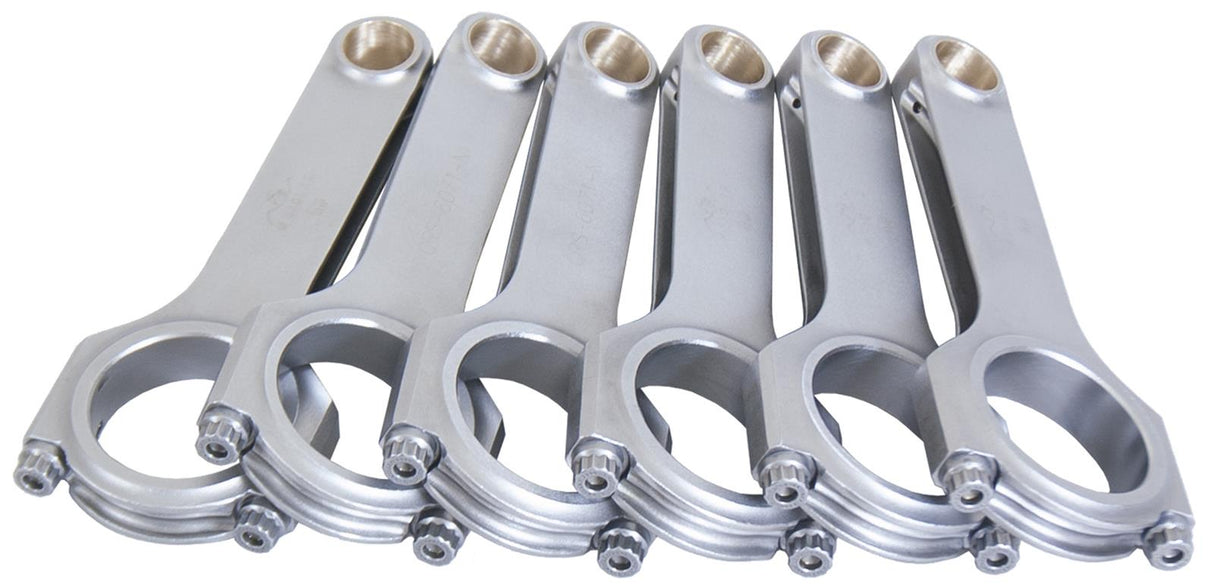

Eagle H Beam Connecting Rods

Nissan VG30
$1,449.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Eagle H-beam connecting rods are forged from SAE 4340 steel for superior strength. ARP bolts (2000, 8740 or L19 Series) and alignment sleeves are used for durability and precise cap location. Sets are weight matched to +/- 1g. Sizing is performed on the unique Sunnen Krossgrinding system for a perfect housing bore. These are the perfect choice for engines up to 750 hp.

Technical Specifications

  • Material: Forged 4340 steel
  • Length Center Bore To Center Bore: 154.2
  • Bolts: 3/8ARP 2000
  • Pin Size: 22mm
  • Bolts: 3/8" ARP 2000
  • Length: 6.071"
  • Weight: 580g
  • Pin Size: 0.866 in
  • Housing Bore: 2.087 in
  • Rod Journal: 1.967 in
  • Big End Width: 0.817 in
  • Bushed for full-floating piston pin: Yes
  • Center to Center Length: 6.071 in
  • Pin End Width: 0.86 in

Fitment Table
