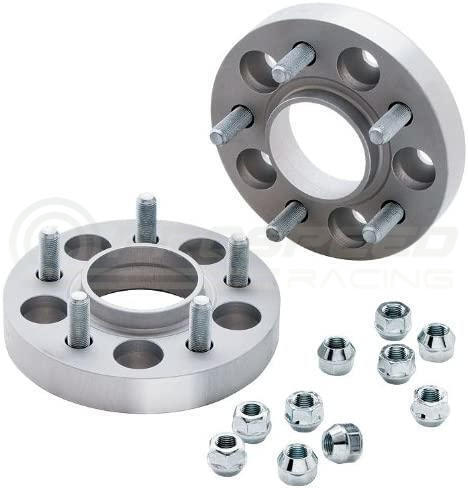

Eibach 15mm Bolt On Hub Centric Pro Spacer Kit

Eibach Pro-Spacer is the ideal combination for use with the Eibach Pro-Kit as well the Sportline, if the original or aftermarket wheels are missing that last optical "kick". With the Eibach Pro-Spacer installed, the car looks wider and better as the wheel fills the arch. That’s how the car’s look gets its final touch.

By increasing the track width, not only the appearance is improved, but you also achieve an optimized driving behavior combined with higher stability, as the roll of the chassis is influenced in a positive manner. Optimize the "sportive touch" to the last detail: wheels, tires, Eibach Suspension Components and Pro-Spacer!

The Pro-Spacer is available in different versions from 5 to 30 mm width.

Features:

• Widen your stance—for better handling and appearance
• Made from high-tensile-strength aluminum alloy
• Exact fitment by using minimal production tolerances, resulting in exceptional wheel balance
• All applications tested in rigid durability- and fatigue tests
• High-grade corrosion protection through a special coating process (salt spray test according to DIN 50021)
• Significant weight advantage compared to wheel-spacers made from steel

Spacer Description:

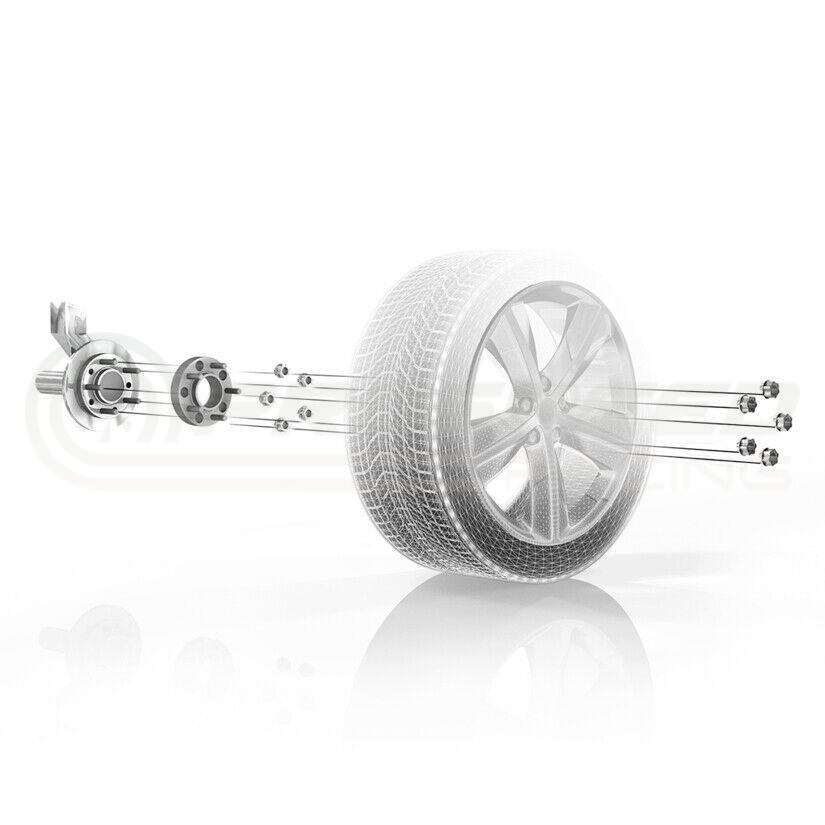

• System 4: Bolt-On Hub-Centric Spacer
• Spacer has pressed-in wheel studs and bolts onto existing studs with included lug nuts
• Spacer has extended centre collar (centre nose) to locate rim to centre of wheel hub

Important Notes:

• When using bolt-on wheelspacers you have to verify that the wheels being used have suitable cut-outs to take up the original studs. Without these cut-outs it is not possible to use the wheels or wheelspacers! Please check as follows: Stud lengh (e.g. 25mm) minus spacer-thickness (e.g.15mm) = 10mm exess length. So the cut out should have 11mm depth to take the original stud. Further the cut out should have minimum 22mmx22mm height/width to take the overlaping nut.
• When using 15 mm wheelspacers at least 7 mm deep cut-outs are needed (at 20mm wheelspacers at least 2mm deep cut-outs are needed) as the nuts stand over the contact surface!
• Check with local transport authority regarding legality for road use

Vehicle Fitment:

Below vehicles are provided as a rough guide only. Ensure you have read the above notes and checked the specifications tab for additional information regarding spacer fitment prior to purchase

• Subaru Impreza (5x100 PCD)
• Subaru XV (5x100 PCD)
• Subaru WRX (5x100 PCD)
• Subaru STI (5x100 PCD)
• Subaru Forester (5x100 PCD)
• Subaru Liberty (5x100 PCD)
• Subaru BRZ (5x100 PCD)
• Toyota 86 (5x100 PCD)
