| SKU:
1619-300

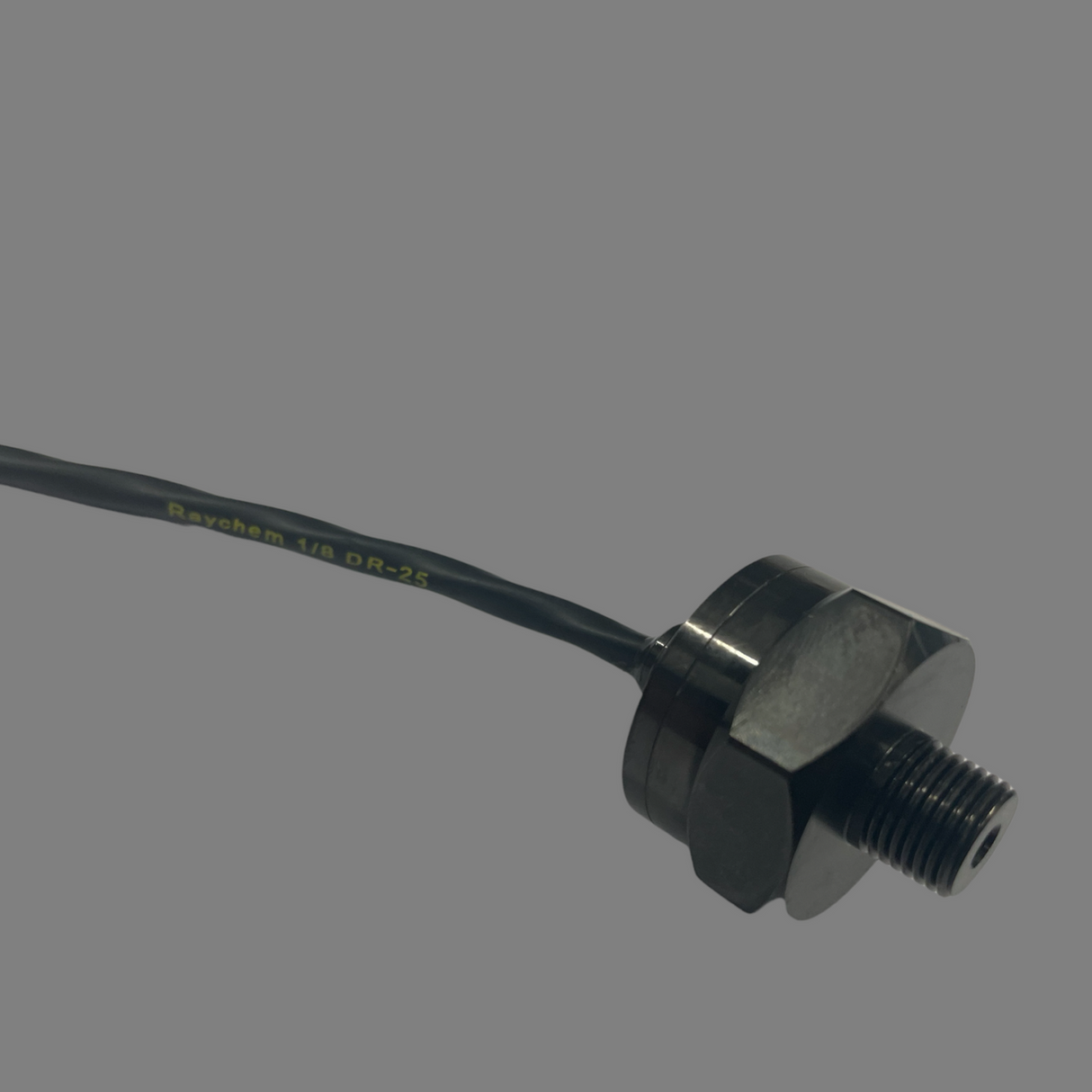

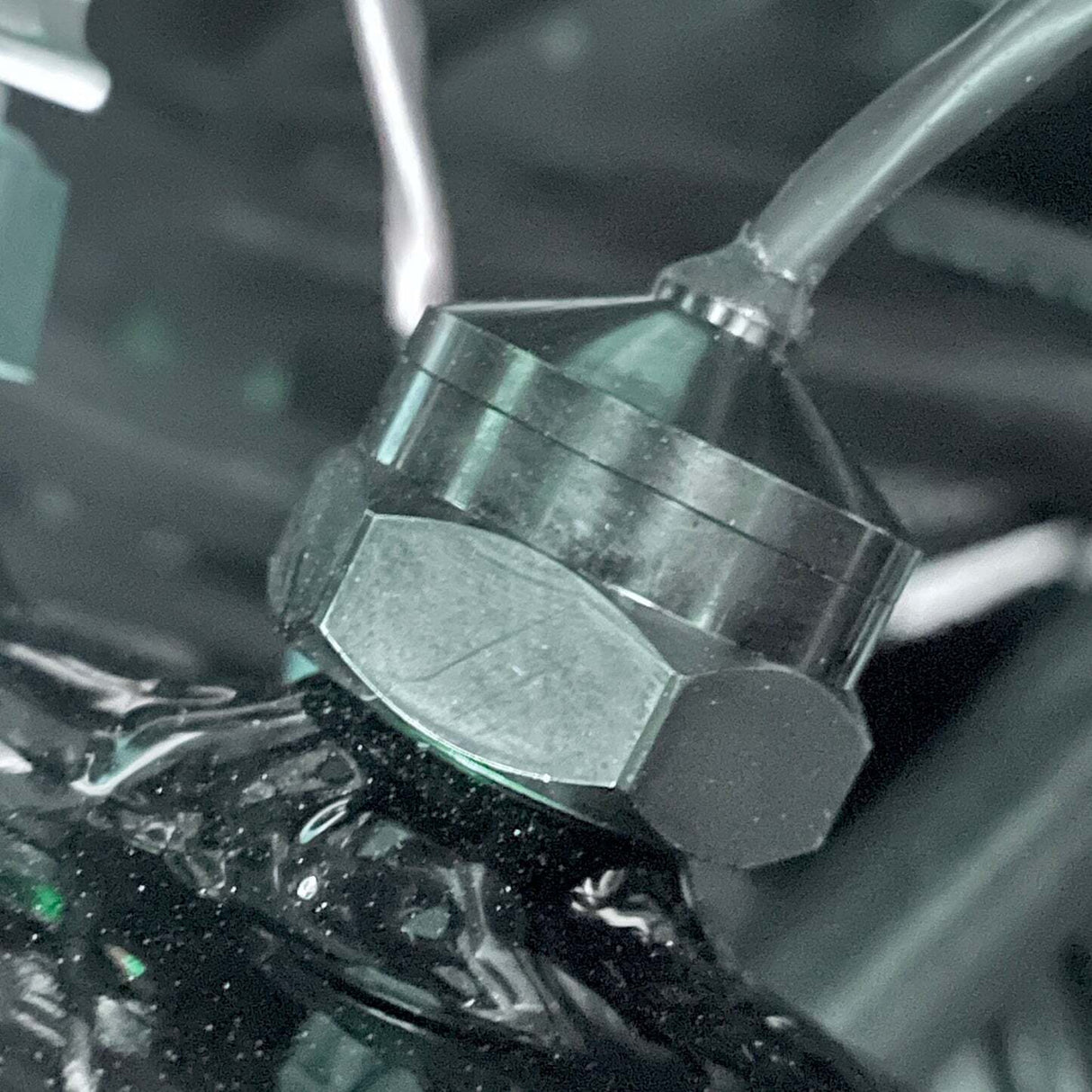

Emtron 300psi Pressure Sensor
Incoming :
Product will be in stock soon.
In Stock :
This product is in stock & ready to be delivered.
Very low inventory :
This product has very limited stock remaining.
Out of stock :
This product is not available at this time.
$220.00
Unit price
/
Unavailable
Earn 1 Point on this purchase. Learn more
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
The Emtron 300psi Gauge Pressure Sensor uses a state-of-the-art piezoresistive transducer from Bourns Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure.
Features and Benefits
Features and Benefits
- Genuine Bourns BPX130 series sensor
- Compatible with harsh media – air, water, oil, petrol and methanol.
- Fully calibrated and temperature compensated from -40 DegC to +150 DegC
- Fast 1ms response time
- Compact Design
- Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
- Fully potted for a waterproof seal and resistance to shock and vibration
- 1/8 NPT Thread

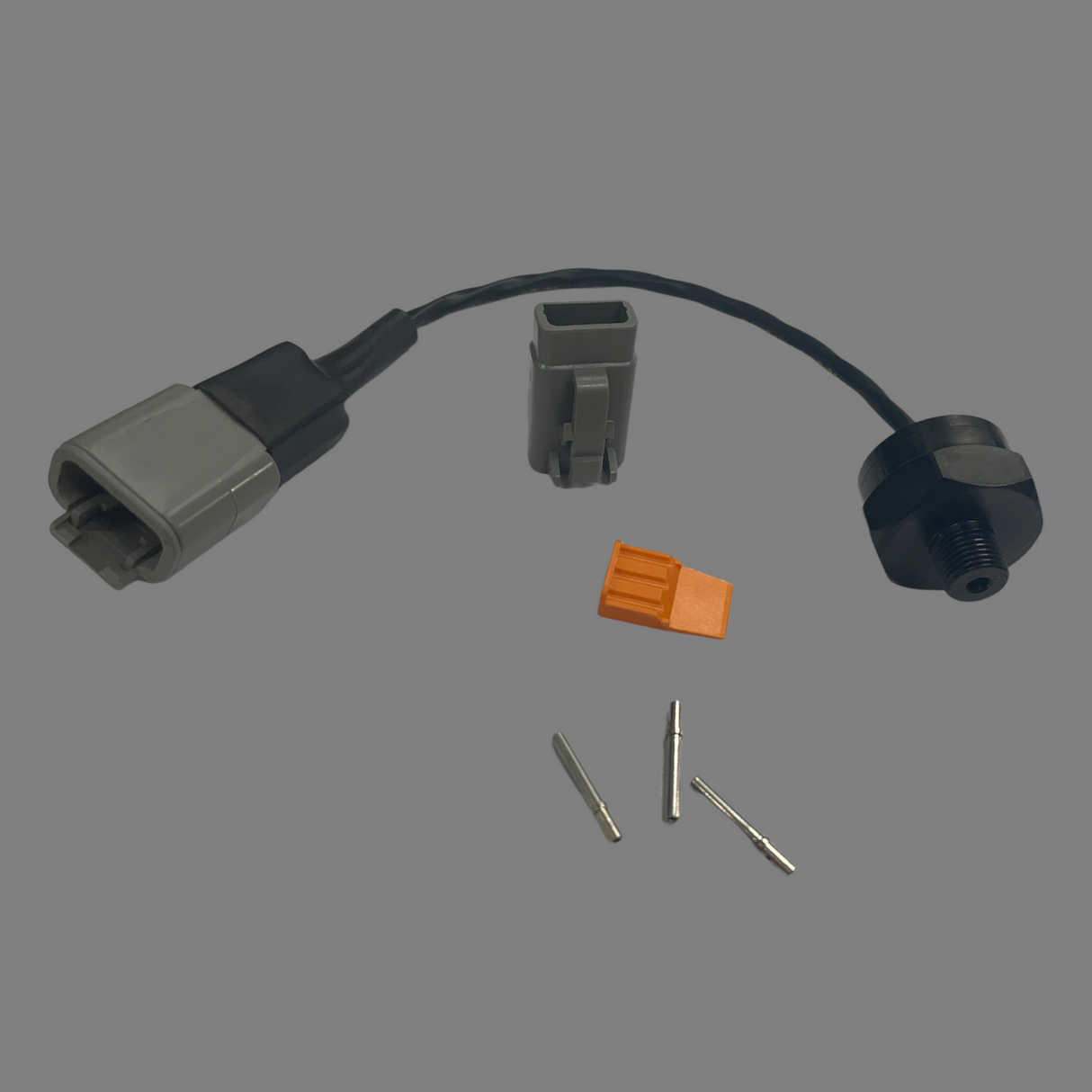

- Deutsch 3 Way Connector (mating end also supplied)
Technical Specifications
Technical Specifications
- Material: Stainless steel coated in black nickel
- Pressure Range: 0kPa to 2068.4kPa
- Supply Voltage: 4.50 to 5.50 Volts DC
- Current Supply 10.0mA
- Response Time: 1ms
- Thread: 1/8 NPT
- Connector: Deutsch 3 way
