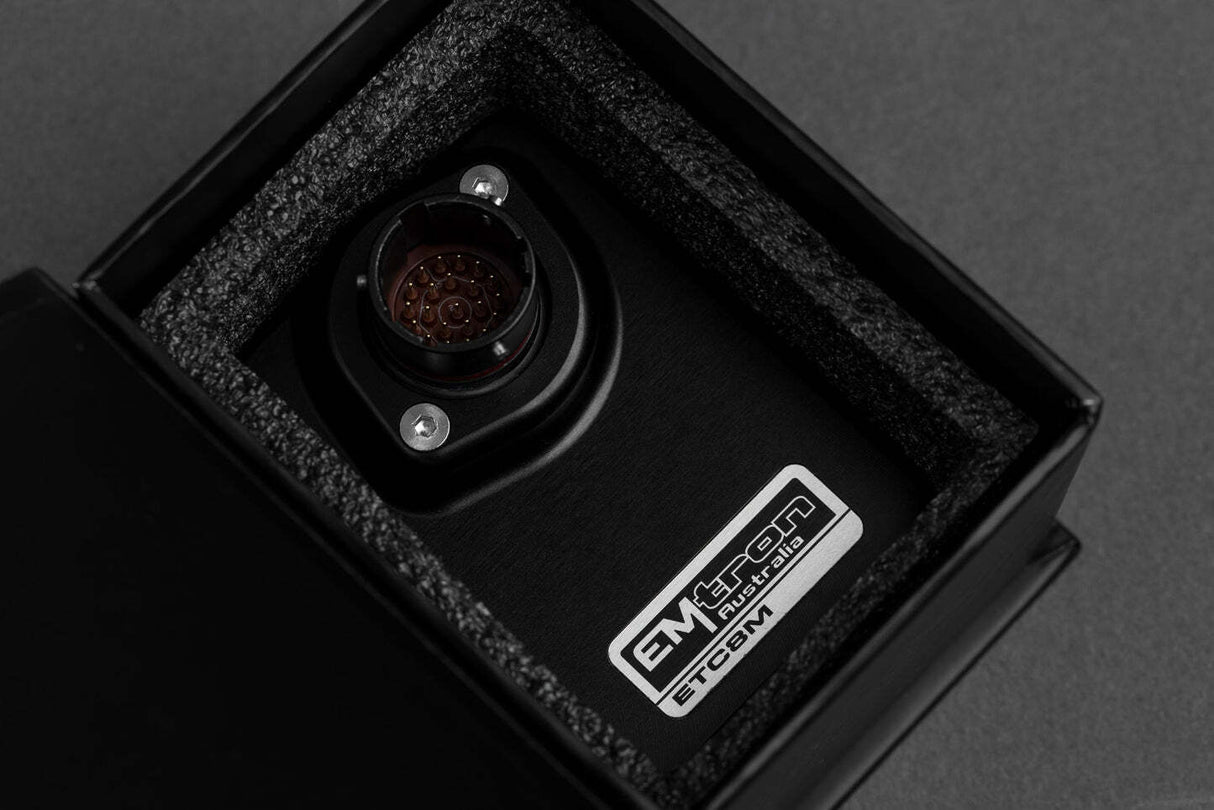

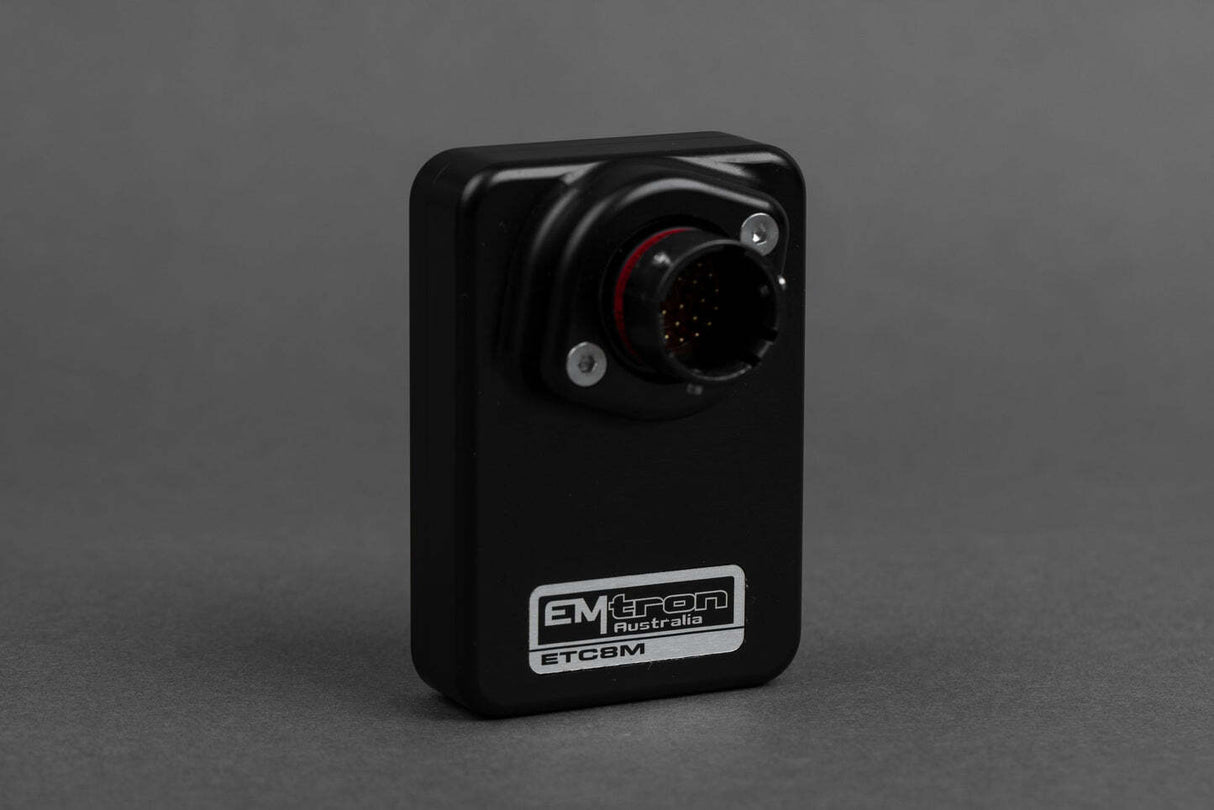

Emtron ETC8M 8 Channel Thermocouple Controller
Incoming :
Product will be in stock soon.
In Stock :
This product is in stock & ready to be delivered.
Very low inventory :
This product has very limited stock remaining.
Out of stock :
This product is not available at this time.
$1,540.00
Unit price
/
Unavailable
Earn 1 Point on this purchase. Learn more
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
The Emtron ETC8M is a Mil Spec 8 Channel Thermocouple to CAN device using the Motorsport proven Deutsch Autosport connector(Red).
The enclosure is made from billet 6061 aluminium and is water proof to allow for implementation in extreme environments.
Features and Benefits
Features and Benefits
- Internal or External Cold Junction Correction
- Waterproof
- Reverse Battery Protection
- Battery Transient Protection
- 64MHz 16-bit Automotive Processor
- 8 K-Type Thermocouple Inputs
Technical Specifications
Technical Specifications
- Material: Billet 6061 aluminium
- Sensor Operating Temperature Range: -200 to 1350 DegC
- Sampling Rate: 500 Hz
- CAN Baud Rate: 250kBaud, 500kBaud or 1Mbaud Auto Detect
- CAN Transmit Rate Adjustable: 100Hz/200Hz/500 Hz
- Operating Voltage: 7.0 to 22.0 Volts DC
- Operating Current: 50mA at 14.0V
- Processor: 64MHz 16-bit Automotive Processor
- ETC8M Operating Temperature Range: -30 to 85°C (-22 to 185°F)
