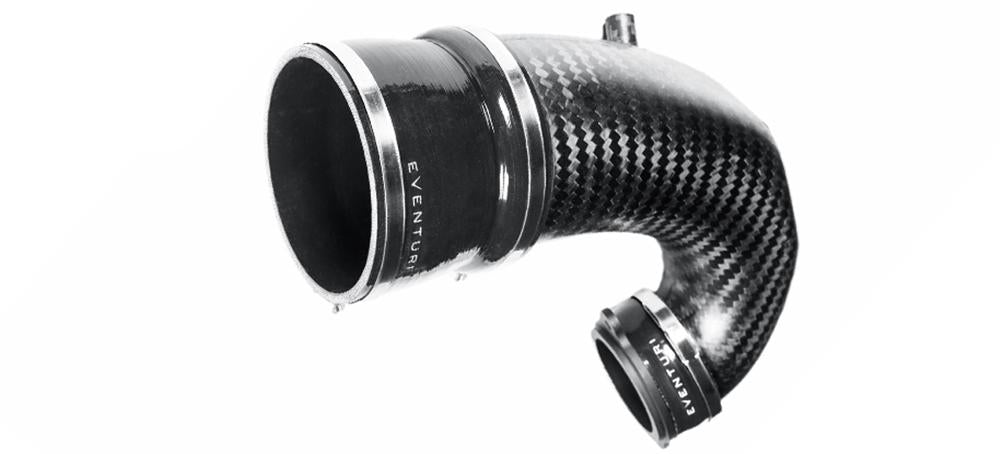

Eventuri Carbon Fibre Turbo Inlet Tube w/ No Flange

Audi RS3 8V, 8Y/RS Q3 F3/TT RS FV
$1,449.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Fitment for RS3 8V Gen 2, 8Y RS3, F3 RSQ3 and TTRS 8S Left and Right hand drive. Finished in raw carbon - no clearcoat.

Optional Turbo flanges available for popular hybrid turbos.

Presenting a World First - an all carbon RS3/TTRS turbo inlet elbow. We have invested months of intense R&D in developing an inlet which leaves no room for compromise. VOLUME - FLOW QUALITY - TEMPERATURE are the 3 main design criteria which we sought to meet.

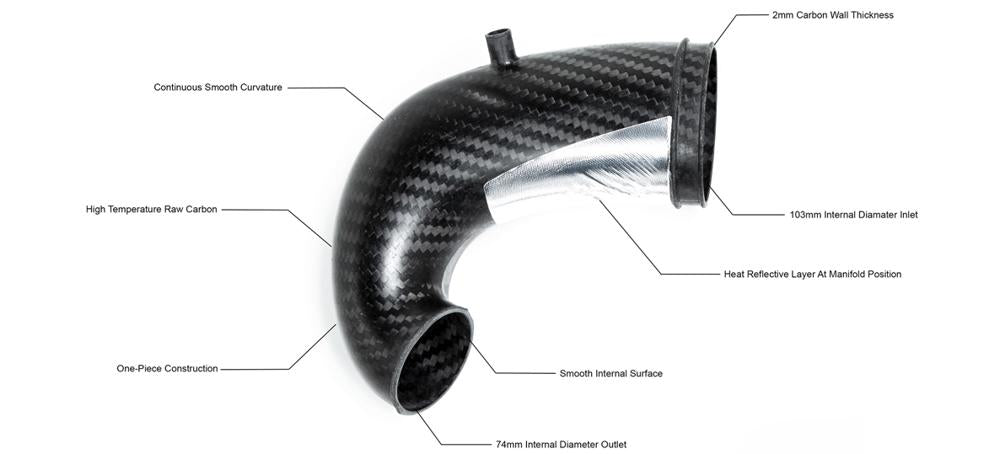

1) VOLUME : Inlet Diameters - Eventuri 103mm : Stock 72mm. Outlet Diameters - Eventuri 74mm : Stock 56.4mm. Clearly with significantly larger internal diameter sizes, the Eventuri elbow encapsulates a much larger internal volume which de-restricts the flow path to the turbo.

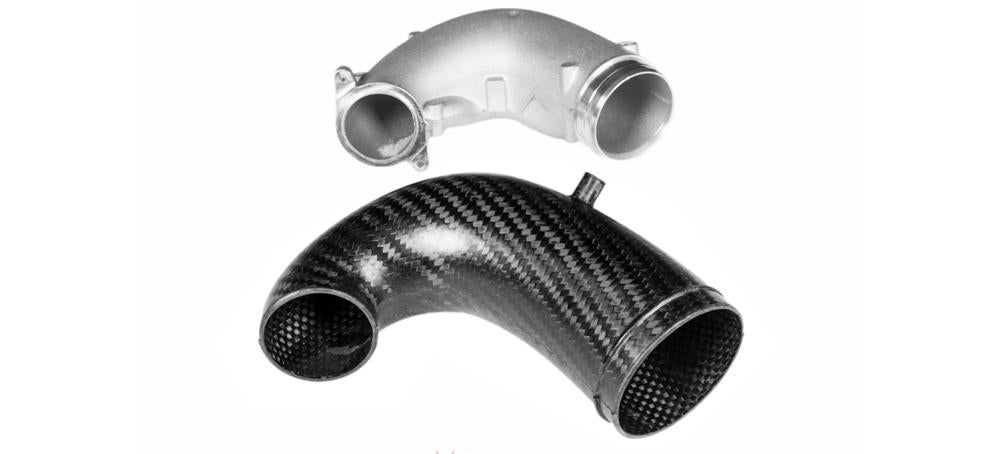

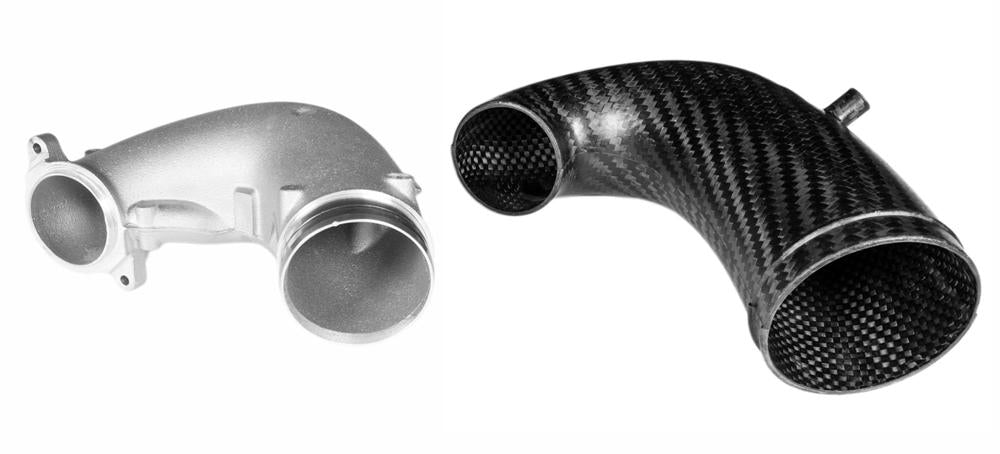

2) FLOW QUALITY : Having just a large internal volume is no good unless the flow path also allows for smooth airflow to the turbo. By using high temperature Prepreg Carbon Fiber we have managed to achieve a smooth internal surface. In contrast, the stock and other aftermarket elbows are all made from cast aluminium which end up with a rough internal surface. This coupled with the smooth curvature of the elbow results in a flow path which minimises turbulence.

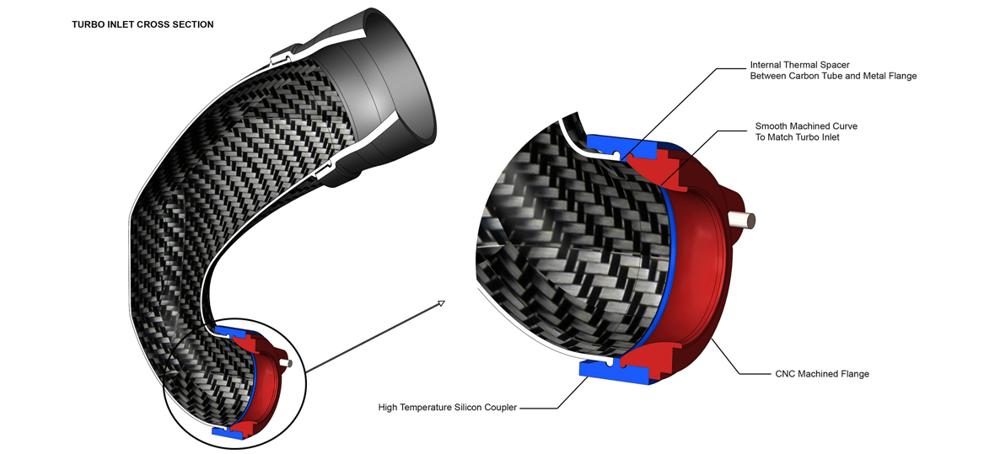

3) TEMPERATURE : The final criteria was to minimise the conduction of heat into the airflow. The stock inlet is directly connected to the turbo and so immediately conducts heat as the turbo spools. Our system uses a machined flange which connects to the turbo and then a silicon coupler with an integrated thermal spacer to keep the carbon elbow from having direct contact with the turbo. This barrier coupled with the low through-thickness thermal conductivity of carbon fiber results in less heat being transferred to the airflow.

Performance:

Flow Bench Testing

We conducted flow rate tests using a Superflow SF-1020 to measure the maximum flow rate possible at a pressure drop of 28" H2O. Tests were done on the same day in controlled conditions using the same test jig for each elbow. The results show how restrictive the stock elbow is, which we have managed to improve from 42% using the stock flange up to 58% in maximum possible flow rate using the larger GTX flange. Since the RHD version requires clearance for the brake fluid reservoir we added a scallop into the side which reduces the volume of the tube but still retains a significant increase in flow rate over stock with an increase of 52% over stock using the GTX Flange.

Ā

Dyno Testing

Our carbon elbow has been independently tested by reputable tuners globally. The first set of results are from BR Performance Netherlands who tested our system on a TTRS equipped with a TTE700 hybrid turbo. Tests were done on the same day back to back with the hood closed. They tested the stock airbox against our stage 3 intake with the stock elbow and then added our elbow for the comparison.

Ā

Dyno Results Summary:

Stock Airbox with Modified Stock Turbo Inlet for TTE700 = 576.5 HP
Eventuri Stage 3 Intake with Modified Stock Turbo Inlet for TTE700 = 606.5 HP
Eventuri Stage 3 Intake with Eventuri Turbo Inlet for TTE700 = 620.8 HP

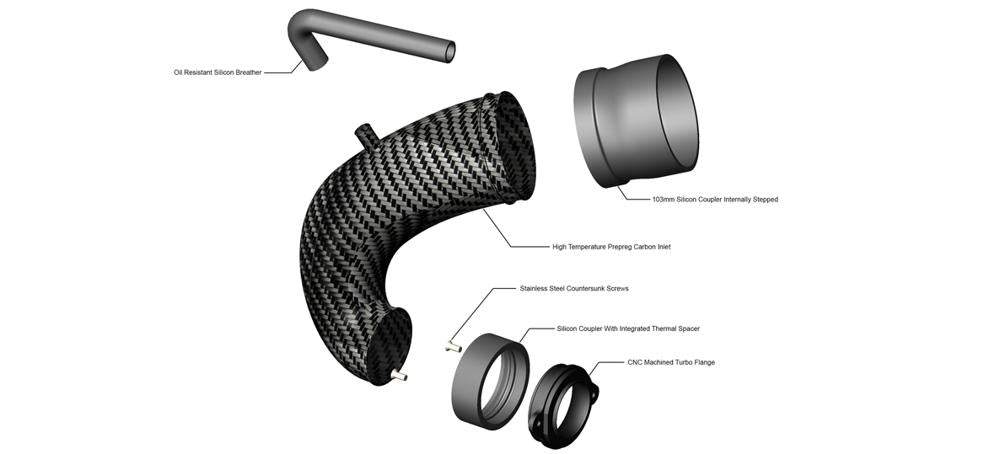

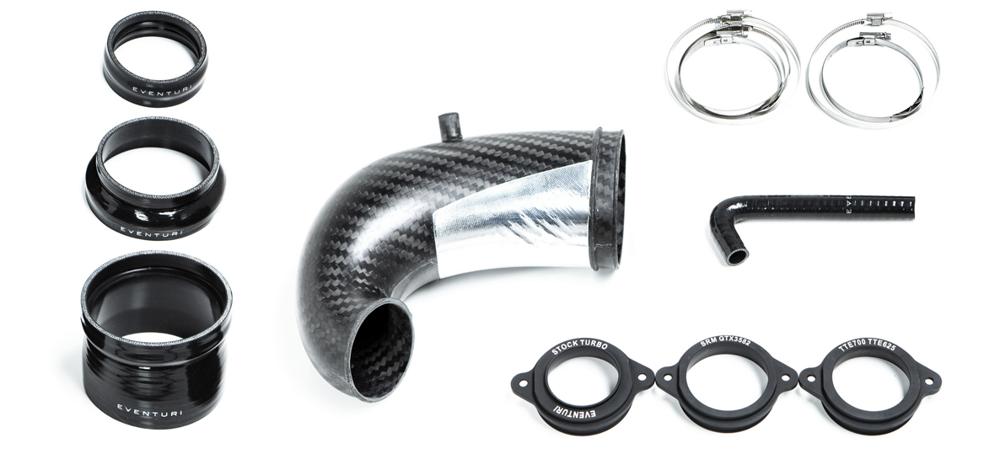

    Features and Benefits

    • High Temperature Carbon Inlet Elbow - RHD and LHD Specific
    • CNC Machined Turbo Flanges - optional choices
    • Silicon Couplers With Oil Resistant Lining
    • Marine Grade Stainless Steel Hose Clamps

    Fitment Table
