 |  SKU: 4003-05006

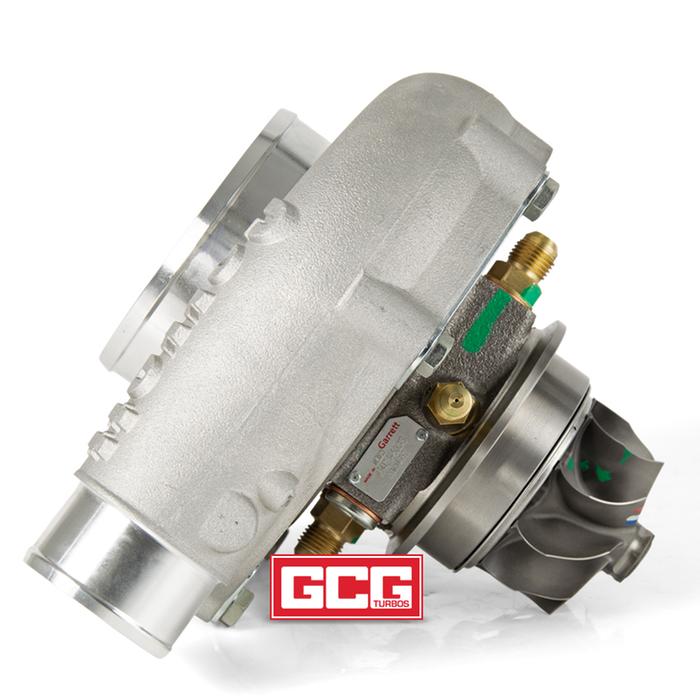

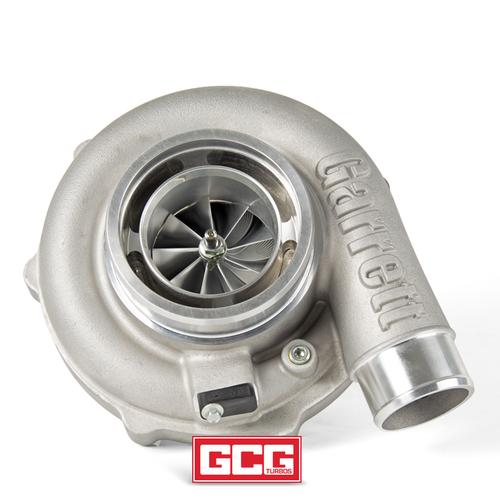

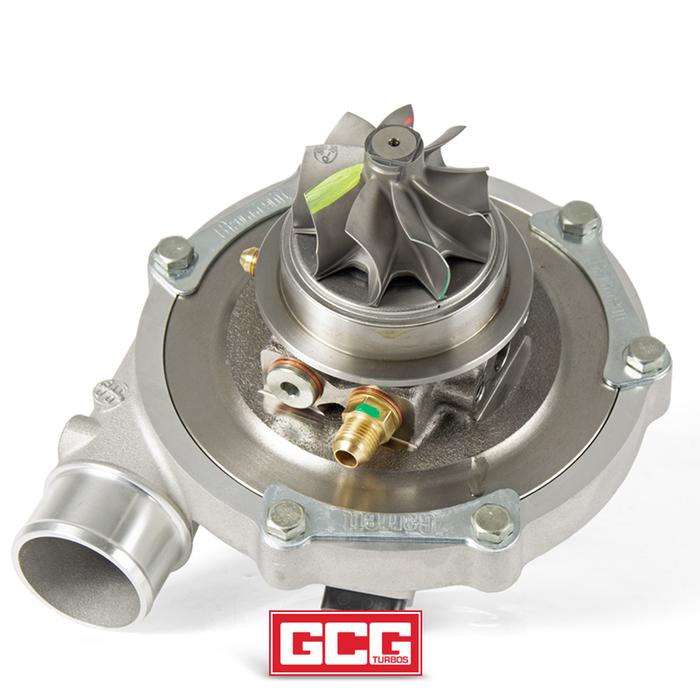

Garrett G35-990 G-Series II Supercore

$2,885.40
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Garrett G35-990 G-Series II Supercore ONLY (turbine housing not included)

  • Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
  • New compressor aero technology increases power and performance.
  • Direct upgrade path for Gen I customers with just a CHRA purchase.
  • G-Series II utilizes Gen I compressor and turbine housings.
  • Increased efficiency at high flow rates.
  • Standard and reverse rotation configurations.
  • Mar-M alloy turbine wheel rated up to 1050° C.
  • Stainless steel turbine housings are rated up to 1050° C.
  • Oil restrictor and water fittings included.



Product Notes:

Calibration is required to take advantage of increased flow for a horsepower upgrade.

WARNING: The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers G781328-0003 (includes sensor and gauge), G781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (G923586-0003).

Sensor Kits sold separately.

Technical Specifications

  • Power Rating: 550hp – 990hp
  • Recommended Engine Displacement: 2.0L - 5.5L
  • Bearing System: Ball Bearing
  • Lubrication: Water and Oil

Compressor

  • Inducer: 62mm, Exducer: 76mm, Trim: 65, A/R: 0.72

Turbine

  • Inducer: 68mm, Exducer: 62mm, Trim: 84
