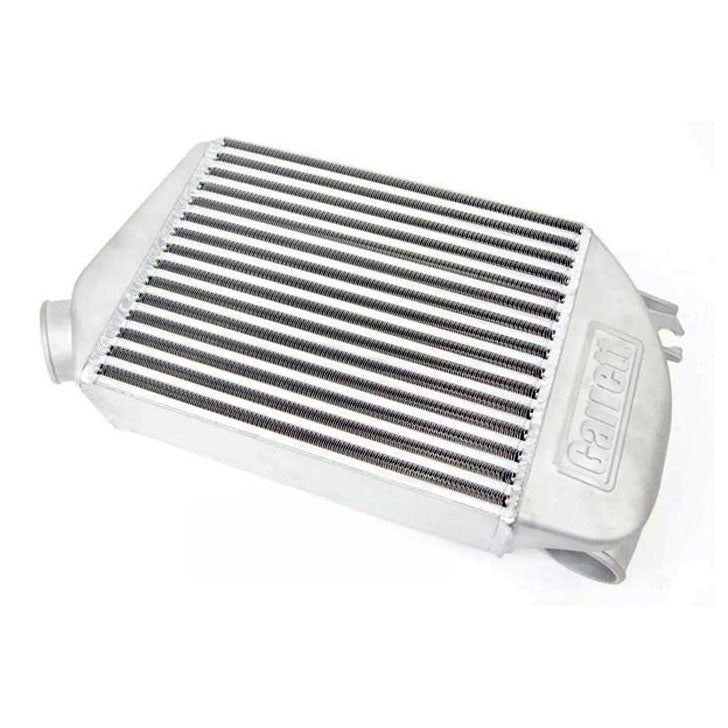

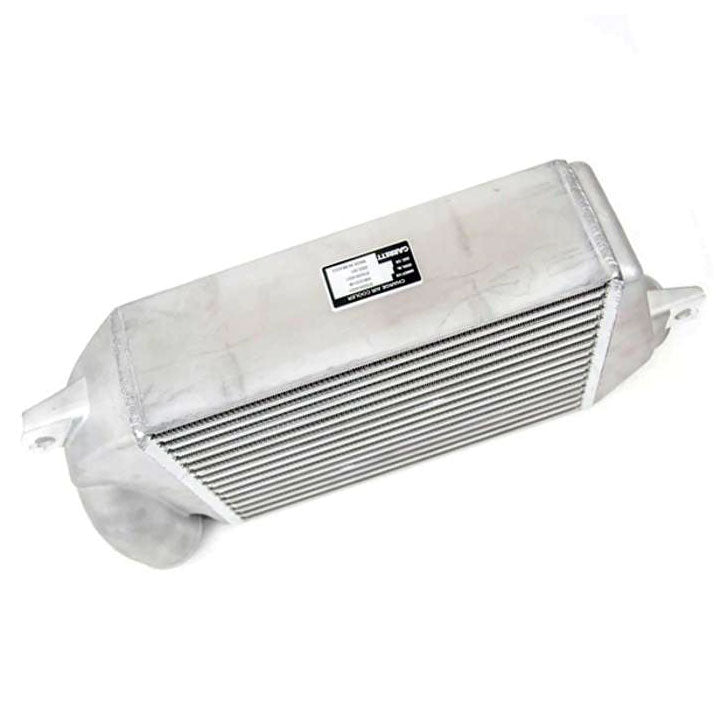

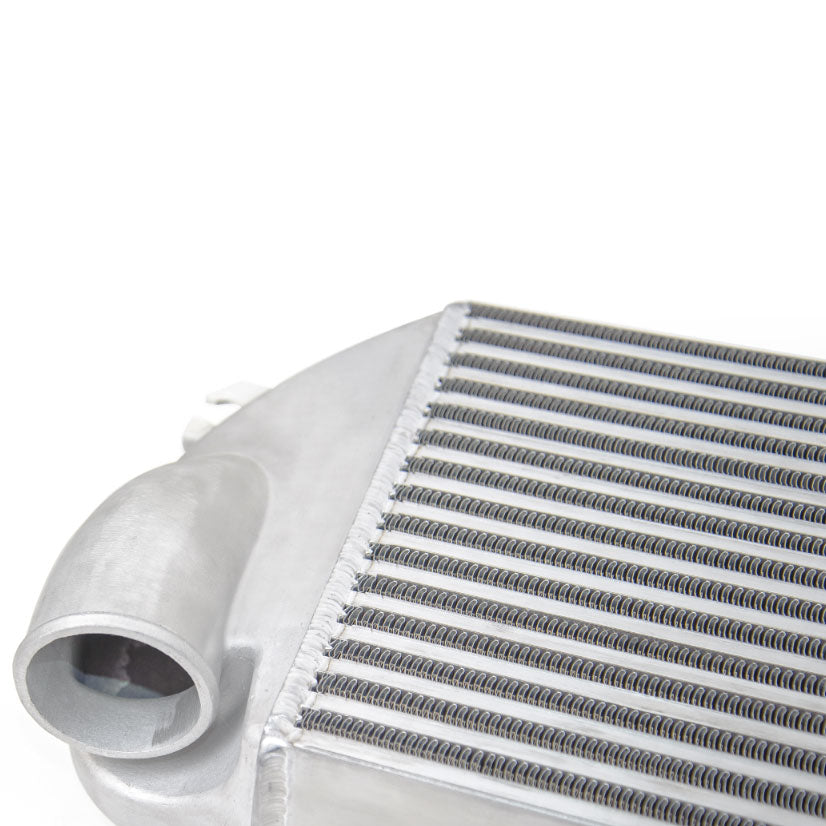

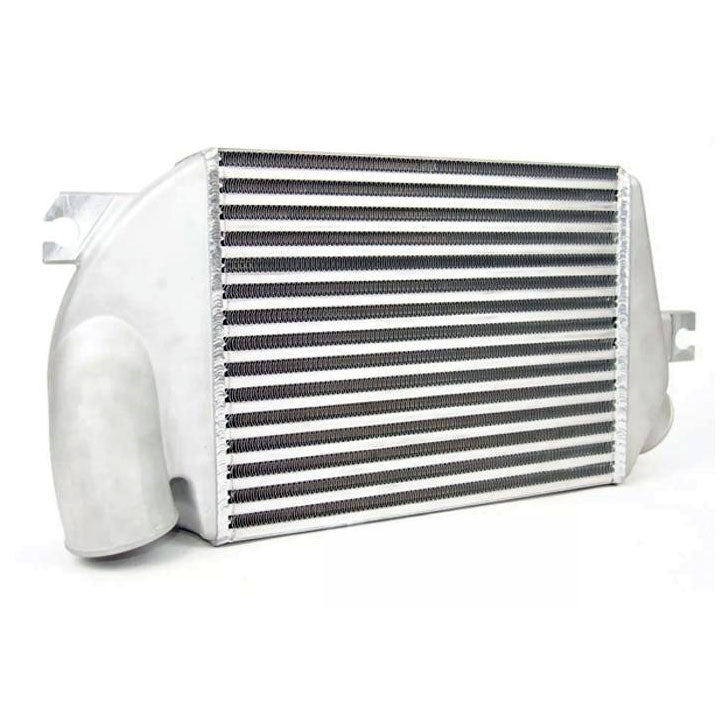

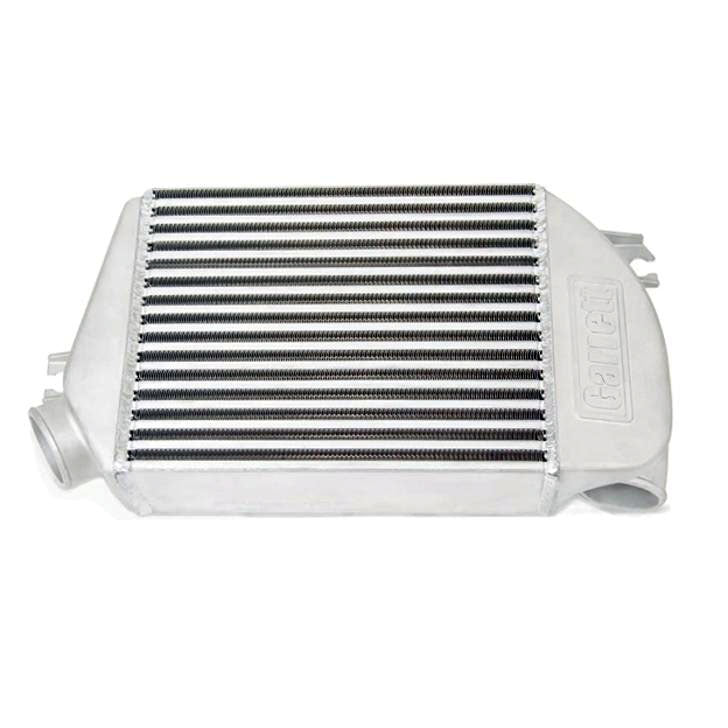

Garrett PowerMax Intercooler Raw Finish

Subaru WRX VA 15-21
$1,006.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Unlock consistent, repeatable power from your Subaru WRX VA (2015–2021) with the Garrett PowerMax Intercooler in raw finish. Engineered as a true direct-fit upgrade, this charge air cooler delivers lower intake temperatures, reduced heat soak and proven gains in power, all while retaining factory mounting points and hardware.

Featuring a 70% larger core than the stock intercooler and optimised cast aluminium end tanks, the PowerMax flows more air with less restriction. In Garrett’s back-to-back wind tunnel dyno testing, this intercooler showed gains of up to 16 hp (12 kW) and 15 lb-ft (20 N·m) of torque over the OEM unit, while increasing the heat saturation point from 4 to 6 consecutive dyno pulls.

Designed to support builds up to 530 hp (395 kW), it’s ideal for tuned or heavily modified WRX applications where reliability and intake temperature control are critical. Installation typically takes around 1 hour using the original bolts, hoses and clamps; only minor trimming of the factory engine cover is required.

Features and Benefits

  • Direct-fit upgrade for WRX VA 15–21 – Bolts into the factory location and reuses OEM hoses, clamps and bolts for a straightforward installation.
  • 70% larger core – Significantly increased charge air cooling area compared to stock, helping manage higher boost and power levels.
  • Lower intake temperatures – Average intake manifold temperature reduction of about 30°F (16.7 °C), improving performance and consistency.
  • Proven power gains – Up to 16 hp (12 kW) and 15 lb-ft (20 N·m) torque increase over the OEM intercooler in controlled wind tunnel dyno testing.
  • Higher heat saturation threshold – Heat soak point extended from 4 to 6 consecutive dyno pulls, supporting harder driving and track use.
  • Supports up to 530 hp (395 kW) – Suitable for tuned and high-output setups requiring greater intercooler capacity.
  • Durable construction – Cast aluminium end tanks, vacuum-brazed bar-and-plate core and TIG welded assembly for strength and longevity.
  • Raw finish – Ideal for a functional motorsport look or for custom finishing to suit your engine bay.

Technical Specifications

  • Brand: Garrett
  • Product name: Garrett PowerMax Intercooler Raw Finish
  • SKU: 4003-04341
  • Vehicle fitment: Subaru WRX VA 2015–2021
  • Core size: 70% larger than OEM
  • Power rating: Supports up to 530 hp (395 kW)
  • Intake temperature reduction: Approx. 30°F (16.7 °C) average vs OEM
  • Measured gains: Up to 16 hp (12 kW) and 15 lb-ft (20 N·m) vs OEM (wind tunnel dyno testing)
  • Construction: Vacuum-brazed bar-and-plate core with cast aluminium end tanks
  • Welding: TIG welded
  • Installation hardware: Uses OEM bolts, clamps and hoses
  • Installation time: Approx. 1 hour (trimming of OE engine cover required)
  • Finish: Raw aluminium

Included Components

  • Garrett PowerMax direct-fit intercooler (raw finish)
  • Installation instructions
  • Reuses OEM bolts, clamps and hoses (not included)
